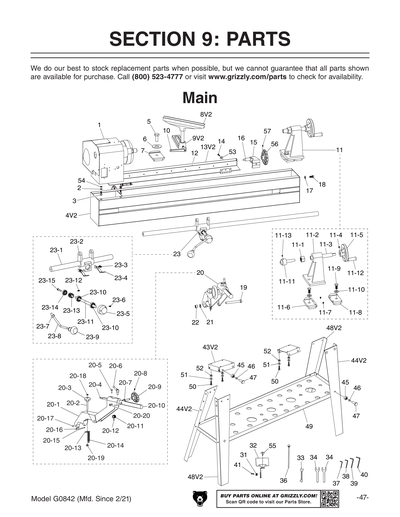

Parts for G0842 - 14" x 37" Wood Lathe with Copy Attachment

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

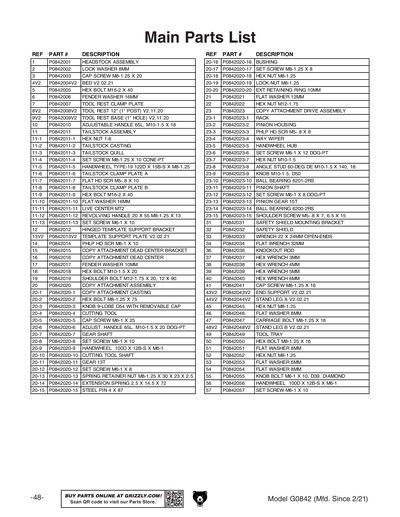

Ref # Part # Description Price Qty
1 P0842001 HEADSTOCK ASSEMBLY $632.50
2 P0842002
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
3 P0842003
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
N/A View Replacement
4 P0842004 BED V1 $92.75
4V2 P0842004V2 BED V2.02.21 $151.00
5 P0842005
Replaced By PB132M
HEX BOLT M16-2 X 40
N/A View Replacement
6 P0842006
Replaced By PWF16M
FENDER WASHER 16MM
N/A View Replacement
7 P0842007 TOOL REST CLAMP PLATE $8.00
8 P0842008 TOOL REST 12" (20MM POST) $16.75
8V2 P0842008V2 TOOL REST 12" (1" POST) V2.11.20 $18.25
9 P0842009 TOOL REST BASE (20MM HOLE) $19.00
9V2 P0842009V2 TOOL REST BASE (1" HOLE) V2.11.20 $19.00
10 P0842010 ADJUSTABLE HANDLE 65L, M10-1.5 X 18 $1.25
11 P0842011 TAILSTOCK ASSEMBLY $129.00
11-1 P0842011-1
Replaced By PN22
HEX NUT 1-8
N/A View Replacement
11-10 P0842011-10
Replaced By PW08M
FLAT WASHER 16MM
N/A View Replacement
11-11 P0842011-11 LIVE CENTER MT2 $20.00
11-12 P0842011-12 REVOLVING HANDLE 20 X 55 M8-1.25 X 13 $7.75
11-13 P0842011-13
Replaced By PSS01M
SET SCREW M6-1 X 10
N/A View Replacement
11-2 P0842011-2 TAILSTOCK CASTING $52.25
11-3 P0842011-3 TAILSTOCK QUILL $19.25
11-4 P0842011-4 SET SCREW M8-1.25 X 10 CONE-PT $1.00
11-5 P0842011-5 HANDWHEEL TYPE-19 122D X 15B-S X M8-1.25 $8.50
11-6 P0842011-6 TAILSTOCK CLAMP PLATE A $13.75
11-7 P0842011-7
Replaced By PFH07M
FLAT HD SCR M5-.8 X 10
N/A View Replacement
11-8 P0842011-8 TAILSTOCK CLAMP PLATE B $12.00
11-9 P0842011-9
Replaced By PB132M
HEX BOLT M16-2 X 40
N/A View Replacement
12 P0842012 HINGED TEMPLATE SUPPORT BRACKET $23.00
13 P0842013 TEMPLATE SUPPORT PLATE $5.75
14 P0842014
Replaced By PS68M
PHLP HD SCR M6-1 X 10
N/A View Replacement
15 P0842015 COPY ATTACHMENT DEAD CENTER BRACKET $13.00
16 P0842016 COPY ATTACHMENT DEAD CENTER $4.25
17 P0842017
Replaced By PWF10M
FENDER WASHER 10MM
N/A View Replacement
18 P0842018
Replaced By PB74M
HEX BOLT M10-1.5 X 20
N/A View Replacement
19 P0842019 SHOULDER BOLT M12-1.75 X 20, 12 X 90 $4.50
20 P0842020 COPY ATTACHMENT ASSEMBLY $199.50
20-1 P0842020-1 COPY ATTACHMENT CASTING $111.00
20-10 P0842020-10 CUTTING TOOL SHAFT $30.25
20-11 P0842020-11 GEAR 13T $4.25
20-12 P0842020-12
Replaced By PSS03M
SET SCREW M6-1 X 8
N/A View Replacement
20-13 P0842020-13 SPRING RETAINER NUT M8-1.25 X 30 X23X2.5 $1.00
20-14 P0842020-14 EXTENSION SPRING 2.5 X 14.5 X 72 $1.00
20-15 P0842020-15 STEEL PIN 4 X 87 $1.25
20-16 P0842020-16 BUSHING $1.25
20-17 P0842020-17
Replaced By PSS20M
SET SCREW M8-1.25 X 8
N/A View Replacement
20-18 P0842020-18
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
20-19 P0842020-19
Replaced By PLN04M
LOCK NUT M8-1.25
N/A View Replacement
20-2 P0842020-2
Replaced By PB184M
HEX BOLT M8-1.25 X 75
N/A View Replacement
20-20 P0842020-20
Replaced By PR01M
EXT RETAINING RING 10MM
N/A View Replacement
20-3 P0842020-3 KNOB 9-LOBE D54 WITH REMOVABLE CAP $2.25
20-4 P0842020-4 CUTTING TOOL $9.50
20-5 P0842020-5
Replaced By PCAP06M
CAP SCREW M6-1 X 25
N/A View Replacement
20-6 P0842020-6 ADJUST. HANDLE 65L, M10-1.5 X 20 DOG-PT $1.00
20-7 P0842020-7 GEAR SHAFT $4.50
20-8 P0842020-8
Replaced By PSS01M
SET SCREW M6-1 X 10
N/A View Replacement
20-9 P0842020-9
Replaced By P0842056
HANDWHEEL 100D X 12B-S X M6-1
N/A View Replacement
21 P0842021
Replaced By PW06M
FLAT WASHER 12MM
N/A View Replacement
22 P0842022
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
23 P0842023 COPY ATTACHMENT DRIVE ASSEMBLY $170.00
23-1 P0842023-1 RACK $81.25
23-10 P0842023-10
Replaced By P6201-2RS
BALL BEARING 6201-2RS
N/A View Replacement
23-11 P0842023-11 PINION SHAFT $13.50
23-12 P0842023-12
Replaced By PSS144M
SET SCREW M6-1 X 8 DOG-PT
N/A View Replacement
23-13 P0842023-13 PINION GEAR 15T $5.25
23-14 P0842023-14
Replaced By P6200-2RS
BALL BEARING 6200-2RS
N/A View Replacement
23-15 P0842023-15 SHOULDER SCREW M5-.8 X 7, 6.5 X 15 $1.75
23-2 P0842023-2 PINION HOUSING $46.00
23-3 P0842023-3
Replaced By PS05M
PHLP HD SCR M5-.8 X 8
N/A View Replacement
23-4 P0842023-4 WAY WIPER $1.00
23-5 P0842023-5 HANDWHEEL HUB $6.50
23-6 P0842023-6
Replaced By PSS140M
SET SCREW M6-1 X 12 DOG-PT
N/A View Replacement
23-7 P0842023-7
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
23-8 P0842023-8 ANGLE STUD 60-DEG DE M10-1.5 X 140, 18 $3.50
23-9 P0842023-9 KNOB M10-1.5, D50 $2.00
31 P0842031 SAFETY SHIELD MOUNTING BRACKET $1.00
32 P0842032 SAFETY SHIELD $2.50
33 P0842033
Replaced By PWR2224
WRENCH 22 X 24MM OPEN-ENDS
N/A View Replacement
34 P0842034
Replaced By P0584084
FLAT WRENCH 32MM
N/A View Replacement
36 P0842036 KNOCKOUT ROD $1.50
37 P0842037
Replaced By PAW03M
HEX WRENCH 3MM
N/A View Replacement
38 P0842038
Replaced By PAW04M
HEX WRENCH 4MM
N/A View Replacement
39 P0842039
Replaced By PAW05M
HEX WRENCH 5MM
N/A View Replacement
40 P0842040
Replaced By PAW06M
HEX WRENCH 6MM
N/A View Replacement
41 P0842041
Replaced By PCAP11M
CAP SCREW M8-1.25 X 16
N/A View Replacement
43 P0842043 END SUPPORT $5.50
43V2 P0842043V2 END SUPPORT V2.02.21 $7.00
44 P0842044 STAND LEG A $17.50
45 P0842045
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
46 P0842046
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
47 P0842047
Replaced By PCB06M
CARRIAGE BOLT M8-1.25 X 16
N/A View Replacement
48 P0842048 STAND LEG B $16.75
49 P0842049 TOOL TRAY $71.00
50 P0842050
Replaced By PB03M
HEX BOLT M8-1.25 X 16
N/A View Replacement
51 P0842051
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
52 P0842052
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
53 P0842053
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
54 P0842054
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
55 P0842055 KNOB BOLT M6-1 X 10, D39, DIAMOND $1.00
56 P0842056 HANDWHEEL 100D X 12B-S X M6-1 $12.00
57 P0842057
Replaced By PSS01M
SET SCREW M6-1 X 10
N/A View Replacement

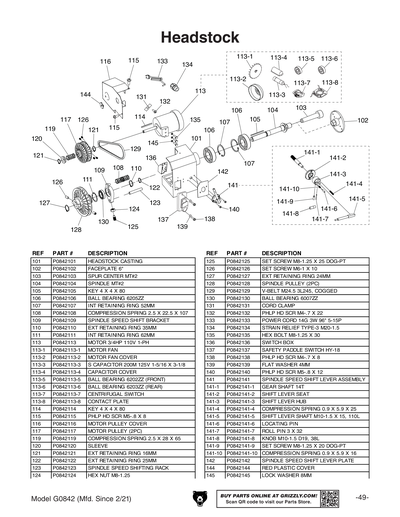

101 P0842101 HEADSTOCK CASTING $158.75
102 P0842102 FACEPLATE 6" $23.00
103 P0842103 SPUR CENTER MT#2 $10.75
104 P0842104 SPINDLE MT#2 $46.50
105 P0842105
Replaced By PK93M
KEY 4 X 4 X 80
N/A View Replacement
106 P0842106
Replaced By P6205ZZ
BALL BEARING 6205ZZ
N/A View Replacement
107 P0842107
Replaced By PR26M
INT RETAINING RING 52MM
N/A View Replacement
108 P0842108 COMPRESSION SPRING 2.5 X 22.5 X 107 $1.00
109 P0842109 SPINDLE SPEED SHIFT BRACKET $11.75
110 P0842110
Replaced By PR12M
EXT RETAINING RING 35MM
N/A View Replacement
111 P0842111
Replaced By PR38M
INT RETAINING RING 62MM
N/A View Replacement
113 P0842113 MOTOR 3/4HP 110V 1-PH $316.25
113-1 P0842113-1 MOTOR FAN $2.25
113-2 P0842113-2 MOTOR FAN COVER $7.75
113-3 P0842113-3 S CAPACITOR 200M 125V 1-5/16 X 3-1/8 $10.75
113-4 P0842113-4 CAPACITOR COVER $2.50
113-5 P0842113-5
Replaced By P6202ZZ
BALL BEARING 6202ZZ
N/A View Replacement
113-6 P0842113-6
Replaced By P6203ZZ
BALL BEARING 6203ZZ
N/A View Replacement
113-7 P0842113-7 CENTRIFUGAL SWITCH W/CONTACT PLATE $14.25
113-8 P0842113-8
Replaced By P0842113-7
CENTRIFUGAL SWITCH W/CONTACT PLATE
N/A View Replacement
114 P0842114
Replaced By PK93M
KEY 4 X 4 X 80
N/A View Replacement
115 P0842115
Replaced By PS05M
PHLP HD SCR M5-.8 X 8
N/A View Replacement
116 P0842116 MOTOR PULLEY COVER $25.00
117 P0842117 MOTOR PULLEY (2PC) $34.50
119 P0842119 COMPRESSION SPRING 2.5 X 28 X 65 $1.00
120 P0842120 SLEEVE $1.25
121 P0842121
Replaced By PR06M
EXT RETAINING RING 16MM
N/A View Replacement
122 P0842122
Replaced By PR11M
EXT RETAINING RING 25MM
N/A View Replacement
123 P0842123 SPINDLE SPEED SHIFTING RACK $4.00
124 P0842124
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
125 P0842125
Replaced By PSS172M
SET SCREW M8-1.25 X 25 DOG-PT
N/A View Replacement
126 P0842126
Replaced By PSS01M
SET SCREW M6-1 X 10
N/A View Replacement
127 P0842127
Replaced By PR58M
EXT RETAINING RING 24MM
N/A View Replacement
128 P0842128 SPINDLE PULLEY (2PC) $41.75
129 P0842129 V-BELT M24.5 3L245, COGGED $8.75
130 P0842130
Replaced By P6007ZZ
BALL BEARING 6007ZZ
N/A View Replacement
131 P0842131 CORD CLAMP $1.00
132 P0842132
Replaced By PS36M
PHLP HD SCR M4-.7 X 22
N/A View Replacement
133 P0842133 POWER CORD 14G 3W 96" 5-15P $25.50
134 P0842134 STRAIN RELIEF TYPE-3 M20-1.5 $1.00
135 P0842135
Replaced By PB26M
HEX BOLT M8-1.25 X 30
N/A View Replacement
136 P0842136 SWITCH BOX $3.00
137 P0842137
Replaced By G8988
Safety Paddle Switch
N/A View Replacement
138 P0842138
Replaced By PS07M
PHLP HD SCR M4-.7 X 8
N/A View Replacement
139 P0842139
Replaced By PW05M
FLAT WASHER 4MM
N/A View Replacement
140 P0842140
Replaced By PS08M
PHLP HD SCR M5-.8 X 12
N/A View Replacement
141 P0842141 SPINDLE SPEED SHIFT LEVER ASSEMBLY $22.75
141-1 P0842141-1 GEAR SHAFT 14T $4.00
141-10 P0842141-10 COMPRESSION SPRING 0.9 X 5.9 X 16 $1.00
141-2 P0842141-2 SHIFT LEVER SEAT $8.50
141-3 P0842141-3 SHIFT LEVER HUB $6.25
141-4 P0842141-4 COMPRESSION SPRING 0.9 X 5.9 X 25 $1.00
141-5 P0842141-5 SHIFT LEVER SHAFT M10-1.5 X 15, 110L $2.75
141-6 P0842141-6 LOCATING PIN $1.25
141-7 P0842141-7
Replaced By PRP67M
ROLL PIN 3 X 32
N/A View Replacement
141-8 P0842141-8 KNOB M10-1.5 D19, 38L $1.00
141-9 P0842141-9
Replaced By PSS153M
SET SCREW M8-1.25 X 20 DOG-PT
N/A View Replacement
142 P0842142 SPINDLE SPEED SHIFT LEVER PLATE $1.25
144 P0842144 RED PLASTIC COVER $1.00
145 P0842145
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
201 P0842201
Replaced By PLABEL-14A
ELECTRICITY 0.7W X 0.6H
N/A View Replacement
202 P0842202 IMPACT INJURY HAZARD LABEL $1.00
203 P0842203
Replaced By PLABEL-55A
ENTANGLEMENT HAZARD 1.5W X 2.5H
N/A View Replacement
204 P0842204 MACHINE ID LABEL $9.50
205 P0842205 MODEL NUMBER LABEL $1.00
206 P0842206
Replaced By PLABEL-88A
FACE SHIELD & SAFETY GLASSES 2W X 3.3H
N/A View Replacement
207 P0842207 GRIZZLY.COM LABEL $1.75
208 P0842208
Replaced By PPAINT-14
BEIGE REF G0555
N/A View Replacement
209 P0842209
Replaced By PPAINT-1
N/S GRIZZLY GREEN G1023S
N/A View Replacement
210 P0842210 WOOD LATHE WARNING LABEL $1.50
211 P0842211
Replaced By PLABEL-12C
READ MANUAL 1.5W X 2.5H
N/A View Replacement
212 P0842212
Replaced By PLABEL-62A
DISCONNECT 110V 1.5W X 2.5H
N/A View Replacement
MAN P0842MAN MANUAL G0842 MFD 04.18 V1.09.18 $6.25
