Parts for G0843P 12" Double Disc Sander - Polar Bear Series

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

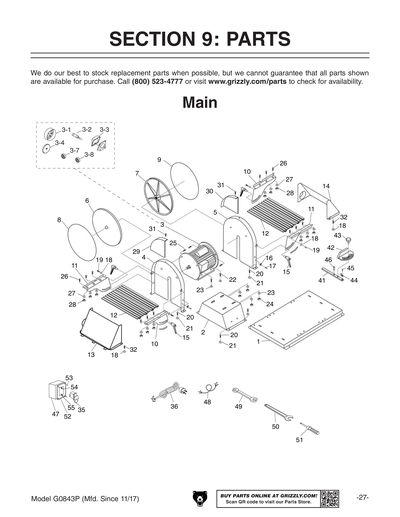

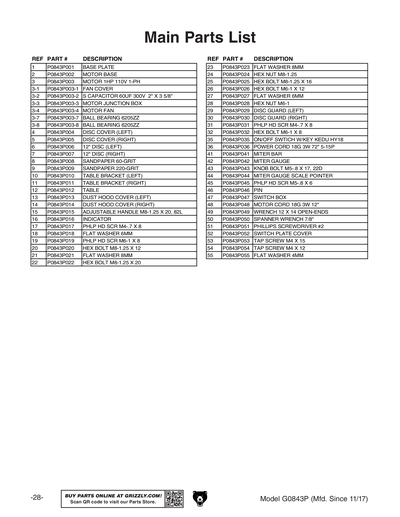

1
BASE PLATE
2
MOTOR BASE
3
MOTOR 1HP 110V 1-PH
3-1
FAN COVER
3-2
S CAPACITOR 60UF 300V 2" X 3 5/8"
3-3
MOTOR JUNCTION BOX
3-4
MOTOR FAN
3-7
BALL BEARING 6205ZZ
Price
N/A
3-8
BALL BEARING 6205ZZ
Price
N/A
4
DISC COVER (LEFT)
5
DISC COVER (RIGHT)
6
12" DISC (LEFT)
7
12" DISC (RIGHT)
8
Now: D1335
12" A/O Sanding Disc, 60 Grit PSA, 2 Pk.
Price
N/A
9
Now: D1341
12" A/O Sanding Disc, 220 Grit PSA, 2 Pk.
Price
N/A
10
TABLE BRACKET (LEFT)
101

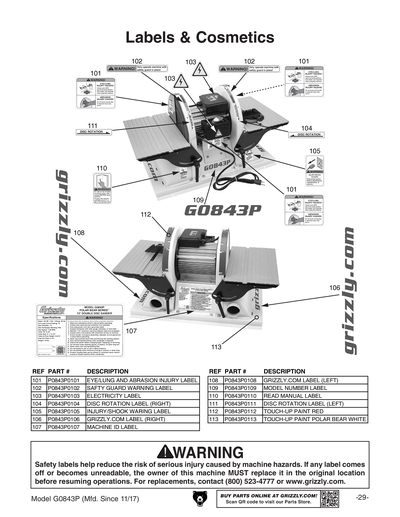

EYE/LUNG AND ABRASION INJURY LABEL
102
SAFTY GUARD WARNING LABEL
103
ELECTRICITY 0.7W X 0.6H
Price
N/A
104
DISC ROTATION LABEL (RIGHT)
105
INJURY/SHOOK WARING LABEL
106
GRIZZLY.COM LABEL 9.875",RED
Price
N/A
107
MACHINE ID LABEL
108
GRIZZLY.COM LABEL 9.875",RED
Price
N/A
109
MODEL NUMBER LABEL
11
TABLE BRACKET (RIGHT)
110
READ MANUAL 1.5W X 2.5H
Price
N/A
111
DISC ROTATION LABEL (LEFT)
112
RED REF TOOL BOXES
Price
N/A
113
POLAR BEAR WHITE TOUCH-UP PAINT
Price
N/A
12
TABLE
13
DUST HOOD COVER (LEFT)
14
DUST HOOD COVER (RIGHT)
15
ADJUSTABLE HANDLE M8-1.25 X 20, 82L
16
INDICATOR
17
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
18
Now: PW03M
FLAT WASHER 6MM
Price
N/A
19
Now: PS03M
PHLP HD SCR M6-1 X 8
Price
N/A
20
Now: PB06M
HEX BOLT M8-1.25 X 12
Price
N/A
21
Now: PW01M
FLAT WASHER 8MM
Price
N/A
22
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
23
Now: PW01M
FLAT WASHER 8MM
Price
N/A
24
Now: PN03M
HEX NUT M8-1.25
Price
N/A
25
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
26
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
27
Now: PW03M
FLAT WASHER 6MM
Price
N/A
28
Now: PN01M
HEX NUT M6-1
Price
N/A
29
DISC GUARD (LEFT)
30
DISC GUARD (RIGHT)
31
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
32
Now: PB05M
HEX BOLT M6-1 X 8
Price
N/A
33
TABLE BRACKET (LEFT)
Price
N/A
34
TABLE BRACKET (RIGHT)
Price
N/A
35
Now: G8988
Safety Paddle Switch
Price
N/A
36
POWER CORD 18G 3W 72" 5-15P
41
MITER BAR
42
MITER GAUGE
43
KNOB BOLT M5-.8 X 17, 22D
44
MITER GAUGE SCALE POINTER
45
Now: PS19M
PHLP HD SCR M5-.8 X 6
Price
N/A
46
PIN
47
SWITCH BOX
48
MOTOR CORD 18G 3W 12"
49
WRENCH 12 X 14 OPEN-ENDS
50
SPANNER WRENCH 7/8"
51
PHILLIPS SCREWDRIVER #2
52
SWITCH PLATE COVER
53
TAP SCREW M4 X 15
54
TAP SCREW M4 X 12
Price
N/A
55
Now: PW05M
FLAT WASHER 4MM
Price
N/A
MAN
G0843P MANUAL MFD-12.17 V1.10.17
