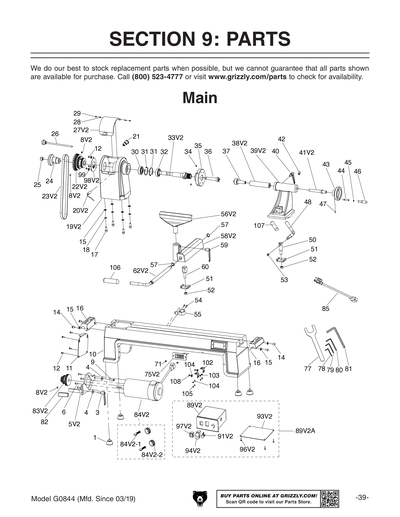

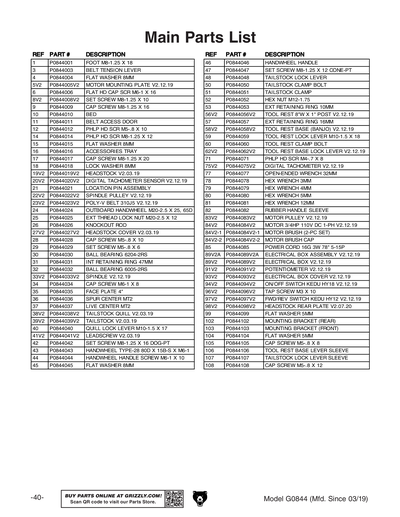

Parts for G0844 14" x 20" Variable-Speed Benchtop Wood Lathe

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
FOOT M8-1.25 X 18
3
BELT TENSION LEVER
4
Now: PW01M
FLAT WASHER 8MM
Price
N/A
5
MOTOR MOUNTING PLATE V1
5V2
MOTOR MOUNTING PLATE V2.12.19
6
FLAT HD CAP SCR M6-1 X 16
Price
N/A
8
SET SCREW M6-1 X 12
Price
N/A
8V2
SET SCREW M8-1.25 X 10
Price
N/A
9
CAP SCREW M8-1.25 X 16
Price
N/A
10
BED
11
BELT ACCESS DOOR
12
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
13
KNURLED HEAD SCR M5-.8 X 12
14
Now: PS76M
PHLP HD SCR M8-1.25 X 12
Price
N/A
15
Now: PW01M
FLAT WASHER 8MM
Price
N/A
16
ACCESSORIES TRAY
17
CAP SCREW M8-1.25 X 20
Price
N/A
18
LOCK WASHER 8MM
Price
N/A
19
HEADSTOCK V1
19V2
HEADSTOCK V2.03.19
20
DIGITAL TACHOMETER SENSOR V1
20V2
DIGITAL TACHOMETER SENSOR V2.12.19
21
LOCATION PIN ASSEMBLY
22
SPINDLE PULLEY V1
22V2
SPINDLE PULLEY V2.12.19
23
POLY-V BELT 310J4 V1
23V2
POLY-V BELT 310J5 V2.12.19
24
OUTBOARD HANDWHEEL M20-2.5 X 25, 65D
25
EXT THREAD LOCK NUT M20-2.5 X 12
26
KNOCKOUT ROD
27
HEADSTOCK COVER V1
27V2
HEADSTOCK COVER V2.03.19
28
CAP SCREW M5-.8 X 10
Price
N/A
29
SET SCREW M5-.8 X 6
Price
N/A
30
BALL BEARING 6204-2RS
Price
N/A
31
Now: PR25M
INT RETAINING RING 47MM
Price
N/A
32
BALL BEARING 6005-2RS
Price
N/A
33
SPINDLE V1
33V2
SPINDLE V2.12.19
34
CAP SCREW M6-1 X 8
Price
N/A
35
FACE PLATE 4"
36
SPUR CENTER MT2
37
LIVE CENTER MT2
38
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
38V2
TAILSTOCK QUILL V2.03.19
39
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
39V2
TAILSTOCK V2.03.19
40
QUILL LOCK LEVER
Price
N/A
41
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
41V2
LEADSCREW V2.03.19
42
SET SCREW M8-1.25 X 16 DOG-PT
Price
N/A
43
HANDWHEEL TYPE-28 80D X 15B-S X M6-1
44
HANDWHEEL HANDLE SCREW M6-1 X 10
45
Now: PW01M
FLAT WASHER 8MM
Price
N/A
46
HANDWHEEL HANDLE
47
SET SCREW M8-1.25 X 12 CONE-PT
Price
N/A
48
TAILSTOCK LOCK LEVER
49
SET SCREW M5-.8 X 16
Price
N/A
50
TAILSTOCK CLAMP BOLT
51
TAILSTOCK CLAMP
52
Now: PN09M
HEX NUT M12-1.75
Price
N/A
53
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
54
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
55
CORD HOOK
56
TOOL REST 8"W X 1" POST V1
56V2
TOOL REST 8"W X 1" POST V2.12.19
57
Now: PR06M
EXT RETAINING RING 16MM
Price
N/A
58
TOOL REST BASE (BANJO) V1
58V2
TOOL REST BASE (BANJO) V2.12.19
59
TOOL REST LOCK LEVER M10-1.5 X 18
60
TOOL REST CLAMP BOLT
61
METAL SLEEVE
62
TOOL REST BASE LOCK LEVER V1
62V2
TOOL REST BASE LOCK LEVER V2.12.19
71
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
75
DIGITAL TACHOMETER V1
75V2
DIGITAL TACHOMETER V2.12.19
75V3
DIGITAL TACHOMETER V3.07.21
75V3-1
DIGITAL TACHOMETER PLASTIC FILM
77
FLAT WRENCH 32MM
Price
N/A
78
HEX WRENCH 3MM
Price
N/A
79
HEX WRENCH 4MM
Price
N/A
80
HEX WRENCH 5MM
Price
N/A
81
HEX WRENCH 12MM
Price
N/A
82
RUBBER HANDLE SLEEVE
83
MOTOR PULLEY V1
83V2
MOTOR PULLEY V2.12.19
84
MOTOR 3/4HP 110V DC 1-PH V1
84-1
MOTOR BRUSH (2-PC SET)
84-2
MOTOR BRUSH CAP
84V2
MOTOR 3/4HP 110V DC 1-PH V2.12.19
84V2-1
MOTOR BRUSH (2-PC SET)
84V2-2
MOTOR BRUSH CAP
85
POWER CORD 16G 3W 78" 5-15P
86
*DISCD* CIRCUIT BOARD
Item is no longer available
Price
N/A
87
PLUG RECEPTACLE FOR MOTOR
88
PLUG RECEPTACLE FOR POWER
89
ELECTRICAL BOX V1
89V2
* SEE EXT. DESCRIPTION*
Price
N/A
89V2A
* SEE EXT. DESCRIPTION*
Item is no longer available
Price
N/A
89V3A
ELECTRICAL BOX ASSEMBLY V3.07.21
90
STRAIN RELIEF M16 X 1.5 TYPE-3
91
POTENTIOMETER B103 V1
91V2
POTENTIOMETER V2.12.19
92
VARIABLE SPEED KNOB
93
ELECTRICAL BOX COVER V1
93V2
* SEE EXT. DESCRIPTION*
Price
N/A
93V3
ELECTRICAL BOX ASSEMBLY V3.07.21
Price
N/A
94
ON/OFF SWITCH KEDU KJD20 V1
94V2
Now: G8988
Safety Paddle Switch
Price
N/A
95
Now: PS18M
PHLP HD SCR M4-.7 X 25
Price
N/A
96
Now: PS79M
PHLP HD SCR M3-.5 X 8
Price
N/A
96V2
TAP SCREW M3 X 10
Price
N/A
97
FWD/REV SWITCH ZH-A V1
97V2
FWD/REV SWITCH KEDU HY12 V2.12.19
98
HEADSTOCK REAR PLATE V2.07.20
Price
N/A
98V2
HEADSTOCK REAR PLATE V2.07.20
99
Now: PW02M
FLAT WASHER 5MM
Price
N/A
100
INT TOOTH WASHER 16MM
101
SPINDLE SPEED SENSOR PLUG
102
MOUNTING BRACKET (REAR)
103
MOUNTING BRACKET (FRONT)
104
Now: PW02M
FLAT WASHER 5MM
Price
N/A
105
CAP SCREW M5-.8 X 8
Price
N/A
106
TOOL REST BASE LEVER SLEEVE
107
TAILSTOCK LOCK LEVER SLEEVE
108
CAP SCREW M5-.8 X 12
Price
N/A

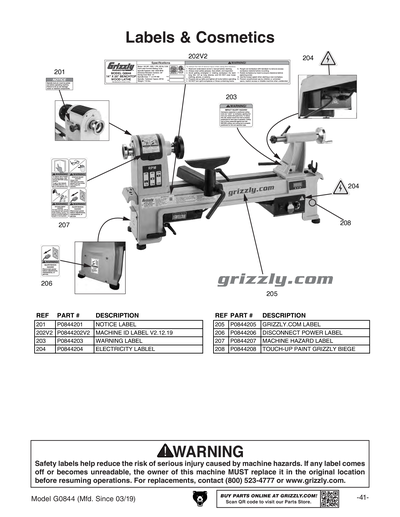

201
NOTICE LABEL
202
MACHINE ID LABEL V1
202V2
MACHINE ID LABEL V2.12.19
203
WARNING LABEL
204
ELECTRICITY 1.4W X 1.2H
Price
N/A
205
GRIZZLY.COM LABEL
206
DISCONNECT 110V 2W X 3.3H
Price
N/A
207
MACHINE HAZARD LABEL
208
BEIGE REF G0555
Price
N/A
MAN
MANUAL G0844 MFD-02.18-11.19 V1.05.18
MANV2
MANUAL G0844 MFD-12.19+ V2.12.19
P
ADAPTOR FOR 4-JAW CHUCK
