Parts for G0845P - Heavy-Duty 50" Electric Metal Shear - Polar Bear Series

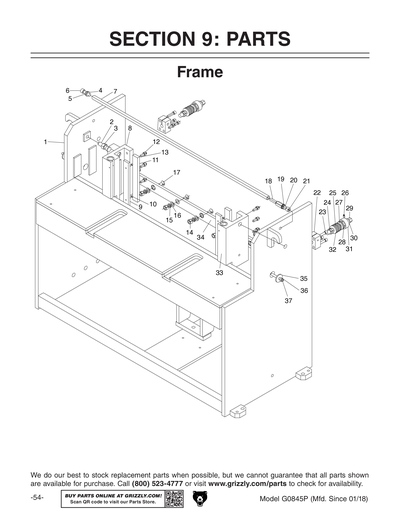

Part Diagram for G0845P
Part Diagram for G0845P
Part Diagram for G0845P
Part Diagram for G0845P
Part Diagram for G0845P
Part Diagram for G0845P
Part Diagram for G0845P
Part Diagram for G0845P
Part Diagram for G0845P
Part Diagram for G0845P
Part Diagram for G0845P
Part Diagram for G0845P
Part Diagram for G0845P
Part Diagram for G0845P
Part Diagram for G0845P
Part Diagram for G0845P
Part Diagram for G0845P
Part Diagram for G0845P

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

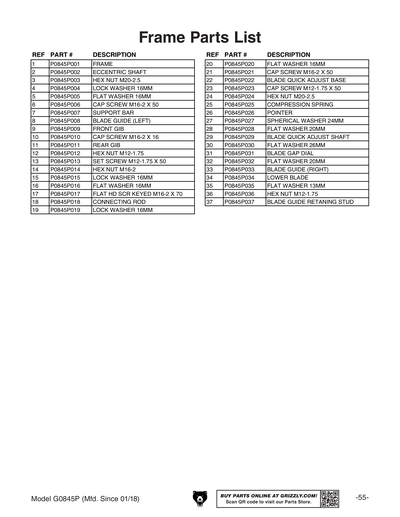

Ref #
Part #
Description
1
FRAME
Price
$8,150.65
2
ECCENTRIC SHAFT
Price
$8.65
3
HEX NUT M20-2.5
Price
N/A
4
LOCK WASHER 16MM
Price
N/A
5
FLAT WASHER 16MM
Price
N/A
6
CAP SCREW M16-2 X 50
Price
N/A
7
SUPPORT BAR
Price
$81.95
8
BLADE GUIDE (LEFT)
Price
$271.70
9
FRONT GIB
Price
$150.95
10
CAP SCREW M16-2 X 16
Price
$1.90
11
REAR GIB
Price
$64.70
12
HEX NUT M12-1.75
Price
N/A
13
SET SCREW M12-1.75 X 50
Price
N/A
14
HEX NUT M16-2
Price
N/A
15
LOCK WASHER 16MM
Price
N/A
16
FLAT WASHER 16MM
Price
N/A
17
FLAT HD SCR KEYED M16-2 X 70
Price
$6.50
18
CONNECTING ROD
Price
$12.95
19
LOCK WASHER 16MM
Price
N/A
20
FLAT WASHER 16MM
Price
N/A
21
CAP SCREW M16-2 X 50
Price
N/A
22
BLADE QUICK ADJUST BASE
Price
$47.45
23
CAP SCREW M12-1.75 X 50
Price
N/A
24
HEX NUT M20-2.5
Price
N/A
25
COMPRESSION SPRING
Price
$4.35
26
POINTER
Price
$2.20
27
SPHERICAL WASHER 24MM
Price
$3.65
28
FLAT WASHER 20MM
Price
N/A
29
BLADE QUICK ADJUST SHAFT
Price
$30.20
30
FLAT WASHER 26MM
Price
$1.90
31
BLADE GAP DIAL
Price
$30.20
32
FLAT WASHER 20MM
Price
N/A
33
BLADE GUIDE (RIGHT)
Price
$271.70
34
LOWER BLADE
Price
$927.20
35
FLAT WASHER 13MM
Price
N/A
36
HEX NUT M12-1.75
Price
N/A
37
BLADE GUIDE RETANING STUD
Price
$4.35
38

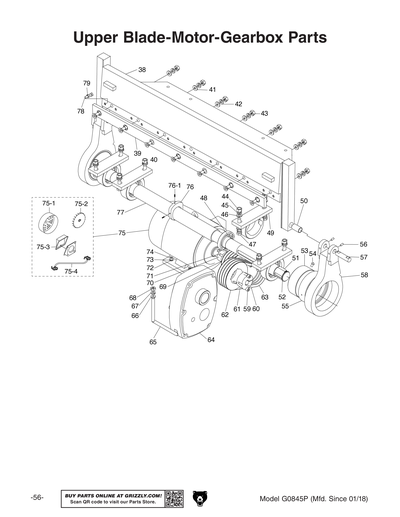

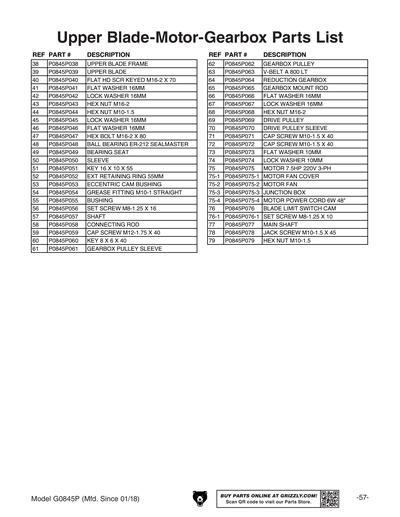

UPPER BLADE FRAME
Price
$2,716.90
39
LOWER BLADE
Price
N/A
40
FLAT HD SCR KEYED M16-2 X 70
Price
N/A
41
FLAT WASHER 16MM
Price
N/A
42
LOCK WASHER 16MM
Price
N/A
43
HEX NUT M16-2
Price
N/A
44
HEX NUT M10-1.5
Price
N/A
45
LOCK WASHER 16MM
Price
N/A
46
FLAT WASHER 16MM
Price
N/A
47
HEX BOLT M16-2 X 80
Price
N/A
48
BEARING SEAT W/BALL BEARING ER-212 SEALMASTER
Price
N/A
49
BEARING SEAT W/BALL BEARING ER-212 SEALMASTER
Price
$418.95
50
SLEEVE
Price
$21.60
51
SLEEVE
Price
$4.35
52
EXT RETAINING RING 55MM
Price
N/A
53
ECCENTRIC CAM BUSHING
Price
$250.15
54
GREASE FITTING M10 X 1 STRAIGHT
Price
N/A
55
BUSHING
Price
$194.10
56
SET SCREW M8-1.25 X 16
Price
N/A
57
SHAFT
Price
$15.15
58
CONNECTING ROD
Price
$474.40
59
CAP SCREW M12-1.75 X 40
Price
N/A
60
KEY 8 X 6 X 40
Price
$2.25
61
GEARBOX PULLEY SLEEVE
Price
$138.40
62
GEARBOX PULLEY
Price
$320.95
63
V-BELT A 800 LT
Price
$21.60
64
REDUCTION GEARBOX
Price
$3,275.40
65
GEARBOX MOUNT ROD
Price
$35.70
66
FLAT WASHER 16MM
Price
N/A
67
LOCK WASHER 16MM
Price
N/A
68
HEX NUT M16-2
Price
N/A
69
DRIVE PULLEY
Price
$172.50
70
*DISCD*DRIVE PULLEY SLEEVE
Item is no longer available
Price
N/A
71
CAP SCREW M10-1.5 X 40
Price
N/A
72
CAP SCREW M10-1.5 X 40
Price
N/A
73
FLAT WASHER 10MM
Price
N/A
74
LOCK WASHER 10MM
Price
N/A
75
MOTOR 7.5HP 220V 3-PH
Price
$1,825.65
75-1
MOTOR FAN COVER
Price
$43.15
75-2
MOTOR FAN
Price
$30.20
75-3
JUNCTION BOX
Price
$38.85
75-4
MOTOR POWER CORD 6W 48"
Price
$107.85
76
BLADE LIMIT SWITCH CAM
Price
$45.35
76-1
SET SCREW M8-1.25 X 10
Price
N/A
77
MAIN SHAFT
Price
$1,225.50
78
JACK SCREW M10-1.5 X 45
Price
$3.65
79
HEX NUT M10-1.5
Price
N/A
80

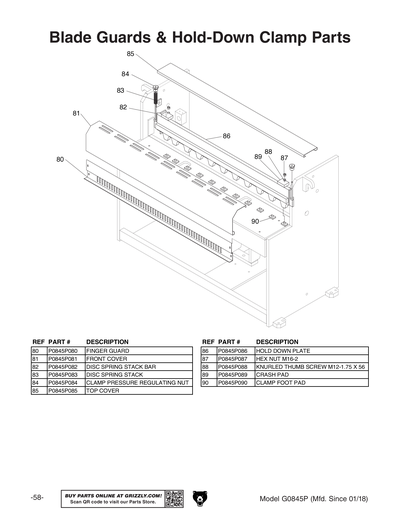

FINGER GUARD
Price
$237.20
81
FRONT COVER
Price
$254.10
82
DISC SPRING STACK BAR
Price
$21.60
83
DISC SPRING STACK
Price
$4.35
84
CLAMP PRESSURE REGULATING NUT
Price
$4.35
85
TOP COVER
Price
$99.20
86
HOLD DOWN PLATE
Price
$884.10
87
HEX NUT M16-2
Price
N/A
88
KNURLED THUMB SCREW M12-1.75 X 55
Price
$4.35
89
CRASH PAD
Price
$3.65
90
CLAMP FOOT PAD
Price
$12.95
91
DOCK WASHER 16 X 44 X 6MM
Price
$1.90
92
FLAT WASHER 16MM
Price
N/A
93
CAP SCREW M16-2 X 30
Price
N/A
94
CAP SCREW M12-1.75 X 40
Price
N/A
95
FLAT WASHER 12MM
Price
N/A
96
LOCK WASHER 12MM
Price
N/A
97
MOUNTING PLATE (LEFT)
Price
$116.45
98
SUPPORT ROD (LEFT)
Price
$267.40
99

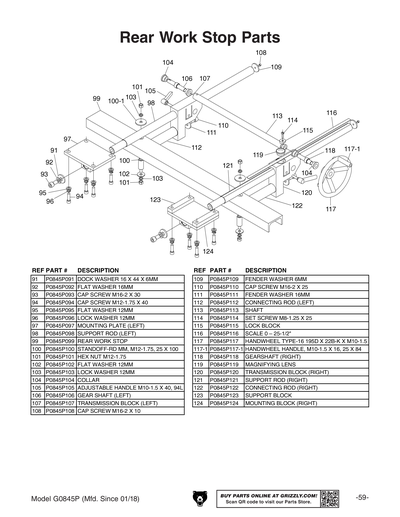

REAR WORK STOP
Price
$276.00
100
STANDOFF-RD MM, M12-1.75, 25 X 100
Price
$8.65
100-1
DOCK WASHER 12 X 50 X 5MM
Price
$1.90
101
HEX NUT M12-1.75
Price
N/A
102
FLAT WASHER 12MM
Price
N/A
103
LOCK WASHER 12MM
Price
N/A
104
COLLAR
Price
$1.90
105
ADJUSTABLE HANDLE M10-1.5 X 40, 94L
Price
$8.65
106
GEAR SHAFT (LEFT)
Price
$21.60
107
TRANSMISSION BLOCK (LEFT)
Price
$176.85
108
CAP SCREW M16-2 X 10
Price
$2.25
109
FENDER WASHER 6MM
Price
N/A
110
CAP SCREW M16-2 X 25
Price
$2.25
111
FENDER WASHER 16MM
Price
N/A
112
CONNECTING ROD (LEFT)
Price
$56.10
113
SHAFT
Price
$51.75
114
SET SCREW M8-1.25 X 25
Price
N/A
115
LOCK BLOCK
Price
$3.65
116
SCALE 0 - 25-1/2"
Price
$21.60
117
HANDWHEEL TYPE-16 195D X 22B-K X M10-1.5
Price
$56.10
117-1
HANDWHEEL HANDLE, M10-1.5 X 16, 25 X 84
Price
$10.85
118
GEARSHAFT (RIGHT)
Price
$25.90
119
MAGNIFYING LENS
Price
$15.15
120
TRANSMISSION BLOCK (RIGHT)
Price
$194.10
121
SUPPORT ROD (RIGHT)
Price
$301.90
122
CONNECTING ROD (RIGHT)
Price
$56.10
123
SUPPORT BLOCK
Price
$17.25
124
MOUNTING BLOCK (RIGHT)
Price
$116.45
125
CAP SCREW M16-2 X 35
Price
N/A
126

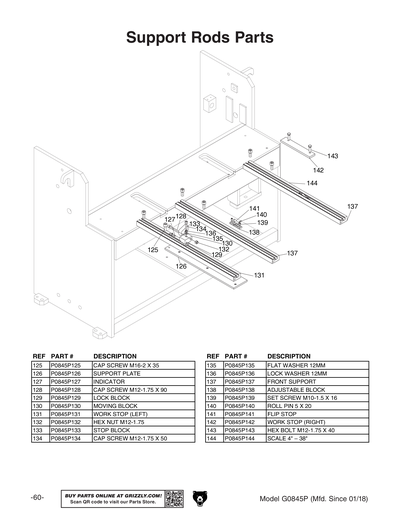

SUPPORT PLATE
Price
$53.95
127
INDICATOR
Price
$10.85
128
CAP SCREW M12-1.75 X 90
Price
N/A
129
LOCK BLOCK
Price
$2.20
130
MOVING BLOCK
Price
$17.25
131
WORK STOP (LEFT)
Price
$176.85
132
HEX NUT M12-1.75
Price
N/A
133
STOP BLOCK
Price
$21.60
134
CAP SCREW M12-1.75 X 50
Price
N/A
135
FLAT WASHER 12MM
Price
N/A
136
LOCK WASHER 12MM
Price
N/A
137
FRONT SUPPORT
Price
$176.85
138
ADJUSTABLE BLOCK
Price
$34.85
139
SET SCREW M10-1.5 X 16
Price
N/A
140
ROLL PIN 5 X 20
Price
N/A
141
FLIP STOP
Price
$8.95
142
WORK STOP (RIGHT)
Price
$21.60
143
HEX BOLT M12-1.75 X 40
Price
N/A
144
SCALE 4" - 38"
Price
$33.10
201

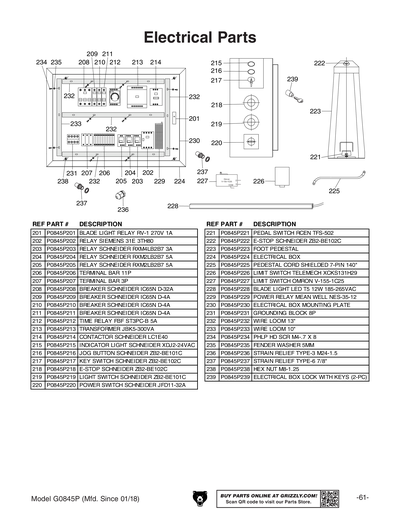

DC POWER FOR LED LIGHT
Price
$165.00
202
RELAY SCHNEIDER RXM 24VAC
Price
$99.20
203
RELAY SCHNEIDER RXM 24VAC
Price
$47.45
204
RELAY SCHNEIDER RXM 24VAC
Price
N/A
205
RELAY SCHNEIDER RXM 24VAC
Price
N/A
206
TERMINAL BAR
Price
$4.35
207
TERMINAL BAR
Price
$4.35
208
BREAKER SCHNEIDER D-32A
Price
$129.40
209
BREAKER SCHNEIDER D-4A
Price
$47.45
210
BREAKER SCHNEIDER D-4A
Price
$47.45
211
BREAKER SCHNEIDER D-4A
Price
N/A
212
TIME RELAY FBF ST3PA-B
Price
$124.85
213
TRANSFORMER JBK5-300VA
Price
$276.00
214
CONTACTOR SCHN LC1E40 24V
Price
$219.95
215
INDICATOR LIGHT SCHNEIDER XDJ2-24VAC
Price
$30.20
216
JOG BUTTON SCHNEIDER ZB2-BE101C
Price
$43.15
217
KEY SWITCH SCHNEIDER ZB2-BE102C
Price
$49.65
218
E-STOP SCHNEIDER ZB2-BE102C
Price
$47.45
219
LIGHT SWITCH SCHNEIDER ZB2-BE101C
Price
$38.85
220
POWER SWITCH SCHNEIDER JFD11-32A
Price
$159.60
221
PEDAL SWITCH RCEN TFS-502
Price
$228.60
222
E-STOP SCHNEIDER ZB2-BE102C
Price
$47.45
223
FOOT PEDESTAL
Price
$150.95
224
ELECTRICAL BOX
Price
$271.70
225
PEDESTAL CORD SHIELDED 7-PIN 140"
Price
$146.65
226
LIMIT SWITCH TELEMECH XCK S131 H29
Price
$271.70
227
LIMIT SWITCH OMRON V-155-1C25
Price
$31.35
228
BLADE LIGHT LED T5 12W 185-265VAC
Price
$64.70
229
POWER RELAY MEAN WELL NES-35-12
Price
$90.60
230
ELECTRICAL BOX MOUNTING PLATE
Price
$66.90
231
GROUNDING BLOCK 8P
Price
$18.00
232
WIRE LOOM 13"
Price
$18.00
233
WIRE LOOM 10"
Price
$13.70
234
PHLP HD SCR M4-.7 X 8
Price
N/A
235
FENDER WASHER 5MM
Price
N/A
236
STRAIN RELIEF TYPE-3 M24-1.5
Price
$18.00
237
STRAIN RELIEF TYPE-6 7/8"
Price
$31.35
238
HEX NUT M8-1.25
Price
N/A
239
ELECTRICAL BOX LOCK W/KEYS (2-PC)
Price
$27.00
301

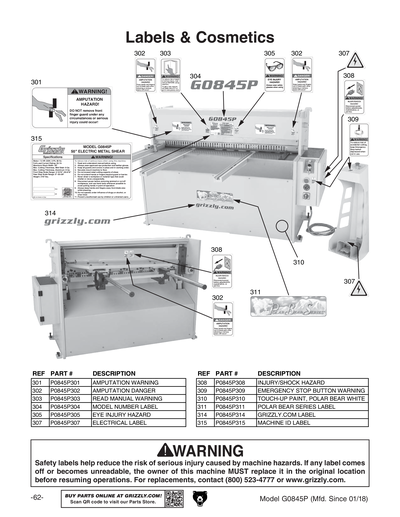

AMPUTATION WARNING
Price
$8.95
302
AMPUTATION DANGER
Price
$4.50
303
READ MANUAL 1.5W X 2.5H
Price
N/A
304
MODEL NUMBER LABEL
Price
$11.65
305
SAFETY GLASSES 1.5W X 2.5H
Price
N/A
307
ELECTRICITY 0.7W X 0.6H
Price
N/A
308
INJURY/SHOCK HAZARD
Price
$4.35
309
EMERGENCY STOP BUTTON WARNING
Price
$3.65
310
POLAR BEAR WHITE TOUCH-UP PAINT
Price
N/A
311
POLAR BEAR LOGO-LARGE 9.5W X 2.5H
Price
N/A
314
GRIZZLY.COM LABEL 13",GREEN
Price
N/A
315
MACHINE ID LABEL
Price
$16.40
MAN
MANUAL G0845P MFD-04.18+ V1.05.18
Price
$19.50
