Parts for G0846 Horizontal Slot Mortiser

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

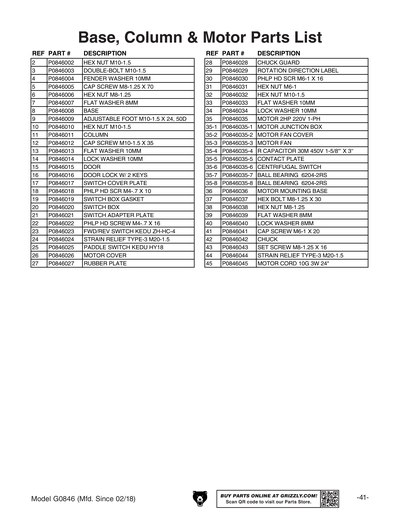

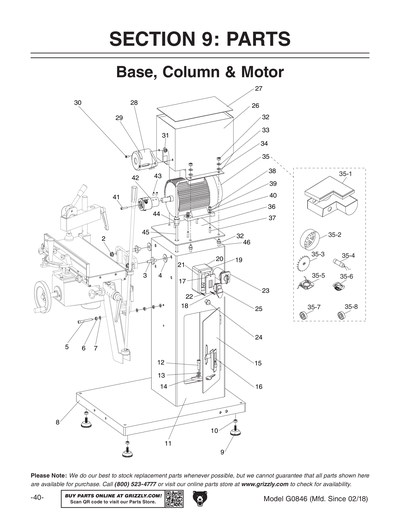

2
Now: PN02M
HEX NUT M10-1.5
Price
N/A
3
DOUBLE-BOLT M10-1.5
4
FENDER WASHER 10MM
Price
N/A
5
CAP SCREW M8-1.25 X 70
Price
N/A
6
Now: PN03M
HEX NUT M8-1.25
Price
N/A
7
Now: PW01M
FLAT WASHER 8MM
Price
N/A
8
BASE
9
ADJUSTABLE FOOT M10-1.5 X 24, 50MM DIA
10
Now: PN02M
HEX NUT M10-1.5
Price
N/A
11
COLUMN
12
CAP SCREW M10-1.5 X 35
Price
N/A
13
Now: PW04M
FLAT WASHER 10MM
Price
N/A
14
LOCK WASHER 10MM
Price
N/A
15
DOOR
16
DOOR LOCK W/ 2 KEYS
17
SWITCH PLATE
Price
N/A
18
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
19
SWITCH BOX GASKET
20
SWITCH BOX
21
SWITCH ADAPTER PLATE
22
Now: PS56M
PHLP HD SCR M4-.7 X 16
Price
N/A
23
FWD/REV SWITCH
24
STRAIN RELIEF TYPE-3 M20-1.5
25
Now: G8988
Safety Paddle Switch
Price
N/A
26
MOTOR COVER
27
RUBBER PLATE
28
CHUCK GUARD
29
ROTATION DIRECTION LABEL
30
Now: PS11M
PHLP HD SCR M6-1 X 16
Price
N/A
31
Now: PN01M
HEX NUT M6-1
Price
N/A
32
Now: PN02M
HEX NUT M10-1.5
Price
N/A
33
Now: PW04M
FLAT WASHER 10MM
Price
N/A
34
LOCK WASHER 10MM
Price
N/A
35
MOTOR 2HP 220V 1-PH
35-1
MOTOR JUNCTION BOX
35-2
MOTOR FAN COVER
35-3
MOTOR FAN
35-4
R CAPACITOR 30uF 450V 1-5/8"' X 3''
35-5
CENTRIFUGAL SWITCH W/CONTACT PLATE
Price
N/A
35-6
CENTRIFUGAL SWITCH W/CONTACT PLATE
35-7
BALL BEARING 6204-2RS
Price
N/A
35-8
BALL BEARING 6204-2RS
Price
N/A
36
MOTOR MOUNTING BASE
37
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
38
Now: PN03M
HEX NUT M8-1.25
Price
N/A
39
Now: PW01M
FLAT WASHER 8MM
Price
N/A
40
LOCK WASHER 8MM
Price
N/A
41
CAP SCREW M6-1 X 20
Price
N/A
42
CHUCK
43
SET SCREW M8-1.25 X 16
Price
N/A
44
STRAIN RELIEF TYPE-3 M20-1.5
Price
N/A
45
MOTOR CORD 10G 3W 24"
46
Now: PB31M
HEX BOLT M10-1.5 X 40
Price
N/A

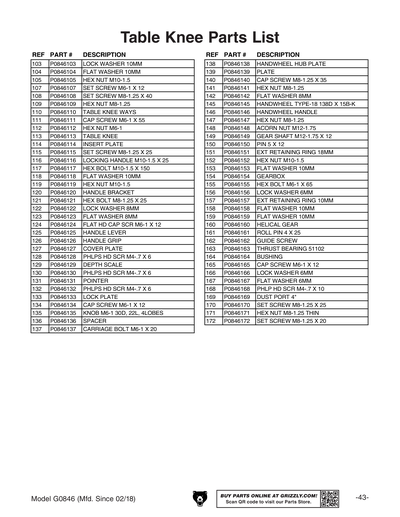

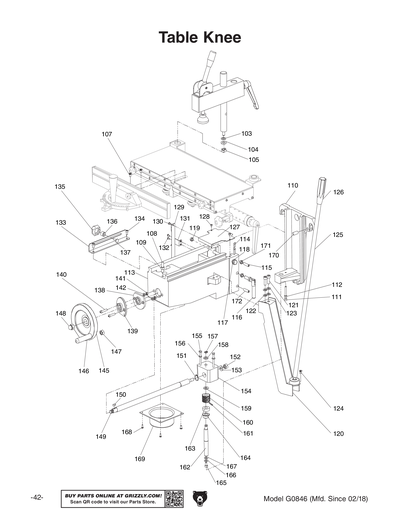

103
LOCK WASHER 10MM
Price
N/A
104
Now: PW04M
FLAT WASHER 10MM
Price
N/A
105
Now: PN02M
HEX NUT M10-1.5
Price
N/A
107
SET SCREW M6-1 X 12
Price
N/A
108
SET SCREW M8-1.25 X 40
Price
N/A
109
Now: PN03M
HEX NUT M8-1.25
Price
N/A
110
TABLE KNEE WAYS
111
CAP SCREW M6-1 X 55
Price
N/A
112
Now: PN01M
HEX NUT M6-1
Price
N/A
113
TABLE KNEE
114
INSERT PLATE
115
SET SCREW M8-1.25 X 25
Price
N/A
116
LOCKING HANDLE M10-1.5 X 25
117
HEX BOLT M10-1.5 X 150
Price
N/A
118
Now: PW04M
FLAT WASHER 10MM
Price
N/A
119
Now: PN02M
HEX NUT M10-1.5
Price
N/A
120
HANDLE BRACKET
121
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
122
LOCK WASHER 8MM
Price
N/A
123
Now: PW01M
FLAT WASHER 8MM
Price
N/A
124
FLAT HD CAP SCR M6-1 X 12
Price
N/A
125
HANDLE LEVER
126
HANDLE GRIP
127
COVER PLATE
128
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
129
DEPTH SCALE
130
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
131
POINTER
132
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
133
LOCK PLATE
134
CAP SCREW M6-1 X 12
Price
N/A
135
KNOB M6-1 30D, 22L, 4LOBES
136
SPACER
137
CARRIAGE BOLT M6-1 X 20
Price
N/A
138
HANDWHEEL HUB PLATE
139
PLATE
140
CAP SCREW M8-1.25 X 35
Price
N/A
141
Now: PN03M
HEX NUT M8-1.25
Price
N/A
142
Now: PW01M
FLAT WASHER 8MM
Price
N/A
145
HANDWHEEL TYPE-18 138D X 15B-K
146
HANDWHEEL HANDLE
147
Now: PN03M
HEX NUT M8-1.25
Price
N/A
148
Now: PN26M
ACORN NUT M12-1.75
Price
N/A
149
GEAR SHAFT M12-1.75 X 12
150
PIN 5 X 12
151
Now: PR07M
EXT RETAINING RING 18MM
Price
N/A
152
Now: PN02M
HEX NUT M10-1.5
Price
N/A
153
Now: PW04M
FLAT WASHER 10MM
Price
N/A
154
GEARBOX
155
HEX BOLT M6-1 X 65
Price
N/A
156
LOCK WASHER 6MM
Price
N/A
157
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
158
Now: PW04M
FLAT WASHER 10MM
Price
N/A
159
Now: PW04M
FLAT WASHER 10MM
Price
N/A
160
HELICAL GEAR
161
ROLL PIN 4 X 25
Price
N/A
162
GUIDE SCREW
163
THRUST BEARING 51102
Price
N/A
164
BUSHING
165
CAP SCREW M6-1 X 12
Price
N/A
166
LOCK WASHER 6MM
Price
N/A
167
Now: PW03M
FLAT WASHER 6MM
Price
N/A
168
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
169
DUST PORT 4"
170
SET SCREW M8-1.25 X 25
Price
N/A
171
Now: PN46M
HEX NUT M8-1.25 THIN
Price
N/A
172
SET SCREW M8-1.25 X 20
Price
N/A

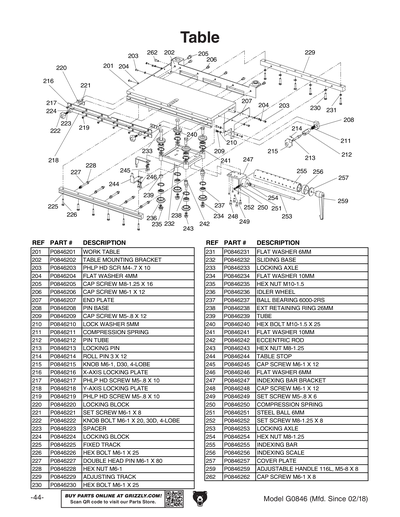

201
WORK TABLE
202
TABLE MOUNTING BRACKET
203
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
204
Now: PW05M
FLAT WASHER 4MM
Price
N/A
205
CAP SCREW M8-1.25 X 16
Price
N/A
206
CAP SCREW M6-1 X 12
Price
N/A
207
END PLATE
208
PIN BASE
209
CAP SCREW M5-.8 X 12
Price
N/A
210
LOCK WASHER 5MM
Price
N/A
211
COMPRESSION SPRING
212
PIN TUBE
213
LOCKING PIN
214
ROLL PIN 3 X 12
Price
N/A
215
KNOB M6-1, D30, 4-LOBE
216
X-AXIS LOCKING PLATE
217
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
218
Y-AXIS LOCKING PLATE
219
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
220
LOCKING BLOCK
221
SET SCREW M6-1 X 8
Price
N/A
222
KNOB BOLT M6-1 X 20, 30D, 4-LOBE
223
SPACER
224
LOCKING BLOCK
225
FIXED TRACK
226
Now: PB10M
HEX BOLT M6-1 X 25
Price
N/A
227
DOUBLE HEAD PIN M6-1 X 80
228
Now: PN01M
HEX NUT M6-1
Price
N/A
229
ADJUSTING TRACK
230
Now: PB10M
HEX BOLT M6-1 X 25
Price
N/A
231
Now: PW03M
FLAT WASHER 6MM
Price
N/A
232
SLIDING BASE
233
LOCKING AXLE
234
Now: PW04M
FLAT WASHER 10MM
Price
N/A
235
Now: PN02M
HEX NUT M10-1.5
Price
N/A
236
IDLER WHEEL
237
BALL BEARING 6000-2RS
Price
N/A
238
Now: PR17M
EXT RETAINING RING 26MM
Price
N/A
239
TUBE
240
Now: PB32M
HEX BOLT M10-1.5 X 25
Price
N/A
241
Now: PW04M
FLAT WASHER 10MM
Price
N/A
242
ECCENTRIC ROD
243
Now: PN03M
HEX NUT M8-1.25
Price
N/A
244
TABLE STOP
245
CAP SCREW M6-1 X 12
Price
N/A
246
Now: PW03M
FLAT WASHER 6MM
Price
N/A
247
INDEXING BAR BRACKET
248
CAP SCREW M6-1 X 12
Price
N/A
249
SET SCREW M5-.8 X 6
Price
N/A
250
COMPRESSION SPRING
251
STEEL BALL 6MM
Price
N/A
252
SET SCREW M8-1.25 X 8
Price
N/A
253
LOCKING AXLE
254
Now: PN03M
HEX NUT M8-1.25
Price
N/A
255
INDEXING BAR
256
INDEXING SCALE
257
COVER PLATE
259
ADJUSTABLE HANDLE 116L, M5-8 X 8
262
CAP SCREW M6-1 X 8
Price
N/A

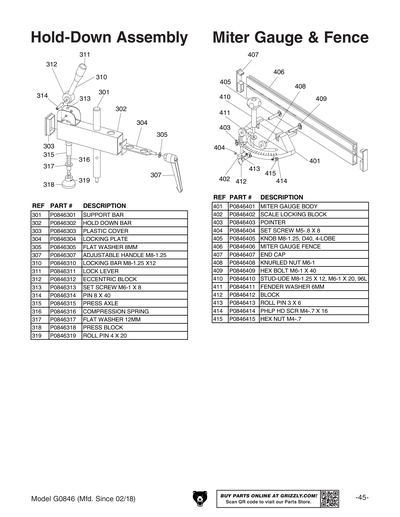

301
SUPPORT BAR
302
HOLD DOWN BAR
303
PLASTIC COVER
304
LOCKING PLATE
305
Now: PW01M
FLAT WASHER 8MM
Price
N/A
307
ADJUSTABLE HANDLE M8-1.25
310
LOCKING BAR M8-1.25 X12
311
LOCK LEVER
312
ECCENTRIC BLOCK
313
SET SCREW M6-1 X 8
Price
N/A
314
PIN 8 X 40
315
PRESS AXLE
316
COMPRESSION SPRING
317
Now: PW06M
FLAT WASHER 12MM
Price
N/A
318
PRESS BLOCK
319
ROLL PIN 4 X 20
Price
N/A
401
MITER GAUGE BODY
402
SCALE LOCKING BLOCK
403
POINTER
404
SET SCREW M5-.8 X 8
Price
N/A
405
KNOB M8-1.25, D40, 4-LOBE
406
MITER GAUGE FENCE
407
END CAP
408
Now: PN01M
HEX NUT M6-1
Price
N/A
409
Now: PB47M
HEX BOLT M6-1 X 40
Price
N/A
410
STUD-UDE M8-1.25 X 12, M6-1 X 20, 96L
411
FENDER WASHER 6MM
Price
N/A
412
BLOCK
413
ROLL PIN 3 X 6
Price
N/A
414
Now: PS56M
PHLP HD SCR M4-.7 X 16
Price
N/A
415
Now: PN04M
HEX NUT M4-.7
Price
N/A

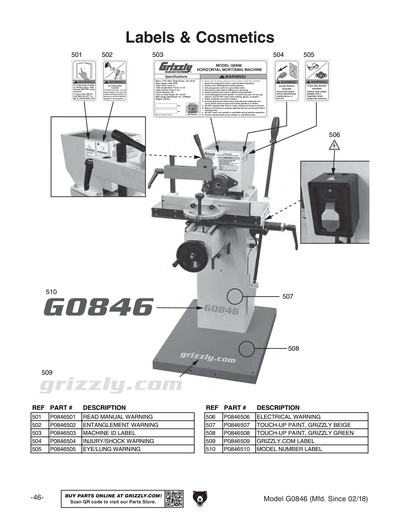

501
READ MANUAL 1.5W X 2.5H
Price
N/A
502
ENTANGLEMENT HAZARD 1.5W X 2.5H
Price
N/A
503
MACHINE ID LABEL
504
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
505
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
506
ELECTRICAL WARNING
507
BEIGE REF G0555
Price
N/A
508
N/S GRIZZLY GREEN G1023S
Price
N/A
509
GRIZZLY.COM LABEL 12",BEIGE
Price
N/A
510
MODEL NUMBER LABEL
MAN
MANUAL G0846 MFD-11.17 V1.04.18
