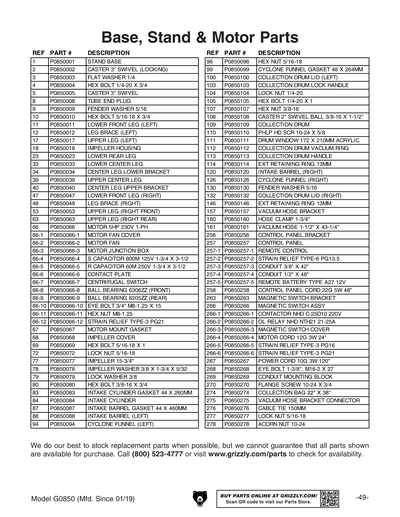

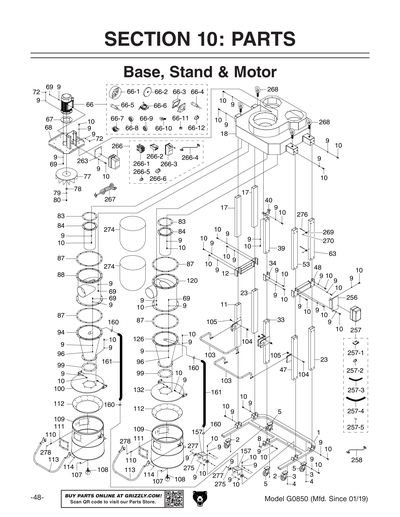

Parts for G0850 5 HP Cyclone Dust Collector

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
STAND BASE
2
CASTER 3" SWIVEL (LOCKING)
3
Now: PW06
FLAT WASHER 1/4
Price
N/A
4
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
5
CASTER 3" SWIVEL
6
Now: PW06
FLAT WASHER 1/4
Price
N/A
7
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
8
TUBE END PLUG
Item is no longer available
Price
N/A
9
Now: PWF01
FENDER WASHER 5/16
Price
N/A
10
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
11
LOWER FRONT LEG (LEFT)
Item is no longer available
Price
N/A
12
LEG BRACE (LEFT)
13
Now: PWF01
FENDER WASHER 5/16
Price
N/A
14
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
15
Now: PWF01
FENDER WASHER 5/16
Price
N/A
16
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
17
UPPER LEG (LEFT)
Item is no longer available
Price
N/A
18
IMPELLER HOUSING
Item is no longer available
Price
N/A
19
Now: PWF01
FENDER WASHER 5/16
Price
N/A
20
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
21
Now: PWF01
FENDER WASHER 5/16
Price
N/A
22
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
23
LOWER REAR LEG
Item is no longer available
Price
N/A
24
Now: PWF01
FENDER WASHER 5/16
Price
N/A
25
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
26
Now: PWF01
FENDER WASHER 5/16
Price
N/A
27
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
28
UPPER LEG (LEFT)
Price
N/A
29
Now: PWF01
FENDER WASHER 5/16
Price
N/A
30
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
31
Now: PWF01
FENDER WASHER 5/16
Price
N/A
32
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
33
LOWER CENTER LEG
Item is no longer available
Price
N/A
34
CENTER LEG LOWER BRACKET
35
Now: PWF01
FENDER WASHER 5/16
Price
N/A
36
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
37
Now: PWF01
FENDER WASHER 5/16
Price
N/A
38
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
39
UPPER CENTER LEG
Item is no longer available
Price
N/A
40
CENTER LEG UPPER BRACKET
41
Now: PWF01
FENDER WASHER 5/16
Price
N/A
42
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
43
Now: PWF01
FENDER WASHER 5/16
Price
N/A
44
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
45
Now: PWF01
FENDER WASHER 5/16
Price
N/A
46
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
47
LOWER FRONT LEG (RIGHT)
Item is no longer available
Price
N/A
48
LEG BRACE (RIGHT)
49
Now: PWF01
FENDER WASHER 5/16
Price
N/A
50
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
51
Now: PWF01
FENDER WASHER 5/16
Price
N/A
52
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
53
UPPER LEG (RIGHT FRONT)
Item is no longer available
Price
N/A
54
Now: PWF01
FENDER WASHER 5/16
Price
N/A
55
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
56
Now: PWF01
FENDER WASHER 5/16
Price
N/A
57
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
58
LOWER REAR LEG
Price
N/A
59
Now: PWF01
FENDER WASHER 5/16
Price
N/A
60
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
61
Now: PWF01
FENDER WASHER 5/16
Price
N/A
62
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
63
UPPER LEG (RIGHT REAR)
Item is no longer available
Price
N/A
64
Now: PWF01
FENDER WASHER 5/16
Price
N/A
65
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
66
MOTOR 5HP 230V 1-PH
66-1
MOTOR FAN COVER
Item is no longer available
Price
N/A
66-10
EYE BOLT 3/4" M8-1.25 X 15
Item is no longer available
Price
N/A
66-11
Now: PN03M
HEX NUT M8-1.25
Price
N/A
66-12
STRAIN RELIEF TYPE-3 PG21
Item is no longer available
Price
N/A
66-2
MOTOR FAN
Item is no longer available
Price
N/A
66-3
MOTOR JUNCTION BOX
Item is no longer available
Price
N/A
66-4
S CAPACITOR 250M 250V 1-3/4 X 3-1/2
Item is no longer available
Price
N/A
66-5
R CAPACITOR 35M 400V 1-3/4 X 3-1/2
Item is no longer available
Price
N/A
66-6
CONTACT PLATE
Item is no longer available
Price
N/A
66-7
CENTRIFUGAL SWITCH
Item is no longer available
Price
N/A
66-8
BALL BEARING 6306ZZ
Price
N/A
66-9
BALL BEARING 6205ZZ
Price
N/A
67
MOTOR MOUNT GASKET
Item is no longer available
Price
N/A
68
IMPELLER COVER
Item is no longer available
Price
N/A
69
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
70
Now: PWF01
FENDER WASHER 5/16
Price
N/A
71
Now: PWF01
FENDER WASHER 5/16
Price
N/A
72
Now: PLN03
LOCK NUT 5/16-18
Price
N/A
73
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
74
Now: PWF01
FENDER WASHER 5/16
Price
N/A
75
Now: PWF01
FENDER WASHER 5/16
Price
N/A
76
Now: PLN03
LOCK NUT 5/16-18
Price
N/A
77
IMPELLER 15-3/4"
Item is no longer available
Price
N/A
78
IMPELLER WASHER 3/8 X 1-3/4 X 5/32
Item is no longer available
Price
N/A
79
Now: PLW04
LOCK WASHER 3/8
Price
N/A
80
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
81
Now: PWF01
FENDER WASHER 5/16
Price
N/A
82
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
83
INTAKE CYLINDER GASKET 44 X 260MM
Item is no longer available
Price
N/A
84
INTAKE CYLINDER
Item is no longer available
Price
N/A
85
Now: PWF01
FENDER WASHER 5/16
Price
N/A
86
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
87
INTAKE BARREL GASKET 44 X 460MM
Item is no longer available
Price
N/A
88
INTAKE BARREL (LEFT)
Item is no longer available
Price
N/A
89
Now: PWF01
FENDER WASHER 5/16
Price
N/A
90
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
91
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
92
Now: PWF01
FENDER WASHER 5/16
Price
N/A
93
INTAKE BARREL GASKET 44 X 460MM
Price
N/A
94
CYCLONE FUNNEL (LEFT)
Item is no longer available
Price
N/A
95
Now: PWF01
FENDER WASHER 5/16
Price
N/A
96
Now: PN02
HEX NUT 5/16-18
Price
N/A
97
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
98
Now: PWF01
FENDER WASHER 5/16
Price
N/A
99
CYCLONE FUNNEL GASKET 48 X 264MM
Item is no longer available
Price
N/A
100
COLLECTION DRUM LID (LEFT)
Item is no longer available
Price
N/A
101
Now: PWF01
FENDER WASHER 5/16
Price
N/A
102
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
103
COLLECTION DRUM LOCK HANDLE
Item is no longer available
Price
N/A
104
Now: PLN02
LOCK NUT 1/4-20
Price
N/A
105
Now: PB31
HEX BOLT 1/4-20 X 1
Price
N/A
106
E-CLIP 7MM
Price
N/A
107
Now: PN08
HEX NUT 3/8-16
Price
N/A
108
CASTER 2" SWIVEL BALL 3/8-16 X 1-1/2"
109
COLLECTION DRUM
Item is no longer available
Price
N/A
110
Now: PS22
PHLP HD SCR 10-24 X 5/8
Price
N/A
111
DRUM WINDOW 172 X 210MM ACRYLIC
Item is no longer available
Price
N/A
112
COLLECTION DRUM VACUUM RING
Item is no longer available
Price
N/A
113
COLLECTION DRUM HANDLE
114
Now: PR47M
EXT RETAINING RING 13MM
Price
N/A
115
INTAKE CYLINDER GASKET 44 X 260MM
Price
N/A
116
INTAKE CYLINDER
Price
N/A
117
Now: PWF01
FENDER WASHER 5/16
Price
N/A
118
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
119
INTAKE BARREL GASKET 44 X 460MM
Price
N/A
120
INTAKE BARREL (RIGHT)
Item is no longer available
Price
N/A
121
Now: PWF01
FENDER WASHER 5/16
Price
N/A
122
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
123
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
124
Now: PWF01
FENDER WASHER 5/16
Price
N/A
125
INTAKE BARREL GASKET 44 X 460MM
Price
N/A
126
CYCLONE FUNNEL (RIGHT)
Item is no longer available
Price
N/A
127
Now: PWF01
FENDER WASHER 5/16
Price
N/A
128
Now: PN02
HEX NUT 5/16-18
Price
N/A
129
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
130
Now: PWF01
FENDER WASHER 5/16
Price
N/A
131
CYCLONE FUNNEL GASKET 48 X 264MM
Price
N/A
132
COLLECTION DRUM LID (RIGHT)
Item is no longer available
Price
N/A
133
Now: PWF01
FENDER WASHER 5/16
Price
N/A
134
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
135
COLLECTION DRUM LOCK HANDLE
Price
N/A
136
E-CLIP 7MM
Price
N/A
137
Now: PB31
HEX BOLT 1/4-20 X 1
Price
N/A
138
E-CLIP 7MM
Price
N/A
139
Now: PN08
HEX NUT 3/8-16
Price
N/A
140
CASTER 2" SWIVEL BALL 3/8-16 X 1-1/2"
Price
N/A
141
COLLECTION DRUM
Price
N/A
142
Now: PS22
PHLP HD SCR 10-24 X 5/8
Price
N/A
143
DRUM WINDOW 172 X 210MM ACRYLIC
Price
N/A
144
COLLECTION DRUM VACUUM RING
Price
N/A
145
COLLECTION DRUM HANDLE
Price
N/A
146
Now: PR47M
EXT RETAINING RING 13MM
Price
N/A

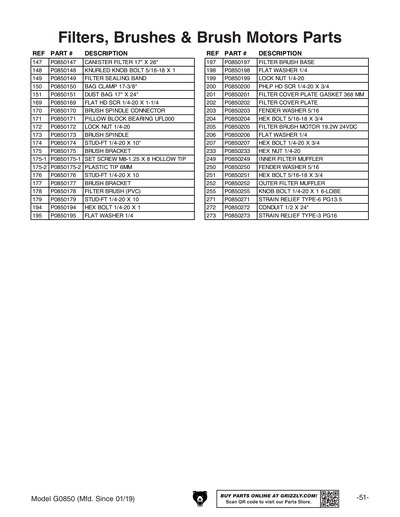

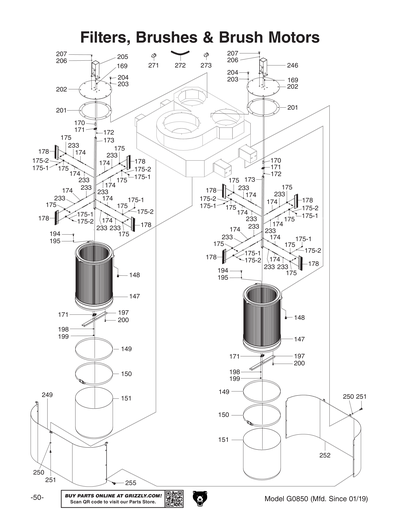

147
Replacement Filter for G0850
Price
N/A
148
KNURLED KNOB BOLT 5/16-18 X 1
Item is no longer available
Price
N/A
149
FILTER SEALING BAND
150
BAG CLAMP 17-3/8"
151
DUST BAG 17" X 24
152
Replacement Filter for G0850
Price
N/A
153
KNURLED KNOB BOLT 5/16-18 X 1
Price
N/A
154
FILTER SEALING BAND
Price
N/A
155
BAG CLAMP 17-3/8"
Price
N/A
156
Filter Bag for G0850 & G0852
Price
N/A
157
VACUUM HOSE BRACKET
158
Now: PWF01
FENDER WASHER 5/16
Price
N/A
159
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
160
HOSE CLAMP 1-3/4"
Item is no longer available
Price
N/A
161
VACUUM HOSE 1-1/2" X 43-1/4"
Item is no longer available
Price
N/A
162
HOSE CLAMP 1-3/4"
Price
N/A
163
VACUUM HOSE BRACKET
Price
N/A
164
Now: PWF01
FENDER WASHER 5/16
Price
N/A
165
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
166
HOSE CLAMP 1-3/4"
Price
N/A
167
VACUUM HOSE 1-1/2" X 43-1/4"
Price
N/A
168
HOSE CLAMP 1-3/4"
Price
N/A
169
Now: PFH16
FLAT HD SCR 1/4-20 X 1-1/4
Price
N/A
170
BRUSH SPINDLE CONNECTOR
171
PILLOW BLOCK BEARING
172
Now: PLN02
LOCK NUT 1/4-20
Price
N/A
173
BRUSH SPINDLE
Item is no longer available
Price
N/A
174
STUD-FT 1/4-20 X 10"
Item is no longer available
Price
N/A
175
BRUSH BRACKET
Item is no longer available
Price
N/A
175-1
SET SCREW M8-1.25 X 8 HOLLOW TIP
Item is no longer available
Price
N/A
175-2
PLASTIC TIP 6MM
Item is no longer available
Price
N/A
176
STUD-FT 1/4-20 X 10"
Price
N/A
177
BRUSH BRACKET
Price
N/A
178
FILTER BRUSH (PVC)
Item is no longer available
Price
N/A
179
STUD-FT 1/4-20 X 10"
Price
N/A
180
BRUSH BRACKET
Price
N/A
181
STUD-FT 1/4-20 X 10"
Price
N/A
182
BRUSH BRACKET
Price
N/A
183
FILTER BRUSH (PVC)
Price
N/A
184
STUD-FT 1/4-20 X 10"
Price
N/A
185
BRUSH BRACKET
Price
N/A
186
STUD-FT 1/4-20 X 10"
Price
N/A
187
BRUSH BRACKET
Price
N/A
188
FILTER BRUSH (PVC)
Price
N/A
189
STUD-FT 1/4-20 X 10"
Price
N/A
190
BRUSH BRACKET
Price
N/A
191
STUD-FT 1/4-20 X 10"
Price
N/A
192
BRUSH BRACKET
Price
N/A
193
FILTER BRUSH (PVC)
Price
N/A
194
Now: PB31
HEX BOLT 1/4-20 X 1
Price
N/A
195
Now: PW06
FLAT WASHER 1/4
Price
N/A
196
PILLOW BLOCK BEARING
Price
N/A
197
FILTER BRUSH BASE
198
Now: PW06
FLAT WASHER 1/4
Price
N/A
199
Now: PLN02
LOCK NUT 1/4-20
Price
N/A
200
Now: PS02
PHLP HD SCR 1/4-20 X 3/4
Price
N/A
201
FILTER COVER PLATE GASKET 44 X 368 MM
Item is no longer available
Price
N/A
202
FILTER COVER PLATE
Item is no longer available
Price
N/A
203
Now: PWF01
FENDER WASHER 5/16
Price
N/A
204
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
205
FILTER BRUSH MOTOR 19.2W 24VDC
Item is no longer available
Price
N/A
206
Now: PW06
FLAT WASHER 1/4
Price
N/A
207
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
208
Now: PFH16
FLAT HD SCR 1/4-20 X 1-1/4
Price
N/A
209
BRUSH SPINDLE CONNECTOR
Price
N/A
210
PILLOW BLOCK BEARING
Price
N/A
211
Now: PLN02
LOCK NUT 1/4-20
Price
N/A
212
BRUSH SPINDLE
Price
N/A
213
STUD-FT 1/4-20 X 10"
Price
N/A
214
BRUSH BRACKET
Price
N/A
215
STUD-FT 1/4-20 X 10"
Price
N/A
216
BRUSH BRACKET
Price
N/A
217
FILTER BRUSH (PVC)
Price
N/A
218
STUD-FT 1/4-20 X 10"
Price
N/A
219
BRUSH BRACKET
Price
N/A
220
STUD-FT 1/4-20 X 10"
Price
N/A
221
BRUSH BRACKET
Price
N/A
222
FILTER BRUSH (PVC)
Price
N/A
223
STUD-FT 1/4-20 X 10"
Price
N/A
224
BRUSH BRACKET
Price
N/A
225
STUD-FT 1/4-20 X 10"
Price
N/A
226
BRUSH BRACKET
Price
N/A
227
FILTER BRUSH (PVC)
Price
N/A
228
STUD-FT 1/4-20 X 10"
Price
N/A
229
BRUSH BRACKET
Price
N/A
230
STUD-FT 1/4-20 X 10"
Price
N/A
231
BRUSH BRACKET
Price
N/A
232
FILTER BRUSH (PVC)
Price
N/A
233
Now: PN05
HEX NUT 1/4-20
Price
N/A
234
Now: PN05
HEX NUT 1/4-20
Price
N/A
235
Now: PB31
HEX BOLT 1/4-20 X 1
Price
N/A
236
Now: PW06
FLAT WASHER 1/4
Price
N/A
237
PILLOW BLOCK BEARING
Price
N/A
238
FILTER BRUSH BASE
Price
N/A
239
Now: PW06
FLAT WASHER 1/4
Price
N/A
240
Now: PLN02
LOCK NUT 1/4-20
Price
N/A
241
Now: PS02
PHLP HD SCR 1/4-20 X 3/4
Price
N/A
242
FILTER COVER PLATE GASKET 44 X 368 MM
Price
N/A
243
FILTER COVER PLATE
Price
N/A
244
Now: PWF01
FENDER WASHER 5/16
Price
N/A
245
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
246
FILTER BRUSH MOTOR 19.2W 24VDC
247
Now: PW06
FLAT WASHER 1/4
Price
N/A
248
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
249
INNER FILTER MUFFLER
Item is no longer available
Price
N/A
250
Now: PWF01
FENDER WASHER 5/16
Price
N/A
251
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
252
OUTER FILTER MUFFLER
Item is no longer available
Price
N/A
253
Now: PWF01
FENDER WASHER 5/16
Price
N/A
254
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
255
KNOB BOLT 1/4-20 X 1 6-LOBE
Item is no longer available
Price
N/A
256
CONTROL PANEL BRACKET
257
CONTROL PANEL
257-1
REMOTE CONTROL
257-2
STRAIN RELIEF TYPE-6 PG13.5
Item is no longer available
Price
N/A
257-3
CONDUIT 3/8" X 42"
Item is no longer available
Price
N/A
257-4
CONDUIT 1/2" X 48"
Item is no longer available
Price
N/A
257-5
REMOTE BATTERY 27A 12V
258
CONTROL PANEL CORD 22G 5W 48"
259
Now: PWF01
FENDER WASHER 5/16
Price
N/A
260
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
261
Now: PWF01
FENDER WASHER 5/16
Price
N/A
262
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
263
MAGNETIC SWITCH BRACKET
Item is no longer available
Price
N/A
264
Now: PWF01
FENDER WASHER 5/16
Price
N/A
265
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
266
MAGNETIC SWITCH ASSY
266-1
CONTACTOR NHD C-25D10 220V
266-2
OL RELAY NHD NTH21 21-25A
266-3
MAGNETIC SWITCH COVER
Item is no longer available
Price
N/A
266-4
MOTOR CORD 12G 3W 24"
Item is no longer available
Price
N/A
266-5
STRAIN RELIEF TYPE-3 PG16
Item is no longer available
Price
N/A
266-6
STRAIN RELIEF TYPE-3 PG21
267
POWER CORD 10G 3W 120"
Item is no longer available
Price
N/A
268
EYE BOLT 1-3/8", M16-2 X 27
Item is no longer available
Price
N/A
269
PLASTIC RETAINING CLIP
Item is no longer available
Price
N/A
270
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
271
STRAIN RELIEF TYPE-6 PG13.5
Item is no longer available
Price
N/A
272
CONDUIT 1/2 X 24"
Item is no longer available
Price
N/A
273
STRAIN RELIEF TYPE-3 PG16
Price
N/A
274
COLLECTION BAG 22" X 38"
278
ACORN NUT 10-24
Item is no longer available
Price
N/A

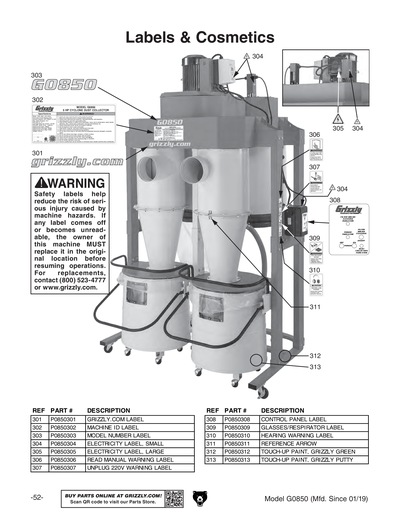

301
GRIZZLY.COM LABEL 13",BEIGE
Price
N/A
302
MACHINE ID LABEL
Item is no longer available
Price
N/A
303
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
304
ELECTRICITY 0.7W X 0.6H
Price
N/A
305
ELECTRICITY 1.4W X 1.2H
Price
N/A
306
READ MANUAL 1.5W X 2.5H
Price
N/A
307
DISCONNECT 220V 1.5W X 2.5H
Price
N/A
308
CONTROL PANEL LABEL
Item is no longer available
Price
N/A
309
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
310
EAR PROTECTION 1.5W X 2.5H
Price
N/A
311
REFERENCE ARROW
Item is no longer available
Price
N/A
312
N/S GRIZZLY GREEN G1023S
Price
N/A
313
GREY PUTTY REF G0504
Price
N/A
MAN
G0850 MANUAL MFD-09.18+ V1.11.18
