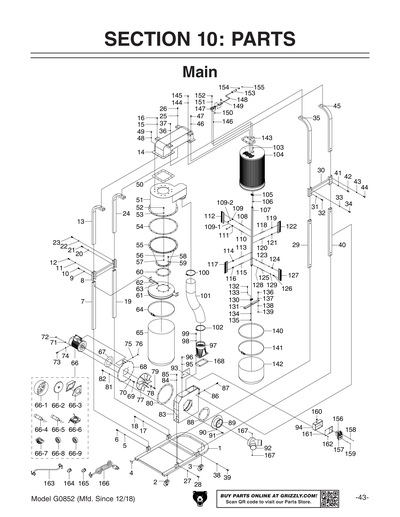

Parts for G0852 - 1.5 HP Quiet Cyclone Dust Collector

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

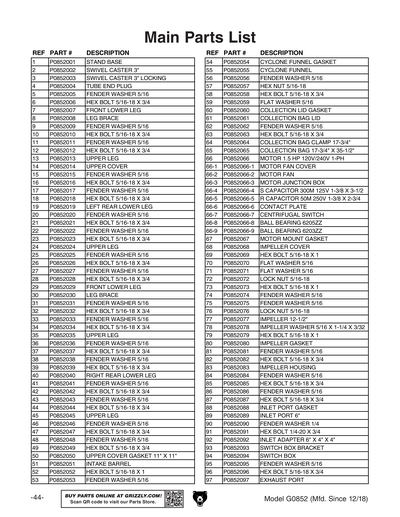

Ref # Part # Description Price Qty
1 P0852001 STAND BASE $90.50
2 P0852002 SWIVEL CASTER 3" $9.00
3 P0852003 SWIVEL CASTER 3" LOCKING $10.25
4 P0852004 TUBE END PLUG $1.00
5 P0852005
Replaced By PWF01
FENDER WASHER 5/16
N/A View Replacement
6 P0852006
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
7 P0852007 FRONT LOWER LEG $13.00
8 P0852008 LEG BRACE $14.25
9 P0852009
Replaced By PWF01
FENDER WASHER 5/16
N/A View Replacement
10 P0852010
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
11 P0852011
Replaced By PWF01
FENDER WASHER 5/16
N/A View Replacement
12 P0852012
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
13 P0852013 UPPER LEG $27.00
14 P0852014 UPPER COVER $99.00
15 P0852015
Replaced By PWF01
FENDER WASHER 5/16
N/A View Replacement
16 P0852016
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
17 P0852017
Replaced By PWF01
FENDER WASHER 5/16
N/A View Replacement
18 P0852018
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
19 P0852019 LEFT REAR LOWER LEG $12.25
20 P0852020
Replaced By PWF01
FENDER WASHER 5/16
N/A View Replacement
21 P0852021
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
22 P0852022
Replaced By PWF01
FENDER WASHER 5/16
N/A View Replacement
23 P0852023
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
24 P0852024
Replaced By P0852013
UPPER LEG
N/A View Replacement
25 P0852025
Replaced By PWF01
FENDER WASHER 5/16
N/A View Replacement
26 P0852026
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
27 P0852027
Replaced By PWF01
FENDER WASHER 5/16
N/A View Replacement
28 P0852028
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
29 P0852029
Replaced By P0852007
FRONT LOWER LEG
N/A View Replacement
30 P0852030
Replaced By P0852008
LEG BRACE
N/A View Replacement
31 P0852031
Replaced By PWF01
FENDER WASHER 5/16
N/A View Replacement
32 P0852032
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
33 P0852033
Replaced By PWF01
FENDER WASHER 5/16
N/A View Replacement
34 P0852034
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
35 P0852035
Replaced By P0852013
UPPER LEG
N/A View Replacement
36 P0852036
Replaced By PWF01
FENDER WASHER 5/16
N/A View Replacement
37 P0852037
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
38 P0852038
Replaced By PWF01
FENDER WASHER 5/16
N/A View Replacement
39 P0852039
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
40 P0852040 RIGHT REAR LOWER LEG $12.25
41 P0852041
Replaced By PWF01
FENDER WASHER 5/16
N/A View Replacement
42 P0852042
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
43 P0852043
Replaced By PWF01
FENDER WASHER 5/16
N/A View Replacement
44 P0852044
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
45 P0852045
Replaced By P0852013
UPPER LEG
N/A View Replacement
46 P0852046
Replaced By PWF01
FENDER WASHER 5/16
N/A View Replacement
47 P0852047
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
48 P0852048
Replaced By PWF01
FENDER WASHER 5/16
N/A View Replacement
49 P0852049
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
50 P0852050 UPPER COVER GASKET 11" X 11" $1.50
51 P0852051 INTAKE BARREL $113.50
52 P0852052
Replaced By PB03
HEX BOLT 5/16-18 X 1
N/A View Replacement
53 P0852053
Replaced By PWF01
FENDER WASHER 5/16
N/A View Replacement
54 P0852054 CYCLONE FUNNEL GASKET $6.75
55 P0852055 CYCLONE FUNNEL $74.25
56 P0852056
Replaced By PWF01
FENDER WASHER 5/16
N/A View Replacement
57 P0852057
Replaced By PN02
HEX NUT 5/16-18
N/A View Replacement
58 P0852058
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
59 P0852059
Replaced By PW07
FLAT WASHER 5/16
N/A View Replacement
60 P0852060 COLLECTION LID GASKET $4.00
61 P0852061 COLLECTION BAG LID $56.25
62 P0852062
Replaced By PWF01
FENDER WASHER 5/16
N/A View Replacement
63 P0852063
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
64 P0852064 COLLECTION BAG CLAMP 17-3/4" $5.75
65 P0852065
Replaced By T30328
Collection Bag for G0852
N/A View Replacement
66 P0852066 MOTOR 1.5 HP 120V/240V 1-PH $243.00
66-1 P0852066-1 MOTOR FAN COVER $14.75
66-2 P0852066-2 MOTOR FAN $4.50
66-3 P0852066-3 MOTOR JUNCTION BOX $6.00
66-4 P0852066-4 S CAPACITOR 300M 125V 1-3/8 X 3-1/2 $9.00
66-5 P0852066-5 R CAPACITOR 50M 250V 1-3/8 X 2-3/4 $16.50
66-6 P0852066-6 CONTACT PLATE $38.00
66-7 P0852066-7 CENTRIFUGAL SWITCH $11.00
66-8 P0852066-8
Replaced By P6205ZZ
BALL BEARING 6205ZZ
N/A View Replacement
66-9 P0852066-9
Replaced By P6203ZZ
BALL BEARING 6203ZZ
N/A View Replacement
67 P0852067 MOTOR MOUNT GASKET $1.50
68 P0852068 IMPELLER COVER $35.25
69 P0852069
Replaced By PB03
HEX BOLT 5/16-18 X 1
N/A View Replacement
70 P0852070
Replaced By PW07
FLAT WASHER 5/16
N/A View Replacement
71 P0852071
Replaced By PW07
FLAT WASHER 5/16
N/A View Replacement
72 P0852072
Replaced By PLN03
LOCK NUT 5/16-18
N/A View Replacement
73 P0852073
Replaced By PB03
HEX BOLT 5/16-18 X 1
N/A View Replacement
74 P0852074
Replaced By PWF01
FENDER WASHER 5/16
N/A View Replacement
75 P0852075
Replaced By PWF01
FENDER WASHER 5/16
N/A View Replacement
76 P0852076
Replaced By PLN03
LOCK NUT 5/16-18
N/A View Replacement
77 P0852077 IMPELLER 12-1/2" $78.50
78 P0852078 IMPELLER WASHER 5/16 X 1-1/4 X 3/32 $1.00
79 P0852079
Replaced By PB03
HEX BOLT 5/16-18 X 1
N/A View Replacement
80 P0852080 IMPELLER GASKET $6.00
81 P0852081
Replaced By PWF01
FENDER WASHER 5/16
N/A View Replacement
82 P0852082
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
83 P0852083 IMPELLER HOUSING $193.25
84 P0852084
Replaced By PWF01
FENDER WASHER 5/16
N/A View Replacement
85 P0852085
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
86 P0852086
Replaced By PWF01
FENDER WASHER 5/16
N/A View Replacement
87 P0852087
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
88 P0852088 INLET PORT GASKET $1.50
89 P0852089 INLET PORT 6" $21.75
90 P0852090
Replaced By PWF05
FENDER WASHER 1/4
N/A View Replacement
91 P0852091
Replaced By PB05
HEX BOLT 1/4-20 X 3/4
N/A View Replacement
92 P0852092
Replaced By D4240
6" x 4" D/C Adapter
N/A View Replacement
93 P0852093 SWITCH BOX BRACKET $4.00
94 P0852094 SWITCH BOX $46.00
95 P0852095
Replaced By PWF01
FENDER WASHER 5/16
N/A View Replacement
96 P0852096
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
97 P0852097 EXHAUST PORT $25.75
98 P0852098
Replaced By PWF01
FENDER WASHER 5/16
N/A View Replacement
99 P0852099
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
100 P0852100 HOSE CLAMP 6-1/2" $2.75
101 P0852101 FLEX HOSE 6" X 32-5/8" $21.75
102 P0852102
Replaced By P0852100
HOSE CLAMP 6-1/2"
N/A View Replacement
103 P0852103
Replaced By PS32
PHLP HD SCR 1/4-20 X 1-1/4
N/A View Replacement
104 P0852104
Replaced By T30321
Replacement Filter for G0852
N/A View Replacement
105 P0852105 PILLOW BLOCK BEARING $12.50
106 P0852106
Replaced By PLN02
LOCK NUT 1/4-20
N/A View Replacement
107 P0852107 BRUSH SPINDLE $10.25
108 P0852108 STUD-FT 1/4-20 X 7 $1.00
109 P0852109 BRUSH BRACKET ASSEMBLY $1.00
109-1 P0852109-1
Replaced By P0852109
BRUSH BRACKET ASSEMBLY
N/A View Replacement
109-2 P0852109-2
Replaced By P0852109
BRUSH BRACKET ASSEMBLY
N/A View Replacement
110 P0852110
Replaced By P0852108
STUD-FT 1/4-20 X 7
N/A View Replacement
111 P0852111
Replaced By P0852109
BRUSH BRACKET ASSEMBLY
N/A View Replacement
112 P0852112 FILTER BRUSH (PVC) $18.25
113 P0852113
Replaced By P0852108
STUD-FT 1/4-20 X 7
N/A View Replacement
114 P0852114
Replaced By P0852109
BRUSH BRACKET ASSEMBLY
N/A View Replacement
115 P0852115
Replaced By P0852108
STUD-FT 1/4-20 X 7
N/A View Replacement
116 P0852116
Replaced By P0852109
BRUSH BRACKET ASSEMBLY
N/A View Replacement
117 P0852117
Replaced By P0852112
FILTER BRUSH (PVC)
N/A View Replacement
118 P0852118
Replaced By P0852108
STUD-FT 1/4-20 X 7
N/A View Replacement
119 P0852119
Replaced By P0852109
BRUSH BRACKET ASSEMBLY
N/A View Replacement
120 P0852120
Replaced By P0852108
STUD-FT 1/4-20 X 7
N/A View Replacement
121 P0852121
Replaced By P0852109
BRUSH BRACKET ASSEMBLY
N/A View Replacement
122 P0852122
Replaced By P0852112
FILTER BRUSH (PVC)
N/A View Replacement
123 P0852123
Replaced By P0852108
STUD-FT 1/4-20 X 7
N/A View Replacement
124 P0852124
Replaced By P0852109
BRUSH BRACKET ASSEMBLY
N/A View Replacement
125 P0852125
Replaced By P0852108
STUD-FT 1/4-20 X 7
N/A View Replacement
126 P0852126
Replaced By P0852109
BRUSH BRACKET ASSEMBLY
N/A View Replacement
127 P0852127
Replaced By P0852112
FILTER BRUSH (PVC)
N/A View Replacement
128 P0852128
Replaced By PN05
HEX NUT 1/4-20
N/A View Replacement
129 P0852129
Replaced By PN05
HEX NUT 1/4-20
N/A View Replacement
130 P0852130
Replaced By P0852105
PILLOW BLOCK BEARING
N/A View Replacement
131 P0852131 FILTER BRUSH BASE $4.75
132 P0852132
Replaced By PB31
HEX BOLT 1/4-20 X 1
N/A View Replacement
133 P0852133
Replaced By PW06
FLAT WASHER 1/4
N/A View Replacement
134 P0852134
Replaced By PW06
FLAT WASHER 1/4
N/A View Replacement
135 P0852135
Replaced By PLN02
LOCK NUT 1/4-20
N/A View Replacement
136 P0852136
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
137 P0852137
Replaced By PW07
FLAT WASHER 5/16
N/A View Replacement
138 P0852138
Replaced By PW07
FLAT WASHER 5/16
N/A View Replacement
139 P0852139
Replaced By PLN03
LOCK NUT 5/16-18
N/A View Replacement
140 P0852140 FOAM SEALING BAND $1.50
141 P0852141 FILTER BAG CLAMP 19" $4.25
142 P0852142
Replaced By T28925
Filter Bag for G0850 & G0852
N/A View Replacement
143 P0852143 CANISTER FILTER GASKET $7.00
144 P0852144
Replaced By PWF01
FENDER WASHER 5/16
N/A View Replacement
145 P0852145
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
146 P0852146 BRUSH SPINDLE BLOCK $8.00
147 P0852147 FILTER BRUSH GEAR $28.25
148 P0852148 FILTER BRUSH HANDLE $11.00
149 P0852149
Replaced By PB03
HEX BOLT 5/16-18 X 1
N/A View Replacement
150 P0852150
Replaced By PLN03
LOCK NUT 5/16-18
N/A View Replacement

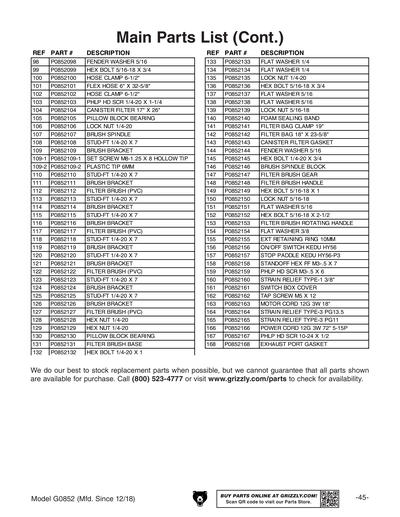

151 P0852151
Replaced By PW07
FLAT WASHER 5/16
N/A View Replacement
152 P0852152
Replaced By PB23
HEX BOLT 5/16-18 X 2-1/2
N/A View Replacement
153 P0852153 FILTER BRUSH ROTATING HANDLE $6.00
154 P0852154
Replaced By PW02
FLAT WASHER 3/8
N/A View Replacement
155 P0852155
Replaced By PR01M
EXT RETAINING RING 10MM
N/A View Replacement
156 P0852156 ON/OFF SWITCH KEDU HY56 $27.00
157 P0852157 STOP PADDLE KEDU HY56-P3 $6.50
158 P0852158 STANDOFF HEX FF M3-.5 X 7 $1.50
159 P0852159
Replaced By PS12M
PHLP HD SCR M3-.5 X 6
N/A View Replacement
160 P0852160 STRAIN RELIEF TYPE-1 3/8" $1.00
161 P0852161 SWITCH BOX COVER $5.50
162 P0852162
Replaced By PHTEK37M
TAP SCREW M5 X 12
N/A View Replacement
163 P0852163 MOTOR CORD 12G 3W 18" $11.25
164 P0852164 STRAIN RELIEF TYPE-3 PG13.5 $4.00
165 P0852165 STRAIN RELIEF TYPE-3 PG11 $3.75
166 P0852166 POWER CORD 12G 3W 72" 5-15P $30.00
167 P0852167
Replaced By PS01
PHLP HD SCR 10-24 X 1/2
N/A View Replacement
168 P0852168 EXHAUST PORT GASKET $2.00

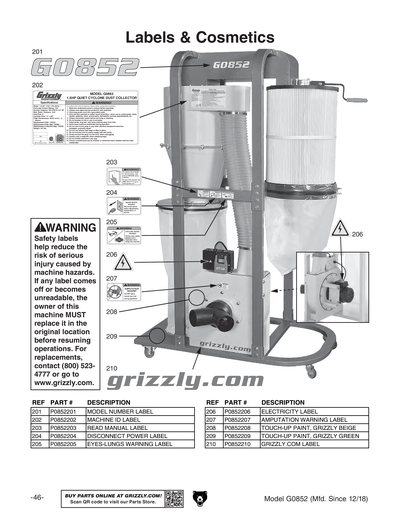

201 P0852201 MODEL NUMBER LABEL $2.50
202 P0852202 MACHINE ID LABEL $9.50
203 P0852203
Replaced By PLABEL-12D
READ MANUAL 2.8W X 1.5H
N/A View Replacement
204 P0852204
Replaced By PLABEL-62C
DISCONNECT 110V 2.8W X 1.5H
N/A View Replacement
205 P0852205
Replaced By PLABEL-57C
GLASSES/RESPIRATOR 2.8W X 1.5H
N/A View Replacement
206 P0852206
Replaced By PLABEL-14A
ELECTRICITY 0.7W X 0.6H
N/A View Replacement
207 P0852207
Replaced By PLABEL-59C
HANDS/DUST COLLECTOR OUTLET 2.8W X 1.5H
N/A View Replacement
208 P0852208
Replaced By PPAINT-11
GREY PUTTY REF G0504
N/A View Replacement
209 P0852209
Replaced By PPAINT-1
N/S GRIZZLY GREEN G1023S
N/A View Replacement
210 P0852210 GRIZZLY.COM LABEL $2.75
MAN P0852MAN MANUAL G0852 MFD-12.18 V1.01.19 $12.25
