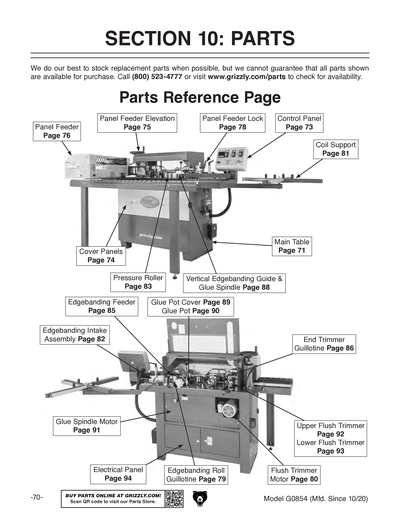

Parts for G0854 - Compact Automatic Edgebander

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

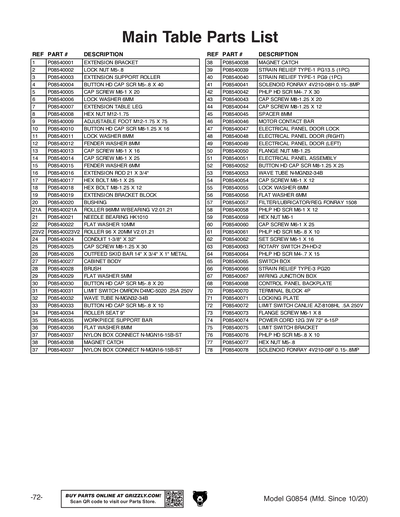

Ref #
Part #
Description

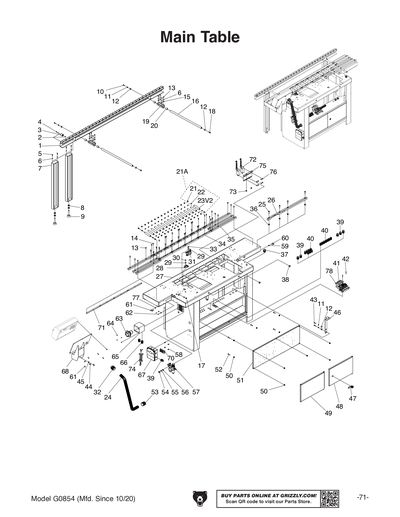

1
Price
$132.00
2
LOCK NUT M5-.8
Price
N/A
3
EXTENSION SUPPORT ROLLER
Price
N/A
4
BUTTON HD CAP SCR M5-.8 X 40
Price
$1.25
5
CAP SCREW M6-1 X 20
Price
N/A
6
LOCK WASHER 6MM
Price
N/A
7
EXTENSION TABLE LEG
Price
N/A
8
HEX NUT M12-1.75
Price
N/A
9
ADJUSTABLE FOOT M12-1.75 X 75
Price
N/A
10
BUTTON HD CAP SCR M8-1.25 X 16
Price
N/A
11
LOCK WASHER 8MM
Price
N/A
12
FENDER WASHER 8MM
Price
N/A
13
CAP SCREW M6-1 X 16
Price
N/A
14
CAP SCREW M6-1 X 25
Price
N/A
15
FENDER WASHER 6MM
Price
N/A
16
EXTENSION ROD 21 X 3/4"
Price
N/A
17
HEX BOLT M6-1 X 25
Price
N/A
18
HEX BOLT M8-1.25 X 12
Price
N/A
19
EXTENSION BRACKET BLOCK
Price
$36.50
20
BUSHING
Price
N/A
21
NEEDLE BEARING HK1010
Price
N/A
22
FLAT WASHER 10MM
Price
N/A
23
***USE P07740069AV2***
Price
N/A
24
CONDUIT 1-3/8" X 32"
Price
N/A
25
CAP SCREW M8-1.25 X 30
Price
N/A
26
OUTFEED SKID BAR 14 X 3/4 X 1" METAL
Price
N/A
28
BRUSH
Price
N/A
29
FLAT WASHER 5MM
Price
N/A
30
BUTTON HD CAP SCR M5-.8 X 20
Price
N/A
31
LIMIT SWITCH OMRON D4MC-5020 .25A 250V
Price
$83.25
32
WAVE TUBE N-MGN32-34B
Price
N/A
33
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
34
Price
$5.25
35
Price
$10.50
36
FLAT WASHER 8MM
Price
N/A
37
NYLON BOX CONNECT N-MGN16-15B-ST
Price
N/A
38
Price
$12.25
39
STRAIN RELIEF TYPE-1 PG13.5 (1PC)
Price
N/A
40
STRAIN RELIEF TYPE-1 PG9 (1PC)
Price
N/A
41
SOLENOID FONROY 4V210-08H 0.15-.8MP
Price
$48.75
42
PHLP HD SCR M4-.7 X 30
Price
N/A
43
CAP SCREW M8-1.25 X 20
Price
N/A
44
CAP SCREW M8-1.25 X 12
Price
N/A
45
Price
$1.25
46
MOTOR CONTACT BAR
Price
N/A
47
ELECTRICAL PANEL DOOR LOCK
Price
N/A
48
ELECTRICAL PANEL DOOR (RIGHT)
Price
$72.75
49
ELECTRICAL PANEL DOOR (LEFT)
Price
$72.75
50
FLANGE NUT M8-1.25
Price
N/A
51
ELECTRICAL PANEL ASSEMBLY
Price
$953.00
52
BUTTON HD CAP SCR M8-1.25 X 25
Price
N/A
53
WAVE TUBE N-MGN32-34B
Price
N/A
54
CAP SCREW M6-1 X 12
Price
N/A
55
LOCK WASHER 6MM
Price
N/A
56
FLAT WASHER 6MM
Price
N/A
57
FILTER/LUBRICATOR/REG FONRAY 1508
Price
N/A
58
PHLP HD SCR M6-1 X 12
Price
N/A
59
HEX NUT M6-1
Price
N/A
60
CAP SCREW M6-1 X 25
Price
N/A
61
PHLP HD SCR M5-.8 X 10
Price
N/A
62
SET SCREW M6-1 X 16
Price
N/A
63
ROTARY SWITCH ZH-HD-2
Price
N/A
64
PHLP HD SCR M4-.7 X 15
Price
N/A
65
SWITCH BOX
Price
N/A
66
STRAIN RELIEF TYPE-3 PG20
Price
N/A
67
WIRING JUNCTION BOX
Price
N/A
68

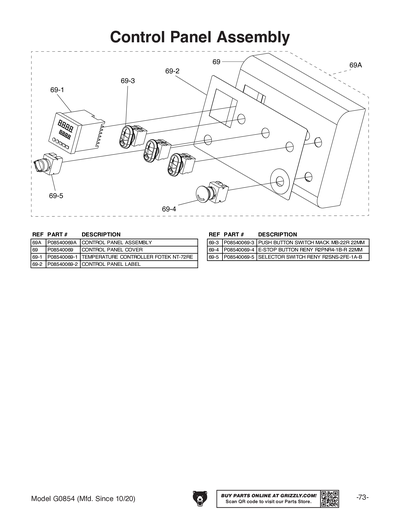

CONTROL PANEL BACKPLATE
Price
$80.00
69
Price
$326.00
69-2
Price
$42.00
69-3
PUSH BUTTON SWITCH MACK MB-22R 22MM
Price
$28.00
69-4
Price
$0.00
69-5
SELECTOR SWITCH RENY R2SNS-2FE-1A-B
Price
$28.25
69A
Price
$383.50
70
TERMINAL BLOCK 4P
Price
N/A
71
Price
$24.25
72
LIMIT SWITCH CANLIE AZ-8108HL .5A 250V
Price
$110.25
73
FLANGE SCREW M6-1 X 8
Price
N/A
74
POWER CORD 12G 3W 72" 6-15P
Price
$24.25
75
LIMIT SWITCH CANLIE AZ-8108HL .5A 250V
Price
N/A
76
PHLP HD SCR M5-.8 X 10
Price
N/A
77
HEX NUT M5-.8
Price
N/A

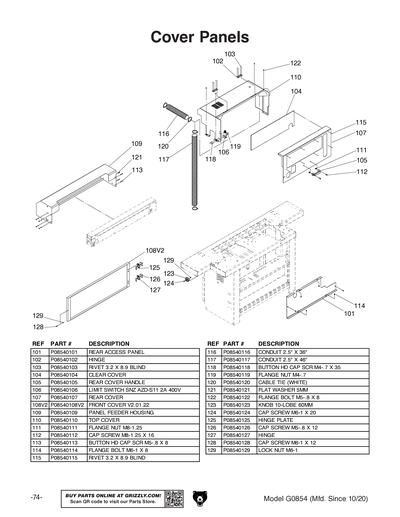

101
Price
$76.25
102
HINGE
Price
N/A
103
RIVET 3.2 X 8.9 BLIND
Price
N/A
104
Price
$69.50
105
Price
$3.50
106
LIMIT SWITCH SNZ AZD-S11 2A 400V
Price
$55.50
107
Price
$232.25
108
Price
$135.25
108V2
Price
$163.25
109
Price
$208.00
110
Price
$232.25
111
FLANGE NUT M8-1.25
Price
N/A
112
CAP SCREW M8-1.25 X 16
Price
N/A
113
BUTTON HD CAP SCR M5-.8 X 8
Price
N/A
114
FLANGE BOLT M6-1 X 8
Price
N/A
115
RIVET 3.2 X 8.9 BLIND
Price
N/A
116
CONDUIT 2.5" X 36"
Price
N/A
117
CONDUIT 2.5" X 46"
Price
N/A
118
BUTTON HD CAP SCR M4-.7 X 35
Price
N/A
119
FLANGE NUT M4-.7
Price
N/A
120
CABLE TIE (WHITE)
Price
N/A
121
FLAT WASHER 5MM
Price
N/A
122
FLANGE BOLT M5-.8 X 8
Price
N/A
123
KNOB 10-LOBE 60MM
Price
N/A
124
CAP SCREW M6-1 X 20
Price
N/A
125
HINGE PLATE
Price
N/A
126
CAP SCREW M5-.8 X 12
Price
N/A
127
HINGE
Price
N/A
128
CAP SCREW M6-1 X 12
Price
N/A
129
LOCK NUT M6-1
Price
N/A
130
FLANGE NUT M6-1
Price
N/A

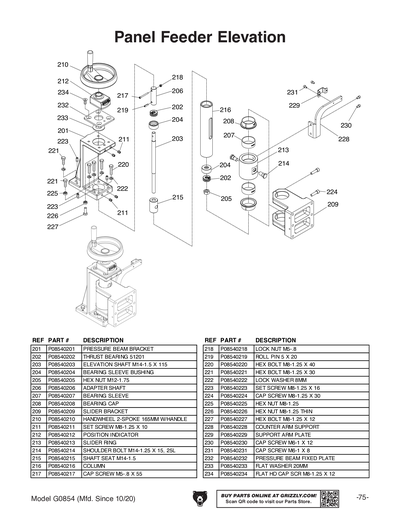

201
PRESSURE BEAM BRACKET
Price
N/A
202
THRUST BEARING 51201
Price
N/A
203
STUD-SE M14-1.5 X 115
Price
N/A
204
BEARING SLEEVE BUSHING
Price
N/A
205
HEX NUT M12-1.75
Price
N/A
206
Price
$38.25
207
BEARING SLEEVE
Price
N/A
208
BEARING CAP
Price
N/A
209
SLIDER BRACKET
Price
N/A
210
HANDWHEEL 2-SPOKE 165MM W/HANDLE
Price
N/A
211
SET SCREW M8-1.25 X 10
Price
N/A
212
POSITION INDICATOR
Price
N/A
213
SLIDER RING
Price
N/A
214
SHOULDER BOLT M14-1.25 X 15, 25L
Price
N/A
215
SHAFT SEAT M14-1.5
Price
N/A
216
COLUMN
Price
N/A
217
CAP SCREW M5-.8 X 45
Price
N/A
218
LOCK NUT M5-.8
Price
N/A
219
ROLL PIN 5 X 20
Price
N/A
220
HEX BOLT M8-1.25 X 40
Price
N/A
221
HEX BOLT M8-1.25 X 30
Price
N/A
222
LOCK WASHER 8MM
Price
N/A
223
SET SCREW M8-1.25 X 16
Price
N/A
224
CAP SCREW M8-1.25 X 30
Price
N/A
225
HEX NUT M8-1.25
Price
N/A
226
HEX NUT M8-1.25 THIN
Price
N/A
227
HEX BOLT M8-1.25 X 12
Price
N/A
228
Price
$45.25
229
Price
$14.00
230
CAP SCREW M6-1 X 12
Price
N/A
231
CAP SCREW M6-1 X 8
Price
N/A
232
PRESSURE BEAM FIXED PLATE
Price
N/A
233
FLAT WASHER 20MM
Price
N/A
234
FLAT HD CAP SCR M8-1.25 X 12
Price
N/A

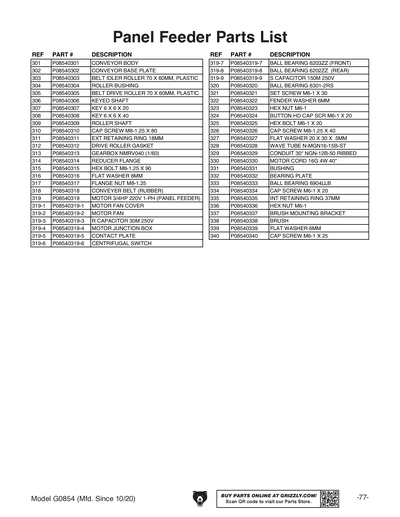

301
Price
$59.00
302
Price
$170.00
303
BELT IDLER ROLLER 70 X 60MM, PLASTIC
Price
N/A
304
ROLLER BUSHING
Price
N/A
305
BELT DRIVE ROLLER 70 X 60MM, PLASTIC
Price
N/A
306
KEYED SHAFT
Price
N/A
307
KEY 6 X 6 X 20
Price
N/A
308
KEY 6 X 6 X 40
Price
N/A
309
ROLLER SHAFT
Price
N/A
310
CAP SCREW M8-1.25 X 80
Price
N/A
311
EXT RETAINING RING 18MM
Price
N/A
312
DRIVE ROLLER GASKET
Price
N/A
313
GEARBOX NMRV040
Price
N/A
314
GEARBOX NMRV040
Price
N/A
315
HEX BOLT M8-1.25 X 90
Price
N/A
316
FLAT WASHER 8MM
Price
N/A
317
FLANGE NUT M8-1.25
Price
N/A
318
Price
$183.00
319
MOTOR 3/4HP 220V 1-PH (PANEL FEEDER)
Price
N/A
319-1
MOTOR FAN COVER
Price
N/A
319-2
MOTOR FAN
Price
N/A
319-3
R CAPACITOR 30MFD 250V
Price
N/A
319-4
MOTOR JUNCTION BOX
Price
N/A
319-5
CONTACT PLATE W/CENTRIFUGAL SWITCH
Price
N/A
319-6
CONTACT PLATE W/CENTRIFUGAL SWITCH
Price
N/A
319-7
BALL BEARING 6203ZZ
Price
N/A
319-8
BALL BEARING 6202ZZ
Price
N/A
319-9
S CAPACITOR 150MFD 250V
Price
N/A
320
BALL BEARING 6301-2RS
Price
N/A
321
SET SCREW M6-1 X 30
Price
N/A
322
FENDER WASHER 6MM
Price
N/A
323
HEX NUT M6-1
Price
N/A
324
BUTTON HD CAP SCR M6-1 X 20
Price
N/A
325
HEX BOLT M6-1 X 20
Price
N/A
326
CAP SCREW M8-1.25 X 40
Price
N/A
327
FLAT WASHER 20 X 30 X .5MM
Price
N/A
328
WAVE TUBE N-MGN16-15B-ST
Price
N/A
329
CONDUIT 30" NGN-12B-50 RIBBED
Price
N/A
330
MOTOR CORD 16G 4W 40"
Price
N/A
331
BUSHING
Price
N/A
332
BEARING PLATE
Price
N/A
333
BALL BEARING 6904-LLB
Price
N/A
334
CAP SCREW M6-1 X 20
Price
N/A
335
INT RETAINING RING 37MM
Price
N/A
336
HEX NUT M6-1
Price
N/A
337
BRUSH MOUNTING BRACKET
Price
N/A
338
BRUSH
Price
N/A
339
FLAT WASHER 6MM
Price
N/A
340
CAP SCREW M6-1 X 25
Price
N/A
401
ADJUSTMENT COLUMN
Price
N/A
402
FLAT WASHER 4MM
Price
N/A
403
LOCK WASHER 8MM
Price
N/A
404
CAP SCREW M8-1.25 X 20
Price
N/A
405
CONVEYOR LOCK BRACKET
Price
N/A
406
SWITCH CONTACT PLATE
Price
N/A
407
HEX NUT M6-1
Price
N/A
408
PHLP HD SCR M4-.7 X 8
Price
N/A
409
BUTTON HD CAP SCR M8-1.25 X 40
Price
N/A
410
FLAT WASHER 8MM
Price
N/A
411
ADJUSTMENT BRACKET
Price
N/A
412
DOOR SWITCH MOUNTING PLATE
Price
N/A
413
FLAT HD CAP SCR M10-1.5 X 35
Price
N/A
414
FLAT WASHER 10MM
Price
N/A
415
WAVY WASHER 10MM
Price
N/A
416
PHLP HD SCR M4-.7 X 30
Price
N/A
417
LIMIT SWITCH SNZ AZD-S11 2A 400V
Price
$66.00
417-1
LIMIT SWITCH AZDS11 W/KEY
Price
N/A
418
ADJUSTABLE HANDLE M10-1.5 X 35, 92L
Price
N/A
419
FENDER WASHER 10MM
Price
N/A
420
HEX BOLT M6-1 X 30
Price
N/A
421
WAVY WASHER 10MM
Price
N/A
422
FLAT WASHER 10MM
Price
N/A
423
LOCK BRACKET BLOCK
Price
N/A

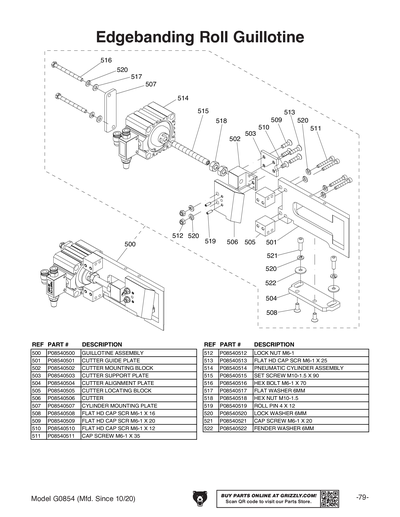

500
GUILLOTINE ASSEMBLY
Price
N/A
501
CUTTER GUIDE PLATE
Price
N/A
502
CUTTER MOUNTING BLOCK
Price
N/A
503
CUTTER SUPPORT PLATE
Price
N/A
504
CUTTER ALIGNMENT PLATE
Price
N/A
505
LOCATE BLOCK
Price
N/A
506
CUTTER
Price
N/A
507
CYLINDER MOUNTING PLATE
Price
N/A
508
FLAT HD CAP SCR M6-1 X 16
Price
N/A
509
FLAT HD CAP SCR M6-1 X 20
Price
N/A
510
FLAT HD CAP SCR M6-1 X 12
Price
N/A
511
CAP SCREW M6-1 X 35
Price
N/A
512
LOCK NUT M6-1
Price
N/A
513
FLAT HD CAP SCR M6-1 X 25
Price
N/A
514
PNEUMATIC CYLINDER ASSEMBLY
Price
N/A
515
SET SCREW M10-1.5 X 90
Price
N/A
516
HEX BOLT M6-1 X 70
Price
N/A
517
FLAT WASHER 6MM
Price
N/A
518
HEX NUT M10-1.5
Price
N/A
519
ROLL PIN 4 X 12
Price
N/A
520
LOCK WASHER 6MM
Price
N/A
521
CAP SCREW M6-1 X 20
Price
N/A
522
FENDER WASHER 6MM
Price
N/A

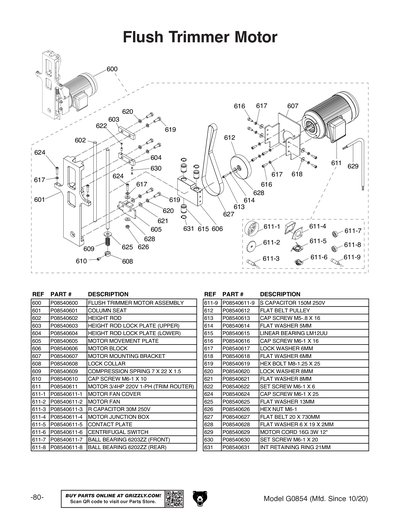

600
FLUSH TRIMMER MOTOR ASSEMBLY
Price
N/A
601
COLUMN SEAT
Price
N/A
602
HEIGHT ROD
Price
N/A
603
HEIGHT ROD LOCK PLATE (UPPER)
Price
N/A
604
HEIGHT ROD LOCK PLATE (LOWER)
Price
N/A
605
MOTOR MOVEMENT PLATE
Price
N/A
606
MOTOR BLOCK
Price
N/A
607
MOTOR MOUNTING BRACKET
Price
N/A
608
LOCK COLLAR
Price
N/A
609
COMPRESSION SPRING 7 X 22 X 1.5
Price
N/A
610
CAP SCREW M6-1 X 10
Price
N/A
611
MOTOR 3/4HP 220V 1-PH (PANEL FEEDER)
Price
N/A
611-1
MOTOR FAN COVER
Price
N/A
611-2
MOTOR FAN
Price
N/A
611-3
R CAPACITOR 30MFD 250V
Price
N/A
611-4
MOTOR JUNCTION BOX
Price
N/A
611-5
CONTACT PLATE W/CENTRIFUGAL SWITCH
Price
N/A
611-6
CONTACT PLATE W/CENTRIFUGAL SWITCH
Price
N/A
611-7
BALL BEARING 6203ZZ
Price
N/A
611-8
BALL BEARING 6202ZZ
Price
N/A
611-9
S CAPACITOR 150MFD 250V
Price
N/A
612
FLAT BELT PULLEY
Price
N/A
613
CAP SCREW M5-.8 X 16
Price
N/A
614
FLAT WASHER 5MM
Price
N/A
615
LINEAR BEARING LM12UU
Price
N/A
616
CAP SCREW M6-1 X 16
Price
N/A
617
LOCK WASHER 6MM
Price
N/A
618
FLAT WASHER 6MM
Price
N/A
619
HEX BOLT M8-1.25 X 25
Price
N/A
620
LOCK WASHER 8MM
Price
N/A
621
FLAT WASHER 8MM
Price
N/A
622
SET SCREW M6-1 X 6
Price
N/A
624
CAP SCREW M6-1 X 25
Price
N/A
625
FLAT WASHER 13MM
Price
N/A
626
HEX NUT M6-1
Price
N/A
627
BELT 20 X 730MM
Price
N/A
628
FLAT WASHER 6 X 19 X 2MM
Price
N/A
629
MOTOR CORD 16G 3W 12"
Price
N/A
630
SET SCREW M6-1 X 20
Price
N/A
631
INT RETAINING RING R21
Price
N/A
700

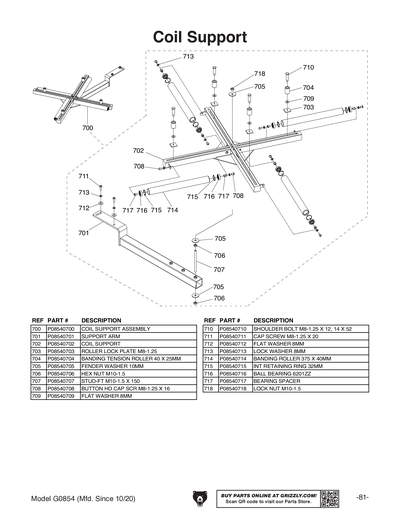

COIL SUPPORT ASSEMBLY
Price
N/A
701
SUPPORT ARM
Price
N/A
702
COIL SUPPORT
Price
N/A
703
ROLLER LOCK PLATE M8-1.25
Price
N/A
704
BANDING TENSION ROLLER 40 X 25MM
Price
N/A
705
FENDER WASHER 10MM
Price
N/A
706
HEX NUT M10-1.5
Price
N/A
707
STUD-FT M10-1.5 X 150
Price
N/A
708
BUTTON HD CAP SCR M8-1.25 X 16
Price
N/A
709
FLAT WASHER 8MM
Price
N/A
710
SHOULDER BOLT M8-1.25 X 12, 14 X 52L
Price
N/A
711
CAP SCREW M8-1.25 X 20
Price
N/A
712
FLAT WASHER 8MM
Price
N/A
713
LOCK WASHER 8MM
Price
N/A
714
BANDING ROLLER 375 X 40MM
Price
N/A
715
INT RETAINING RING 32MM
Price
N/A
716
BALL BEARING 6201ZZ
Price
N/A
717
BEARING SPACER
Price
N/A
718
LOCK NUT M10-1.5
Price
N/A
800

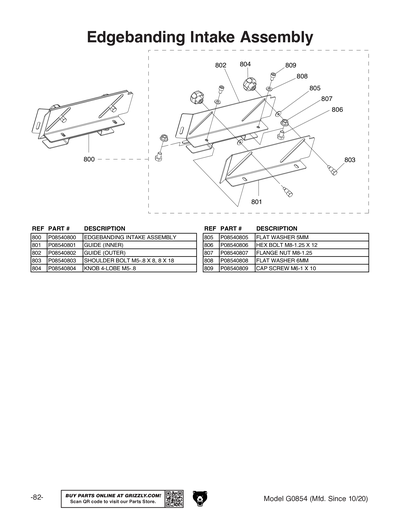

EDGEBANDING INTAKE ASSEMBLY
Price
N/A
801
GUIDE (INNER)
Price
N/A
802
GUIDE (OUTER)
Price
N/A
803
SHOULDER BOLT M5-.8 X 8, 8 X 18
Price
N/A
804
KNOB 4-LOBE M5-.8
Price
N/A
805
FLAT WASHER 5MM
Price
N/A
806
HEX BOLT M8-1.25 X 12
Price
N/A
807
FLANGE NUT M8-1.25
Price
N/A
808
FLAT WASHER 6MM
Price
N/A
809
CAP SCREW M6-1 X 10
Price
N/A

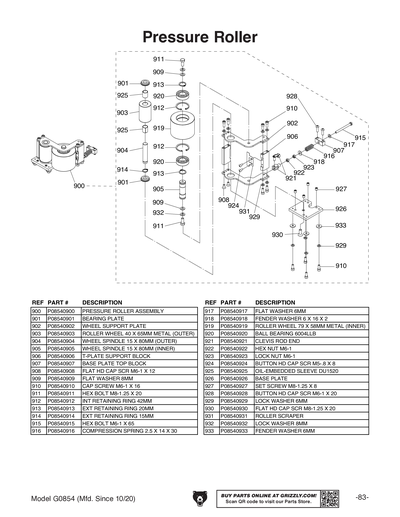

900
PRESSURE ROLLER ASSEMBLY
Price
$201.25
901
BEARING PLATE
Price
N/A
902
WHEEL SUPPORT PLATE
Price
N/A
903
ROLLER WHEEL 40 X 65MM METAL (OUTER)
Price
N/A
904
WHEEL SPINDLE 15 X 80MM (OUTER)
Price
N/A
905
WHEEL SPINDLE 15 X 80MM (OUTER)
Price
N/A
906
T-PLATE SUPPORT BLOCK
Price
N/A
907
BASE PLATE TOP BLOCK
Price
N/A
908
FLAT HD CAP SCR M6-1 X 12
Price
N/A
909
FLAT WASHER 8MM
Price
N/A
910
CAP SCREW M6-1 X 16
Price
N/A
911
HEX BOLT M8-1.25 X 20
Price
N/A
912
INT RETAINING RING 42MM
Price
N/A
913
EXT RETAINING RING 20MM
Price
N/A
914
EXT RETAINING RING 15MM
Price
N/A
915
HEX BOLT M6-1 X 65
Price
N/A
916
COMPRESSION SPRING 2.5 X 14 X 30
Price
N/A
917
FLAT WASHER 6MM
Price
N/A
918
FENDER WASHER 6 X 16 X 2
Price
N/A
919
ROLLER WHEEL 79 X 58MM METAL (INNER)
Price
N/A
920
BALL BEARING 6004LLB
Price
N/A
921
CLEVIS ROD END
Price
N/A
922
HEX NUT M6-1
Price
N/A
923
LOCK NUT M6-1
Price
N/A
924
BUTTON HD CAP SCR M5-.8 X 8
Price
N/A
925
SELF-LUBE BEARING DU1520
Price
N/A
926
BASE PLATE
Price
N/A
927
SET SCREW M8-1.25 X 8
Price
N/A
928
BUTTON HD CAP SCR M6-1 X 20
Price
N/A
929
LOCK WASHER 6MM
Price
N/A
930
FLAT HD CAP SCR M8-1.25 X 20
Price
N/A
931
ROLLER SCRAPER
Price
N/A
932
LOCK WASHER 8MM
Price
N/A
933
FENDER WASHER 6MM
Price
N/A

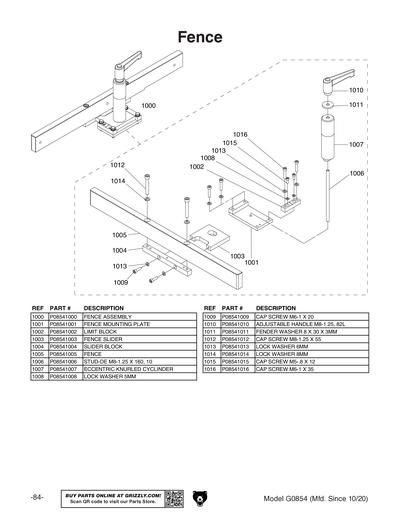

1000
Price
$197.50
1001
Price
$52.00
1002
LIMIT BLOCK
Price
N/A
1003
FENCE SLIDER
Price
N/A
1004
SLIDER BLOCK
Price
N/A
1005
Price
$107.50
1006
STUD-DE M8-1.25 X 160, 10
Price
N/A
1007
ECCENTRIC KNURLED CYCLINDER
Price
N/A
1008
LOCK WASHER 5MM
Price
N/A
1009
CAP SCREW M6-1 X 20
Price
N/A
1010
ADJUSTABLE HANDLE M8-1.25, 82L
Price
N/A
1011
FENDER WASHER 8 X 30 X 3MM
Price
N/A
1012
CAP SCREW M8-1.25 X 55
Price
N/A
1013
LOCK WASHER 6MM
Price
N/A
1014
LOCK WASHER 8MM
Price
N/A
1015
CAP SCREW M5-.8 X 12
Price
N/A
1016
CAP SCREW M6-1 X 35
Price
N/A

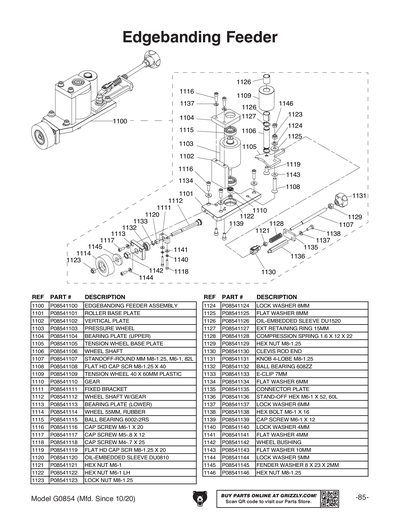

1100
EDGEBANDING FEEDER ASSEMBLY
Price
N/A
1101
ROLLER BASE PLATE
Price
N/A
1102
VERTICAL PLATE
Price
N/A
1103
PRESSURE WHEEL
Price
N/A
1104
BEARING PLATE (UPPER)
Price
N/A
1105
TENSION WHEEL BASE PLATE
Price
N/A
1106
WHEEL SHAFT
Price
N/A
1107
STUD-DE M8-1.25 X 30, 82L
Price
N/A
1108
FLAT HD CAP SCR M8-1.25 X 40
Price
N/A
1109
TENSION WHEEL 40 X 60MM PLASTIC
Price
N/A
1110
GEAR
Price
N/A
1111
FIXED BRACKET
Price
N/A
1112
WHEEL SHAFT W/GEAR
Price
N/A
1113
BEARING PLATE (LOWER)
Price
N/A
1114
WHEEL 55MM, RUBBER
Price
N/A
1115
BALL BEARING 6002-2RS
Price
N/A
1116
CAP SCREW M6-1 X 20
Price
N/A
1117
CAP SCREW M5-.8 X 12
Price
N/A
1118
CAP SCREW M4-.7 X 25
Price
N/A
1119
FLAT HD CAP SCR M8-1.25 X 20
Price
N/A
1120
SELF-LUBE BEARING DU0810
Price
N/A
1121
HEX NUT M6-1
Price
N/A
1123
LOCK NUT M8-1.25
Price
N/A
1124
LOCK WASHER 8MM
Price
N/A
1125
FLAT WASHER 8MM
Price
N/A
1126
SELF-LUBE BEARING DU1520
Price
N/A
1127
EXT RETAINING RING 15MM
Price
N/A
1128
COMPRESSION SPRING 1.6 X 12 X 22
Price
N/A
1129
HEX NUT M8-1.25
Price
N/A
1130
CLEVIS ROD END
Price
N/A
1131
KNOB 4-LOBE M8-1.25
Price
N/A
1132
***USE G3845***
Price
N/A
1133
E-CLIP 7MM
Price
N/A
1134
FLAT WASHER 6MM
Price
N/A
1135
CONNECTOR PLATE
Price
N/A
1136
STAND-OFF HEX M6-1 X 52, 60L
Price
N/A
1137
LOCK WASHER 6MM
Price
N/A
1138
HEX BOLT M6-1 X 16
Price
N/A
1139
CAP SCREW M6-1 X 12
Price
N/A
1140
LOCK WASHER 4MM
Price
N/A
1141
FLAT WASHER 4MM
Price
N/A
1142
WHEEL BUSHING
Price
N/A
1143
FLAT WASHER 10MM
Price
N/A
1144
LOCK WASHER 5MM
Price
N/A
1145
FENDER WASHER 8 X 23 X 2MM
Price
N/A
1146
HEX NUT M8-1.25
Price
N/A

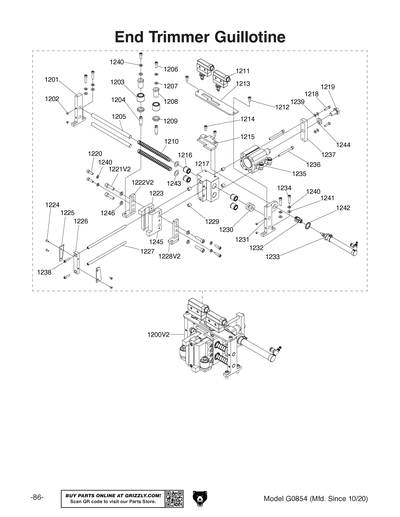

1200
Price
$852.00
1200V2

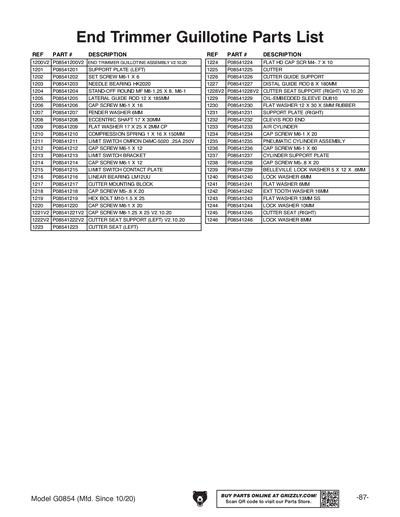

END TRIMMER GUILLOTINE ASSEMBLY V2.10.20
Price
$984.25
1201
Price
$62.50
1202
SET SCREW M6-1 X 6
Price
N/A
1203
Price
$26.00
1204
STAND-OFF ROUND MF M8-1.25 X 8, M6-1
Price
$19.25
1205
LATERAL GUIDE ROD 12 X 185MM
Price
$26.00
1206
CAP SCREW M6-1 X 16
Price
N/A
1207
FENDER WASHER 6MM
Price
N/A
1208
ECCENTRIC SHAFT 17 X 30MM
Price
$24.25
1209
FLAT WASHER 17 X 25 X 2MM CP
Price
$20.75
1210
COMPRESSION SPRING 1 X 16 X 150MM
Price
$8.75
1211
LIMIT SWITCH OMRON D4MC-5020 .25A 250V
Price
$118.00
1212
CAP SCREW M6-1 X 12
Price
N/A
1213
Price
$19.25
1214
CAP SCREW M6-1 X 12
Price
N/A
1215
LIMIT SWITCH CONTACT PLATE
Price
$76.25
1216
Price
$15.50
1217
Price
$111.00
1218
CAP SCREW M5-.8 X 20
Price
N/A
1219
HEX BOLT M10-1.5 X 25
Price
N/A
1220
CAP SCREW M6-1 X 20
Price
N/A
1221
CAP SCREW M8-1.25 X 35
Price
N/A
1221V2
CAP SCREW M8-1.25 X 25
Price
N/A
1222
***SEE EXTENDED DESCRIPTION***
Item is no longer available
Price
N/A
1222V2
CUTTER SEAT SUPPORT (LEFT) V2.10.20
Price
$52.00
1223
Price
$104.00
1224
FLAT HD CAP SCR M4-.7 X 10
Price
N/A
1225
Price
$19.25
1226
Price
$45.25
1227
DISTAL GUIDE ROD 8 X 180MM
Price
$86.75
1228
***SEE EXTENDED DESCRIPTION***
Item is no longer available
Price
N/A
1228V2
CUTTER SEAT SUPPORT (RIGHT) V2.10.20
Price
$52.00
1229
OIL-EMBEDDED SLEEVE DU810
Price
$2.00
1230
FLAT WASHER 12 X 30 X 5MM RUBBER
Price
$2.00
1231
Price
$72.75
1232
Price
$24.25
1233
Price
$114.50
1234
CAP SCREW M6-1 X 20
Price
N/A
1235
PNEUMATIC CYLINDER ASSEMBLY
Price
$142.25
1236
CAP SCREW M6-1 X 60
Price
N/A
1237
Price
$31.25
1238
CAP SCREW M5-.8 X 20
Price
N/A
1239
BELLEVILLE LOCK WASHER 5 X 12 X .6MM
Price
$3.50
1240
LOCK WASHER 6MM
Price
N/A
1241
FLAT WASHER 6MM
Price
N/A
1242
Price
$2.00
1243
Price
$3.50
1244
LOCK WASHER 10MM
Price
N/A
1245
Price
$104.00
1246
LOCK WASHER 8MM
Price
N/A

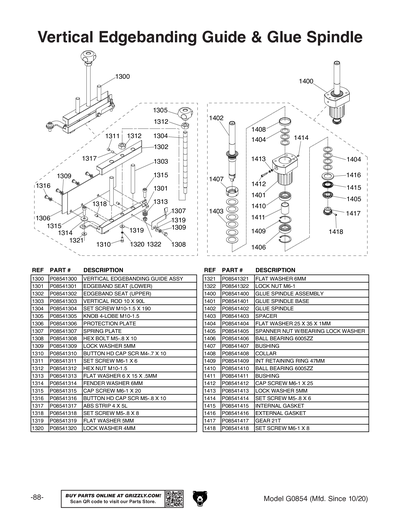

1300
VERTICAL EDGEBANDING GUIDE ASSY
Price
N/A
1301
EDGEBAND SEAT (LOWER)
Price
N/A
1302
EDGEBAND SEAT (UPPER)
Price
N/A
1303
VERTICAL ROD 10 X 90L
Price
N/A
1304
SET SCREW M10-1.5 X 190
Price
N/A
1305
KNOB 4-LOBE M10-1.5
Price
N/A
1306
PROTECTION PLATE
Price
N/A
1307
SPRING PLATE
Price
N/A
1308
HEX BOLT M5-.8 X 10
Price
N/A
1309
LOCK WASHER 5MM
Price
N/A
1310
BUTTON HD CAP SCR M4-.7 X 10
Price
N/A
1311
SET SCREW M6-1 X 6
Price
N/A
1312
HEX NUT M10-1.5
Price
N/A
1313
FLAT WASHER 6 X 15 X .5MM
Price
N/A
1314
FENDER WASHER 6MM
Price
N/A
1315
CAP SCREW M6-1 X 20
Price
N/A
1316
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
1317
ABS STRIP 4 X 5L
Price
N/A
1318
SET SCREW M5-.8 X 8
Price
N/A
1319
FLAT WASHER 5MM
Price
N/A
1320
LOCK WASHER 4MM
Price
N/A
1321
FLAT WASHER 6MM
Price
N/A
1322
LOCK NUT M6-1
Price
N/A
1400
GLUE SPINDLE ASSEMBLY
Price
N/A
1401
GLUE SPINDLE BASE
Price
N/A
1402
GLUE SPINDLE
Price
N/A
1403
SPACER
Price
N/A
1404
FLAT WASHER 25 X 35 X 1MM
Price
N/A
1405
SPANNER NUT W/ BEARING LOCK WASHER
Price
N/A
1406
BALL BEARING 6005ZZ
Price
N/A
1407
BUSHING
Price
N/A
1408
COLLAR
Price
N/A
1409
INT RETAINING RING 47MM
Price
N/A
1410
BALL BEARING 6005ZZ
Price
N/A
1411
BUSHING
Price
N/A
1412
CAP SCREW M6-1 X 25
Price
N/A
1413
LOCK WASHER 5MM
Price
N/A
1414
SET SCREW M5-.8 X 6
Price
N/A
1415
INTERNAL GASKET
Price
N/A
1416
EXTERNAL GASKET
Price
N/A
1417
GEAR 21T
Price
N/A
1418
SET SCREW M6-1 X 8
Price
N/A

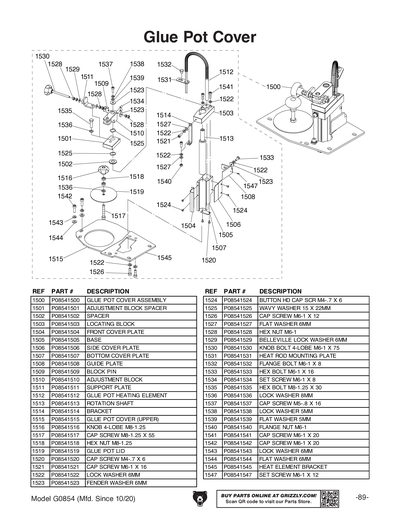

1500
GLUE POT COVER ASSEMBLY
Price
N/A
1501
ADJUSTMENT BLOCK SPACER
Price
N/A
1502
SPACER
Price
N/A
1503
LOCATE BLOCK
Price
N/A
1504
FRONT COVER PLATE
Price
N/A
1505
BASE
Price
N/A
1506
SIDE COVER PLATE
Price
N/A
1507
BOTTOM COVER PLATE
Price
N/A
1508
GUIDE BRACKET
Price
N/A
1509
BLOCK PIN
Price
N/A
1510
ADJUSTMENT BLOCK
Price
N/A
1511
SUPPORT PLATE
Price
N/A
1512
GLUE POT HEATING ELEMENT
Price
N/A
1513
ROTATION SHAFT
Price
N/A
1514
BRACKET
Price
N/A
1515
GLUE POT COVER (UPPER)
Price
N/A
1516
KNOB 4-LOBE M8-1.25
Price
N/A
1517
CAP SCREW M8-1.25 X 55
Price
N/A
1518
HEX NUT M8-1.25
Price
N/A
1519
GLUE POT LID
Price
N/A
1520
CAP SCREW M4-.7 X 6
Price
N/A
1521
CAP SCREW M6-1 X 16
Price
N/A
1522
LOCK WASHER 6MM
Price
N/A
1523
FENDER WASHER 6MM
Price
N/A
1524
BUTTON HD CAP SCR M4-.7 X 6
Price
N/A
1525
WAVY WASHER 15 X 22MM
Price
N/A
1526
CAP SCREW M6-1 X 12
Price
N/A
1527
FLAT WASHER 6MM
Price
N/A
1528
HEX NUT M6-1
Price
N/A
1529
BELLEVILLE LOCK WASHER 6MM
Price
N/A
1530
KNOB BOLT 4-LOBE M6-1 X 75
Price
N/A
1531
HEAT ROD MOUNTING PLATE
Price
N/A
1532
FLANGE BOLT M6-1 X 8
Price
N/A
1533
HEX BOLT M6-1 X 16
Price
N/A
1534
SET SCREW M6-1 X 8
Price
N/A
1535
HEX BOLT M8-1.25 X 30
Price
N/A
1536
LOCK WASHER 8MM
Price
N/A
1537
CAP SCREW M5-.8 X 16
Price
N/A
1538
LOCK WASHER 5MM
Price
N/A
1539
FLAT WASHER 5MM
Price
N/A
1540
FLANGE NUT M6-1
Price
N/A
1541
CAP SCREW M6-1 X 20
Price
N/A
1542
CAP SCREW M6-1 X 20
Price
N/A
1543
LOCK WASHER 6MM
Price
N/A
1544
FLAT WASHER 6MM
Price
N/A
1545
HEAT ELEMENT BRACKET
Price
N/A
1547
SET SCREW M6-1 X 12
Price
N/A

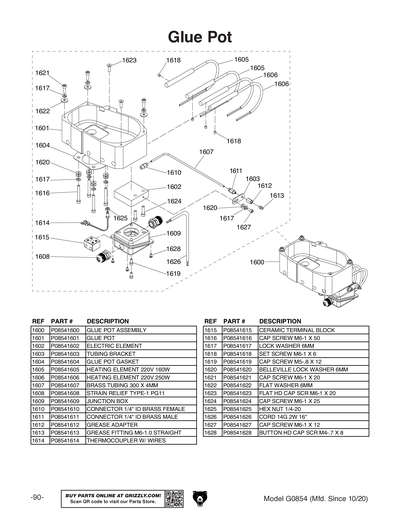

1600
GLUE POT ASSEMBLY
Price
N/A
1601
GLUE POT
Price
N/A
1602
ELECTRIC ELEMENT
Price
N/A
1603
TUBING BRACKET
Price
N/A
1604
GLUE POT GASKET
Price
N/A
1605
HEATING ELEMENT 220V 160W
Price
N/A
1606
HEATING ELEMENT 220V 250W
Price
N/A
1607
BRASS TUBING 300 X 4MM
Price
N/A
1608
STRAIN RELIEF TYPE-1 PG11
Price
N/A
1609
JUNCTION BOX
Price
N/A
1610
CONNECTOR 1/4" ID BRASS FEMALE
Price
N/A
1611
CONNECTOR 1/4" ID BRASS MALE
Price
N/A
1612
GREASE ADAPTER
Price
N/A
1613
GREASE FITTING M6-1.0 STRAIGHT
Price
N/A
1614
THERMOCOUPLE W/ WIRES
Price
N/A
1615
CERAMIC TERMINAL BLOCK
Price
N/A
1616
CAP SCREW M6-1 X 50
Price
N/A
1617
LOCK WASHER 6MM
Price
N/A
1618
SET SCREW M6-1 X 6
Price
N/A
1619
CAP SCREW M5-.8 X 12
Price
N/A
1620
BELLEVILLE LOCK WASHER 6MM
Price
N/A
1621
CAP SCREW M6-1 X 20
Price
N/A
1622
FLAT WASHER 6MM
Price
N/A
1623
FLAT HD CAP SCR M6-1 X 20
Price
N/A
1624
CAP SCREW M6-1 X 25
Price
N/A
1625
HEX NUT 1/4-20
Price
N/A
1626
CORD 14G 2W 16"
Price
N/A
1627
CAP SCREW M6-1 X 12
Price
N/A
1628
BUTTON HD CAP SCR M4-.7 X 8
Price
N/A

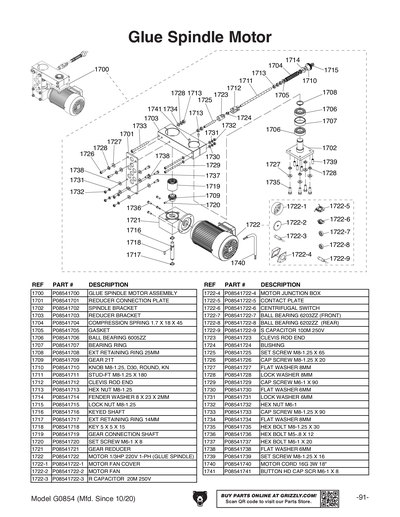

1700
GLUE SPINDLE MOTOR ASSEMBLY
Price
N/A
1701
REDUCER CONNECTION PLATE
Price
N/A
1702
SPINDLE BRACKET
Price
N/A
1703
REDUCER BRACKET
Price
N/A
1704
COMPRESSION SPRING 1.7 X 18 X 45
Price
N/A
1705
GASKET
Price
N/A
1706
BALL BEARING 6005ZZ
Price
N/A
1707
BEARING RING
Price
N/A
1708
EXT RETAINING RING 25MM
Price
N/A
1709
GEAR 21T
Price
N/A
1710
KNOB M8-1.25, 30MM OD
Price
N/A
1711
STUD-FT M8-1.25 X 180
Price
N/A
1712
CLEVIS ROD-END
Price
N/A
1713
HEX NUT M8-1.25
Price
N/A
1714
FENDER WASHER 8 X 23 X 2MM
Price
N/A
1715
LOCK NUT M8-1.25
Price
N/A
1716
KEYED SHAFT
Price
N/A
1717
EXT RETAINING RING 14MM
Price
N/A
1718
KEY 5 X 5 X 15
Price
N/A
1719
GEAR CONNECTION SHAFT
Price
N/A
1720
SET SCREW M6-1 X 8
Price
N/A
1721
GEAR REDUCER
Price
N/A
1722
MOTOR 1/3HP 220V 1-PH (GLUE SPINDLE)
Price
N/A
1722-1
MOTOR FAN COVER
Price
N/A
1722-2
MOTOR FAN
Price
N/A
1722-3
R CAPACITOR 20MFD 250V
Price
N/A
1722-4
MOTOR JUNCTION BOX
Price
N/A
1722-5
CONTACT PLATE W/ CENTRIFUGAL SWITCH
Price
N/A
1722-6
CONTACT PLATE W/ CENTRIFUGAL SWITCH
Price
N/A
1722-7
BALL BEARING 6203ZZ
Price
N/A
1722-8
BALL BEARING 6202ZZ
Price
N/A
1722-9
S CAPACITOR 100MFD 250V
Price
N/A
1723
CLEVIS ROD-END
Price
N/A
1724
BUSHING
Price
N/A
1725
SET SCREW M8-1.25 X 65
Price
N/A
1726
CAP SCREW M8-1.25 X 20
Price
N/A
1727
FLAT WASHER 8MM
Price
N/A
1728
LOCK WASHER 8MM
Price
N/A
1729
CAP SCREW M6-1 X 90
Price
N/A
1730
FLAT WASHER 6MM
Price
N/A
1731
LOCK WASHER 6MM
Price
N/A
1732
HEX NUT M6-1
Price
N/A
1733
CAP SCREW M8-1.25 X 90
Price
N/A
1734
FLAT WASHER 8MM
Price
N/A
1735
HEX BOLT M8-1.25 X 30
Price
N/A
1736
HEX BOLT M5-.8 X 12
Price
N/A
1737
HEX BOLT M6-1 X 20
Price
N/A
1738
FLAT WASHER 6MM
Price
N/A
1739
SET SCREW M8-1.25 X 16
Price
N/A
1740
MOTOR CORD 16G 3W 18"
Price
N/A
1741
BUTTON HD CAP SCR M6-1 X 8
Price
N/A

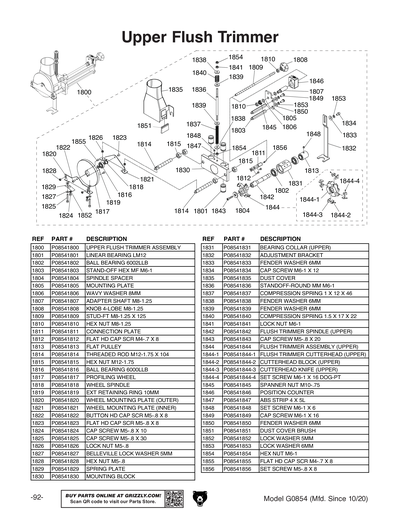

1800
UPPER FLUSH TRIMMER ASSEMBLY
Price
N/A
1801
LINEAR BEARING LM12
Price
N/A
1802
BALL BEARING 6002-LLB
Price
N/A
1803
STAND-OFF HEX 61.5MM
Price
N/A
1804
SPINDLE SPACER
Price
N/A
1805
MOUNTING PLATE
Price
N/A
1806
WAVY WASHER 8MM
Price
N/A
1807
ADAPTER SHAFT M8-1.25
Price
N/A
1808
KNOB 4-LOBE M8-1.25
Price
N/A
1809
STUD-FT M8-1.25 X 125
Price
N/A
1810
HEX NUT M8-1.25
Price
N/A
1811
CONNECTION PLATE
Price
N/A
1812
FLAT HD CAP SCR M4-.7 X 8
Price
N/A
1813
FLAT PULLEY
Price
N/A
1814
THREADED ROD M12-1.75 X 104
Price
N/A
1815
HEX NUT M12-1.75
Price
N/A
1816
BALL BEARING 6000LLB
Price
N/A
1817
PROFILING WHEEL
Price
N/A
1818
WHEEL SPINDLE
Price
N/A
1819
EXT RETAINING RING 10MM
Price
N/A
1820
WHEEL MOUNTING PLATE (OUTER)
Price
N/A
1821
WHEEL MOUNTING PLATE (INNER)
Price
N/A
1822
BUTTON HD CAP SCR M5-.8 X 8
Price
N/A
1823
FLAT HD CAP SCR M5-.8 X 8
Price
N/A
1824
CAP SCREW M5-.8 X 10
Price
N/A
1825
CAP SCREW M5-.8 X 30
Price
N/A
1826
LOCK NUT M5-.8
Price
N/A
1827
BELLEVILLE LOCK WASHER 5MM
Price
N/A
1828
HEX NUT M5-.8
Price
N/A
1829
SPRING PLATE
Price
N/A
1830
MOUNTING BLOCK
Price
N/A
1831
BEARING COLLAR (UPPER)
Price
N/A
1832
ADJUSTMENT BRACKET
Price
N/A
1833
FENDER WASHER 6MM
Price
N/A
1834
CAP SCREW M6-1 X 12
Price
N/A
1835
DUST COVER
Price
N/A
1836
STUD-DE M6-1
Price
N/A
1837
COMPRESSION SPRING 1 X 12 X 46
Price
N/A
1838
FENDER WASHER 6MM
Price
N/A
1839
FENDER WASHER 6MM
Price
N/A
1840
COMPRESSION SPRING 1.5 X 17 X 22
Price
N/A
1841
LOCK NUT M6-1
Price
N/A
1842
FLUSH TRIMMER SPINDLE (UPPER)
Price
N/A
1843
CAP SCREW M5-.8 X 20
Price
N/A
1844
FLUSH TRIMMER ASSEMBLY (UPPER)
Price
N/A
1844-1
FLUSH TRIMMER CUTTERHEAD (UPPER)
Price
N/A
1844-2
CUTTERHEAD BLOCK (UPPER)
Price
N/A
1844-3
Upper Blades for G0774 - Pack of 4
Price
N/A
1844-4
SET SCREW M6-1 X 16 DOG-PT
Price
N/A
1845
SPANNER NUT M10-.75
Price
N/A
1846
POSITION COUNTER
Price
N/A
1847
ABS STRIP 4 X 5L
Price
N/A
1848
SET SCREW M6-1 X 6
Price
N/A
1849
CAP SCREW M6-1 X 16
Price
N/A
1850
FENDER WASHER 6MM
Price
N/A
1851
DUST COVER BRUSH
Price
N/A
1852
LOCK WASHER 5MM
Price
N/A
1853
LOCK WASHER 6MM
Price
N/A
1854
HEX NUT M6-1
Price
N/A
1855
FLAT HD CAP SCR M4-.7 X 8
Price
N/A
1856
SET SCREW M5-.8 X 8
Price
N/A

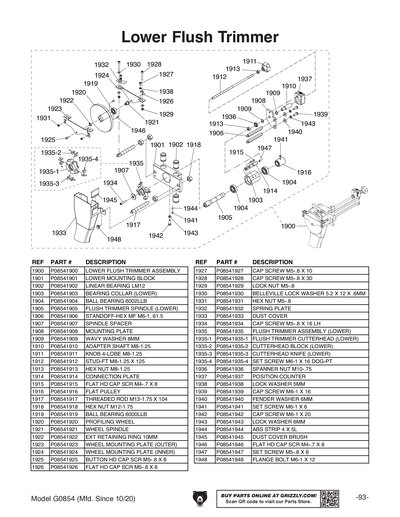

1900
LOWER FLUSH TRIMMER ASSEMBLY
Price
N/A
1901
LOWER MOUNTING BLOCK
Price
N/A
1902
LINEAR BEARING LM12
Price
N/A
1903
BEARING COLLAR (LOWER)
Price
N/A
1904
BALL BEARING 6002LLB
Price
N/A
1905
FLUSH TRIMMER SPINDLE (LOWER)
Price
N/A
1906
STAND-OFF HEX 61.5MM
Price
N/A
1907
SPINDLE SPACER
Price
N/A
1908
MOUNTING PLATE
Price
N/A
1909
WAVY WASHER 8MM
Price
N/A
1910
ADAPTER SHAFT M8-1.25
Price
N/A
1911
KNOB 4-LOBE M8-1.25
Price
N/A
1912
STUD-FT M8-1.25 X 125
Price
N/A
1913
HEX NUT M8-1.25
Price
N/A
1914
CONNECTION PLATE
Price
N/A
1915
FLAT HD CAP SCR M4-.7 X 8
Price
N/A
1916
FLAT PULLEY
Price
N/A
1917
THREADED ROD M12-1.75 X 104
Price
N/A
1918
HEX NUT M12-1.75
Price
N/A
1919
BALL BEARING 6000LLB
Price
N/A
1920
PROFILING WHEEL
Price
N/A
1921
WHEEL SPINDLE
Price
N/A
1922
EXT RETAINING RING 10MM
Price
N/A
1923
WHEEL MOUNTING PLATE (OUTER)
Price
N/A
1924
WHEEL MOUNTING PLATE (INNER)
Price
N/A
1925
BUTTON HD CAP SCR M5-.8 X 8
Price
N/A
1926
FLAT HD CAP SCR M5-.8 X 8
Price
N/A
1927
CAP SCREW M5-.8 X 10
Price
N/A
1928
CAP SCREW M5-.8 X 30
Price
N/A
1929
LOCK NUT M5-.8
Price
N/A
1930
BELLEVILLE LOCK WASHER 5.2 X 12 X .6MM
Price
N/A
1931
HEX NUT M5-.8
Price
N/A
1932
SPRING PLATE
Price
N/A
1933
DUST COVER
Price
N/A
1934
CAP SCREW M5-.8 X 16 LH
Price
N/A
1935
FLUSH TRIMMER ASSEMBLY (LOWER)
Price
N/A
1935-1
FLUSH TRIMMER CUTTERHEAD (LOWER)
Price
N/A
1935-2
CUTTERHEAD BLOCK (LOWER)
Price
N/A
1935-3
CUTTERHEAD KNIFE (LOWER)
Price
N/A
1935-4
SET SCREW M6-1 X 16 DOG-PT
Price
N/A
1936
SPANNER NUT M10-.75
Price
N/A
1937
POSITION COUNTER
Price
N/A
1938
LOCK WASHER 5MM
Price
N/A
1939
CAP SCREW M6-1 X 16
Price
N/A
1940
FENDER WASHER 6MM
Price
N/A
1941
SET SCREW M6-1 X 6
Price
N/A
1942
CAP SCREW M6-1 X 20
Price
N/A
1943
LOCK WASHER 6MM
Price
N/A
1944
ABS STRIP 4 X 5L
Price
N/A
1945
DUST COVER BRUSH
Price
N/A
1946
FLAT HD CAP SCR M4-.7 X 8
Price
N/A
1947
SET SCREW M5-.8 X 8
Price
N/A
1948
FLANGE BOLT M6-1 X 12
Price
N/A

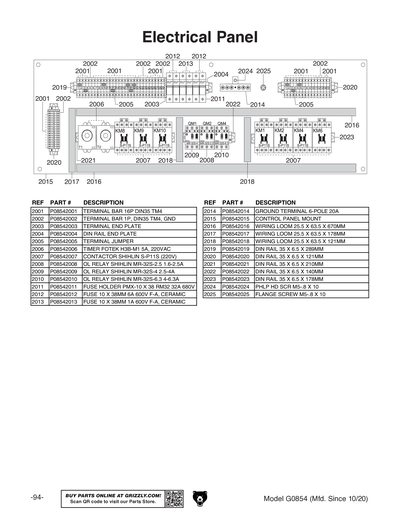

2001
TERMINAL BAR PYK2 1-PC
Price
N/A
2002
TERMINAL BAR PYK2, GROUND 1-PC
Price
N/A
2003
TERMINAL END PLATE
Price
N/A
2004
MOUNTING RAIL END PLATE
Price
N/A
2005
TERMINAL JUMPER
Price
N/A
2006
TIMER FOTEK H3B-M1 5A, 220VAC
Price
$59.00
2007
CONTACTOR SHIHLIN S-P11S (220V)
Price
$62.50
2008
OL RELAY SHIHLIN MR-32S-2.5 1.6-2.5A
Price
N/A
2009
OL RELAY SHIHLIN MR-32S-4 2.5-4A
Price
N/A
2010
OL RELAY SHIHLIN MR-32S-6.3 4-6.3A
Price
N/A
2011
FUSE HOLDER PMX-10 X 38 RM32 32A 680V
Price
N/A
2012
FUSE 10 X 38MM 6A 600V F-A, CERAMIC
Price
N/A
2013
FUSE 10 X 38MM 1A 600V F-A, CERAMIC
Price
$38.25
2014
GROUND TERMINAL 6-POLE 20A
Price
N/A
2015
Price
$121.50
2016
WIRING LOOM 25.5 X 63.5 X 670MM
Price
$20.75
2017
WIRING LOOM 1 X 2-1/2 X 7"
Price
N/A
2018
WIRING LOOM 25.5 X 63.5 X 121MM
Price
$20.75
2019
DIN RAIL 35 X 6.5 X 289MM
Price
$14.00
2020
DIN RAIL 35 X 6.5 X 121MM
Price
$14.00
2021
DIN RAIL 35 X 6.5 X 210MM
Price
$14.00
2022
DIN RAIL 35 X 6.5 X 140MM
Price
$14.00
2023
DIN RAIL 35 X 6.5 X 178MM
Price
$14.00
2024
PHLP HD SCR M5-.8 X 10
Price
N/A
2025
FLANGE SCREW M5-.8 X 10
Price
N/A
2101
Price
$9.50
2102
NOTICE UNLOCK CONVEYOR LABEL
Price
$2.00
2103
NOTICE DO NOT LEAN ON CONVEYOR LABEL
Price
$3.75
2104
NOTICE FEED PANEL POINT LABEL
Price
$3.75
2105
ELECTRICITY 1.4W X 1.2H
Price
N/A
2106
WARNING HOT SURFACE LABEL
Price
N/A
2107
WARNING SHARP CUTTER LABEL
Price
$1.25
2108
NOTICE COMPONENTS POWERED UP LABEL
Price
$7.00
2109
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
2110
ENTANGLEMENT HAZARD 2W X 3.3H
Price
N/A
2111
Price
$10.50
2112
Price
$34.75
2113
Name Plates - Large
Price
N/A
2114
N/S GRIZZLY GREEN G1023S
Price
N/A
2115
DISCONNECT 110V 2W X 3.3H
Price
N/A
2116
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
2117
GREY PUTTY REF G0504
Price
N/A
2118
CONVEYOR BELT TENSION LABEL
Price
N/A
2119
Price
$4.25

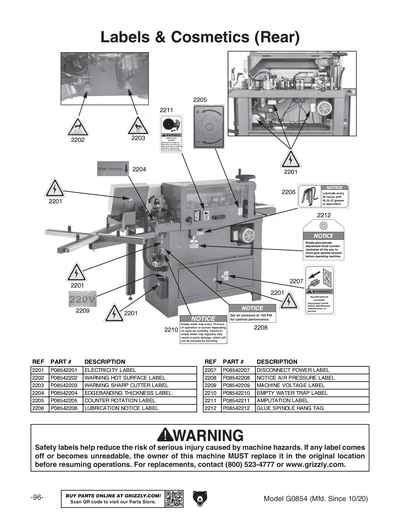

2201
ELECTRICITY 1.4W X 1.2H
Price
N/A
2202
WARNING HOT SURFACE LABEL
Price
N/A
2203
WARNING SHARP CUTTER LABEL
Price
N/A
2204
EDGEBANDING THICKNESS LABEL
Price
$2.00
2205
COUNTER ROTATION LABEL
Price
N/A
2206
LUBRICATION NOTICE LABEL
Price
$2.00
2207
DISCONNECT 110V 2W X 3.3H
Price
N/A
2208
NOTICE AIR PRESSURE LABEL
Price
N/A
2209
Price
$1.25
2210
Price
$4.50
2211
Price
$4.25
2212
Price
$0.00
MAN
MANUAL G0854 MFD-08.18 V1.01.19
Price
$23.00
MANV2
MANUAL G0854 MFD-10.20+ V2.08.22
Price
$0.00
