Parts for G0856 - 8" x 72" Jointer with Helical Cutterhead & Mobile Base

1/5

IMPORTANT: Parts may have multiple versions. This will be indicated by V1, V2, or V3 on the part number and/or description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 beginning in January 2017. Please reference your machine's manufacture date on the ID Label to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

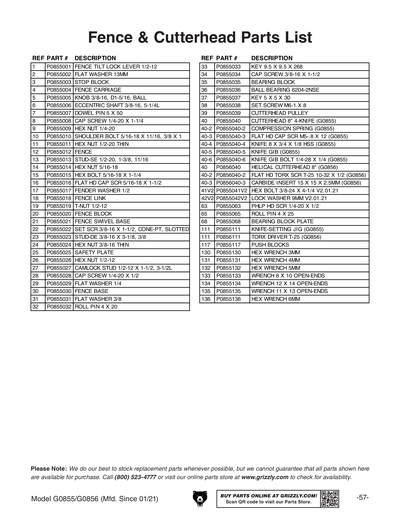

Ref #
Part #
Description
1
FENCE TILT LOCK LEVER 1/2-12
Price
N/A
2
FLAT WASHER 13MM
Price
N/A
3
STOP BLOCK
Price
N/A
4
FENCE CARRIAGE
Price
N/A
5
KNOB 3/8-16, D1-5/16, BALL
Price
N/A
6
ECCENTRIC SHAFT 3/8-16, 5-1/4L
Price
N/A
7
DOWEL PIN 5 X 50
Price
N/A
8
CAP SCREW 1/4-20 X 1-1/4
Price
N/A
9
P0856009
Now: PN05
HEX NUT 1/4-20
Price
N/A
10
SHOULDER BOLT 5/16-18 X 11/16, 3/8 X 1
Price
N/A
11
P0856011
Now: PN50
HEX NUT 1/2-20 THIN
Price
N/A
12
FENCE
Price
N/A
13
STUD-SE 1/2-20, 1-3/8, 11/16
Price
N/A
14
P0856014
Now: PN02
HEX NUT 5/16-18
Price
N/A
15
P0856015
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
16
FLAT HD CAP SCR 5/16-18 X 1-1/2
Price
N/A
17
FENDER WASHER 1/2
Price
N/A
18
FENCE LINK
Price
N/A
19
T-NUT 1/2-12
Price
N/A
20
FENCE BLOCK
Price
N/A
21
FENCE SWIVEL BASE
Price
N/A
22
SET SCR 3/8-16 X 1-1/2, CONE-PT, SLOTTED
Price
N/A
23
STUD-DE 3/8-16 X 3-1/8, 3/8
Price
N/A
24
HEX NUT 3/8-16 THIN
Price
N/A
25
SAFETY PLATE
Price
N/A
26
P0856026
Now: PN06
HEX NUT 1/2-12
Price
N/A
27
CAMLOCK STUD 1/2-12 X 1-1/2, 3-1/2L
Price
N/A
28
CAP SCREW 1/4-20 X 1/2
Price
N/A
29
P0856029
Now: PW06
FLAT WASHER 1/4
Price
N/A
30
FENCE BASE
Price
N/A
31
P0856031
Now: PW02
FLAT WASHER 3/8
Price
N/A
32
ROLL PIN 4 X 20
Price
N/A
33
KEY 9.5 X 9.5 X 268
Price
N/A
34
CAP SCREW 3/8-16 X 1-1/2
Price
N/A
35
BEARING BLOCK
Price
N/A
36
BALL BEARING 6204-2NSE
Price
N/A
37
KEY 5 X 5 X 30
Price
N/A
38
SET SCREW M6-1 X 8
Price
N/A
39
CUTTERHEAD PULLEY
Price
N/A
40
HELICAL CUTTERHEAD 8"
Price
$945.10
40-2
FLAT HD TORX SCR T-25 10-32 X 1/2
Price
$1.49
40-3
Indexable Carbide Insert - 15 x 15 x 2.5mm, 10 Pack
Price
N/A
41
STUD-DE 3/8-24 X 4-3/4, 1/2
Price
N/A
41V2
HEX BOLT 3/8-24 X 4-1/4 V2.01.21
Price
N/A
42
P0856042
Now: PN11
HEX NUT 3/8-24
Price
N/A
42V2
LOCK WASHER 9MM V2.01.21
Price
N/A
43
BELT COVER
Price
N/A
44
KNOB 5/16-18, D1-3/4, ROUND
Price
N/A
45
CUTTERHEAD GUARD
Price
N/A
45V2
CUTTERHEAD GUARD V2.07.19
Price
N/A
46
STANDOFF-HEX MM 5/16-18 X 3/8, 3
Price
N/A
47
SET SCREW 1/4-20 X 3/4
Price
N/A
48
P0856048
Now: PN05
HEX NUT 1/4-20
Price
N/A
49
DEPTH STOP BLOCK
Price
N/A
50
SHAFT W/HOLE 2-3/4L
Price
N/A
51
ROLL PIN 3 X 20
Price
N/A
52
COMPRESSION SPRING
Price
N/A
53
SPRING SLEEVE
Price
N/A
54
CAP SCREW 3/8-16 X 1-1/4
Price
N/A
55
CAP SCREW 5/16-18 X 3/4
Price
N/A
56
ADJUSTABLE HANDLE 2L, 1/4-20 X 1
Price
N/A
57
KNOB 1/4-20, D7/8, BALL
Price
N/A
58
SET SCR 5/16-18 X 3/4, 1-5/16, SLOTTED
Price
N/A
59
FOLDING HANDLE 2-1/4L, 5/16-18 X 1-3/16
Price
N/A
60
SCALE POINTER
Price
N/A
61
FLAT WASHER 4MM
Price
N/A
62
P0856062
Now: PS23
PHLP HD SCR 8-32 X 1/4
Price
N/A
63
P0856063
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
64
P0856064
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
65
ROLL PIN 4 X 25
Price
N/A
66
SET SCREW 5/16-18 X 1/2
Price
N/A
66V2
CUTTERHEAD GUARD LOCK HANDLE V2.07.19
Price
N/A
67
RABBETING TABLE
Price
N/A
68
BEARING BLOCK PLATE
Price
N/A
69
LOCK WASHER 5/16
Price
N/A
70
HANDWHEEL W/HANDLE
Price
N/A
71
FENDER WASHER 8.5 X 23 X 2MM
Price
N/A
72
P0856072
Now: PS38
PHLP HD SCR 5/16-18 X 1/2
Price
N/A
73
KNOB BOLT 5-LOBE 3/8-16 X 1, D1-3/4
Price
N/A
74
LATCH
Price
N/A
75
P0856075
Now: PN08
HEX NUT 3/8-16
Price
N/A
76
DUST PORT 4"
Price
N/A
77
P0856077
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
78
LOCK WASHER 10MM
Price
N/A
79
STANDOFF HEX 3/8-16 X 3/4, 3-5/16L
Price
N/A
80
CABINET STAND
Price
N/A
81
REAR ACCESS PANEL
Price
N/A
82
FOAM PAD
Price
N/A
83
POLY-V BELT 350J-7 35"
Price
N/A
84
P0856084
Now: PW07
FLAT WASHER 5/16
Price
N/A
85
P0856085
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
85V2
CARRIAGE BOLT 5/16-18 X 3/4
Price
N/A
86
MOTOR 3HP 230V 1-PH
Price
N/A
86-10
MOTOR FAN COVER
Price
N/A
86-11
MOTOR FAN
Price
N/A
86-12
CONTACT PLATE
Price
N/A
86-13
CENTRIFUGAL SWITCH
Price
N/A
86-14
S CAPACITOR 400M 125V 1-1/2 X 3-1/2
Price
N/A
86-15
R CAPACITOR 70M 250V 1-1/2 X 3-1/2
Price
N/A
86-16
CAPACITOR COVER
Price
N/A
86-17
BALL BEARING 6205ZZ
Price
N/A
86-18
BALL BEARING 6203ZZ
Price
N/A
86-2
KEY 5 X 5 X 30
Price
N/A
86-3
MOTOR PULLEY
Price
N/A
86-4
SET SCREW M6-1 X 8
Price
N/A
86-5
MOTOR LABEL
Price
N/A
86-6
STRAIN RELIEF TYPE-3 PG13.5
Price
N/A
86-7
MOTOR CORD 14G 3W 32"
Price
N/A
86-8
STRAIN RELIEF TYPE-1 3/4"
Price
N/A
86-9
BACKING BOARD
Price
N/A
87
WHEEL AXLE 3/8-16 X 1-3/16, 2-1/2L
Price
N/A
88
WHEEL
Price
N/A
89
LOCK NUT 3/8-16
Price
N/A
90
KNOB BOLT 6-LOBE 5/16-18 X 3/4
Price
N/A
91
MAG SWITCH KEDU KJD17B-230V-S
Price
N/A
92
CAP SCREW 1/2-12 X 1-3/4
Price
N/A
93
SET SCREW 1/4-20 X 1/4
Price
N/A
94
LOCK WASHER 8MM
Price
N/A
95
CAP SCREW M8-1.25 X 70
Price
N/A
96
SWITCH PEDESTAL
Price
N/A
97
CAP SCREW M8-1.25 X 20 W/WASHERS
Price
N/A
98
LOCK WASHER 3/8
Price
N/A
99
LOCK WASHER 1/2
Price
N/A
100
KEY 5 X 5 X 22
Price
N/A
101
P0856101
Now: PN02
HEX NUT 5/16-18
Price
N/A
102
TABLE ASSEMBLY
Price
N/A
102A
TABLE ASSEMBLY
Price
N/A
103
TABLE ASSEMBLY
Price
N/A
104
TABLE ASSEMBLY
Price
N/A
105
LEADSCREW SUPPORT
Price
N/A
106
LEADSCREW BRACKET
Price
N/A
107
LEADSCREW
Price
N/A
108
LEADSCREW COLLAR
Price
N/A
109
TABLE GIB
Price
N/A
110
SET SCREW 5/16-18 X 1-1/4 CONE-PT
Price
N/A
111
TORX DRIVER T-25
Price
$4.05
112
GUARD PIVOT SHAFT V1
Price
N/A
112V2
GUARD PIVOT SHAFT V2.02.19
Price
N/A
112V3
GUARD PIVOT SHAFT V3.07.19
Price
N/A
113
EXT RETAINING RING 11MM
Price
N/A
114
TORSION SPRING V1
Price
N/A
114V2
TORSION SPRING V2.07.19
Price
N/A
115
ROLL PIN 6 X 28
Price
N/A
115V2
ROLL PIN 6 X 25
Price
N/A
115V3
ROLL PIN 6 X 28
Price
N/A
116
ROLL PIN 5 X 28
Price
N/A
116V2
ROLL PIN 5 X 20
Price
N/A
116V3
ROLL PIN 5 X 26
Price
N/A
117
PUSH BLOCKS
Price
N/A
118
FLAT WASHER 12MM
Price
N/A
119
SWITCH BOX
Price
N/A
120
SWITCH PLATE
Price
N/A
121
SWITCH CORD 14G 3W 20"
Price
N/A
122
POWER CORD 14G 3W 10' 6-20P
Price
N/A
123
TAP SCREW M6 X 8
Price
N/A
124
ADJUSTABLE FOOT M8-1.25
Price
N/A
125
HEX NUT M8-1.25
Price
N/A
126
STRAIN RELIEF TYPE-1 5/8"
Price
N/A
127
PHLP HD SCR M4-.7 X 25
Price
N/A
128
PHLP HD SCR M4-.7 X 6
Price
N/A
129
EXT TOOTH WASHER 4MM
Price
N/A
130
HEX WRENCH 3MM
Price
N/A
131
HEX WRENCH 4MM
Price
N/A
132
HEX WRENCH 5MM
Price
N/A
133
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
134
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
135
WRENCH 11 X 13MM OPEN-ENDS
Price
N/A
136
HEX WRENCH 6MM
Price
N/A
137
GROUND LABEL
Price
N/A
138
CAP SCREW M5-.8 X 8
Price
N/A
139
FENDER WASHER 5MM
Price
N/A
140
FENDER WASHER 6.7 X 19 X 2MM
Price
N/A
141
BUTTON HD CAP SCR M6-1 X 12
Price
N/A

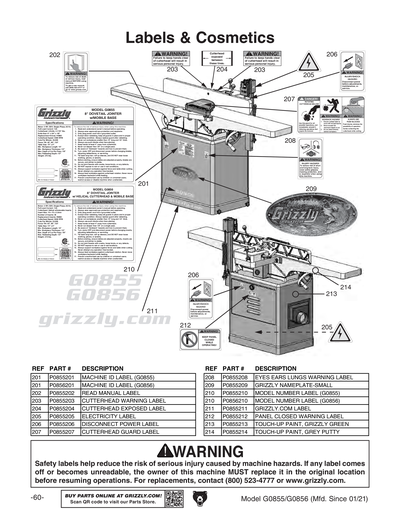

201
MACHINE ID LABEL
Price
$16.40
202
READ MANUAL 1.5W X 2.5H
Price
N/A
203
CUTTERHEAD WARNING LABEL
Price
N/A
204
CUTTERHEAD EXPOSED LABEL
Price
N/A
205
ELECTRICITY 0.7W X 0.6H
Price
N/A
206
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
207
CUTTERHEAD GUARD LABEL
Price
N/A
208
EYE/EAR/LUNG 1.5 X 2.5H
Price
N/A
209
Name Plates - Small
Price
N/A
210
MODEL NUMBER LABEL
Price
$2.25
211
GRIZZLY.COM LABEL
Price
N/A
212
PANEL CLOSED WARNING LABEL
Price
N/A
213
N/S GRIZZLY GREEN G1023S
Price
N/A
214
GREY PUTTY REF G0504
Price
N/A
BOX2
COMPLETE BOX 2 OF 2 FOR G0856
Price
$1,035.30
MAN
MANUAL G0855/G0856 MFD-07.18+ V1.10.18
Price
N/A
MANV2
MANUAL G0855/G0856 MFD-02.19-06.19 V2.01
Price
N/A
MANV3
MANUAL G0855/G0856 MFD-07.19-12.20 V3.08
Price
N/A
MANV4
MANUAL G0855/G0856 MFD-01.21+ V4.04.21
Price
N/A
