Parts for G0857 - 8" x 76" Parallelogram Jointer w/ Mobile Base

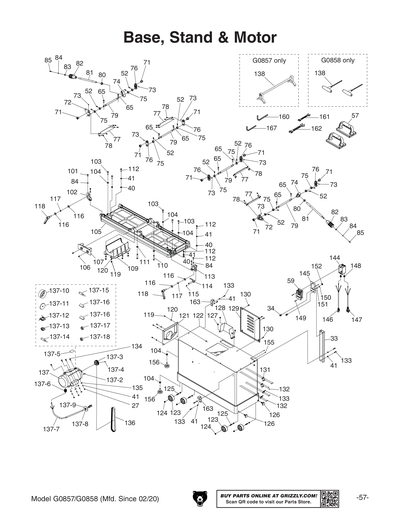

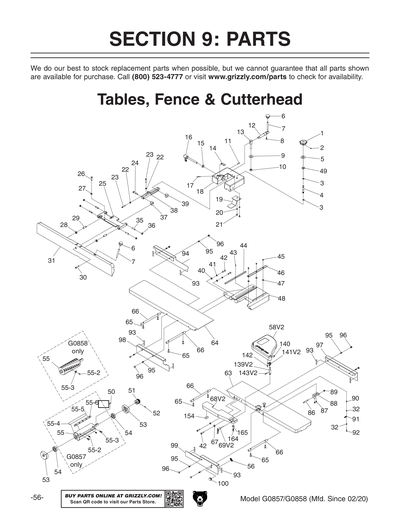

Part Diagram for G0857
Part Diagram for G0857
Part Diagram for G0857
Part Diagram for G0857
Part Diagram for G0857
Part Diagram for G0857
Part Diagram for G0857
Part Diagram for G0857
Part Diagram for G0857
Part Diagram for G0857

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

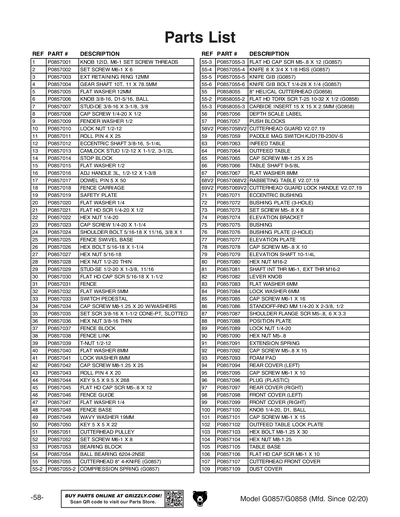

Ref #
Part #
Description
1
KNOB 12ID, M6-1 SET SCREW THREADS
Price
$7.00
2
SET SCREW M6-1 X 6
Price
N/A
3
EXT RETAINING RING 12MM
Price
N/A
4
GEAR SHAFT 10T, 11 X 78.5MM
Price
$9.40
5
FLAT WASHER 12MM
Price
N/A
6
ROUND FEMALE KNOB
Price
N/A
7
STUD-DE 3/8-16 X 3-1/8, 3/8
Price
N/A
8
CAP SCREW 1/4-20 X 1/2
Price
N/A
9
FENDER WASHER 1/2
Price
N/A
10
LOCK NUT 1/2-12
Price
$1.60
11
ROLL PIN 4 X 25
Price
N/A
12
ECCENTRIC SHAFT 3/8-16, 5-1/4L
Price
N/A
13
CAMLOCK STUD 1/2-12 X 1-1/2, 3-1/2L
Price
N/A
14
STOP BLOCK
Price
N/A
15
P0857015
Now: PW01
FLAT WASHER 1/2
Price
N/A
16
ADJ HANDLE 3L, 1/2-12 X 1-3/8
Price
$12.75
17
DOWEL PIN 5 X 50
Price
N/A
18
FENCE CARRIAGE
Price
$106.30
19
SAFETY PLATE
Price
N/A
20
P0857020
Now: PW06
FLAT WASHER 1/4
Price
N/A
21
FLAT HD SCR 1/4-20 X 1/2
Price
N/A
22
P0857022
Now: PN05
HEX NUT 1/4-20
Price
N/A
23
CAP SCREW 1/4-20 X 1-1/4
Price
N/A
24
SHOULDER BOLT 5/16-18 X 11/16, 3/8 X 1
Price
N/A
25
FENCE SWIVEL BASE
Price
N/A
26
P0857026
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
27
P0857027
Now: PN02
HEX NUT 5/16-18
Price
N/A
28
P0857028
Now: PN50
HEX NUT 1/2-20 THIN
Price
N/A
29
STUD-SE 1/2-20, 1-3/8, 11/16
Price
N/A
30
FLAT HD CAP SCR 5/16-18 X 1-1/2
Price
N/A
31
FENCE
Price
$148.30
32
FLAT WASHER 5MM
Price
N/A
33
SWITCH PEDESTAL
Price
$25.10
34
CAP SCREW M8-1.25 X 20 W/WASHERS
Price
$1.60
35
SET SCR 3/8-16 X 1-1/2, CONE-PT, SLOTTED
Price
N/A
36
HEX NUT 3/8-16 THIN
Price
N/A
37
FENCE BLOCK
Price
$2.90
38
FENCE LINK
Price
N/A
39
T-NUT 1/2-12
Price
N/A
40
FLAT WASHER 8MM
Price
N/A
41
LOCK WASHER 8MM
Price
N/A
42
CAP SCREW M8-1.25 X 25
Price
N/A
43
ROLL PIN 4 X 14
Price
N/A
44
KEY 9.5 X 9.5 X 268
Price
N/A
45
FLAT HD CAP SCR M5-.8 X 12
Price
N/A
46
FENCE GUIDE
Price
$4.60
47
P0857047
Now: PW06
FLAT WASHER 1/4
Price
N/A
48
FENCE BASE
Price
$98.55
49
WAVY WASHER 19MM
Price
$1.60
50
KEY 5 X 5 X 22
Price
N/A
51
CUTTERHEAD PULLEY
Price
N/A
52
SET SCREW M6-1 X 8
Price
N/A
53
BEARING BLOCK
Price
N/A
54
BALL BEARING 6204-2NSE
Price
N/A
55
CUTTERHEAD 8" 4-KNIFE
Price
N/A
55-2
COMPRESSION SPRING
Price
N/A
55-3
FLAT HD SCR M5-.8 X 12
Price
N/A
55-4
8" x 3/4" x 1/8" HSS Jointer Knives, Set of 4
Price
N/A
55-5
KNIFE GIB
Price
N/A
55-6
KNIFE GIB BOLT 1/4-28 X 1/4
Price
N/A
56
DEPTH SCALE LABEL
Price
$1.35
57
PUSH BLOCKS
Price
N/A
58
CUTTERHEAD GUARD V1
Price
$43.80
58-2
GUARD PIVOT SHAFT V1
Price
N/A
58-3
EXT RETAINING RING 11MM
Price
N/A
58-4
TORSION SPRING
Price
N/A
58-5
ROLL PIN 6 X 28
Price
N/A
58-6
ROLL PIN 4 X 40
Price
N/A
58V2
CUTTERHEAD GUARD V2.07.19
Price
$47.50
59-1
PADDLE MAG SWITCH KJD17B-230V-S
Price
$26.00
59-10
GROUND LABEL
Price
N/A
59-2
ON/OFF SWITCH BOX
Price
N/A
59-3
SWITCH PLATE
Price
$3.40
59-4
MOTOR CORD 14G 3W 20"
Price
$7.25
59-5
POWER CORD 14G 3W 120" 6-20P
Price
$24.15
59-6
STRAIN RELIEF TYPE-1 5/8"
Price
N/A
59-7
PHLP HD SCR M4-.7 X 25
Price
N/A
59-8
PHLP HD SCR M4-.7 X 6
Price
N/A
59-9
EXT TOOTH WASHER 4MM
Price
N/A
63
INFEED TABLE
Price
$313.70
64
OUTFEED TABLE
Price
$234.30
65
CAP SCREW M8-1.25 X 25
Price
N/A
66
TABLE SHAFT 9-5/8L
Price
$6.70
67
FLAT WASHER 8MM
Price
N/A
68
RABBETING TABLE V1
Price
$53.80
68V2
RABBETING TABLE V2.07.19
Price
$55.55
69
CAP SCREW 5/16-18 X 3/4
Price
N/A
69V2
CUTTERHEAD GUARD LOCK HANDLE V2.07.19
Price
$4.90
71
ECCENTRIC BUSHING
Price
$2.20
72
BUSHING PLATE (3-HOLE)
Price
$11.85
73
SET SCREW M5-.8 X 8
Price
N/A
74
ELEVATION BRACKET
Price
$16.35
75
BUSHING
Price
$3.05
76
BUSHING PLATE (2-HOLE)
Price
$10.45
77
ELEVATION PLATE
Price
$3.05
78
CAP SCREW M5-.8 X 10
Price
N/A
79
ELEVATION SHAFT 10-1/4L
Price
$11.85
80
HEX NUT M16-2
Price
N/A
81
SHAFT INT THR M6-1, EXT THR M16-2
Price
$13.30
82
LEVER KNOB
Price
$1.60
83
FLAT WASHER 6MM
Price
N/A
84
LOCK WASHER 6MM
Price
N/A
85
CAP SCREW M6-1 X 16
Price
N/A
86
STANDOFF-RND MM 1/4-20 X 2-3/8, 1/2
Price
$2.45
87
SHOULDER FLANGE SCR M5-.8, 6 X 3.3
Price
$1.60
88
POSITION PLATE
Price
$1.85
89
LOCK NUT 1/4-20
Price
N/A
90
HEX NUT M5-.8
Price
N/A
91
EXTENSION SPRING
Price
$1.60
92
CAP SCREW M5-.8 X 15
Price
N/A
93
FOAM PAD
Price
$1.60
94
REAR COVER (LEFT)
Price
$16.95
95
CAP SCREW M6-1 X 10
Price
N/A
96
PLUG (PLASTIC)
Price
$1.60
97
REAR COVER (RIGHT)
Price
$16.95
98
FRONT COVER (LEFT)
Price
$15.70
99
FRONT COVER (RIGHT)
Price
$27.55
100
KNOB 1/4-20, D1, BALL
Price
$1.49
101
CAP SCREW M6-1 X 15
Price
N/A
102
OUTFEED TABLE LOCK PLATE
Price
$2.45
103
HEX BOLT M8-1.25 X 30
Price
N/A
104
HEX NUT M8-1.25
Price
N/A
105
TABLE BASE
Price
$466.75
106
FLAT HD CAP SCR M6-1 X 10
Price
N/A
107
CUTTERHEAD FRONT COVER
Price
$6.70
109
DUST COVER
Price
$7.90

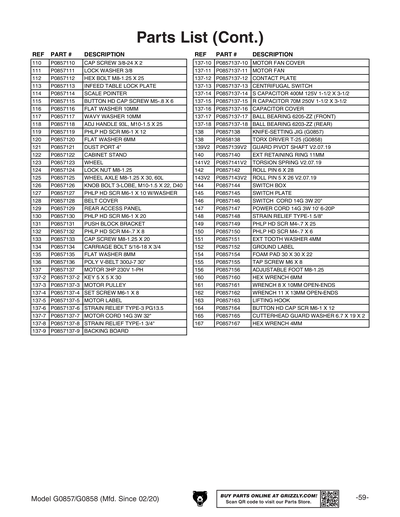

110
CAP SCREW 3/8-24 X 2
Price
$1.85
111
LOCK WASHER 3/8
Price
N/A
112
HEX BOLT M8-1.25 X 25
Price
N/A
113
INFEED TABLE LOCK PLATE
Price
$2.45
114
SCALE POINTER
Price
$1.60
115
BUTTON HD CAP SCR M5-.8 X 6
Price
N/A
116
FLAT WASHER 10MM
Price
N/A
117
WAVY WASHER 10MM
Price
$1.60
118
ADJ HANDLE 93L, M10-1.5 X 25
Price
$8.80
119
PHLP HD SCR M6-1 X 12
Price
N/A
120
FLAT WASHER 6MM
Price
N/A
121
DUST PORT 4"
Price
$2.30
122
CABINET STAND
Price
$498.45
123
WHEEL
Price
$3.40
124
LOCK NUT M8-1.25
Price
N/A
125
WHEEL AXLE M8-1.25 X 30, 60L
Price
$1.60
126
KNOB BOLT 3-LOBE, M10-1.5 X 22, D40
Price
$1.85
127
PHLP HD SCR M6-1 X 10 W/WASHER
Price
$1.60
128
BELT COVER
Price
$18.15
129
REAR ACCESS PANEL
Price
$19.10
130
PHLP HD SCR M6-1 X 20
Price
N/A
131
PUSH BLOCK BRACKET
Price
$1.60
132
PHLP HD SCR M4-.7 X 8
Price
N/A
133
CAP SCREW M8-1.25 X 20
Price
N/A
134
CARRIAGE BOLT 5/16-18 X 3/4
Price
N/A
135
FLAT WASHER 8MM
Price
N/A
136
POLY-V BELT 300J-7 30"
Price
$15.55
137
MOTOR 3HP 230V 1-PH
Price
N/A
137-10
MOTOR FAN COVER
Price
N/A
137-11
MOTOR FAN
Price
N/A
137-12
CONTACT PLATE
Price
N/A
137-13
CENTRIFUGAL SWITCH
Price
N/A
137-14
S CAPACITOR 400M 125V 1-9/16 X 3-1/2
Price
N/A
137-15
***USE P1021Z016V2-7V2***
Price
N/A
137-16
CAPACITOR COVER (RUN)
Price
N/A
137-17
BALL BEARING 6205ZZ
Price
N/A
137-18
BALL BEARING 6203ZZ
Price
N/A
137-2
KEY 5 X 5 X 30
Price
N/A
137-3
MOTOR PULLEY
Price
N/A
137-4
SET SCREW M6-1 X 8
Price
N/A
137-5
MOTOR LABEL
Price
N/A
137-6
STRAIN RELIEF TYPE-3 PG13.5
Price
N/A
137-7
MOTOR CORD 14G 3W 32"
Price
N/A
137-8
STRAIN RELIEF TYPE-1 3/4"
Price
N/A
137-9
BACKING BOARD
Price
N/A
138
KNIFE-SETTING JIG
Price
N/A
139
GUARD PIVOT SHAFT V1
Price
$4.60
139V2
GUARD PIVOT SHAFT V2.07.19
Price
$4.85
140
EXT RETAINING RING 11MM
Price
N/A
141
TORSION SPRING
Price
N/A
141V2
TORSION SPRING V2.07.19
Price
$1.75
142
ROLL PIN 6 X 28
Price
N/A
142V2
ROLL PIN 6 X 28
Price
N/A
143
ROLL PIN 5 X 40
Price
N/A
143V2
ROLL PIN 5 X 26
Price
N/A
144
SWITCH BOX
Price
N/A
145
SWITCH PLATE
Price
N/A
146
SWITCH CORD 14G 3W 20"
Price
N/A
147
POWER CORD 14G 3W 10' 6-20P
Price
N/A
148
STRAIN RELIEF TYPE-1 5/8"
Price
N/A
149
PHLP HD SCR M4-.7 X 25
Price
N/A
150
PHLP HD SCR M4-.7 X 6
Price
N/A
151
EXT TOOTH WASHER 4MM
Price
N/A
152
GROUND LABEL
Price
N/A
154
FOAM PAD 30 X 30 X 22
Price
$1.60
155
TAP SCREW M6 X 8
Price
N/A
156
ADJUSTABLE FOOT M8-1.25
Price
N/A
160
HEX WRENCH 6MM
Price
N/A
161
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
162
WRENCH 11 X 13MM OPEN-ENDS
Price
N/A
163
LIFTING HOOK
Price
$2.75
164
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
165
CUTTERHEAD GUARD WASHER 6.7 X 19 X 2
Price
$1.60
167
HEX WRENCH 4MM
Price
N/A

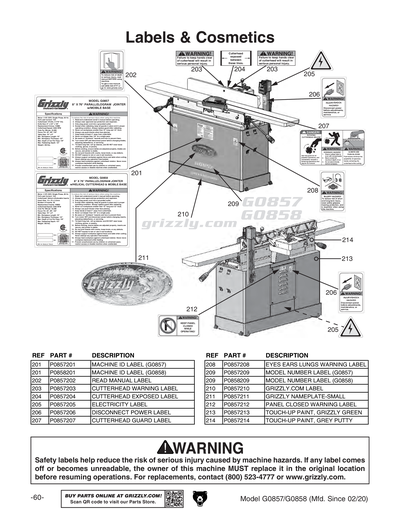

201
MACHINE ID LABEL
Price
$16.40
202
READ MANUAL 1.5W X 2.5H
Price
N/A
203
CUTTERHEAD WARNING LABEL
Price
N/A
204
CUTTERHEAD EXPOSED LABEL
Price
N/A
205
ELECTRICITY 0.7W X 0.6H
Price
N/A
206
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
207
CUTTERHEAD GUARD LABEL
Price
N/A
208
EYE/EAR/LUNG 1.5W X 2.5H
Price
N/A
209
MODEL NUMBER LABEL
Price
$2.40
210
GRIZZLY.COM LABEL
Price
N/A
211
Nameplate - Small
Price
N/A
212
PANEL CLOSED WARNING LABEL
Price
N/A
213
N/S GRIZZLY GREEN G1023S
Price
N/A
214
GREY PUTTY REF G0504
Price
N/A
215
INFEED TABLE LOCK WARNING LABEL
Price
$1.35
MAN
MANUAL G0857-58 MFD-09.18-01.20 V1.09.18
Price
$11.50
MANV2
MANUAL G0857-58 MFD-02.20+ V2.06.20
Price
$19.25
