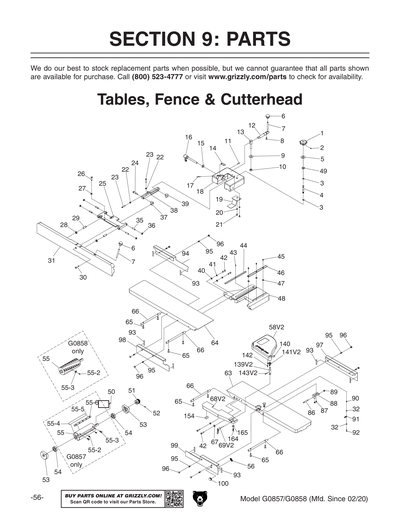

Parts for G0858 - 8" x 76" Parallelogram Jointer with Helical Cutterhead & Mobile Base

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

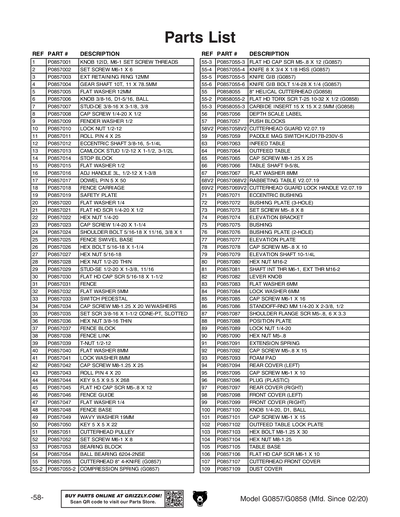

Ref # Part # Description Price Qty
1 P0858001
Replaced By P0857001
KNOB 12ID, M6-1 SET SCREW THREADS
N/A View Replacement
2 P0858002
Replaced By PSS02M
SET SCREW M6-1 X 6
N/A View Replacement
3 P0858003
Replaced By PR03M
EXT RETAINING RING 12MM
N/A View Replacement
4 P0858004
Replaced By P0857004
GEAR SHAFT 10T, 11 X 78.5MM
N/A View Replacement
5 P0858005
Replaced By PW06M
FLAT WASHER 12MM
N/A View Replacement
6 P0858006
Replaced By P0855005
KNOB 3/8-16, D1-5/16, BALL
N/A View Replacement
7 P0858007
Replaced By P0855023
STUD-DE 3/8-16 X 3-1/8, 3/8
N/A View Replacement
8 P0858008
Replaced By PCAP04
CAP SCREW 1/4-20 X 1/2
N/A View Replacement
9 P0858009
Replaced By PWF04
FENDER WASHER 1/2
N/A View Replacement
10 P0858010
Replaced By P0857010
LOCK NUT 1/2-12
N/A View Replacement
11 P0858011
Replaced By PRP56M
ROLL PIN 4 X 25
N/A View Replacement
12 P0858012
Replaced By P0855006
ECCENTRIC SHAFT 3/8-16, 5-1/4L
N/A View Replacement
13 P0858013
Replaced By P0855027
CAMLOCK STUD 1/2-12 X 1-1/2, 3-1/2L
N/A View Replacement
14 P0858014
Replaced By P0855003
STOP BLOCK
N/A View Replacement
15 P0858015
Replaced By PW01
FLAT WASHER 1/2
N/A View Replacement
16 P0858016
Replaced By P0857016
ADJ HANDLE 3L, 1/2-12 X 1-3/8
N/A View Replacement
17 P0858017
Replaced By P0855007
DOWEL PIN 5 X 50
N/A View Replacement
18 P0858018
Replaced By P0857018
FENCE CARRIAGE
N/A View Replacement
19 P0858019
Replaced By P0855025
SAFETY PLATE
N/A View Replacement
20 P0858020
Replaced By PW06
FLAT WASHER 1/4
N/A View Replacement
21 P0858021
Replaced By PFH03
FLAT HD SCR 1/4-20 X 1/2
N/A View Replacement
22 P0858022
Replaced By PN05
HEX NUT 1/4-20
N/A View Replacement
23 P0858023
Replaced By PCAP32
CAP SCREW 1/4-20 X 1-1/4
N/A View Replacement
24 P0858024
Replaced By P0855010
SHOULDER BOLT 5/16-18 X 11/16, 3/8 X 1
N/A View Replacement
25 P0858025
Replaced By P0855021
FENCE SWIVEL BASE
N/A View Replacement
26 P0858026
Replaced By PB11
HEX BOLT 5/16-18 X 1-1/2
N/A View Replacement
27 P0858027
Replaced By PN02
HEX NUT 5/16-18
N/A View Replacement
28 P0858028
Replaced By PN01
HEX NUT 1/2-20
N/A View Replacement
29 P0858029
Replaced By P0855013
STUD-SE 1/2-20, 1-3/8, 11/16
N/A View Replacement
30 P0858030
Replaced By P0855016
FLAT HD CAP SCR 5/16-18 X 1-1/2
N/A View Replacement
31 P0858031
Replaced By P0857031
FENCE
N/A View Replacement
32 P0858032
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
33 P0858033
Replaced By P0857033
SWITCH PEDESTAL
N/A View Replacement
34 P0858034
Replaced By P0857034
CAP SCREW M8-1.25 X 20 W/WASHERS
N/A View Replacement
35 P0858035
Replaced By P0855022
SET SCR 3/8-16 X 1-1/2, CONE-PT, SLOTTED
N/A View Replacement
36 P0858036
Replaced By P0855024
HEX NUT 3/8-16 THIN
N/A View Replacement
37 P0858037
Replaced By P0857037
FENCE BLOCK
N/A View Replacement
38 P0858038
Replaced By P0855018
FENCE LINK
N/A View Replacement
39 P0858039
Replaced By P0855019
T-NUT 1/2-12
N/A View Replacement
40 P0858040
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
41 P0858041
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
42 P0858042
Replaced By PCAP31M
CAP SCREW M8-1.25 X 25
N/A View Replacement
43 P0858043
Replaced By PRP19M
ROLL PIN 4 X 14
N/A View Replacement
44 P0858044
Replaced By P0855033
KEY 9.5 X 9.5 X 268
N/A View Replacement
45 P0858045
Replaced By PFH05M
FLAT HD SCR M5-.8 X 12
N/A View Replacement
46 P0858046
Replaced By P0857046
FENCE GUIDE
N/A View Replacement
47 P0858047
Replaced By PW06
FLAT WASHER 1/4
N/A View Replacement
48 P0858048
Replaced By P0857048
FENCE BASE
N/A View Replacement
49 P0858049
Replaced By P0857049
WAVY WASHER 19MM
N/A View Replacement
50 P0858050
Replaced By PK10M
KEY 5 X 5 X 12
N/A View Replacement
51 P0858051
Replaced By P0855039
CUTTERHEAD PULLEY
N/A View Replacement
52 P0858052
Replaced By PSS03M
SET SCREW M6-1 X 8
N/A View Replacement
53 P0858053
Replaced By P0855035
BEARING BLOCK
N/A View Replacement
54 P0858054
Replaced By P6204-2NSE
BALL BEARING 6204-2NSE
N/A View Replacement
55 P0858055
Replaced By P0856040
HELICAL CUTTERHEAD 8"
N/A View Replacement
55-2 P0858055-2
Replaced By P0856040-2
FLAT HD TORX SCR T-25 10-32 X 1/2
N/A View Replacement
55-3 P0858055-3
Replaced By H9893
Indexable Carbide Insert - 15 x 15 x 2.5mm, 10 Pack
N/A View Replacement
56 P0858056
Replaced By P0857056

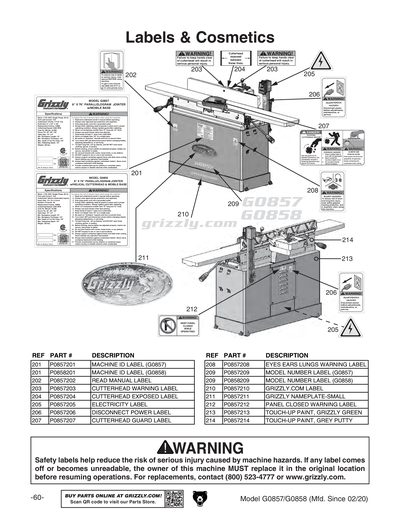

DEPTH SCALE LABEL
N/A View Replacement
57 P0858057
Replaced By P0855117
PUSH BLOCKS
N/A View Replacement
58 P0858058
Replaced By P0857058
CUTTERHEAD GUARD V1
N/A View Replacement
58-2 P0858058-2
Replaced By P0857058-2
GUARD PIVOT SHAFT
N/A View Replacement
58-3 P0858058-3
Replaced By PR48M
EXT RETAINING RING 11MM
N/A View Replacement
58-4 P0858058-4
Replaced By P0857058-4
TORSION SPRING
N/A View Replacement
58-5 P0858058-5
Replaced By PRP46M
ROLL PIN 6 X 28
N/A View Replacement
58-6 P0858058-6
Replaced By PRP51M
ROLL PIN 4 X 40
N/A View Replacement
58V2 P0858058V2
Replaced By P0857058V2
CUTTERHEAD GUARD V2.07.19
N/A View Replacement
59-1 P0858059-1
Replaced By P0857059-1
PADDLE MAG SWITCH KJD17B-230V-S
N/A View Replacement
59-10 P0858059-10
Replaced By P0857059-10
GROUND LABEL
N/A View Replacement
59-2 P0858059-2
Replaced By P0857059-2
SWITCH BOX
N/A View Replacement
59-3 P0858059-3
Replaced By P0857059-3
SWITCH PLATE
N/A View Replacement
59-4 P0858059-4
Replaced By P0857059-4
MOTOR CORD 14G 3W 20"
N/A View Replacement
59-5 P0858059-5
Replaced By P0857059-5
POWER CORD 14G 3W 120" 6-20P
N/A View Replacement
59-6 P0858059-6
Replaced By P0857059-6
STRAIN RELIEF TYPE-1 5/8"
N/A View Replacement
59-7 P0858059-7
Replaced By PS18M
PHLP HD SCR M4-.7 X 25
N/A View Replacement
59-8 P0858059-8
Replaced By PS17M
PHLP HD SCR M4-.7 X 6
N/A View Replacement
59-9 P0858059-9
Replaced By PTLW01M
EXT TOOTH WASHER 4MM
N/A View Replacement
63 P0858063
Replaced By P0857063
INFEED TABLE
N/A View Replacement
64 P0858064
Replaced By P0857064
OUTFEED TABLE
N/A View Replacement
65 P0858065
Replaced By PCAP31M
CAP SCREW M8-1.25 X 25
N/A View Replacement
66 P0858066
Replaced By P0857066
TABLE SHAFT 9-5/8L
N/A View Replacement
67 P0858067
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
68 P0858068
Replaced By P0857068
RABBETING TABLE V1
N/A View Replacement
68V2 P0858068V2
Replaced By P0857068V2
RABBETING TABLE V2.07.19
N/A View Replacement
69 P0858069
Replaced By PCAP07
CAP SCREW 5/16-18 X 3/4
N/A View Replacement
69V2 P0858069V2
Replaced By P0857069V2
CUTTERHEAD GUARD LOCK HANDLE V2.07.19
N/A View Replacement
71 P0858071
Replaced By P0857071
ECCENTRIC BUSHING
N/A View Replacement
72 P0858072
Replaced By P0857072
BUSHING PLATE (3-HOLE)
N/A View Replacement
73 P0858073
Replaced By PSS31M
SET SCREW M5-.8 X 8
N/A View Replacement
74 P0858074
Replaced By P0857074
ELEVATION BRACKET
N/A View Replacement
75 P0858075
Replaced By P0857075
BUSHING
N/A View Replacement
76 P0858076
Replaced By P0857076
BUSHING PLATE (2-HOLE)
N/A View Replacement
77 P0858077
Replaced By P0857077
ELEVATION PLATE
N/A View Replacement
78 P0858078
Replaced By PCAP50M
CAP SCREW M5-.8 X 10
N/A View Replacement
79 P0858079
Replaced By P0857079
ELEVATION SHAFT 10-1/4L
N/A View Replacement
80 P0858080
Replaced By PN13M
HEX NUT M16-2
N/A View Replacement
81 P0858081
Replaced By P0857081
SHAFT INT THR M6-1, EXT THR M16-2
N/A View Replacement
82 P0858082
Replaced By P0857082
LEVER KNOB
N/A View Replacement
83 P0858083
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
84 P0858084
Replaced By PLW03M
LOCK WASHER 6MM
N/A View Replacement
85 P0858085
Replaced By PCAP01M
CAP SCREW M6-1 X 16
N/A View Replacement
86 P0858086
Replaced By P0857086
STANDOFF-RND MM 1/4-20 X 2-3/8, 1/2
N/A View Replacement
87 P0858087
Replaced By P0857087
SHOULDER FLANGE SCR M5-.8, 6 X 3.3
N/A View Replacement
88 P0858088
Replaced By P0857088
POSITION PLATE
N/A View Replacement
89 P0858089
Replaced By PLN02
LOCK NUT 1/4-20
N/A View Replacement
90 P0858090
Replaced By PN06M
HEX NUT M5-.8
N/A View Replacement
91 P0858091
Replaced By P0857091
EXTENSION SPRING
N/A View Replacement
92 P0858092
Replaced By PCAP10M
CAP SCREW M5-.8 X 15
N/A View Replacement
93 P0858093
Replaced By P0857093
FOAM PAD
N/A View Replacement
94 P0858094
Replaced By P0857094
REAR COVER (LEFT)
N/A View Replacement
95 P0858095
Replaced By PCAP04M
CAP SCREW M6-1 X 10
N/A View Replacement
96 P0858096
Replaced By P0857096
PLUG (PLASTIC)
N/A View Replacement
97 P0858097
Replaced By P0857097
REAR COVER (RIGHT)
N/A View Replacement
98 P0858098
Replaced By P0857098
FRONT COVER (LEFT)
N/A View Replacement
99 P0858099
Replaced By P0857099
FRONT COVER (RIGHT)
N/A View Replacement
100 P0858100
Replaced By P0857100
KNOB 1/4-20, D1, BALL
N/A View Replacement
101 P0858101
Replaced By PCAP28M
CAP SCREW M6-1 X 15
N/A View Replacement
102 P0858102
Replaced By P0857102
OUTFEED TABLE LOCK PLATE
N/A View Replacement
103 P0858103
Replaced By PB26M
HEX BOLT M8-1.25 X 30
N/A View Replacement
104 P0858104
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
105 P0858105
Replaced By P0857105
TABLE BASE
N/A View Replacement
106 P0858106
Replaced By PFH91M
FLAT HD CAP SCR M6-1 X 10
N/A View Replacement
107 P0858107
Replaced By P0857107
CUTTERHEAD FRONT COVER
N/A View Replacement
108 P0858108
Replaced By P0857108
*DISCD*PHLP HD SCR M6-1 X 12 W/WASHER
N/A View Replacement
109 P0858109
Replaced By P0857109
DUST COVER
N/A View Replacement
110 P0858110
Replaced By P0857110
CAP SCREW 3/8-24 X 2
N/A View Replacement
111 P0858111
Replaced By PLW04
LOCK WASHER 3/8
N/A View Replacement
112 P0858112
Replaced By PB07M
HEX BOLT M8-1.25 X 25
N/A View Replacement
113 P0858113
Replaced By P0857113
INFEED TABLE LOCK PLATE
N/A View Replacement
114 P0858114
Replaced By P0857114
SCALE POINTER
N/A View Replacement
115 P0858115
Replaced By PBH17M
BUTTON HD CAP SCR M5-.8 X 6
N/A View Replacement
116 P0858116
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
117 P0858117
Replaced By P0857117
WAVY WASHER 10MM
N/A View Replacement
118 P0858118
Replaced By P0857118
ADJ HANDLE 93L, M10-1.5 X 25
N/A View Replacement
119 P0858119
Replaced By PS04
PHLP HD SCR 1/4-20 X 1/2
N/A View Replacement
120 P0858120
Replaced By PW06
FLAT WASHER 1/4
N/A View Replacement
121 P0858121
Replaced By P0857121
DUST PORT 4"
N/A View Replacement
122 P0858122
Replaced By P0857122
CABINET STAND
N/A View Replacement
123 P0858123
Replaced By P0857123
WHEEL
N/A View Replacement
124 P0858124
Replaced By PLN04M
LOCK NUT M8-1.25
N/A View Replacement
125 P0858125
Replaced By P0857125
WHEEL AXLE M8-1.25 X 30, 60L
N/A View Replacement
126 P0858126
Replaced By P0857126
KNOB BOLT 3-LOBE, M10-1.5 X 22, D40
N/A View Replacement
127 P0858127
Replaced By P0857127
PHLP HD SCR M6-1 X 10 W/WASHER
N/A View Replacement
128 P0858128
Replaced By P0857128
BELT COVER
N/A View Replacement
129 P0858129
Replaced By P0857129
REAR ACCESS PANEL
N/A View Replacement
130 P0858130
Replaced By PS26M
PHLP HD SCR M6-1 X 20
N/A View Replacement
131 P0858131
Replaced By P0857131
PUSH BLOCK BRACKET
N/A View Replacement
132 P0858132
Replaced By PS07M
PHLP HD SCR M4-.7 X 8
N/A View Replacement
133 P0858133
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
N/A View Replacement
134 P0858134
Replaced By PCB05
CARRIAGE BOLT 5/16-18 X 3/4
N/A View Replacement
135 P0858135
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
136 P0858136
Replaced By P0857136
POLY-V BELT 300J-7 30"
N/A View Replacement
137 P0858137
Replaced By P0855086
MOTOR 3HP 230V 1-PH
N/A View Replacement
137-10 P0858137-10
Replaced By P0855086-10
MOTOR FAN COVER
N/A View Replacement
137-11 P0858137-11
Replaced By P0855086-11
MOTOR FAN
N/A View Replacement
137-12 P0858137-12
Replaced By P0855086-12
CONTACT PLATE
N/A View Replacement
137-13 P0858137-13
Replaced By P0855086-13
CENTRIFUGAL SWITCH
N/A View Replacement
137-14 P0858137-14
Replaced By P0855086-14
S CAPACITOR 400M 125V 1-1/2 X 3-1/2
N/A View Replacement
137-15 P0858137-15
Replaced By P0855086-15
R CAPACITOR 70M 250V 1-1/2 X 3-1/2
N/A View Replacement
137-16 P0858137-16
Replaced By P0855086-16
CAPACITOR COVER
N/A View Replacement
137-17 P0858137-17
Replaced By P6205ZZ
BALL BEARING 6205ZZ
N/A View Replacement
137-18 P0858137-18
Replaced By P6203ZZ
BALL BEARING 6203ZZ
N/A View Replacement
137-2 P0858137-2
Replaced By PK12M
KEY 5 X 5 X 30
N/A View Replacement
137-3 P0858137-3
Replaced By P0855086-3
MOTOR PULLEY
N/A View Replacement
137-4 P0858137-4
Replaced By PSS03M
SET SCREW M6-1 X 8
N/A View Replacement
137-5 P0858137-5
Replaced By P0855086-5
MOTOR LABEL
N/A View Replacement
137-6 P0858137-6
Replaced By P0855086-6
STRAIN RELIEF TYPE-3 PG13.5
N/A View Replacement
137-7 P0858137-7
Replaced By P0855086-7
MOTOR CORD 14G 3W 32"
N/A View Replacement
137-8 P0858137-8
Replaced By P0855086-8
STRAIN RELIEF TYPE-1 3/4"
N/A View Replacement
137-9 P0858137-9
Replaced By P0855086-9
BACKING BOARD
N/A View Replacement
138 P0858138
Replaced By P0856111
TORX DRIVER T-25
N/A View Replacement
139 P0858139
Replaced By P0857139
GUARD PIVOT SHAFT V1
N/A View Replacement
139V2 P0858139V2
Replaced By P0857139V2
GUARD PIVOT SHAFT V2.07.19
N/A View Replacement
140 P0858140
Replaced By PR48M
EXT RETAINING RING 11MM
N/A View Replacement
141 P0858141
Replaced By P0855114
TORSION SPRING V1
N/A View Replacement
141V2 P0858141V2
Replaced By P0857141V2
TORSION SPRING V2.07.19
N/A View Replacement
142 P0858142
Replaced By PRP46M
ROLL PIN 6 X 28
N/A View Replacement
143 P0858143
Replaced By PRP28M
ROLL PIN 5 X 40
N/A View Replacement
143V2 P0858143V2
Replaced By PRP26M
ROLL PIN 5 X 26
N/A View Replacement
144 P0858144
Replaced By P0855119
SWITCH BOX
N/A View Replacement
145 P0858145
Replaced By P0855120
SWITCH PLATE
N/A View Replacement
146 P0858146
Replaced By P0855121
SWITCH CORD 14G 3W 20"
N/A View Replacement
147 P0858147
Replaced By P0855122
POWER CORD 14G 3W 10' 6-20P
N/A View Replacement
148 P0858148
Replaced By P0855126
STRAIN RELIEF TYPE-1 5/8"
N/A View Replacement
149 P0858149
Replaced By PS18M
PHLP HD SCR M4-.7 X 25
N/A View Replacement
150 P0858150
Replaced By PS17M
PHLP HD SCR M4-.7 X 6
N/A View Replacement
151 P0858151
Replaced By PTLW01M
EXT TOOTH WASHER 4MM
N/A View Replacement
152 P0858152
Replaced By P0855137
GROUND LABEL
N/A View Replacement
154 P0858154
Replaced By P0857154
FOAM PAD 30 X 30 X 22
N/A View Replacement
155 P0858155
Replaced By P0855123
TAP SCREW M6 X 8
N/A View Replacement
156 P0858156
Replaced By P0855124
ADJUSTABLE FOOT M8-1.25
N/A View Replacement
160 P0858160
Replaced By PAW06M
HEX WRENCH 6MM
N/A View Replacement
161 P0858161
Replaced By PWR810
WRENCH 8 X 10MM OPEN-ENDS
N/A View Replacement
162 P0858162 ***USE PWR1113*** $0.25
163 P0858163
Replaced By P0857163
LIFTING HOOK
N/A View Replacement
164 P0858164
Replaced By PBHS09M
BUTTON HD CAP SCR M6-1 X 12
N/A View Replacement
165 P0858165
Replaced By P0857165
CUTTERHEAD GUARD WASHER 6.7 X 19 X 2
N/A View Replacement
167 P0858167 ***USE PAW04M*** $0.00
201 P0858201 MACHINE ID LABEL $9.50
202 P0858202
Replaced By PLABEL-12C
READ MANUAL 1.5W X 2.5H
N/A View Replacement
203 P0858203
Replaced By P0855203
CUTTERHEAD WARNING LABEL
N/A View Replacement
204 P0858204
Replaced By P0855204
CUTTERHEAD EXPOSED LABEL
N/A View Replacement
205 P0858205
Replaced By PLABEL-14A
ELECTRICITY 0.7W X 0.6H
N/A View Replacement
206 P0858206
Replaced By PLABEL-62A
DISCONNECT 110V 1.5W X 2.5H
N/A View Replacement
207 P0858207
Replaced By P0855207
CUTTERHEAD GUARD LABEL
N/A View Replacement
208 P0858208
Replaced By PLABEL-90A
EYE/EAR/LUNG 1.5 X 2.5H
N/A View Replacement
209 P0858209 MODEL NUMBER LABEL $2.25
210 P0858210
Replaced By P0855210
MODEL NUMBER LABEL
N/A View Replacement
211 P0858211
Replaced By G8588
Name Plates - Small
N/A View Replacement
212 P0858212
Replaced By P0855212
PANEL CLOSED WARNING LABEL
N/A View Replacement
213 P0858213
Replaced By PPAINT-1
N/S GRIZZLY GREEN G1023S
N/A View Replacement
214 P0858214
Replaced By PPAINT-11
GREY PUTTY REF G0504
N/A View Replacement
215 P0858215 ***USE P0857215*** $0.00
MAN P0858MAN
Replaced By P0857MAN
MANUAL G0857-58 MFD-09.18-01.20 V1.09.18
N/A View Replacement
MANV2 P0858MANV2
Replaced By P0857MAN
MANUAL G0857-58 MFD-09.18-01.20 V1.09.18
N/A View Replacement
