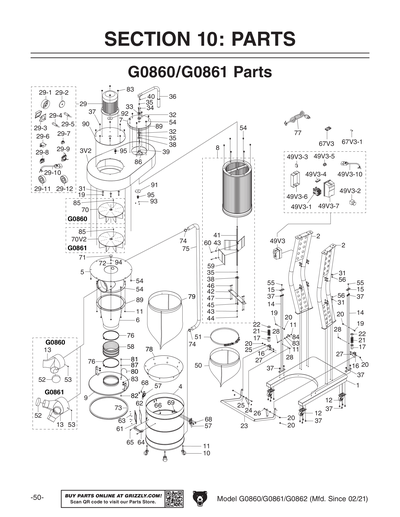

Parts for G0860 - 1-1/2 HP Portable Cyclone Dust Collector

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

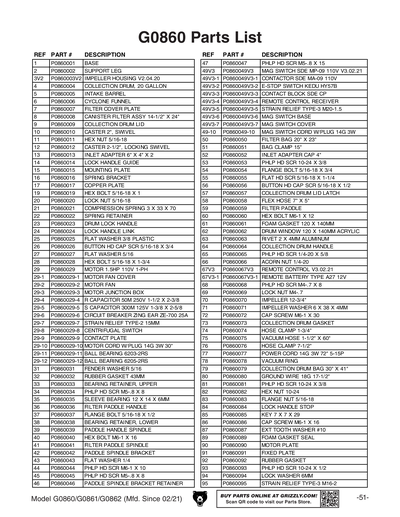

Ref # Part # Description Price Qty
001 P0860001
BASE
N/A
002 P0860002 SUPPORT LEG $77.25
003 P0860003 IMPELLER HOUSING V1 $510.50
004 P0860004 COLLECTION DRUM W/WINDOW, 20 GALLON $325.00
004-1 P0860004-1 *DISCD*90 DEGREE ANGLE TUBE $0.00
004-2 P0860004-2
*DISCD*HEX BOLT
Item is no longer available
N/A
005 P0860005 INTAKE BARREL $192.50
006 P0860006 CYCLONE FUNNEL $83.25
007 P0860007 FILTER COVER PLATE $37.00
008 P0860008 Replacement Filter for G0860 & G0861 $219.95
009 P0860009 COLLECTION DRUM LID $61.50
010 P0860010 CASTER 2", SWIVEL $4.25
011 P0860011
HEX NUT 5/16-18
Item is no longer available
P0860011 Replaced By PN02
N/A View Replacement
012 P0860012 CASTER 2-1/2", LOCKING SWIVEL $8.75
013 P0860013 INLET ADAPTER 6" X 4" X 2 $12.00
014 P0860014 LOCK HANDLE GUIDE $63.25
015 P0860015 MOUNTING PLATE $2.75
016 P0860016 SPRING BRACKET $20.50
017 P0860017 COPPER PLATE $3.00
019 P0860019
HEX BOLT 5/16-18 X 1
Item is no longer available
P0860019 Replaced By PB03
N/A View Replacement
020 P0860020
LOCK NUT 5/16-18
Item is no longer available
P0860020 Replaced By PLN03
N/A View Replacement
021 P0860021 COMPRESSION SPRING 3 X 33 X 70 $5.50
022 P0860022 SPRING RETAINER $1.75
023 P0860023
DRUM LOCK HANDLE
N/A
024 P0860024
LOCK HANDLE LINK
N/A
025 P0860025 FLAT WASHER 3/8 PLASTIC $1.00
026 P0860026
BUTTON HD CAP SCR 5/16-18 X 3/4
Item is no longer available
P0860026 Replaced By PBHS21
N/A View Replacement
027 P0860027
FLAT WASHER 5/16
Item is no longer available
P0860027 Replaced By PW07
N/A View Replacement
028 P0860028
HEX BOLT 5/16-18 X 1-3/4
Item is no longer available
P0860028 Replaced By PB22
N/A View Replacement
029 P0860029 MOTOR 1.5HP 110V 1-PH $272.00
029-1 P0860029-1
MOTOR FAN COVER
N/A
029-10 P0860029-10 MOTOR CORD W/PLUG 14G 3W 30" $11.00
029-11 P0860029-11
BALL BEARING 6203-2RS
Item is no longer available
P0860029-11 Replaced By P6203-2RS
N/A View Replacement
029-12 P0860029-12
BALL BEARING 6205-2RS
Item is no longer available
P0860029-12 Replaced By P6205-2RS
N/A View Replacement
029-2 P0860029-2
MOTOR FAN
N/A
029-3 P0860029-3
MOTOR JUNCTION BOX
N/A
029-4 P0860029-4
R CAPACITOR 50M 250V 1-1/2 X 2-3/8
N/A
029-5 P0860029-5 S CAPACITOR 300M 125V 1-3/8 X 2-5/8 $10.50
029-6 P0860029-6 CIRCUIT BREAKER ZING EAR ZE-700 25A $5.75
029-7 P0860029-7
STRAIN RELIEF TYPE-2 15MM
N/A
029-8 P0860029-8 CENTRIFUGAL SWITCH $11.75
029-9 P0860029-9
CONTACT PLATE
N/A
030 P0860030
FLANGE NUT 5/16-18
Item is no longer available
P0860030 Replaced By PFN02
N/A View Replacement
031 P0860031
FENDER WASHER 5/16
Item is no longer available
P0860031 Replaced By PWF01
N/A View Replacement
032 P0860032
RUBBER GASKET 43MM
N/A
033 P0860033 BEARING RETAINER, UPPER $2.50
034 P0860034
PHLP HD SCR M5-.8 X 8
Item is no longer available
P0860034 Replaced By PS05M
N/A View Replacement
035 P0860035
SLEEVE BEARING 12 X 14 X 6MM
N/A
036 P0860036
FILTER PADDLE HANDLE
N/A
037 P0860037
FLANGE BOLT 5/16-18 X 1/2
Item is no longer available
P0860037 Replaced By PFB01
N/A View Replacement
038 P0860038
BEARING RETAINER, LOWER
N/A
039 P0860039 PADDLE HANDLE SPINDLE $21.50
040 P0860040
HEX BOLT M6-1 X 16
Item is no longer available
P0860040 Replaced By PB83M
N/A View Replacement
041 P0860041
FILTER PADDLE SPINDLE
N/A
042 P0860042 PADDLE SPINDLE BRACKET $20.75
043 P0860043
FLAT WASHER 1/4
Item is no longer available
P0860043 Replaced By PW06
N/A View Replacement
044 P0860044
PHLP HD SCR M6-1 X 10
Item is no longer available
P0860044 Replaced By PS68M
N/A View Replacement
045 P0860045
PHLP HD SCR M5-.8 X 8
Item is no longer available
P0860045 Replaced By PS05M
N/A View Replacement
046 P0860046 PADDLE SPINDLE BRACKET RETAINER $1.50
047 P0860047
PHLP HD SCR M5-.8 X 15
Item is no longer available
P0860047 Replaced By PS20M
N/A View Replacement
049 P0860049 MAG SWITCH NHD MS1-12D 110V $162.50
049-1 P0860049-1
CONTACTOR NHD C-12D10 110V
N/A
049-10 P0860049-10
MAG SWITCH CORD W/PLUG 14G 3W
N/A
049-2 P0860049-2 E-STOP SWITCH NHD NPB22-H $25.75
049-3 P0860049-3
CONTACT BLOCK NHD CB-01
N/A
049-4 P0860049-4
*SEE EXT. DESCRIPTION
Item is no longer available
N/A
049-4V2 P0860049-4V2 REMOTE CONTROL RECEIVER V2. $123.50
049-5 P0860049-5
STRAIN RELIEF TYPE-3 M20-1.5
N/A
049-6 P0860049-6
MAG SWITCH BASE
N/A
049-7 P0860049-7
MAG SWITCH COVER
N/A
049-8 P0860049-8
PHLP HD SCR 10-24 X 3/4
Item is no longer available
P0860049-8 Replaced By PS08
N/A View Replacement
049-9 P0860049-9
HEX NUT 10-24
Item is no longer available
P0860049-9 Replaced By PN07
N/A View Replacement
050 P0860050
Filter Bag 20" x 23"
Item is no longer available
P0860050 Replaced By T27900
N/A View Replacement
051 P0860051 BAG CLAMP 15" $13.75
052 P0860052 INLET ADAPTER CAP 4" $1.50
053 P0860053
PHLP HD SCR 10-24 X 3/8
Item is no longer available
P0860053 Replaced By PS06
N/A View Replacement
054 P0860054
FLANGE BOLT 5/16-18 X 3/4
Item is no longer available
P0860054 Replaced By PFB02
N/A View Replacement
055 P0860055
FLAT HD SCR 5/16-18 X 1-1/4
Item is no longer available
P0860055 Replaced By PFH07
N/A View Replacement
056 P0860056
BUTTON HD CAP SCR 5/16-18 X 1/2
Item is no longer available
P0860056 Replaced By PBHS23
N/A View Replacement
057 P0860057 COLLECTION DRUM LID LATCH $11.75
058 P0860058 FLEX HOSE 7" X 5" $22.50
059 P0860059 FILTER PADDLE $10.75
060 P0860060
HEX BOLT M6-1 X 12
Item is no longer available
P0860060 Replaced By PB02M
N/A View Replacement
061 P0860061 FOAM GASKET, 120 X 140MM $1.00
062 P0860062 DRUM WINDOW, 120 X 140MM ACRYLIC $4.25
063 P0860063
RIVET 2 X 4MM NAMEPLATE, ALUMINUM
Item is no longer available
P0860063 Replaced By PRIV19M
N/A View Replacement
064 P0860064 COLLECTION DRUM HANDLE $3.00
065 P0860065
PHLP HD SCR 1/4-20 X 5/8
Item is no longer available
P0860065 Replaced By PS12
N/A View Replacement
066 P0860066
***USE PN53***
Item is no longer available
P0860066 Replaced By PN53
N/A View Replacement
067 P0860067
*SEE EXT. DESCRIPTION
Item is no longer available
N/A
067-1 P0860067-1
REMOTE BATTERY TYPE A27 12V
N/A
067V2 P0860067V2 REMOTE CONTROL V2. $46.50
068 P0860068
PHLP HD SCR M4-.7 X 8
Item is no longer available
P0860068 Replaced By PS07M
N/A View Replacement
069 P0860069
LOCK NUT M4-.7
Item is no longer available
P0860069 Replaced By PLN01M
N/A View Replacement
070 P0860070 IMPELLER 12-3/4" $92.75
071 P0860071 IMPELLER WASHER 6 X 38 X 4MM $1.50
072 P0860072
CAP SCREW M6-1 X 30 LH
N/A
073 P0860073 COLLECTION DRUM GASKET $37.75
074 P0860074
HOSE CLAMP 1-3/4"
N/A
075 P0860075
VACUUM HOSE 1-1/2" X 60"
N/A
076 P0860076
HOSE CLAMP 8-1/2"
N/A
077 P0860077 POWER CORD 14G 3W 72" 5-15P $14.75
078 P0860078 VACUUM RING $30.75
079 P0860079
Collection Bag 30" x 41"
Item is no longer available
P0860079 Replaced By T27974
N/A View Replacement
080 P0860080
GROUND WIRE 18G 17-1/2"
N/A
081 P0860081
PHLP HD SCR 10-24 X 3/8
Item is no longer available
P0860081 Replaced By PS06
N/A View Replacement
082 P0860082
HEX NUT 10-24
Item is no longer available
P0860082 Replaced By PN07
N/A View Replacement
083 P0860083
FLANGE NUT 5/16-18
Item is no longer available
P0860083 Replaced By PFN02
N/A View Replacement
084 P0860084 LOCK HANDLE STOP $5.00
085 P0860085
KEY 7 X 7 X 29
Item is no longer available
P0860085 Replaced By PK28M
N/A View Replacement
086 P0860086
CAP SCREW M6-1 X 16
Item is no longer available
P0860086 Replaced By PCAP01M
N/A View Replacement
087 P0860087
EXT TOOTH WASHER #10
Item is no longer available
P0860087 Replaced By PTLW01
N/A View Replacement
089 P0860089 FOAM GASKET SEAL $7.00

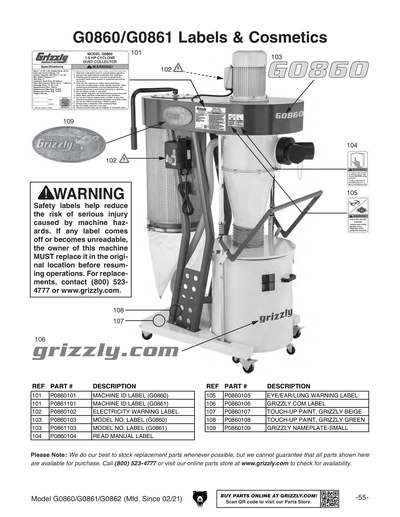

101 P0860101
MACHINE ID LABEL
N/A
102 P0860102
ELECTRICITY 0.7W X 0.6H
Item is no longer available
P0860102 Replaced By PLABEL-14A
N/A View Replacement
103 P0860103
MODEL NO. LABEL
N/A
104 P0860104
READ MANUAL 1.5W X 2.5H
Item is no longer available
P0860104 Replaced By PLABEL-12C
N/A View Replacement
105 P0860105
EYE/EAR/LUNG 1.5 X 2.5H
Item is no longer available
P0860105 Replaced By PLABEL-90A
N/A View Replacement
106 P0860106 GRIZZLY.COM LABEL $2.75
107 P0860107
BEIGE REF G0555
Item is no longer available
P0860107 Replaced By PPAINT-14
N/A View Replacement
108 P0860108
N/S GRIZZLY GREEN G1023S
Item is no longer available
P0860108 Replaced By PPAINT-1
N/A View Replacement
109 P0860109
Name Plates - Small
Item is no longer available
P0860109 Replaced By G8588
N/A View Replacement
BOX2 P0860BOX2
COMPLETE BOX 2 OF 3 FOR G0860
N/A
BOX3 P0860BOX3
COMPLETE BOX 3 OF 3 FOR G0860
N/A
MAN P0860MAN MANUAL G0860-62 MFD-09.18-05.19 V1.12.18 $11.75
MANV2 P0860MANV2
MANUAL G0860-62 MFD-06.19-09.19 V2.06.19
N/A
MANV3 P0860MANV3
MANUAL G0860-62 MFD-10.19+ V3.10.19
N/A
