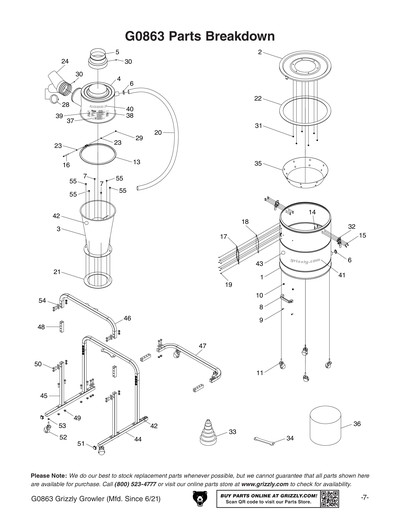

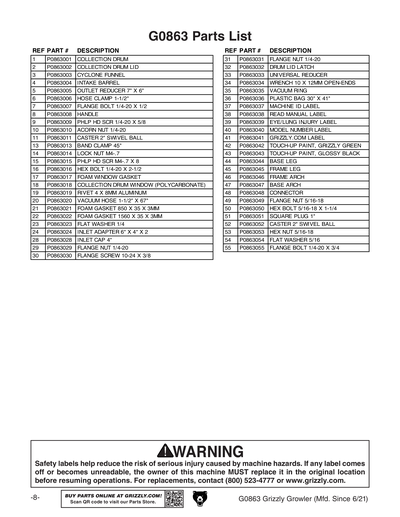

Parts for G0863 Grizzly Growler Cyclone Separator

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
COLLECTION DRUM
2
COLLECTION DRUM LID
3
CYCLONE FUNNEL
4
INTAKE BARREL
5
OUTLET REDUCER 7" X 6"
6
HOSE CLAMP 1-1/2"
7
Now: PFB03
FLANGE BOLT 1/4-20 X 1/2
Price
N/A
8
HANDLE
9
Now: PS12
PHLP HD SCR 1/4-20 X 5/8
Price
N/A
10
ACORN NUT 1/4-20
11
CASTER 2" SWIVEL BALL
12
Now: PN02
HEX NUT 5/16-18
Price
N/A
13
BAND CLAMP 45"
14
LOCK NUT M4-.7
Price
N/A
15
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
16
Now: PB98
HEX BOLT 1/4-20 X 2-1/2
Price
N/A
17
FOAM WINDOW GASKET
18
DRUM WINDOW, 120 X 140MM ACRYLIC
Price
N/A
19
RIVET 4 X 8MM ALUMINUM
20
VACUUM HOSE 1-1/2" X 67"
21
FOAM GASKET 850 X 35 X 3MM
22
FOAM GASKET 1560 X 35 X 3MM
23
Now: PW06
FLAT WASHER 1/4
Price
N/A
24
INLET ADAPTER 6" X 4" X 2
28
INLET CAP 4"
29
Now: PFN01
FLANGE NUT 1/4-20
Price
N/A
30
Now: PFS03
FLANGE SCREW 10-24 X 3/8
Price
N/A
31
Now: PFN01
FLANGE NUT 1/4-20
Price
N/A
32
DRUM LID LATCH
33
UNIVERSAL REDUCER
34
WRENCH 10 X 12MM OPEN-ENDS
Price
N/A
35
VACUUM RING
36
Collection Bag 30" x 41"
Price
N/A
37
MACHINE ID LABEL
38
READ MANUAL 1.5W X 2.5H
Price
N/A
39
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
40
MODEL NUMBER LABEL
41
GRIZZLY.COM LABEL 13.25",BEIGE
Price
N/A
42
N/S GRIZZLY GREEN G1023S
Price
N/A
43
GLOSSY BLACK
Price
N/A
44
BASE LEG
45
FRAME LEG
46
FRAME ARCH
47
BASE ARCH
48
CONNECTOR
49
Now: PFN02
FLANGE NUT 5/16-18
Price
N/A
50
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
51
SQUARE PLUG 1"
52
CASTER 2" SWIVEL BALL
Price
N/A
53
Now: PN02
HEX NUT 5/16-18
Price
N/A
54
Now: PW07
FLAT WASHER 5/16
Price
N/A
55
Now: PFB15
FLANGE BOLT 1/4-20 X 3/4
Price
N/A
MAN
MANUAL G0863 MFD-10.18-05.21 V1.01.19
MANV2
MANUAL G0863 MFD-06.21+ V2.01.22
