Parts for G0864 - Variable-Speed 1" x 30" Belt/ 6" Disc Sander

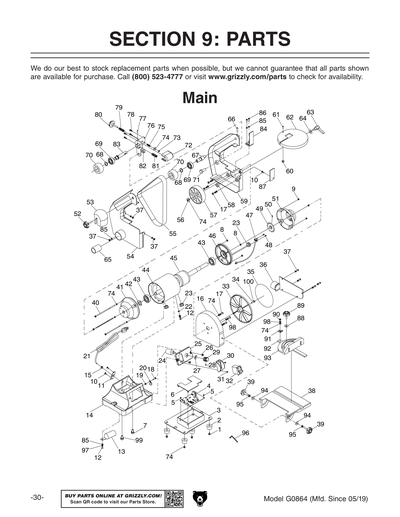

Part Diagram for G0864
Part Diagram for G0864
Part Diagram for G0864
Part Diagram for G0864
Part Diagram for G0864
Part Diagram for G0864

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

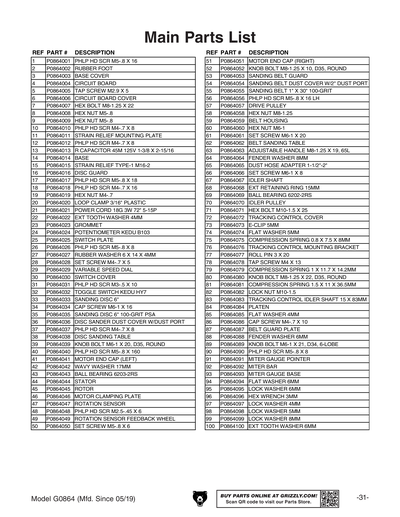

Ref #
Part #
Description
1
PHLP HD SCR M5-.8 X 16
Price
$1.90
2
RUBBER FOOT
Price
$1.90
3
BASE COVER
Price
$2.90
4
CIRCUIT BOARD
Price
$29.50
5
TAP SCREW M2.9 X 5
Price
$1.90
6
CIRCUIT BOARD COVER
Price
$1.90
7
HEX BOLT M8-1.25 X 22
Price
$1.90
8
HEX NUT M5-.8
Price
N/A
9
HEX NUT M5-.8
Price
N/A
10
PHLP HD SCR M4-.7 X 8
Price
N/A
11
STRAIN RELIEF MOUNTING PLATE
Price
$1.90
12
PHLP HD SCR M4-.7 X 8
Price
N/A
13
R CAPACITOR 45M 125V 1-3/8 X 2-15/16
Price
$12.25
14
BASE
Price
$27.70
15
STRAIN RELIEF TYPE-1 M16-2
Price
$1.90
16
DISC GUARD
Price
$15.15
17
PHLP HD SCR M5-.8 X 18
Price
$1.90
18
PHLP HD SCR M4-.7 X 16
Price
N/A
19
HEX NUT M4-.7
Price
N/A
20
LOOP CLAMP 3/16" PLASTIC
Price
$1.90
21
POWER CORD 18G 3W 72" 5-15P
Price
$8.35
22
EXT TOOTH WASHER 4MM
Price
N/A
23
GROMMET
Price
$1.90
24
POTENTIOMETER W/DIAL AND SENOR ASSY
Price
$40.25
25
SWITCH PLATE
Price
$1.90
26
PHLP HD SCR M5-.8 X 8
Price
N/A
27
RUBBER WASHER 6 X 14 X 4MM
Price
$1.90
28
SET SCREW M4-.7 X 5
Price
N/A
29
POTENTIOMETER W/DIAL AND SENOR ASSY
Price
N/A
30
SWITCH COVER
Price
$1.90
31
PHLP HD SCR M3-.5 X 10
Price
N/A
32
Toggle Safety Switch
Price
N/A
33
SANDING DISC 6"
Price
$10.45
33V2
SANDING DISC 6" V2.12.22
Price
$10.45
34
CAP SCREW M6-1 X 16
Price
$1.90
35
SANDING DISC 6" 100-GRIT PSA
Price
$1.90
36
DISC SANDER DUST COVER W/DUST PORT
Price
$1.90
37
PHLP HD SCR M4-.7 X 8
Price
$1.90
38
DISC SANDING TABLE
Price
$20.90
39
KNOB BOLT M6-1 X 20, D35, ROUND
Price
$1.90
40
PHLP HD SCR M5-.8 X 160
Price
$1.90
41
MOTOR END CAP (LEFT)
Price
$8.35
42
WAVY WASHER 17MM
Price
$1.90
43
BALL BEARING 6203-2RS
Price
N/A
44
STATOR
Price
$69.40
45
***SEE EXT DESC***
Item is no longer available
Price
N/A
45V2
ROTOR V2.12.22
Price
$40.25
46
MOTOR CLAMPING PLATE
Price
$6.90
47
POTENTIOMETER W/DIAL AND SENOR ASSY
Price
N/A
48
PHLP HD SCR M2.5 - .45 X 6
Price
N/A
49
ROTATION SENSOR FEEDBACK WHEEL
Price
$1.90
50
SET SCREW M5-.8 X 6
Price
N/A
51
MOTOR END CAP (RIGHT)
Price
$5.75
52
KNOB BOLT M8-1.25 X 10, D35, ROUND
Price
$1.90
53
SANDING BELT GUARD
Price
$1.90
54
SANDING BELT DUST COVER W/2" DUST PORT
Price
$4.35
55
SANDING BELT 1" X 30" 100-GRIT
Price
$1.90
56
PHLP HD SCR M5-.8 X 16 LH
Price
$1.90
57
DRIVE PULLEY
Price
$3.25
58
HEX NUT M8-1.25
Price
N/A
59
BELT HOUSING
Price
$25.00
60
HEX NUT M6-1
Price
N/A
61
SET SCREW M6-1 X 20
Price
N/A
62
BELT SANDING TABLE
Price
$10.45
63
ADJUSTABLE HANDLE M8-1.25 X 19, 65L
Price
$2.95
64
FENDER WASHER 8MM
Price
N/A
65
DUST HOSE ADAPTER 1-1/2"-2"
Price
$1.90
66
SET SCREW M6-1 X 8
Price
N/A
67
IDLER SHAFT
Price
$3.65
68
EXT RETAINING RING 15MM
Price
N/A
69
BALL BEARING 6202-2RS
Price
N/A
70
IDLER PULLEY
Price
$6.15
71
HEX BOLT M10-1.5 X 25
Price
N/A
72
TRACKING CONTROL COVER
Price
$1.90
73
E-CLIP 5MM
Price
N/A
74
FLAT WASHER 5MM
Price
N/A
75
COMPRESSION SPRING 0.8 X 7.5 X 8MM
Price
$1.90
76
TRACKING CONTROL MOUNTING BRACKET
Price
$6.15
77
ROLL PIN 3 X 20
Price
N/A
78
TAP SCREW M4 X 13
Price
$1.90
79
COMPRESSION SPRING 1 X 11.7 X 14.2MM
Price
$1.90
80
KNOB BOLT M8-1.25 X 22, D35, ROUND
Price
$1.90
81
COMPRESSION SPRING 1.5 X 11 X 36.5MM
Price
$1.90
82
LOCK NUT M10-1.5
Price
N/A
83
TRACKING CONTROL IDLER SHAFT 15 X 83MM
Price
$5.10
84
PLATEN
Price
$1.90
85
FLAT WASHER 4MM
Price
N/A
86
CAP SCREW M4-.7 X 10
Price
N/A
87
BELT GUARD PLATE
Price
$1.90
88
FENDER WASHER 6MM
Price
N/A
89
KNOB BOLT M6-1 X 21, D34, 6-LOBE
Price
$1.90
90
PHLP HD SCR M5-.8 X 8
Price
N/A
91
MITER GAUGE POINTER
Price
$1.90
92
MITER BAR
Price
$2.20
93
MITER GAUGE BASE
Price
$1.90
94
FLAT WASHER 6MM
Price
N/A
95
LOCK WASHER 6MM
Price
N/A
96
HEX WRENCH 3MM
Price
N/A
97
LOCK WASHER 4MM
Price
N/A
98
LOCK WASHER 5MM
Price
N/A
99
LOCK WASHER 8MM
Price
N/A
100
EXT TOOTH WASHER 6MM
Price
N/A
101

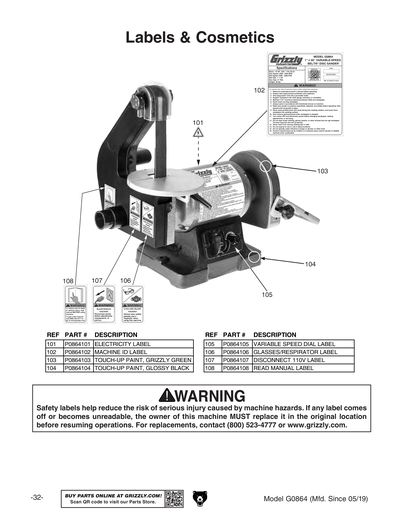

ELECTRICITY 0.7W X 0.6H
Price
N/A
102
MACHINE ID LABEL
Price
$16.40
103
N/S GRIZZLY GREEN G1023S
Price
N/A
104
GLOSSY BLACK
Price
N/A
105
VARIABLE SPEED DIAL LABEL
Price
$1.25
106
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
107
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
108
READ MANUAL 1.5W X 2.5H
Price
N/A
MAN
MANUAL G0864 MFD-12.18+ V1.02.19
Price
$12.00
