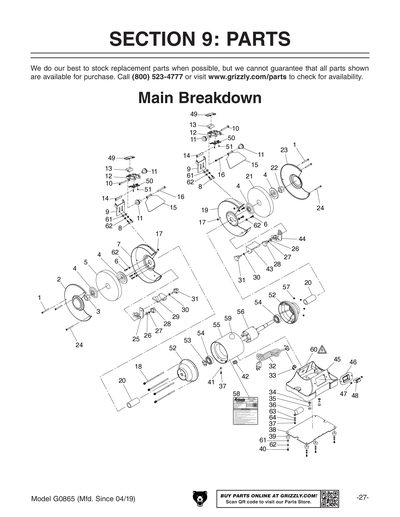

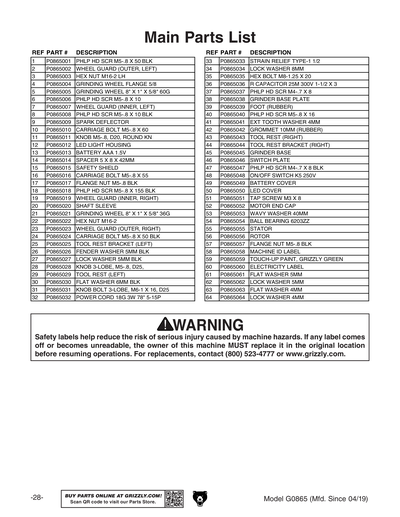

Parts for G0865 8" Bench Grinder with LED Lights

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
PHLP HD SCR M5-.8 X 50 BLK
8
PHLP HD SCR M5-.8 X 10 BLK
9
SPARK DEFLECTOR
10
CARRIAGE BOLT M5-.8 X 60
11
KNOB M5-.8, D20, ROUND KN
12
LED LIGHT HOUSING/COVER & BATTERY COVER
14
SPACER 5 X 8 X 42MM
15
SAFETY SHIELD
16
CARRIAGE BOLT M5-.8 X 55
17
FLANGE NUT M5-.8 BLK
18
PHLP HD SCR M5-.8 X 155 BLK
20
SHAFT SLEEVE
24
CARRIAGE BOLT M5-.8 X 50 BLK
26
FENDER WASHER 5MM BLK
27
LOCK WASHER 5MM BLK
28
KNOB 3-LOBE, M5-.8, D25,
30
FLAT WASHER 6MM BLK
31
KNOB BOLT 3-LOBE, M6-1 X 16, D25
32
POWER CORD 18G 3W 78" 5-15P
33
STRAIN RELIEF TYPE-1 1/2
36
R CAPACITOR 25M 300V 1-1/2 X 3
38
GRINDER BASE PLATE
39
FOOT (RUBBER)
42
GROMMET 10MM (RUBBER)
45
GRINDER BASE
46
SWITCH PLATE
47
PHLP HD SCR M4-.7 X 8 BLK
48
ON/OFF SWITCH RF1001 T85
52
MOTOR END CAP
53
WAVY WASHER 40MM
55
STATOR
56
ROTOR
58
MACHINE ID LABEL
MAN
MANUAL G0865 MFD-01.19 V1.03.19
