Parts for G0869 - 10" 2 HP Benchtop Table Saw

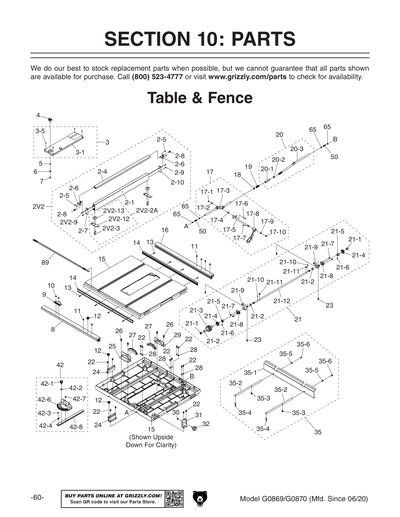

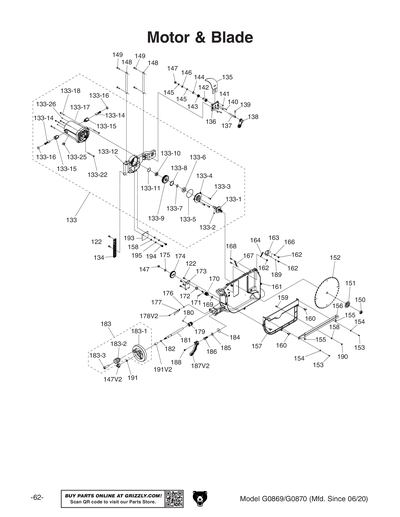

Part Diagram for G0869
Part Diagram for G0869
Part Diagram for G0869
Part Diagram for G0869
Part Diagram for G0869
Part Diagram for G0869
Part Diagram for G0869
Part Diagram for G0869
Part Diagram for G0869
Part Diagram for G0869
Part Diagram for G0869
Part Diagram for G0869
Part Diagram for G0869
Part Diagram for G0869
Part Diagram for G0869
Part Diagram for G0869

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description

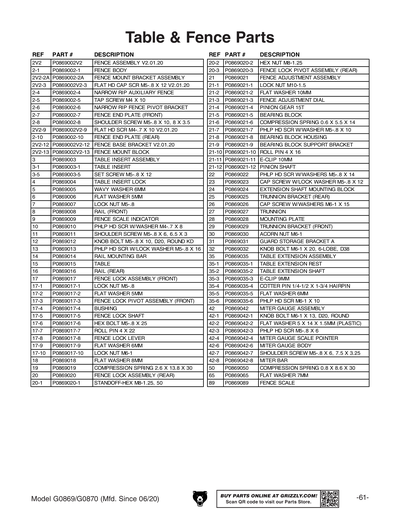

2
FENCE ASSEMBLY V2.01.20
Price
N/A
2-1
FENCE ASSEMBLY V2.01.20
Price
N/A
2-10
FENCE ASSEMBLY V2.01.20
Price
N/A
2-11
FENCE ASSEMBLY V2.01.20
Price
N/A
2-12
FENCE MOUNT BRACKET ASSEMBLY
Price
N/A
2-2
FENCE MOUNT BRACKET ASSEMBLY
Price
N/A
2-3
FENCE MOUNT BRACKET ASSEMBLY
Price
N/A
2-4
FENCE ASSEMBLY V2.01.20
Price
N/A
2-5
TAP SCREW M4 X 10
Price
N/A
2-6
FENCE ASSEMBLY V2.01.20
Price
N/A
2-7
FENCE ASSEMBLY V2.01.20
Price
N/A
2-8
FENCE ASSEMBLY V2.01.20
Price
N/A
2-9
TAP SCREW M4 X 10
Price
N/A
2V2
FENCE ASSEMBLY V2.01.20
Price
$88.80
2V2-12
FENCE BASE BRACKET V2.01.20
Price
$3.65
2V2-13
FENCE MOUNT BLOCK
Price
$2.20
2V2-2A
FENCE MOUNT BRACKET ASSEMBLY
Price
$5.50
2V2-3
FLAT HD CAP SCR M5-.8 X 12
Price
N/A
2V2-9
FLAT HD SCR M4-.7 X 10
Price
N/A
3
TABLE INSERT ASSEMBLY
Price
$25.70
3-1
TABLE INSERT
Price
$25.10
3-5
SET SCREW M5-.8 X 12
Price
N/A
4
TABLE INSERT LOCK
Price
$1.60
5
WAVY WASHER 6MM
Price
$1.60
6
FLAT WASHER 5MM
Price
N/A
7
LOCK NUT M5-.8
Price
N/A
8
RAIL (FRONT)
Price
$25.10
9
FENCE SCALE INDICATOR
Price
$1.60
10
PHLP HD SCR W/WASHER M4-.7 X 8
Price
$1.60
11
SHOULDER SCREW M5-.8 X 6, 6.5 X 3
Price
$1.60
12
KNOB BOLT M5-.8 X 10, D20, ROUND KD
Price
$1.60
13
PHLP HD SCR W/LOCK WASHER M5-.8 X 16
Price
$1.60
14
RAIL MOUNTING BAR
Price
$15.70
15
TABLE
Price
$185.10
16
RAIL (REAR)
Price
$23.90
17
FENCE LOCK ASSEMBLY (FRONT)
Price
$28.10
17-1
LOCK NUT M5-.8
Price
N/A
17-10
LOCK NUT M6-1
Price
N/A
17-2
FLAT WASHER 5MM
Price
N/A
17-3
FENCE LOCK PIVOT ASSEMBLY (FRONT)
Price
$13.05
17-4
BUSHING
Price
$1.60
17-5
FENCE LOCK SHAFT
Price
$8.20
17-6
HEX BOLT M5-.8 X 25
Price
N/A
17-7
ROLL PIN 4 X 22
Price
N/A
17-8
FENCE LOCK LEVER
Price
$3.05
17-9
FLAT WASHER 6MM
Price
N/A
18
FLAT WASHER 8MM
Price
N/A
19
COMPRESSION SPRING 2.6 X 13.8 X 30
Price
$1.60
20
FENCE LOCK ASSEMBLY (REAR)
Price
$11.20
20-1
STANDOFF-HEX M8-1.25, 50
Price
$1.85
20-2
HEX NUT M8-1.25
Price
N/A
20-3
FENCE LOCK PIVOT ASSEMBLY (REAR)
Price
$7.60
21
FENCE ADJUSTMENT ASSEMBLY
Price
$27.55
21-1
LOCK NUT M10-1.5
Price
N/A
21-10
ROLL PIN 4 X 16
Price
N/A
21-11
E-CLIP 10MM
Price
N/A
21-12
PINION SHAFT
Price
$8.80
21-2
FLAT WASHER 10MM
Price
N/A
21-3
FENCE ADJUSTMENT DIAL
Price
$1.60
21-4
PINION GEAR 15T
Price
$1.85
21-5
BEARING BLOCK
Price
$1.60
21-6
COMPRESSION SPRING 0.6 X 5.5 X 14
Price
$1.60
21-7
PHLP HD SCR W/WASHER M5-.8 X 10
Price
$1.60
21-8
BEARING BLOCK HOUSING
Price
$1.60
21-9
BEARING BLOCK SUPPORT BRACKET
Price
$2.20
22
PHLP HD SCR W/WASHERS M5-.8 X 14
Price
$1.60
23
CAP SCREW W/LOCK WASHER M5-.8 X 12
Price
$1.60
24
EXTENSION SHAFT MOUNTING BLOCK
Price
$7.25
25
TRUNNION BRACKET (REAR)
Price
$6.70
26
CAP SCREW W/WASHERS M6-1 X 15
Price
$1.60
27
TRUNNION
Price
$1.60
28
MOUNTING PLATE
Price
$1.60
29
TRUNNION BRACKET (FRONT)
Price
$6.70
30
ACORN NUT M6-1
Price
N/A
31
GUARD STORAGE BRACKET A
Price
$2.75
32
KNOB BOLT M6-1 X 20, 6-LOBE, D38
Price
$1.75
35
TABLE EXTENSION ASSEMBLY
Price
$57.45
35-1
TABLE EXTENSION REST
Price
$11.85
35-2
TABLE EXTENSION SHAFT
Price
$5.80
35-3
E-CLIP 9MM
Price
N/A
35-4
COTTER PIN 1/4-1/2 X 1-3/4 HAIRPIN
Price
$1.60
35-5
FLAT WASHER 6MM
Price
N/A
35-6
PHLP HD SCR M6-1 X 10
Price
N/A
42
MITER GAUGE ASSEMBLY
Price
$18.15
42-1
KNOB BOLT M6-1 X 13, D20, ROUND
Price
$1.60
42-2
FLAT WASHER 5 X 14 X 1.5MM (PLASTIC)
Price
$1.60
42-3
PHLP HD SCR M5-.8 X 6
Price
N/A
42-4
MITER GAUGE SCALE POINTER
Price
$1.60
42-6
MITER GAUGE BODY
Price
$6.70
42-7
SHOULDER SCREW M5-.8 X 6, 7.5 X 3.25
Price
$1.60
42-8
MITER BAR
Price
$7.00
42A
ALTERNATE MITER GAUGE ASSEMBLY
Price
$36.55
50
COMPRESSION SPRING 0.8 X 8.6 X 30
Price
$1.60
65
FLAT WASHER 7MM
Price
N/A
89
FENCE SCALE
Price
$3.05

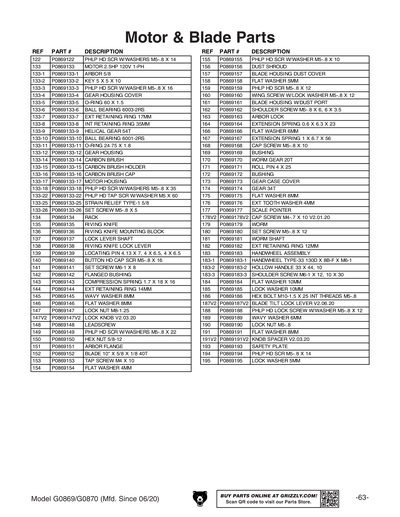

122
PHLP HD SCR W/WASHERS M5-.8 X 14
Price
$1.60
133
MOTOR 2.5HP 120V 1-PH
Price
$266.00
133-1
ARBOR 5/8
Price
$15.70
133-10
BALL BEARING 6001-2RS
Price
N/A
133-11
O-RING 24.75 X 1.8
Price
$1.60
133-12
GEAR HOUSING
Price
$27.55
133-14
CARBON BRUSH
Price
$1.85
133-15
CARBON BRUSH HOLDER
Price
$3.65
133-16
CARBON BRUSH CAP
Price
$1.60
133-17
MOTOR HOUSING
Price
$10.90
133-18
PHLP HD SCR W/WASHERS M5-.8 X 35
Price
$1.60
133-2
KEY 5 X 5 X 10
Price
N/A
133-22
PHLP HD TAP SCR W/WASHER M5 X 60
Price
$1.60
133-25
STRAIN RELIEF TYPE-1 5/8
Price
$1.60
133-26
SET SCREW M5-.8 X 5
Price
N/A
133-27
LOWER CRADLE GUARD
Price
$1.60
133-28
PHLP HD SCR W/WASHERS M5-.8 X 14
Price
N/A
133-3
PHLP HD SCR W/LOCK WASHER M5-.8 X 16
Price
N/A
133-4
GEAR HOUSING COVER
Price
$3.65
133-5
O-RING 60 X 1.5
Price
$1.60
133-6
BALL BEARING 6003-2RS
Price
N/A
133-7
EXT RETAINING RING 17MM
Price
N/A
133-8
INT RETAINING RING 35MM
Price
N/A
133-9
HELICAL GEAR 54T
Price
$15.45
134
***USE P0869134V2***
Price
$1.49
134V2
RACK (METAL) V2.04.24
Price
$2.50
135
RIVING KNIFE
Price
$16.20
136
RIVING KNIFE MOUNTING BLOCK
Price
$7.00
137
LOCK LEVER SHAFT
Price
$3.05
138
RIVING KNIFE LOCK LEVER
Price
$4.60
139
LOCATING PIN 4.13 X 7, 4 X 6.5, 4 X 6.5
Price
$1.60
140
BUTTON HD CAP SCR M5-.8 X 16
Price
N/A
141
SET SCREW M6-1 X 8
Price
N/A
142
FLANGED BUSHING
Price
$1.85
143
COMPRESSION SPRING 1.7 X 18 X 16
Price
$1.60
144
EXT RETAINING RING 14MM
Price
N/A
145
WAVY WASHER 8MM
Price
$1.60
146
FLAT WASHER 8MM
Price
N/A
147
LOCK NUT M8-1.25
Price
N/A
147V2
LOCK KNOB V2.03.20
Price
$2.75
148
LEADSCREW
Price
$7.25
149
PHLP HD SCR W/WASHERS M5-.8 X 22
Price
$1.60
150
HEX NUT 5/8-12
Price
$3.05
151
ARBOR FLANGE
Price
$1.85
152
BLADE 10" X 5/8 X 1/8 40T
Price
$37.45
153
TAP SCREW M4 X 10
Price
N/A
154
FLAT WASHER 4MM
Price
N/A
155
PHLP HD SCR W/WASHER M5-.8 X 10
Price
$1.60
156
DUST SHROUD
Price
$2.75
157
BLADE HOUSING DUST COVER
Price
$7.00
158
FLAT WASHER 5MM
Price
N/A
159
PHLP HD SCR M5-.8 X 12
Price
N/A
160
WING SCREW W/LOCK WASHER M5-.8 X 12
Price
$1.60
161
BLADE HOUSING W/DUST PORT
Price
$45.65
162
SHOULDER SCREW M5-.8 X 6, 6 X 3.5
Price
$1.60
163
ARBOR LOCK
Price
$3.05
164
EXTENSION SPRING 0.6 X 6.3 X 23
Price
$1.60
166
FLAT WASHER 6MM
Price
N/A
167
EXTENSION SPRING 1 X 6.7 X 56
Price
$1.60
168
CAP SCREW M5-.8 X 10
Price
N/A
169
BUSHING
Price
$1.60
170
WORM GEAR 20T
Price
$10.90
171
ROLL PIN 4 X 25
Price
N/A
172
BUSHING
Price
$1.60
173
GEAR CASE COVER
Price
$1.60
174
***USE P0869174V2***
Price
$1.49
174V2
GEAR 34T V2.04.24
Price
$5.65
175
FLAT WASHER 8MM
Price
N/A
176
EXT TOOTH WASHER 4MM
Price
N/A
177
SCALE POINTER
Price
$1.60
178
PHLP HD SCR M4-.7 X 10
Price
N/A
178V2
CAP SCREW M4-.7 X 10
Price
N/A
179
WORM
Price
$4.60
180
SET SCREW M5-.8 X 12
Price
N/A
181
WORM SHAFT
Price
$4.60
182
EXT RETAINING RING 12MM
Price
N/A
183
HANDWHEEL ASSEMBLY
Price
$10.85
183-1
HANDWHEEL TYPE-33 130D X 8B-F X M6-1
Price
$6.40
183-2
HOLLOW HANDLE 33 X 44, 10
Price
$1.60
183-3
SHOULDER SCREW M6-1 X 12, 10 X 30
Price
$1.60
184
FLAT WASHER 10MM
Price
N/A
185
LOCK WASHER 10MM
Price
N/A
186
HEX BOLT M10-1.5 X 25 INT THREADS M5-.8
Price
$1.60
187
BLADE TILT LOCK LEVER V2.06.20
Price
N/A
187V2
BLADE TILT LOCK LEVER V2.06.20
Price
$2.95
188
PHLP HD LOCK SCREW W/WASHER M5-.8 X 12
Price
$1.60
189
WAVY WASHER 6MM
Price
N/A
190
LOCK NUT M5-.8
Price
N/A
191
FLAT WASHER 8MM
Price
N/A
191V2
KNOB SPACER V2.03.20
Price
$1.60
192
REAR CRADLE GUARD
Price
$1.60
193
SAFETY PLATE
Price
$1.60
194
PHLP HD SCR M5-.8 X 14
Price
N/A
195
LOCK WASHER 5MM
Price
N/A
196
FLAT WASHER 5 X 16 X 3
Price
$1.60
201
FRAME
Price
$66.15
211
TAP SCREW M5 X 12
Price
N/A
212
COVER PLATE (LEFT)
Price
$8.50
213
ANTI-KICKBACK BRACKET
Price
$2.75
214
KNOB M6-1, 6-LOBE, D30
Price
$1.85
215
LOCK NUT M6-1
Price
N/A
216
HEX BOLT M6-1 X 40
Price
N/A
217
CORD ROUTING CLAMP
Price
$1.60
218
TAP SCREW M4 X 12
Price
N/A
219
PHLP HD SCR W/WASHER M5-.8 X 45
Price
$1.60
220
FOOT A
Price
$2.45
221
FOOT B
Price
$2.45
222
FLANGE NUT M5-.8
Price
N/A
223
COVER PLATE (REAR)
Price
$7.60
224
CORD SLEEVE (RUBBER)
Price
$1.60
226
COVER PLATE (FRONT)
Price
$6.70
227
BLADE TILT LOCK PLATE
Price
$4.60
228
BLADE TILT STOP CAM
Price
$1.60
229
PHLP HD SCR M4-.7 X 6
Price
N/A
230
CAP SCREW M4-.7 X 8
Price
N/A
230V2
CAP SCREW M5-.8 X 8
Price
N/A
231
BLADE TILT SCALE
Price
$1.85
232
ON/OFF SWITCH KEDU KJD17B 120V
Price

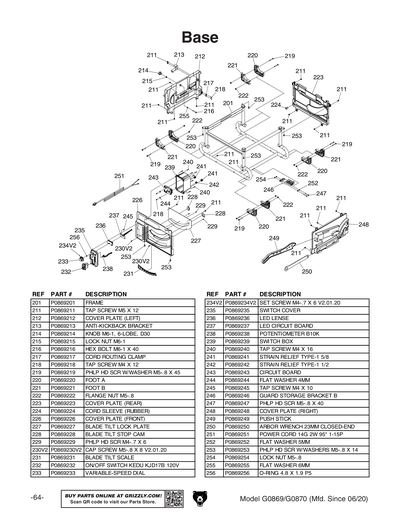

$29.30
233
VARIABLE-SPEED DIAL
Price
$1.60
234
SET SCREW M4-.7 X 4
Price
N/A
234V2
SET SCREW M4-.7 X 6
Price
N/A
235
SWITCH COVER
Price
$3.65
236
LED LENSE
Price
$1.85
237
LED CIRCUIT BOARD
Price
$10.90
238
POTENTIOMETER B10K
Price
$4.85
239
SWITCH BOX
Price
$5.80
240
TAP SCREW M4 X 16
Price
N/A
241
STRAIN RELIEF TYPE-1 5/8
Price
N/A
242
STRAIN RELIEF TYPE-1 1/2
Price
$1.60
243
CIRCUIT BOARD
Price
$52.90
244
FLAT WASHER 4MM
Price
N/A
245
TAP SCREW M4 X 10
Price
N/A
246
GUARD STORAGE BRACKET B
Price
$1.85
247
*DISCD*PHLP HD SCR M5-.8 X 40
Price
N/A
248
COVER PLATE (RIGHT)
Price
$7.60
249
PUSH STICK
Price
$3.45
250
ARBOR WRENCH 23MM CLOSED-END
Price
$5.80
251
POWER CORD 14G 2W 95" 1-15P
Price
$15.70
252
FLAT WASHER 5MM
Price
N/A
253
PHLP HD SCR W/WASHERS M5-.8 X 14
Price
N/A
254
LOCK NUT M5-.8
Price
N/A
255
FLAT WASHER 6MM
Price
N/A
256
O-RING 4.8 X 1.9 P5
Price
N/A

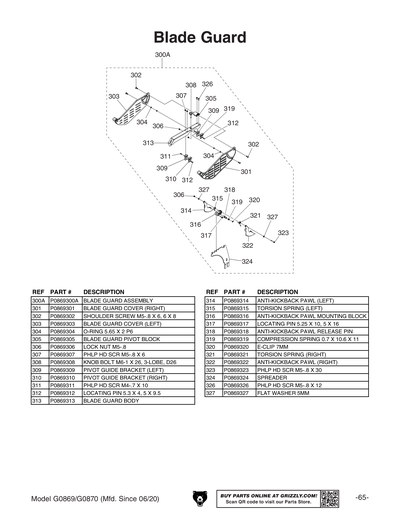

300A
BLADE GUARD ASSEMBLY
Price
$80.55
301
BLADE GUARD COVER (RIGHT)
Price
$5.80
302
SHOULDER SCREW M5-.8 X 6, 6 X 8
Price
$1.60
303
BLADE GUARD COVER (LEFT)
Price
$5.80
304
O-RING 5.65 X 2 P6
Price
$1.60
305
BLADE GUARD PIVOT BLOCK
Price
$4.30
306
LOCK NUT M5-.8
Price
N/A
307
PHLP HD SCR M5-.8 X 6
Price
N/A
308
KNOB BOLT V2.01.10
Price
N/A
309
LEFT BRACKET V2.01.10
Price
N/A
310
MOUNTING BLOCK (RIGHT)
Price
N/A
311
PHLP HD SCR M4-.7 X 10
Price
N/A
312
MOUNTING PIN V2.01.10
Price
N/A
313
BLADE GUARD BODY
Price
$7.60
314
ANTI-KICKBACK PAWL (LEFT)
Price
$2.90
315
RIGHT TORSN SPRING V2.01.10
Price
N/A
316
ANTI-KICKBACK PAWL MOUNTING BLOCK
Price
$2.20
317
LOCATING PIN 5.25 X 10, 5 X 16
Price
$1.60
318
ANTI-KICKBACK PAWL RELEASE PIN
Price
$3.05
319
SHAFT SPRING V2.01.10
Price
N/A
320
E-CLIP 7MM
Price
N/A
321
LEFT TORSION SPRING V2.01.10
Price
N/A
322
ANTI-KICKBACK PAWL (RIGHT)
Price
$2.90
323
PHLP HD SCR M5-.8 X 30
Price
N/A
324
SPREADER
Price
$21.20
326
PHLP HD SCR M5-.8 X 12
Price
N/A
327
FLAT WASHER 5MM
Price
N/A

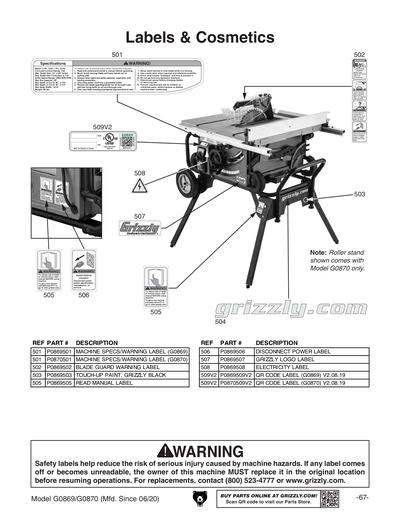

501
MACHINE SPECS/WARNINGS
Price
$2.45
502
BLADE GUARD WARNING LABEL
Price
$1.35
503
GLOSSY BLACK
Price
N/A
505
READ MANUAL 1.5W X 2.5H
Price
N/A
506
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
507
GRIZZLY LOGO LABEL
Price
$1.35
508
ELECTRICITY LABEL
Price
$1.35
509
QR CODE LABEL V1
Price
$1.35
509V2
QR CODE LABEL V2.08.19
Price
$4.25
MAN
MANUAL G0869-G0870 MFD-01.19 V1.01.19
Price
$13.25
MANV2
MANUAL G0869 G0870 MFD-08.19-05.20 V2.07
Price
$19.75
MANV3
MANUAL G0869 G0870 MFD-6.20+ V3.08.20
Price
$14.65
