Parts for G0876 8" x 27" Enclosed CNC Mill w/Auto Tool Changer

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

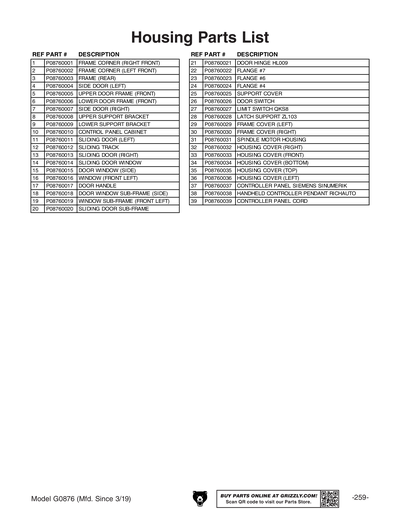

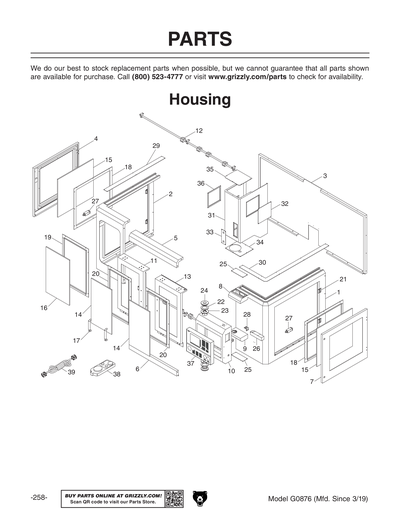

1
FRAME CORNER (RIGHT FRONT)
2
FRAME CORNER (LEFT FRONT)
3
FRAME (REAR)
4
SIDE DOOR (LEFT)
5
UPPER DOOR FRAME (FRONT)
6
LOWER DOOR FRAME (FRONT)
7
SIDE DOOR (RIGHT)
8
UPPER SUPPORT BRACKET
9
LOWER SUPPORT BRACKET
10
CONTROL PANEL CABINET
11
SLIDING DOOR (LEFT)
12
SLIDING TRACK
13
SLIDING DOOR (RIGHT)
14
SLIDING DOOR WINDOW
15
DOOR WINDOW (SIDE)
16
WINDOW (FRONT LEFT)
17
DOOR HANDLE
18
DOOR WINDOW SUB-FRAME (SIDE)
19
WINDOW SUB-FRAME (FRONT LEFT)
20
SLIDING DOOR SUB-FRAME
21
DOOR HINGE HL009
22
FLANGE #7
23
FLANGE #6
24
FLANGE #4
25
SUPPORT COVER
26
DOOR SWITCH
27
LIMIT SWITCH QKS8
28
LATCH SUPPORT ZL103
29
FRAME COVER (LEFT)
30
FRAME COVER (RIGHT)
31
SPINDLE MOTOR HOUSING
32
HOUSING COVER (RIGHT)
33
HOUSING COVER (FRONT)
34
HOUSING COVER (BOTTOM)
35
HOUSING COVER (TOP)
36
HOUSING COVER (LEFT)
37
CONTROLLER PANEL SIEMENS SINUMERIK
37-1
CONTROL PANEL LOWER
38
HANDHELD CONTROLLER PENDANT RICHAUTO
39
HANDHELD CONTROLLER PENDANT RICHAUTO
Price
N/A

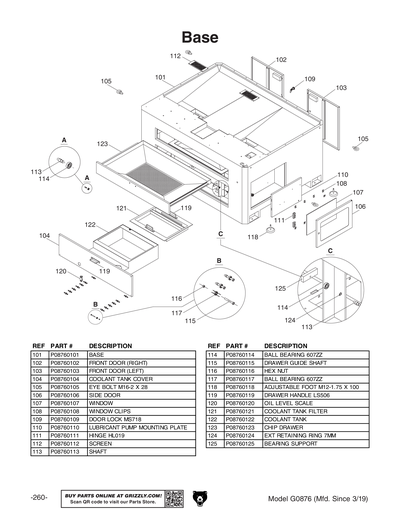

101
BASE
102
FRONT DOOR (RIGHT)
103
FRONT DOOR (LEFT)
104
COOLANT TANK COVER
105
EYE BOLT M16-2 X 28
106
SIDE DOOR
107
WINDOW
108
WINDOW CLIPS
109
DOOR LOCK MS718
110
LUBRICANT PUMP MOUNTING PLATE
111
HINGE HL019
112
SCREEN
113
SHAFT
114
BALL BEARING 607ZZ
Price
N/A
115
DRAWER GUIDE SHAFT
116
HEX NUT
117
BALL BEARING 607ZZ
Price
N/A
118
ADJUSTABLE FOOT M12-1.75 X 100
119
DRAWER HANDLE LS506
120
OIL LEVEL SCALE
121
COOLANT TANK FILTER
122
COOLANT TANK
123
CHIP DRAWER
124
Now: PR36M
EXT RETAINING RING 7MM
Price
N/A
125
BEARING SUPPORT

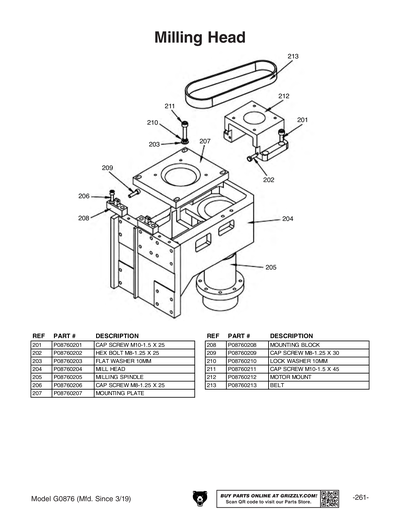

201
CAP SCREW M10-1.5 X 25
Price
N/A
202
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
203
Now: PW04M
FLAT WASHER 10MM
Price
N/A
204
MILL HEAD
205
MILLING SPINDLE
206
CAP SCREW M8-1.25 X 25
Price
N/A
207
MOUNTING PLATE
208
MOUNTING BLOCK
209
CAP SCREW M8-1.25 X 30
Price
N/A
210
LOCK WASHER 10MM
Price
N/A
211
CAP SCREW M10-1.5 X 45
Price
N/A
212
MOTOR MOUNT
213
BELT

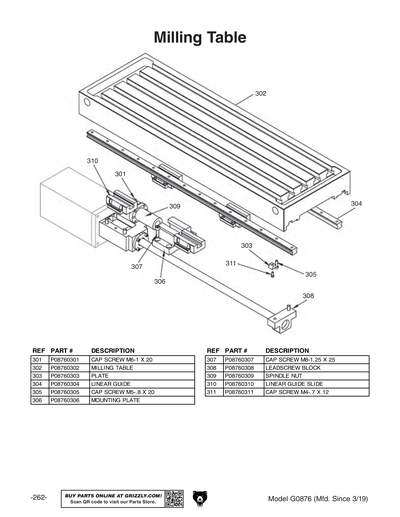

301
CAP SCREW M6-1 X 20
Price
N/A
302
MILLING TABLE
303
PLATE
304
LINEAR GUIDE
305
CAP SCREW M5-.8 X 20
Price
N/A
306
MOUNTING PLATE
307
CAP SCREW M8-1.25 X 25
Price
N/A
308
LEADSCREW BLOCK
309
SPINDLE NUT
310
LINEAR GUIDE SLIDE
311
CAP SCREW M4-.7 X 12
Price
N/A

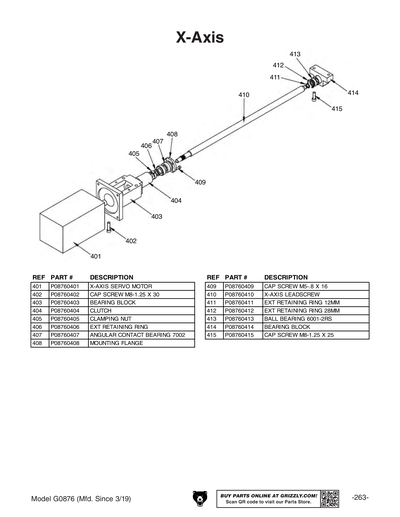

401
X-AXIS SERVO MOTOR
402
CAP SCREW M8-1.25 X 30
Price
N/A
403
BEARING BLOCK
404
CLUTCH
405
CLAMPING NUT
406
EXT RETAINING RING
407
ANGULAR CONTACT BEARING 7002
408
MOUNTING FLANGE
409
CAP SCREW M5-.8 X 16
Price
N/A
410
X-AXIS LEADSCREW
411
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
412
Now: PR19M
EXT RETAINING RING 28MM
Price
N/A
413
BALL BEARING 6001-2RS
Price
N/A
414
BEARING BLOCK
415
CAP SCREW M8-1.25 X 25
Price
N/A

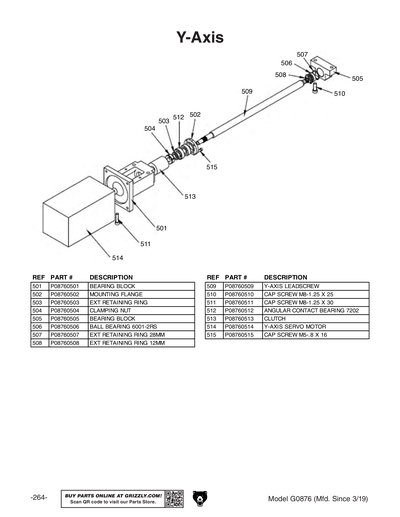

501
BEARING BLOCK
502
MOUNTING FLANGE
503
EXT RETAINING RING
504
CLAMPING NUT
505
BEARING BLOCK
506
BALL BEARING 6001-2RS
Price
N/A
507
Now: PR19M
EXT RETAINING RING 28MM
Price
N/A
508
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
509
Y-AXIS LEADSCREW
510
CAP SCREW M8-1.25 X 25
Price
N/A
511
CAP SCREW M8-1.25 X 30
Price
N/A
512
ANGULAR CONTACT BEARING 7202
513
CLUTCH
514
Y-AXIS SERVO MOTOR
515
CAP SCREW M5-.8 X 16
Price
N/A

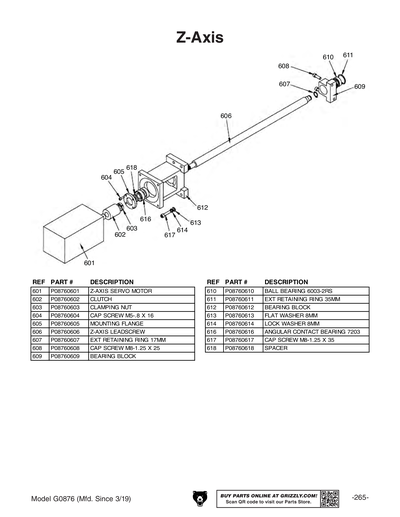

601
Z-AXIS SERVO MOTOR
602
CLUTCH
603
CLAMPING NUT
604
CAP SCREW M5-.8 X 16
Price
N/A
605
MOUNTING FLANGE
606
Z-AXIS LEADSCREW
607
Now: PR18M
EXT RETAINING RING 17MM
Price
N/A
608
CAP SCREW M8-1.25 X 25
Price
N/A
609
BEARING BLOCK
610
BALL BEARING 6003-2RS
Price
N/A
611
Now: PR12M
EXT RETAINING RING 35MM
Price
N/A
612
BEARING BLOCK
613
Now: PW01M
FLAT WASHER 8MM
Price
N/A
614
LOCK WASHER 8MM
Price
N/A
616
ANGULAR CONTACT BEARING 7203
617
CAP SCREW M8-1.25 X 35
Price
N/A
618
SPACER

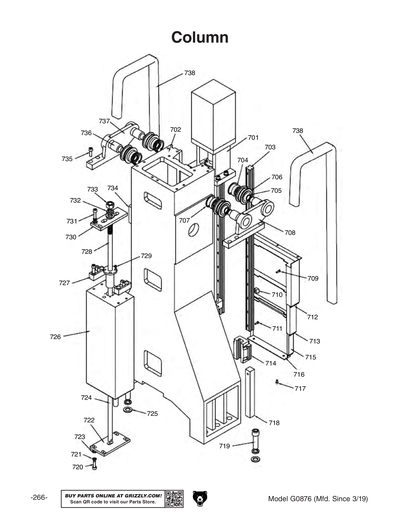

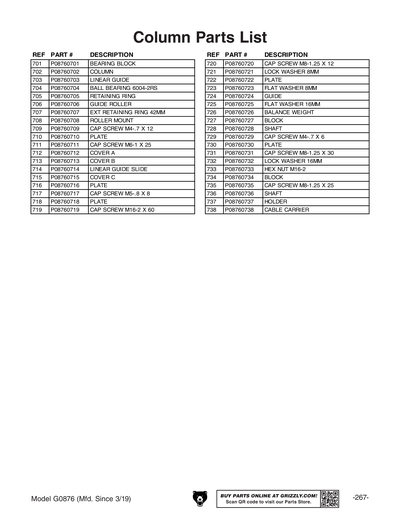

701
BEARING BLOCK
702
COLUMN
703
LINEAR GUIDE
704
BALL BEARING 6004-2RS
Price
N/A
705
RETAINING RING
706
GUIDE ROLLER
707
Now: PR62M
EXT RETAINING RING 42MM
Price
N/A
708
ROLLER MOUNT
709
CAP SCREW M4-.7 X 12
Price
N/A
710
PLATE
711
CAP SCREW M6-1 X 25
Price
N/A
712
COVER A
713
COVER B
714
LINEAR GUIDE SLIDE
715
COVER C
716
PLATE
717
CAP SCREW M5-.8 X 8
Price
N/A
718
PLATE
719
CAP SCREW M16-2 X 60
Price
N/A
720
CAP SCREW M8-1.25 X 12
Price
N/A
721
LOCK WASHER 8MM
Price
N/A
722
PLATE
723
Now: PW01M
FLAT WASHER 8MM
Price
N/A
724
GUIDE
725
Now: PW08M
FLAT WASHER 16MM
Price
N/A
726
BALANCE WEIGHT
727
BLOCK
728
SHAFT
729
CAP SCREW M4-.7 X 6
Price
N/A
730
PLATE
731
CAP SCREW M8-1.25 X 30
Price
N/A
732
LOCK WASHER 16MM
Price
N/A
733
Now: PN13M
HEX NUT M16-2
Price
N/A
734
BLOCK
735
CAP SCREW M8-1.25 X 25
Price
N/A
736
SHAFT
737
HOLDER
738
CABLE CARRIER

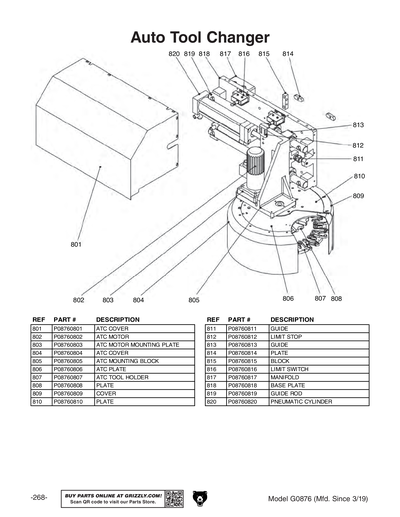

801
ATC COVER
802
ATC MOTOR
803
ATC MOTOR MOUNTING PLATE
804
ATC COVER
805
ATC MOUNTING BLOCK
806
ATC PLATE
807
ATC TOOL HOLDER
808
PLATE
809
COVER
810
PLATE
811
GUIDE
812
LIMIT STOP
813
GUIDE
814
PLATE
815
BLOCK
816
Price
N/A
817
MANIFOLD
818
BASE PLATE
819
GUIDE ROD
820
PNEUMATIC CYLINDER
901
***SEE EXT DESCRIPTION***
Item is no longer available
Price
N/A

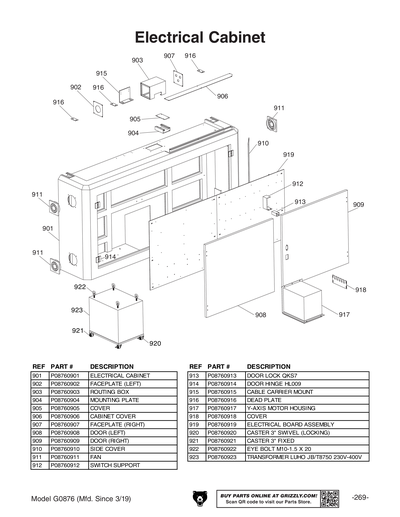

901V2
ELECTRICAL CABINET V2.12.22
902
FACEPLATE (LEFT)
903
ROUTING BOX
904
MOUNTING PLATE
905
COVER
906
CABINET COVER
907
FACEPLATE (RIGHT)
908
DOOR (LEFT)
909
DOOR (RIGHT)
910
SIDE COVER
911
FAN
912
SWITCH SUPPORT
913
DOOR LOCK QKS7
914
DOOR HINGE HL009
915
CABLE CARRIER MOUNT
916
DEAD PLATE
917
Y-AXIS MOTOR HOUSING
918
COVER
919
ELECTRICAL BOARD ASSEMBLY
920
FLANGE #6
Price
N/A
921
FLANGE #6
Price
N/A
922
EYE BOLT M10-1.5 X 20
Price
N/A
923
TRANSFORMER LUHO JB/T8750 230V-400V
924
CAP SCREW M8-1.25 X 20
Price
N/A
925
Now: PW01M
FLAT WASHER 8MM
Price
N/A
926
STEEL FRAME W/TERMINAL BAR 7P ASSY.
927
Now: PW04M
FLAT WASHER 10MM
Price
N/A
928
Now: PN02M
HEX NUT M10-1.5
Price
N/A
929
STEEL FRAME W/TERMINAL BAR 7P ASSY.
Price
N/A
930
Now: PB18M
HEX BOLT M6-1 X 15
Price
N/A
931
STEEL FRAME W/TERMINAL BAR 7P ASSY.
Price
N/A
932
STEEL FRAME W/TERMINAL BAR 7P ASSY.
Price
N/A

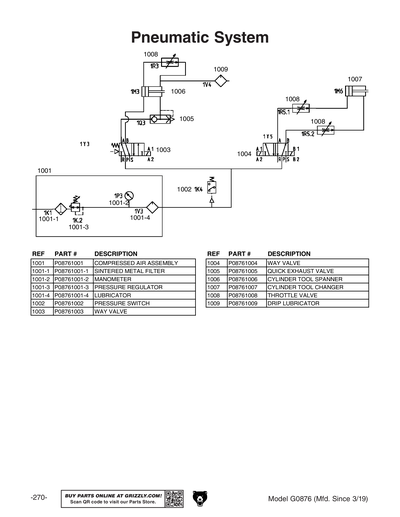

1001
COMPRESSED AIR ASSEMBLY
Price
N/A
1001-1
***USE P0875601***
Price
N/A
1001-2
***USE P0875601***
Price
N/A
1001-3
***USE P0875601***
Price
N/A
1001-4
***USE P0875601***
Price
N/A
1002
PRESSURE SWITCH
Price
N/A
1003
WAY VALVE
Price
N/A
1004
WAY VALVE
Price
N/A
1005
QUICK EXHAUST VALVE
1006
CYLINDER TOOL SPANNER
1007
CYLINDER TOOL CHANGER
1008
THROTTLE VALVE
1009
DRIP LUBRICATOR

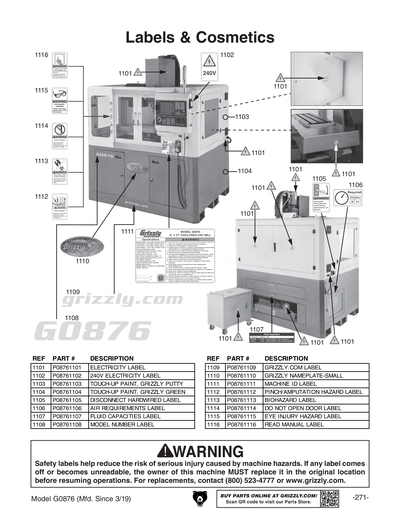

1101
ELECTRICITY 1.4W X 1.2H
Price
N/A
1102
240V ELECTRICITY LABEL
1103
GREY PUTTY REF G0504
Price
N/A
1104
N/S GRIZZLY GREEN G1023S
Price
N/A
1105
DISCONNECT HARDWIRED POWER 1.5W X 2.5H
Price
N/A
1106
AIR REQUIREMENTS LABEL
1107
FLUID CAPACITIES LABEL
1108
MODEL NUMBER LABEL
1109
GRIZZLY.COM LABEL 14.25",BEIGE
Price
N/A
1110
Now: G8588
Nameplate - Small
Price
N/A
1111
MACHINE ID LABEL
1112
PINCH/AMPUTATION HAZARD LABEL
1113
BIOLOGICAL/POISON HAZARD 1.5W X 2.5H
Price
N/A
1114
DO NOT OPEN DOOR LABEL
1115
SAFETY GLASSES 1.5W X 2.5H
Price
N/A
1116
READ MANUAL 1.5W X 2.5H
Price
N/A
MAN
MANUAL G0876 MFD-03.19-11.22 V1.10.19
MANV2
MANUAL G0876 MFD-12.22+ V2.02.23
