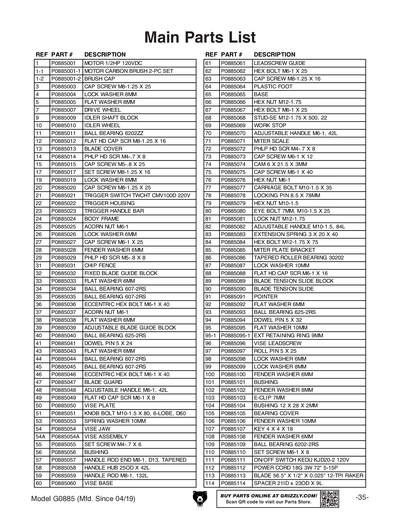

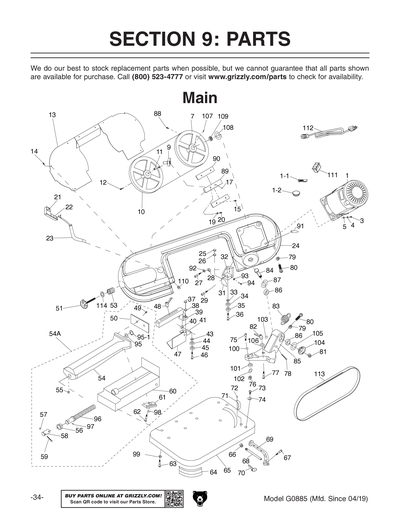

Parts for G0885 5" Portable Horizontal Metal Cutting Bandsaw

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
MOTOR 1/2HP 120VDC
1-1
MOTOR CARBON BRUSH 2-PC SET
1-2
BRUSH CAP
1-3
CIRCUIT BOARD
3
CAP SCREW M8-1.25 X 25
Price
N/A
4
LOCK WASHER 8MM
Price
N/A
5
Now: PW01M
FLAT WASHER 8MM
Price
N/A
7
DRIVE WHEEL
9
IDLER SHAFT BLOCK
10
IDLER WHEEL
11
BALL BEARING 6202ZZ
Price
N/A
12
Now: PFH38
FLAT HD CAP SCR M8-1.25 X 16
Price
N/A
13
BLADE COVER
14
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
15
CAP SCREW M5-.8 X 25
Price
N/A
17
SET SCREW M8-1.25 X 16
Price
N/A
19
LOCK WASHER 8MM
Price
N/A
20
CAP SCREW M8-1.25 X 25
Price
N/A
21
TRIGGER SWITCH TWCHT CMV100D 220V
22
TRIGGER HOUSING
23
TRIGGER HANDLE BAR
24
BODY FRAME
25
Now: PN35M
ACORN NUT M6-1
Price
N/A
26
LOCK WASHER 6MM
Price
N/A
27
CAP SCREW M6-1 X 25
Price
N/A
28
FENDER WASHER 6MM
Price
N/A
29
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
31
CHIP FENCE
32
FIXED BLADE GUIDE BLOCK
33
Now: PW03M
FLAT WASHER 6MM
Price
N/A
34
BALL BEARING 607-2RS
Item is no longer available
Price
N/A
35
BALL BEARING 607-2RS
Price
N/A
36
ECCENTRIC HEX BOLT M6-1 X 40
37
Now: PN35M
ACORN NUT M6-1
Price
N/A
38
Now: PW03M
FLAT WASHER 6MM
Price
N/A
39
ADJUSTABLE BLADE GUIDE BLOCK
40
BALL BEARING 625-2RS
Price
N/A
41
DOWEL PIN 5 X 24
43
Now: PW03M
FLAT WASHER 6MM
Price
N/A
44
BALL BEARING 607-2RS
Price
N/A
45
BALL BEARING 607-2RS
Price
N/A
46
ECCENTRIC HEX BOLT M6-1 X 40
47
BLADE GUARD
48
ADJUSTABLE HANDLE M6-1, 42L
49
FLAT HD CAP SCR M6-1 X 8
Price
N/A
50
VISE PLATE
51
KNOB BOLT M10-1.5 X 80, 6-LOBE, D60
53
SPRING WASHER 10MM
54
VISE JAW
54A
VISE ASSEMBLY
55
SET SCREW M4-.7 X 6
Price
N/A
56
BUSHING
57
HANDLE ROD END M8-1, D13, TAPERED
58
HANDLE HUB 25OD X 42L
59
HANDLE ROD M8-1, 132L
60
VISE BASE
61
LEADSCREW GUIDE
62
Now: PB10M
HEX BOLT M6-1 X 25
Price
N/A
63
CAP SCREW M8-1.25 X 16
Price
N/A
64
PLASTIC FOOT
65
BASE
66
Now: PN09M
HEX NUT M12-1.75
Price
N/A
67
Now: PB10M
HEX BOLT M6-1 X 25
Price
N/A
68
STUD-SE M12-1.75 X 500, 22
69
WORK STOP
70
ADJUSTABLE HANDLE M6-1, 42L
71
MITER SCALE
74
CAM 6 X 21.5 X 3MM
75
CAP SCREW M6-1 X 40
Price
N/A
76
Now: PN01M
HEX NUT M6-1
Price
N/A
77
CARRIAGE BOLT M10-1.5 X 35
Price
N/A
78
LOCKING PIN 8.5 X 78MM
79
Now: PN02M
HEX NUT M10-1.5
Price
N/A
80
EYE BOLT 7MM, M10-1.5 X 25
81
LOCK NUT M12-1.75
Price
N/A
82
ADJUSTABLE HANDLE M10-1.5, 84L
83
EXTENSION SPRING 3 X 20 X 40
84
Now: PB43M
HEX BOLT M12-1.75 X 75
Price
N/A
85
MITER PLATE BRACKET
86
TAPERED ROLLER BEARING 30202
87
LOCK WASHER 10MM
Price
N/A
88
FLAT HD CAP SCR M6-1 X 16
Price
N/A
89
BLADE TENSION SLIDE BLOCK
90
BLADE TENSION SLIDE
91
POINTER
92
Now: PW03M
FLAT WASHER 6MM
Price
N/A
94
DOWEL PIN 5 X 32
95
Now: PW04M
FLAT WASHER 10MM
Price
N/A
95-1
Now: PR16M
EXT RETAINING RING 9MM
Price
N/A
96
VISE LEADSCREW
97
ROLL PIN 5 X 25
Price
N/A
98
LOCK WASHER 6MM
Price
N/A
99
LOCK WASHER 8MM
Price
N/A
101
BUSHING
102
FENDER WASHER 8MM
Price
N/A
104
BUSHING 12 X 28 X 2MM
105
BEARING COVER
111
ON/OFF SWITCH KEDU KJD20-2 120V
112
POWER CORD 18G 3W 72" 5-15P
113
BLADE 56.5" X 1/2" X 0.025" 12-TPI RAKER
114
SPACER 21ID X 23OD X 9L
203

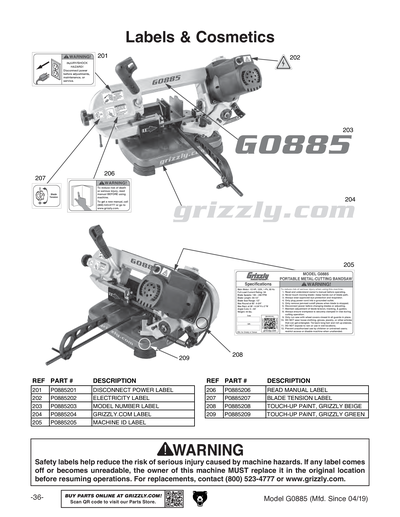

MODEL NUMBER LABEL
204
GRIZZLY.COM LABEL 8",BEIGE
Price
N/A
207
BLADE TENSION LABEL
