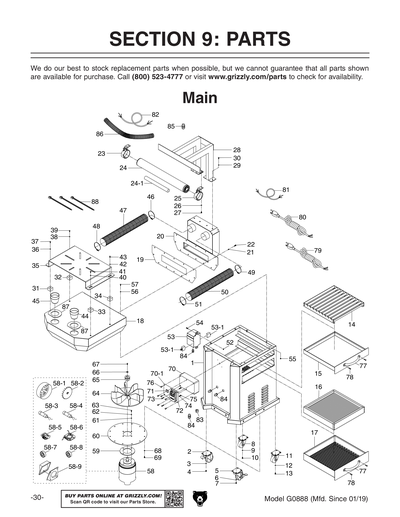

Parts for G0888 Deluxe Buffer Grinder Stand and Workstation

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

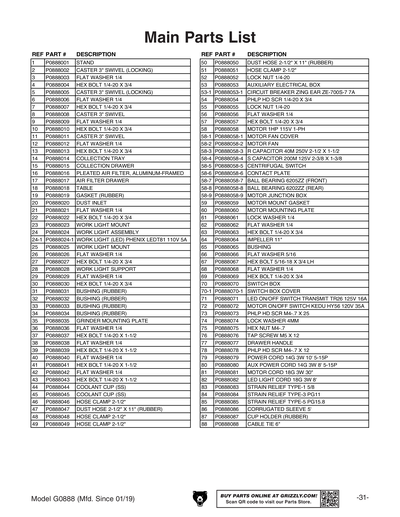

1
STAND
2
CASTER 3" SWIVEL (LOCKING)
3
Now: PW06
FLAT WASHER 1/4
Price
N/A
4
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
5
CASTER 3" SWIVEL (LOCKING)
Price
N/A
6
Now: PW06
FLAT WASHER 1/4
Price
N/A
7
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
8
CASTER 3" SWIVEL
9
Now: PW06
FLAT WASHER 1/4
Price
N/A
10
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
11
CASTER 3" SWIVEL
Price
N/A
12
Now: PW06
FLAT WASHER 1/4
Price
N/A
13
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
14
COLLECTION TRAY
15
COLLECTION DRAWER
16
PLEATED AIR FILTER, ALUMINUM-FRAMED
17
AIR FILTER DRAWER
18
TABLE
19
GASKET (RUBBER)
20
DUST INLET
21
Now: PW06
FLAT WASHER 1/4
Price
N/A
22
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
23
WORK LIGHT MOUNT
24
WORK LIGHT ASSEMBLY
24-1
WORK LIGHT ASSEMBLY
Price
N/A
25
WORK LIGHT MOUNT
Price
N/A
26
Now: PW06
FLAT WASHER 1/4
Price
N/A
27
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
28
WORK LIGHT SUPPORT
29
Now: PW06
FLAT WASHER 1/4
Price
N/A
30
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
31
BUSHING (RUBBER)
32
BUSHING (RUBBER)
Price
N/A
33
BUSHING (RUBBER)
Price
N/A
34
BUSHING (RUBBER)
Price
N/A
35
GRINDER MOUNTING PLATE
36
Now: PW06
FLAT WASHER 1/4
Price
N/A
37
Now: PB26
HEX BOLT 1/4-20 X 1-1/2
Price
N/A
38
Now: PW06
FLAT WASHER 1/4
Price
N/A
39
Now: PB26
HEX BOLT 1/4-20 X 1-1/2
Price
N/A
40
Now: PW06
FLAT WASHER 1/4
Price
N/A
41
Now: PB26
HEX BOLT 1/4-20 X 1-1/2
Price
N/A
42
Now: PW06
FLAT WASHER 1/4
Price
N/A
43
Now: PB26
HEX BOLT 1/4-20 X 1-1/2
Price
N/A
44
COOLANT CUP (SS)
45
COOLANT CUP (SS)
Price
N/A
46
Now: W1314
2-1/2" Wire Hose Clamp
Price
N/A
47
DUST HOSE 2-1/2" X 11" (RUBBER)
48
Now: W1314
2-1/2" Wire Hose Clamp
Price
N/A
49
Now: W1314
2-1/2" Wire Hose Clamp
Price
N/A
50
DUST HOSE 2-1/2" X 11" (RUBBER)
Price
N/A
51
Now: W1314
2-1/2" Wire Hose Clamp
Price
N/A
52
Now: PLN02
LOCK NUT 1/4-20
Price
N/A
53
AUXILIARY ELECTRICAL BOX
53-1
CIRCUIT BREAKER ZING EAR ZE-700S-7 7A
54
Now: PS02
PHLP HD SCR 1/4-20 X 3/4
Price
N/A
55
Now: PLN02
LOCK NUT 1/4-20
Price
N/A
56
Now: PW06
FLAT WASHER 1/4
Price
N/A
57
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
58
MOTOR 1HP 115V 1-PH
58-1
MOTOR FAN COVER
58-2
MOTOR FAN
58-3
R CAPACITOR 40M 250V 2-1/2 X 1-1/2
58-4
S CAPACITOR 200M 125V 2-3/8 X 1-3/8
58-5
CENTRIFUGAL SWITCH W/CONTACT PLATE
58-6
CENTRIFUGAL SWITCH W/CONTACT PLATE
Price
N/A
58-7
BALL BEARING 6205ZZ
Price
N/A
58-8
BALL BEARING 6202ZZ
Price
N/A
58-9
MOTOR JUNCTION BOX
59
MOTOR MOUNT GASKET
60
MOTOR MOUNTING PLATE
61
Now: PLW02
LOCK WASHER 1/4
Price
N/A
62
Now: PW06
FLAT WASHER 1/4
Price
N/A
63
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
64
IMPELLER 11"
65
IMPELLER 11"
Price
N/A
66
Now: PW07
FLAT WASHER 5/16
Price
N/A
67
Now: PB104
HEX BOLT 5/16-18 X 3/4 LH
Price
N/A
68
Now: PW06
FLAT WASHER 1/4
Price
N/A
69
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
70
SWITCH BOX
70-1
SWITCH BOX COVER
71
TOGGLE SWITCH TRANSMIT TR26 125V 16A
72
Now: D4151
Paddle Switch 120/230V
Price
N/A
73
Now: PS18M
PHLP HD SCR M4-.7 X 25
Price
N/A
74
LOCK WASHER 4MM
Price
N/A
75
Now: PN04M
HEX NUT M4-.7
Price
N/A
76
TAP SCREW M5 X 12
Price
N/A
77
DRAWER HANDLE
78
Now: PS02M
PHLP HD SCR M4-.7 X 12
Price
N/A
79
POWER CORD 14G 3W 10' 5-15P
80
AUX POWER CORD 14G 3W 8' 5-15P
81
MOTOR CORD 18G 3W 30"
82
LED LIGHT CORD 18G 3W 8'
83
STRAIN RELIEF TYPE-1 5/8
84
STRAIN RELIEF TYPE-3 PG11
85
STRAIN RELIEF TYPE-5 PG15.8
86
CORRUGATED SLEEVE 5'
87
CUP HOLDER (RUBBER)
88
CABLE TIE 6"

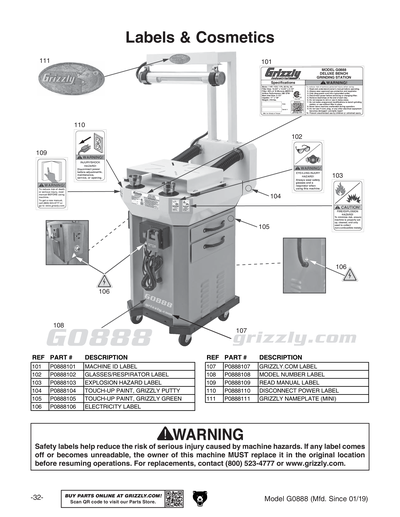

101
MACHINE ID LABEL
102
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
103
EXPLOSION HAZARD LABEL
104
GREY PUTTY REF G0504
Price
N/A
105
N/S GRIZZLY GREEN G1023S
Price
N/A
106
ELECTRICITY 0.7W X 0.6H
Price
N/A
107
GRIZZLY.COM LABEL 8",BEIGE
Price
N/A
108
MODEL NUMBER LABEL
109
READ MANUAL 1.5W X 2.5H
Price
N/A
110
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
111
Now: G9987
Nameplate - Mini
Price
N/A
MAN
MANUAL G0888 MFD-01.19+ V1.05.19
