Parts for G0889Z - 13" 2 HP Benchtop Planer with Spiral Cutterhead

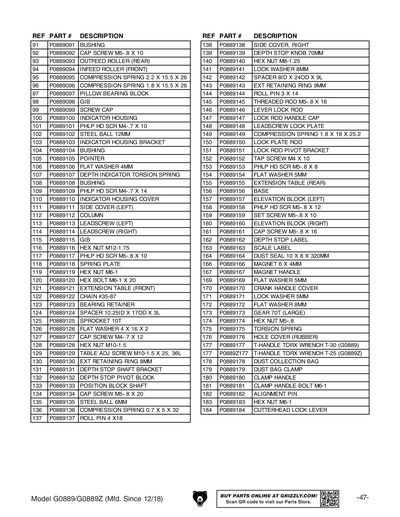

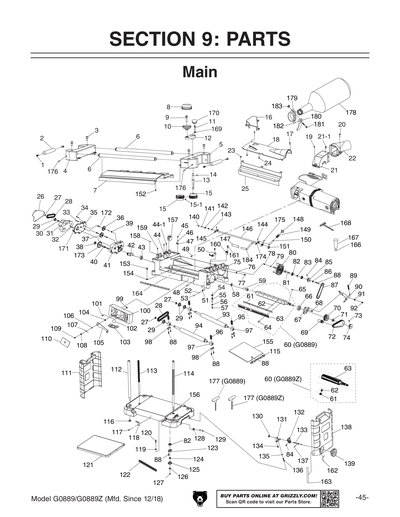

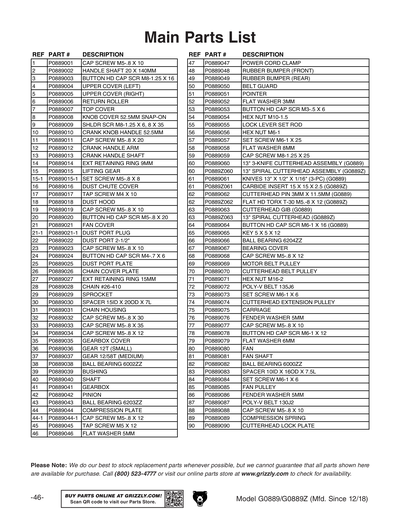

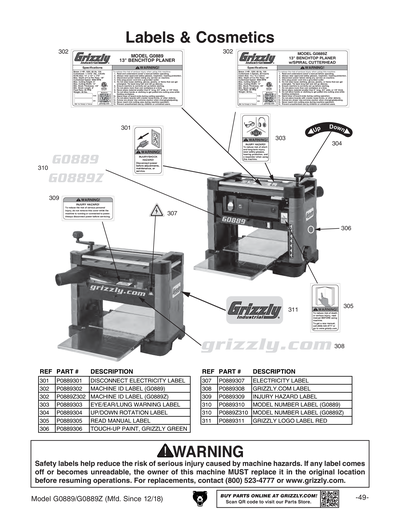

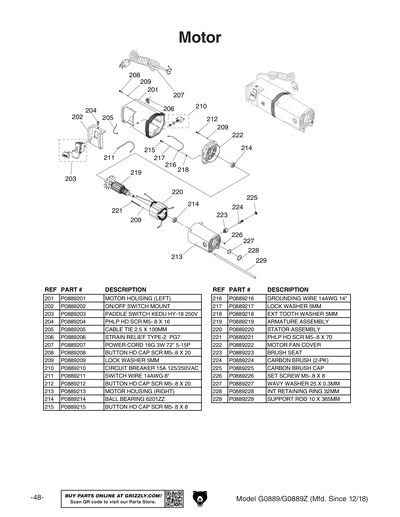

Part Diagram for G0889Z
Part Diagram for G0889Z
Part Diagram for G0889Z
Part Diagram for G0889Z
Part Diagram for G0889Z
Part Diagram for G0889Z
Part Diagram for G0889Z
Part Diagram for G0889Z
Part Diagram for G0889Z
Part Diagram for G0889Z

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
CAP SCREW M5-.8 X 10
Price
N/A
2
HANDLE SHAFT 20 X 140MM
Price
N/A
3
BUTTON HD CAP SCR M8-1.25 X 16
Price
N/A
4
UPPER COVER (LEFT)
Price
N/A
5
UPPER COVER (RIGHT)
Price
N/A
6
RETURN ROLLER
Price
N/A
7
TOP COVER
Price
N/A
8
KNOB COVER 52.5MM SNAP-ON
Price
N/A
9
SHLDR SCR M8-1.25 X 6, 8 X 35
Price
N/A
10
CRANK KNOB HANDLE 52.5MM
Price
N/A
11
CAP SCREW M5-.8 X 20
Price
N/A
12
CRANK HANDLE ARM
Price
N/A
13
CRANK HANDLE SHAFT
Price
N/A
14
EXT RETAINING RING 9MM
Price
N/A
15
LIFTING GEAR
Price
N/A
15-1
SET SCREW M5-.8 X 8
Price
N/A
16
DUST CHUTE COVER
Price
N/A
17
TAP SCREW M4 X 10
Price
N/A
18
DUST HOOD
Price
N/A
19
CAP SCREW M5-.8 X 10
Price
N/A
20
BUTTON HD CAP SCR M5-.8 X 20
Price
N/A
21
FAN COVER
Price
N/A
21-1
DUST PORT PLUG
Price
N/A
22
DUST PORT 2-1/2"
Price
N/A
23
CAP SCREW M5-.8 X 10
Price
N/A
24
BUTTON HD CAP SCR M4-.7 X 6
Price
N/A
25
DUST PORT PLATE
Price
N/A
26
CHAIN COVER PLATE
Price
N/A
27
EXT RETAINING RING 15MM
Price
N/A
28
CHAIN #26-410
Price
N/A
29
SPROCKET
Price
N/A
30
SPACER 15ID X 20OD X 7L
Price
N/A
31
CHAIN HOUSING
Price
N/A
32
CAP SCREW M5-.8 X 30
Price
N/A
33
CAP SCREW M5-.8 X 35
Price
N/A
34
CAP SCREW M5-.8 X 12
Price
N/A
35
*DISCD*GEARBOX COVER
Price
N/A
36
GEAR 12T (SMALL)
Price
N/A
37
GEAR 12/58T (MEDIUM)
Price
N/A
38
BALL BEARING 6002ZZ
Price
N/A
39
BUSHING
Price
N/A
40
SHAFT
Price
N/A
41
GEARBOX
Price
N/A
42
PINION
Price
N/A
43
BALL BEARING 6203ZZ
Price
N/A
44
COMPRESSION PLATE
Price
N/A
44-1
CAP SCREW M5-.8 X 12
Price
N/A
45
TAP SCREW M5 X 12
Price
N/A
46
FLAT WASHER 5MM
Price
N/A
47
POWER CORD CLAMP
Price
N/A
48
RUBBER BUMPER (FRONT)
Price
N/A
49
RUBBER BUMPER (REAR)
Price
N/A
50
BELT GUARD
Price
N/A
51
POINTER
Price
N/A
52
FLAT WASHER 3MM
Price
N/A
53
BUTTON HD CAP SCR M3-.5 X 6
Price
N/A
54
HEX NUT M10-1.5
Price
N/A
55
LOCK LEVER SET ROD
Price
N/A
56
HEX NUT M6-1
Price
N/A
57
SET SCREW M6-1 X 25
Price
N/A
58
FLAT WASHER 8MM
Price
N/A
59
CAP SCREW M8-1.25 X 25
Price
N/A
60A
SPIRAL CUTTERHEAD ASSEMBLY
Price
N/A
61
CARBIDE INSERT 15 X 15 X 2.5 V1
Price
$30.85
61V2
CARBIDE INSERT 15 X 15 X 2.5 V2.12.19
Price
$30.85
62
FLAT HD TORX T-25 M5-.8 X 12
Price
$1.60
63
13" SPIRAL CUTTERHEAD
Item is no longer available
Price
N/A
65
KEY 5 X 5 X 12
Price
N/A
66
BALL BEARING 6204ZZ
Price
N/A
67
BEARING COVER
Price
N/A
68
CAP SCREW M5-.8 X 12
Price
N/A
69
MOTOR BELT PULLEY V1
Price
N/A
70
CUTTERHEAD BELT PULLEY V2.12.19
Price
N/A
70V2
CUTTERHEAD BELT PULLEY V2.12.19
Price
$13.95
71
HEX NUT M16-2
Price
N/A
72
V-BELT RIBBED 135J6 14 X 346MM
Price
N/A
73
SET SCREW M6-1 X 6
Price
N/A
74
CUTTERHEAD EXTENSION PULLEY
Price
N/A
75
CARRIAGE
Price
N/A
76
FENDER WASHER 5MM
Price
N/A
77
CAP SCREW M5-.8 X 10
Price
N/A
78
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
79
FLAT WASHER 6MM
Price
N/A
80
FAN
Price
N/A
81
FAN SHAFT
Price
N/A
82
BALL BEARING 6000ZZ
Price
N/A
83
SPACER 10ID X 16OD X 7.5L
Price
N/A
84
SET SCREW M6-1 X 6
Price
N/A
85
FAN PULLEY
Price
N/A
86
FENDER WASHER 5MM
Price
N/A
87
POLY-V BELT 130J2
Price
N/A
88
CAP SCREW M5-.8 X 10
Price
N/A
89
COMPRESSION SPRING
Price
N/A
90
CUTTERHEAD LOCK PLATE
Price
N/A
91
BUSHING
Price
N/A
92
CAP SCREW M5-.8 X 10
Price
N/A
93
OUTFEED ROLLER (REAR)
Price
N/A
94
INFEED ROLLER (FRONT)
Price
N/A
95
COMPRESSION SPRING 2.2 X 15.5 X 26
Price
N/A
96
COMPRESSION SPRING 1.8 X 15.5 X 26
Price
N/A
97
PILLOW BEARING BLOCK
Price
N/A
98
GIB
Price
N/A
99
SCREW CAP
Price
N/A
100
INDICATOR HOUSING
Price
N/A
101
PHLP HD SCR M4-.7 X 10
Price
N/A
102
STEEL BALL 12MM
Price
N/A
103
INDICATOR HOUSING BRACKET
Price
N/A
104
BUSHING
Price
N/A
105
POINTER
Price
N/A
106
FLAT WASHER 4MM
Price
N/A
107
DEPTH INDICATOR TORSION SPRING
Price
N/A
108
BUSHING
Price
N/A
109
PHLP HD SCR M4-.7 X 14
Price
N/A
110
INDICATOR HOUSING COVER
Price
N/A
111
SIDE COVER (LEFT)
Price
N/A
112
COLUMN
Price
N/A
113
LEADSCREW (LEFT)
Price
N/A
114
LEADSCREW (RIGHT)
Price
N/A
115
GIB
Price
N/A
116
HEX NUT M12-1.75
Price
N/A
117
PHLP HD SCR M5-.8 X 10
Price
N/A
118
SPRING PLATE
Price
N/A
119
HEX NUT M6-1
Price
N/A
120
HEX BOLT M6-1 X 20
Price
N/A
121
EXTENSION TABLE
Price
N/A
122
CHAIN #35-87
Price
N/A
123
BEARING RETAINER
Price
N/A
124
SPACER 10.25ID X 17OD X 3L
Price
N/A
125
SPROCKET 10T
Price
N/A
126
FLAT WASHER 4 X 16 X 2
Price
N/A
127
CAP SCREW M4-.7 X 12
Price
N/A
128
HEX NUT M10-1.5
Price
N/A
129
TABLE ADJ SCREW M10-1.5 X 25, 36L
Price
N/A
130
EXT RETAINING RING 8MM
Price
N/A
131
DEPTH STOP SHAFT BRACKET
Price
N/A
132
DEPTH STOP PIVOT BLOCK
Price
N/A
133
POSITION BLOCK SHAFT
Price
N/A
134
CAP SCREW M5-.8 X 20
Price
N/A
135
STEEL BALL 6MM
Price
N/A
136
COMPRESSION SPRING 0.7 X 5 X 32
Price
N/A
137
ROLL PIN 4 X 18
Price
N/A
138
SIDE COVER (RIGHT)
Price
N/A
139
DEPTH STOP KNOB 70MM
Price
N/A
140
HEX NUT M8-1.25
Price
N/A
141
LOCK WASHER 8MM
Price
N/A
142
SPACER 8ID X 24OD X 9L
Price
N/A
143
EXT RETAINING RING 9MM
Price
N/A
144
ROLL PIN 3 X 14
Price
N/A
145
THREADED ROD M5-.8 X 16
Price
N/A
146
CUTTERHEAD LOCK LEVER AND ROD
Price
N/A
147
LOCK ROD HANDLE CAP
Price
N/A
148
LEADSCREW LOCK PLATE
Price
N/A
149
COMPRESSION SPRING 1.8 X 18 X 25.2
Price
N/A
150
LOCK PLATE ROD
Price
N/A
151
LOCK ROD PIVOT BRACKET
Price
N/A
152
TAP SCREW M4 X 10
Price
N/A
153
PHLP HD SCR M5-.8 X 8
Price
N/A
154
FLAT WASHER 5MM
Price
N/A
155
MIDDLE PLATE
Price
N/A
156
BASE
Price
N/A
157
ELEVATION BLOCK (LEFT)
Price
N/A
158
PHLP HD SCR M5-.8 X 12
Price
N/A
159
SET SCREW M5-.8 X 10
Price
N/A
160
ELEVATION BLOCK (RIGHT)
Price
N/A
161
SET SCREW M5-.8 X 20
Price
N/A
162
DEPTH STOP LABEL
Price
N/A
163
SCALE LABEL
Price
N/A
164
DUST SEAL 10 X 8 X 320MM
Price
N/A
166
MAGNET 6 X 4MM
Price
N/A
167
MAGNET 6 X 4MM
Price
N/A
168
T-HANDLE HEX WRENCH 4MM
Price
N/A
169
FLAT WASHER 5MM
Price
N/A
170
CRANK HANDLE COVER
Price
N/A
171
LOCK WASHER 5MM
Price
N/A
172
FLAT WASHER 8MM
Price
N/A
173
GEAR 70T (LARGE)
Price
N/A
174
HEX NUT M5-.8
Price
N/A
175
TORSION SPRING
Price
N/A
176
HOLE COVER (RUBBER)
Price
N/A
177
T-HANDLE TORX WRENCH T-25
Price
$11.20
178
DUST COLLECTION BAG
Price
N/A
179
DUST BAG CLAMP
Price
N/A
180
CLAMP HANDLE
Price
N/A
181
CLAMP HANDLE BOLT M6-1
Price
N/A
182
ALIGNMENT PIN
Price
N/A
183
HEX NUT M6-1
Price
N/A
184
CUTTERHEAD LOCK LEVER AND ROD
Price
N/A
200
MOTOR 2 HP 120V
Price
N/A
201
MOTOR HOUSING (LEFT)
Price
N/A
202
ON/OFF SWITCH MOUNT
Price
N/A
203
PADDLE SWITCH KEDU HY-18 250V
Price
N/A
204
PHLP HD SCR M5-.8 X 16
Price
N/A
205
CABLE TIE 2.5 X 100MM
Price
N/A
206
STRAIN RELIEF TYPE-2 PG7
Price
N/A
207
POWER CORD 18G 3W 72" 5-15P
Price
N/A
208
BUTTON HD CAP SCR M5-.8 X 20
Price
N/A
209
LOCK WASHER 5MM
Price
N/A
210
*DISCD*CIRCUIT BREAKER 15A 125/250VAC
Price
N/A
211
SWITCH WIRE 14AWG 8"
Price
N/A
212
BUTTON HD CAP SCR M5-.8 X 20
Price
N/A
213
MOTOR HOUSING (RIGHT)
Price
N/A
214
BALL BEARING 6201ZZ
Price
N/A
215
BUTTON HD CAP SCR M5-.8 X 8
Price
N/A
216
GROUNDING WIRE 14AWG 14"
Price
N/A
217
LOCK WASHER 5MM
Price
N/A
218
EXT TOOTH WASHER 5MM
Price
N/A
219
ARMATURE ASSEMBLY
Price
N/A
220
STATOR ASSEMBLY
Price
N/A
221
PHLP HD SCR M5-.8 X 70
Price
N/A
222
MOTOR FAN COVER
Price
N/A
223
BRUSH SEAT
Price
N/A
224
CARBON BRUSH (2-PK)
Price
N/A
225
CARBON BRUSH CAP
Price
N/A
226
SET SCREW M5-.8 X 8
Price
N/A
227
WAVY WASHER 25 X 0.3MM
Price
N/A
228
INT RETAINING RING 32MM
Price
N/A
229
SUPPORT ROD 10 X 365MM
Price
N/A
301
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
302
MACHINE ID LABEL
Price
$16.40
303
EYE/EAR/LUNG 1.5W X 2.5H
Price
N/A
304
UP/DOWN ROTATION LABEL
Price
N/A
305
READ MANUAL 1.5W X 2.5H
Price
N/A
306
N/S GRIZZLY GREEN G1023S
Price
N/A
307
ELECTRICITY 0.7W X 0.6H
Price
N/A
308
GRIZZLY.COM LABEL
Price
N/A
309
INJURY HAZARD LABEL
Price
N/A
310
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
311
GRIZZLY LOGO LABEL RED
Price
N/A
MAN
MANUAL G08889/G0889Z MFD-12.18+ V1.12.18
