Parts for G0891 - 15" 3 HP Fixed-Table Planer with Helical Cutterhead

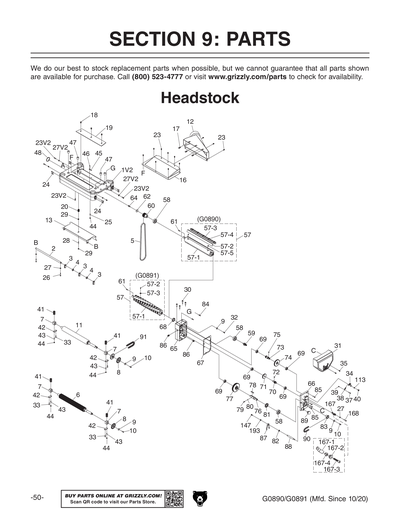

Part Diagram for G0891
Part Diagram for G0891
Part Diagram for G0891
Part Diagram for G0891
Part Diagram for G0891
Part Diagram for G0891
Part Diagram for G0891
Part Diagram for G0891
Part Diagram for G0891
Part Diagram for G0891
Part Diagram for G0891
Part Diagram for G0891
Part Diagram for G0891
Part Diagram for G0891
Part Diagram for G0891
Part Diagram for G0891
Part Diagram for G0891
Part Diagram for G0891

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

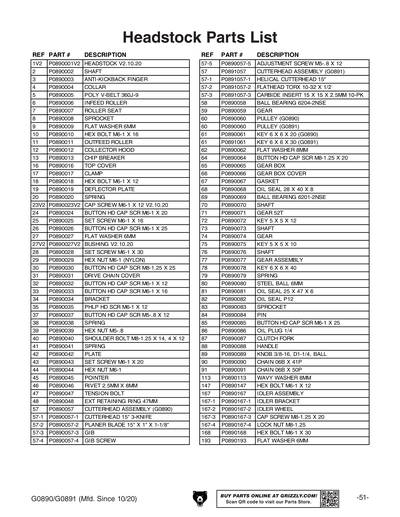

Ref #
Part #
Description
1
HEADSTOCK V2.10.20
Price
N/A
1V2
HEADSTOCK V2.10.20
Price
N/A
2
SHAFT
Price
N/A
3
ANTI-KICKBACK FINGER
Price
N/A
4
COLLAR
Price
N/A
5
POLY V-BELT 360J-9
Price
N/A
6
INFEED ROLLER
Price
N/A
7
ROLLER SEAT
Price
N/A
8
SPROCKET
Price
N/A
9
FLAT WASHER 6MM
Price
N/A
10
HEX BOLT M6-1 X 16
Price
N/A
11
OUTFEED ROLLER
Price
N/A
12
DUST CHUTE
Price
N/A
13
CHIP BREAKER
Price
N/A
17
CLAMP
Price
N/A
18
HEX BOLT M6-1 X 12
Price
N/A
19
DEFLECTOR PLATE
Price
N/A
20
SPRING
Price
N/A
23
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
23V2
CAP SCREW M6-1 X 12
Price
N/A
24
BUTTON HD CAP SCR M6-1 X 20
Price
N/A
25
SET SCREW M6-1 X 16
Price
N/A
26
BUTTON HD CAP SCR M6-1 X 25
Price
N/A
27
FLAT WASHER 6MM
Price
N/A
27V2
BUSHING V2.10.20
Price
N/A
28
SET SCREW M6-1 X 30
Price
N/A
29
HEX NUT M6-1 (NYLON)
Price
N/A
30
BUTTON HD CAP SCR M8-1.25 X 25
Price
N/A
31
DRIVE CHAIN COVER
Price
N/A
32
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
33
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
34
BRACKET
Price
N/A
35
PHLP HD SCR M6-1 X 12
Price
N/A
37
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
38
SPRING
Price
N/A
39
HEX NUT M5-.8
Price
N/A
40
SHOULDER BOLT M8-1.25 X 14, 4 X 12
Price
N/A
41
SPRING
Price
N/A
42
PLATE
Price
N/A
43
SET SCREW M6-1 X 20
Price
N/A
44
HEX NUT M6-1
Price
N/A
45
POINTER
Price
N/A
46
RIVET 2 X 5
Price
N/A
47
TENSION BOLT
Price
N/A
48
EXT RETAINING RING 47MM
Price
N/A
57
CUTTERHEAD ASSEMBLY
Price
$1,358.80
57-1
HELICAL CUTTERHEAD 15"
Price
$869.75
57-2
FLAT HD TORX SCR #10-32 X 1/2
Price
N/A
57-3
Indexable Carbide Insert - 15 x 15 x 2.5mm, 10-Pk.
Price
N/A
58
BALL BEARING 6204-2NSE
Price
N/A
59
GEAR
Price
N/A
60
PULLEY
Price
$14.85
61
KEY 6 X 6 X 30
Price
N/A
62
FLAT WASHER 8MM
Price
N/A
64
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
65
GEAR BOX
Price
N/A
66
GEAR BOX COVER
Price
N/A
67
GASKET
Price
N/A
68
OIL SEAL 28 X 40 X 8
Price
N/A
69
BALL BEARING 6201-2NSE
Price
N/A
70
SHAFT
Price
N/A
71
GEAR 52T
Price
N/A
72
KEY 5 X 5 X 12
Price
N/A
73
SHAFT
Price
N/A
74
GEAR
Price
N/A
75
KEY 5 X 5 X 10
Price
N/A
76
SHAFT
Price
N/A
77
GEAR ASSEMBLY
Price
N/A
78
KEY 6 X 6 X 40
Price
N/A
79
HELICAL SPRING .6 X 16
Price
N/A
80
STEEL BALL 6MM
Price
N/A
81
OIL SEAL 25 X 47 X 6
Price
N/A
82
OIL SEAL P12
Price
N/A
83
SPROCKET 12T
Price
N/A
84
ALIGNMENT PIN
Price
N/A
85
BUTTON HD CAP SCR M6-1 X 25
Price
N/A
86
OIL PLUG 1/4
Price
N/A
87
CLUTCH FORK
Price
N/A
88
HANDLE
Price
N/A
89
KNOB 3/8-16, D1-1/4, BALL
Price
N/A
90
CHAIN 06B X 41P
Price
N/A
91
CHAIN 06B X 50P
Price
N/A

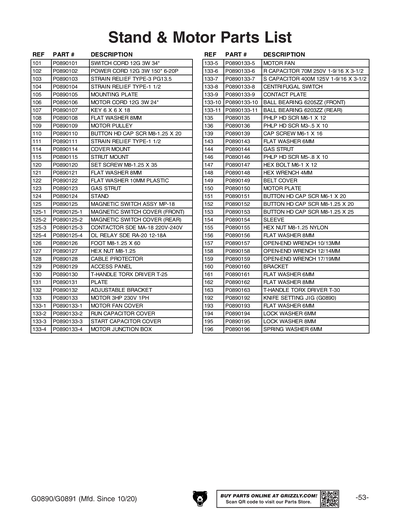

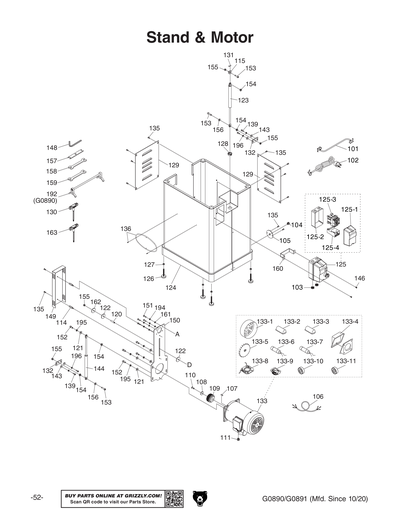

101
SWITCH CORD 12G 3W 34"
Price
N/A
102
POWER CORD 12G 3W 150" 6-20P
Price
N/A
103
STRAIN RELIEF TYPE-3 PG13.5
Price
N/A
104
STRAIN RELIEF TYPE-1 5/8"
Price
N/A
105
MOUNTING PLATE
Price
N/A
106
MOTOR CORD 12G 3W 24"
Price
N/A
107
KEY 6 X 6 X 18
Price
N/A
108
FLAT WASHER 8MM
Price
N/A
109
MOTOR PULLEY
Price
N/A
110
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
111
STRAIN RELIEF TYPE-1 1/2
Price
N/A
113
WAVY WASHER 8MM
Price
N/A
114
COVER MOUNT
Price
N/A
115
STRUT MOUNT
Price
N/A
120
SET SCREW M8-1.25 X 35
Price
N/A
121
FLAT WASHER 8MM
Price
N/A
122
FLAT WASHER 10MM PLASTIC
Price
N/A
123
GAS STRUT 200N (RIGHT)
Price
N/A
124
STAND
Price
N/A
125
MAGNETIC SWITCH ASSY MP-18
Price
N/A
125-1
MAGNETIC SWITCH COVER (FRONT)
Price
N/A
125-2
MAG SWITCH BACK COVER
Price
N/A
125-3
CONTACTOR SDE MA-18 220V-240V
Price
N/A
125-4
***USE P1021Z040V2-4***
Price
N/A
126
FOOT M8-1.25 X 60
Price
N/A
127
HEX NUT M8-1.25
Price
N/A
128
GROMMET M11 TYPE-2 SNAP-IN
Price
N/A
129
ACCESS PANEL
Price
N/A
130
T-HANDLE TORX DRIVER T-25
Price
N/A
131
PLATE
Price
N/A
132
ADJUSTABLE BRACKET
Price
N/A
133
MOTOR 3HP 230V 1PH
Price
N/A
133-1
MOTOR FAN COVER
Price
N/A
133-10
BALL BEARING 6205ZZ
Price
N/A
133-11
BALL BEARING 6203ZZ
Price
N/A
133-2
RUN CAPACITOR COVER
Price
N/A
133-3
RUN CAPACITOR COVER
Price
N/A
133-4
MOTOR JUNCTION BOX
Price
N/A
133-5
MOTOR FAN
Price
N/A
133-6
R CAP 70M 250V 1-9/16 X 3-1/2 V2.09.18
Price
N/A
133-7
S CAPACITOR 400M 125V 1-9/16 X 3-1/2
Price
N/A
133-8
CENTRIFUGAL SWITCH
Price
N/A
133-9
CONTACT PLATE
Price
N/A
135
PHLP HD SCR M6-1 X 12
Price
N/A
136
PHLP HD SCR M3-.5 X 10
Price
N/A
139
CAP SCREW M6-1 X 12
Price
N/A
143
FLAT WASHER 6MM
Price
N/A
146
PHLP HD SCR M5-.8 X 10
Price
N/A
147
HEX BOLT M6-1 X 12
Price
N/A
148
HEX WRENCH 4MM
Price
N/A
149
BELT COVER
Price
N/A
150
MOTOR PLATE
Price
N/A
151
BUTTON HD CAP SCR M6-1 X 20
Price
N/A
152
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
153
BUTTON HD CAP SCR M8-1.25 X 25
Price
N/A
154
SLEEVE
Price
N/A
155
HEX NUT M8-1.25 NYLON
Price
N/A
156
FLAT WASHER 8MM
Price
N/A
157
WRENCH 10 X 13MM OPEN-ENDS
Price
N/A
158
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
159
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
160
BRACKET
Price
N/A
161
FLAT WASHER 6MM
Price
N/A
162
FLAT WASHER 8MM
Price
N/A
163
T-HANDLE TORX DRIVER T-30
Price
N/A
167
IDLER ASSEMBLY
Price
N/A
167-1
IDLER BRACKET
Price
N/A
167-2
IDLER WHEEL
Price
N/A
167-3
CAP SCREW M8-1.25 X 20
Price
N/A
167-4
LOCK NUT M8-1.25
Price
N/A
168
HEX BOLT M6-1 X 30
Price
N/A
193
FLAT WASHER 6MM
Price
N/A
194
LOCK WASHER 6MM
Price
N/A
195
LOCK WASHER 8MM
Price
N/A
196
SPRING WASHER 6MM
Price
N/A

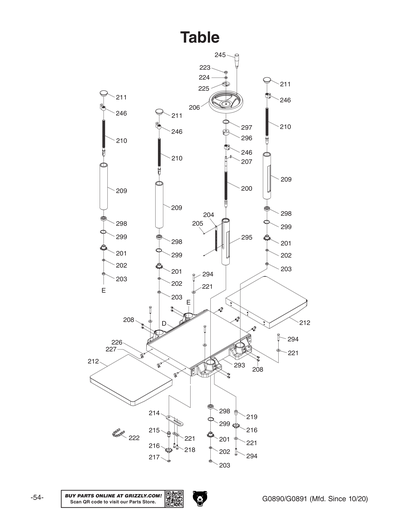

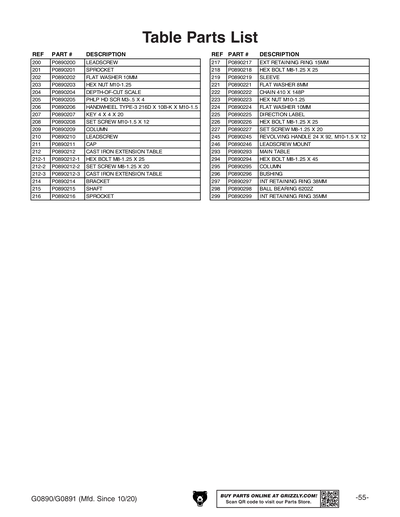

200
LEADSCREW
Price
N/A
201
SPROCKET
Price
N/A
202
FLAT WASHER 10MM
Price
N/A
203
HEX NUT M10-1.25
Price
N/A
204
DEPTH-OF-CUT SCALE
Price
N/A
205
PHLP HD SCR M3-.5 X 4
Price
N/A
206
HANDWHEEL TYPE-3 216D X 10B-K X M10-1.5
Price
N/A
207
KEY 4 X 4 X 20
Price
N/A
208
SET SCREW M10-1.5 X 12
Price
N/A
209
COLUMN
Price
N/A
210
LEADSCREW
Price
N/A
211
CAP
Price
N/A
212
CAST IRON EXTENSION TABLE
Price
N/A
214
BRACKET
Price
N/A
215
SHAFT
Price
N/A
216
SPROCKET
Price
N/A
217
EXT RETAINING RING 15MM
Price
N/A
218
HEX BOLT M8-1.25 X 25
Price
N/A
219
SLEEVE
Price
N/A
221
FLAT WASHER 8MM
Price
N/A
222
CHAIN 410 X 148P
Price
N/A
223
HEX NUT M10-1.25
Price
N/A
224
FLAT WASHER 10MM
Price
N/A
225
***USE P0550053***
Price
N/A
226
HEX BOLT M8-1.25 X 25
Price
N/A
227
SET SCREW M8-1.25 X 20
Price
N/A
245
REVOLVING HANDLE 24 X 92, M10-1.5 X 12
Price
N/A
246
LEADSCREW MOUNT
Price
N/A
293
MAIN TABLE
Price
N/A
294
HEX BOLT M8-1.25 X 45
Price
N/A
295
COLUMN
Price
N/A
296
BUSHING
Price
N/A
297
INT RETAINING RING 38MM
Price
N/A
298
BALL BEARING 6202Z
Price
N/A
299
INT RETAINING RING 35MM
Price
N/A

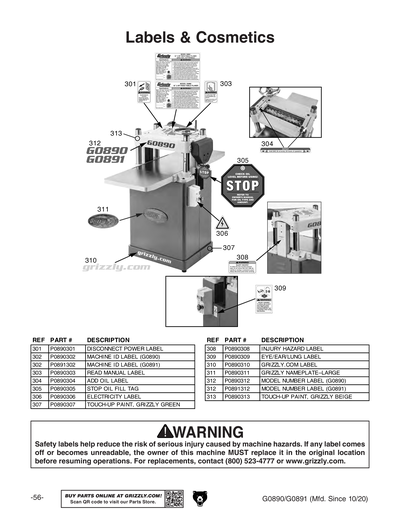

301
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
302
MACHINE ID LABEL
Price
$16.40
303
READ MANUAL 1.5W X 2.5H
Price
N/A
304
ADD OIL NOTICE
Price
N/A
305
STOP OIL FILL TAG 4W X 4H
Price
N/A
306
ELECTRICITY 0.7W X 0.6H
Price
N/A
307
N/S GRIZZLY GREEN G1023S
Price
N/A
308
INJURY HAZARD LABEL
Price
N/A
309
EYE/FACE/LUNG LABEL 1.5W X 2.5H
Price
N/A
310
***USE PGZCOM-44B***
Price
N/A
311
Nameplate - Large
Price
N/A
312
MODEL NUMBER LABEL
Price
$2.40
313
BEIGE REF G0555
Price
N/A
KIT
IDLER ASSEMBLY REPLACEMENT KIT
Price
N/A
MAN
MANUAL G0890/G0891 MFD-06.19-09.20 V1.07.19
Price
N/A
MANV2
MANUAL G0890/G0891 MFD-10.20+ V2.10.20
Price
N/A
