Parts for G0894 - 24" x 36" CNC Router
If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.
Please note: All parts ship out of our Springfield, Missouri facility.
| Ref # | Part # | Description | Price | Qty | |
|---|---|---|---|---|---|

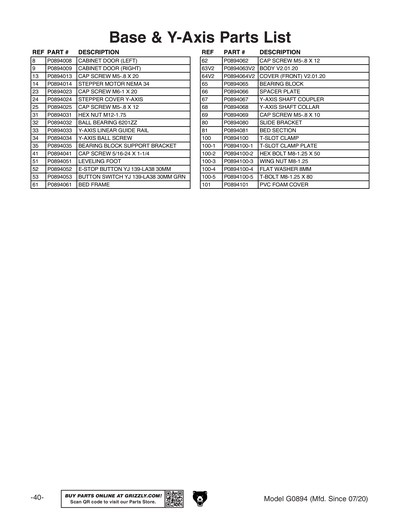

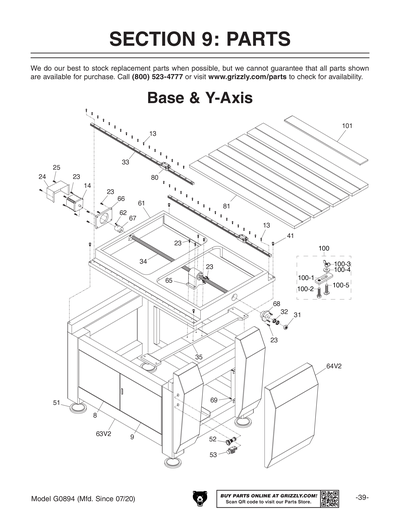

| 8 | P0894008 | CABINET DOOR (LEFT) | $24.00 | ||
| 9 | P0894009 | CABINET DOOR (RIGHT) | $24.00 | ||
| 10 |
P0894010
Replaced By PN09M
|
HEX NUT M12-1.75
|
N/A | View Replacement | |

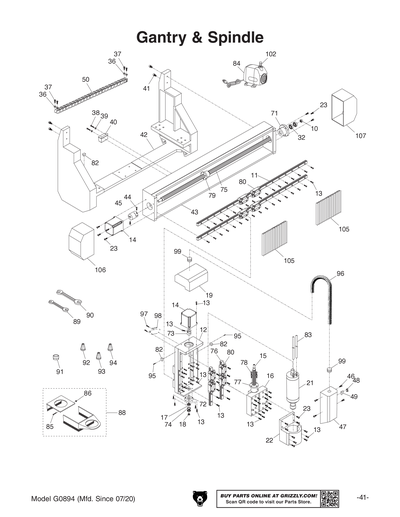

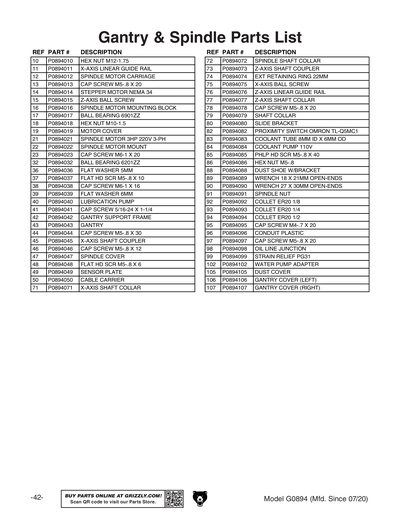

| 11 | P0894011 | X-AXIS LINEAR GUIDE RAIL | $70.50 | ||
| 12 | P0894012 | SPINDLE MOTOR CARRIAGE | $46.50 | ||
| 13 |
P0894013
Replaced By PCAP15M
|
CAP SCREW M5-.8 X 20
|
N/A | View Replacement | |
| 14 | P0894014 | STEPPER MOTOR NEMA 34 | $126.00 | ||
| 15 | P0894015 | Z-AXIS BALL SCREW | $93.00 | ||
| 16 | P0894016 | SPINDLE MOTOR MOUNTING BLOCK | $46.50 | ||
| 17 |
P0894017
Replaced By P6901ZZ
|
BALL BEARING 6901ZZ
|
N/A | View Replacement | |
| 18 |
P0894018
Replaced By PN02M
|
HEX NUT M10-1.5
|
N/A | View Replacement | |
| 19 | P0894019 | MOTOR COVER | $24.00 | ||
| 21 | P0894021 | SPINDLE MOTOR 3HP 220V 3-PH | $439.50 | ||
| 22 | P0894022 | SPINDLE MOTOR MOUNT | $37.50 | ||
| 23 |
P0894023
Replaced By PCAP02M
|
CAP SCREW M6-1 X 20
|
N/A | View Replacement | |
| 24 | P0894024 | STEPPER COVER Y-AXIS | $21.00 | ||
| 25 |
P0894025
Replaced By PCAP33M
|
CAP SCREW M5-.8 X 12
|
N/A | View Replacement | |
| 31 |
P0894031
Replaced By PN09M
|
HEX NUT M12-1.75
|
N/A | View Replacement | |
| 32 |
P0894032
Replaced By P6201ZZ
|
BALL BEARING 6201ZZ
|
N/A | View Replacement | |
| 33 | P0894033 | Y-AXIS LINEAR GUIDE RAIL | $93.00 | ||
| 34 | P0894034 | Y-AXIS BALL SCREW W/NUT | $139.50 | ||
| 35 | P0894035 | BEARING BLOCK SUPPORT BRACKET | $139.50 | ||
| 36 |
P0894036
Replaced By PW02M
|
FLAT WASHER 5MM
|
N/A | View Replacement | |
| 37 |
P0894037
Replaced By PFH07M
|
FLAT HD SCR M5-.8 X 10
|
N/A | View Replacement | |
| 38 |
P0894038
Replaced By PCAP01M
|
CAP SCREW M6-1 X 16
|
N/A | View Replacement | |
| 39 |
P0894039
Replaced By PW03M
|
FLAT WASHER 6MM
|
N/A | View Replacement | |
| 40 | P0894040 | LUBRICATION PUMP | $46.50 | ||
| 41 | P0894041 | CAP SCREW 5/16-24 X 1-1/4 | $231.00 | ||
| 42 | P0894042 | GANTRY SUPPORT FRAME | $139.50 | ||
| 43 | P0894043 | GANTRY | $231.00 | ||
| 43-1 | P0894043-1 | GANTRY COVER 2-PC SET | $45.00 | ||
| 43-2 |
P0894043-2
Replaced By PS19M
|
PHLP HD SCR M5-.8 X 6
|
N/A | View Replacement | |
| 43-3 |
P0894043-3
Replaced By PW02M
|
FLAT WASHER 5MM
|
N/A | View Replacement | |
| 44 |
P0894044
Replaced By PCAP95M
|
CAP SCREW M5-.8 X 30
|
N/A | View Replacement | |
| 45 | P0894045 | X-AXIS SHAFT COUPLER | $12.00 | ||
| 46 |
P0894046
Replaced By PCAP33M
|
CAP SCREW M5-.8 X 12
|
N/A | View Replacement | |
| 47 | P0894047 | SPINDLE COVER | $28.50 | ||
| 48 |
P0894048
Replaced By PFH78M
|
FLAT HD SCR M5-.8 X 6
|
N/A | View Replacement | |
| 49 | P0894049 | SENSOR PLATE | $2.50 | ||
| 50 | P0894050 | CABLE CARRIER | $10.50 | ||
| 51 | P0894051 | LEVELING FOOT | $24.00 | ||
| 52 | P0894052 | E-STOP BUTTON YJ 139-LA38 30MM | $10.50 | ||
| 53 | P0894053 | BUTTON SWITCH YJ 139-LA38 30MM GRN | $10.50 | ||
| 61 | P0894061 | BED FRAME | $693.00 | ||
| 62 |
P0894062
Replaced By PCAP33M
|
CAP SCREW M5-.8 X 12
|
N/A | View Replacement | |
| 63 | P0894063 | BODY V1 | $277.50 | ||
| 63V2 | P0894063V2 | BODY V2.01.20 | $0.00 | ||
| 64 | P0894064 | COVER (FRONT) V1 | $24.00 | ||
| 64V2 | P0894064V2 | COVER (FRONT) V2.01.20 | $0.00 | ||
| 65 | P0894065 | BEARING BLOCK | $37.50 | ||
| 66 | P0894066 | SPACER PLATE | $15.00 | ||
| 67 | P0894067 | Y-AXIS SHAFT COUPLER | $12.00 | ||
| 68 | P0894068 | Y-AXIS SHAFT COLLAR | $24.00 | ||
| 69 |
P0894069
Replaced By PCAP50M
|
CAP SCREW M5-.8 X 10
|
N/A | View Replacement | |
| 71 | P0894071 | X-AXIS SHAFT COLLAR | $24.00 | ||
| 72 | P0894072 | SPINDLE SHAFT COLLAR | $10.50 | ||
| 73 | P0894073 | Z-AXIS SHAFT COUPLER | $12.00 | ||
| 74 |
P0894074
Replaced By PR10M
|
EXT RETAINING RING 22MM
|
N/A | View Replacement | |
| 75 | P0894075 | X-AXIS BALL SCREW | $130.50 | ||
| 76 | P0894076 | Z-AXIS LINEAR GUIDE RAIL | $93.00 | ||
| 77 | P0894077 | Z-AXIS SHAFT COLLAR | $37.50 | ||
| 78 |
P0894078
Replaced By PCAP15M
|
CAP SCREW M5-.8 X 20
|
N/A | View Replacement | |
| 79 | P0894079 | SHAFT COLLAR | $93.00 | ||
| 80 | P0894080 | SLIDE BRACKET | $46.50 | ||
| 81 | P0894081 | BED SECTION | $162.00 | ||
| 81-1 | P0894081-1 | TABLE END CAP | $1.50 | ||
| 82 | P0894082 | PROXIMITY SWITCH OMRON TL-Q5MC1 | $24.00 | ||
| 83 | P0894083 | COOLANT TUBE 8MM ID X 6MM OD | $10.50 | ||
| 84 | P0894084 | COOLANT PUMP 110V | $88.50 | ||
| 85 |
P0894085
Replaced By PS100M
|
PHLP HD SCR M5-.8 X 40
|
N/A | View Replacement | |
| 86 |
P0894086
Replaced By PN06M
|
HEX NUT M5-.8
|
N/A | View Replacement | |
| 87 |
P0894087
Replaced By P0894088
|
DUST SHOE W/ BRACKET
|
N/A | View Replacement | |
| 88 | P0894088 | DUST SHOE W/ BRACKET | $70.50 | ||
| 89 | P0894089 | WRENCH 18 X 21MM OPEN ENDS | $7.50 | ||
| 90 |
P0894090
Replaced By PWR2730
|
WRENCH 27 X 30MM OPEN-ENDS
|
N/A | View Replacement | |
| 91 | P0894091 | SPINDLE NUT | $12.00 | ||
| 92 | P0894092 | COLLET ER20 1/8 | $10.50 | ||
| 93 | P0894093 | COLLET ER20 1/4 | $10.50 | ||
| 94 | P0894094 | COLLET ER20 1/2 | $10.50 | ||
| 95 |
P0894095
Replaced By PCAP39M
|
CAP SCREW M4-.7 X 20
|
N/A | View Replacement | |
| 96 | P0894096 | CONDUIT PLASTIC | $2.50 | ||
| 97 |
P0894097
Replaced By PCAP15M
|
CAP SCREW M5-.8 X 20
|
N/A | View Replacement | |
| 98 | P0894098 | OIL LINE JUNCTION | $6.00 | ||
| 99 | P0894099 | STRAIN RELIEF PG31 | $1.00 | ||
| 100 | P0894100 | T-SLOT CLAMP | $4.50 | ||
| 100-1 | P0894100-1 | T-SLOT CLAMP PLATE | $3.00 | ||
| 100-2 |
P0894100-2
Replaced By PB22M
|
HEX BOLT M8-1.25 X 50
|
N/A | View Replacement | |
| 100-3 |
P0894100-3
Replaced By PWN02M
|
WING NUT M8-1.25
|
N/A | View Replacement | |
| 100-4 |
P0894100-4
Replaced By PW01M
|
FLAT WASHER 8MM
|
N/A | View Replacement | |
| 100-5 | P0894100-5 | T-BOLT M8-1.25 X 80 | $1.25 | ||
| 101 | P0894101 | PVC FOAM COVER | $0.00 | ||
| 102 | P0894102 | WATER PUMP ADAPTER | $0.00 | ||
| 103 |
P0894103
Replaced By P0894083
|
COOLANT TUBE 8MM ID X 6MM OD
|
N/A | View Replacement | |
| 104 |
P0894104
Replaced By P0894083
|
COOLANT TUBE 8MM ID X 6MM OD
|
N/A | View Replacement | |
| 105 | P0894105 | DUST COVER | $0.00 | ||
| 106 | P0894106 | GANTRY COVER (LEFT) | $24.00 | ||
| 107 | P0894107 | GANTRY COVER (RIGHT) | $24.00 | ||

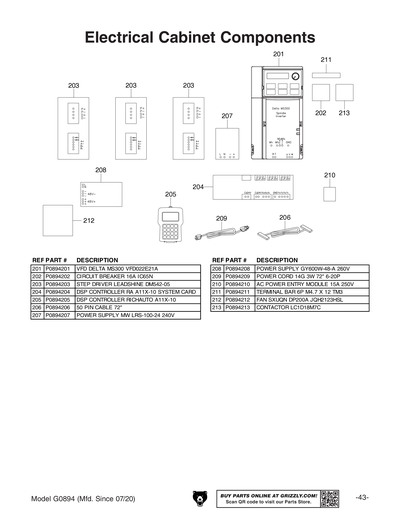

| 201 | P0894201 | VFD DELTA MS300 VFD022E21A | $510.00 | ||
| 202 | P0894202 | CIRCUIT BREAKER 16A IC65N | $139.50 | ||
| 203 | P0894203 | STEP DRIVER LEADSHINE DM542-05 | $102.00 | ||
| 204 | P0894204 | DSP CONTROLLER RA A11X-10 SYSTEM CARD | $139.50 | ||
| 205 | P0894205 | DSP CONTROLLER RICHAUTO A11X-10 | $831.00 | ||
| 206 | P0894206 | 50 PIN CABLE 72" | $84.00 | ||
| 207 | P0894207 | *DISCD*POWER SUPPLY MW LRS-100-24 24V | $130.50 | ||
| 207V2 | P0894207V2 | POWER SUPPLY GY75W-24-B 24V | $130.50 | ||
| 208 | P0894208 | POWER SUPPLY GY600W-48-A 260V | $153.00 | ||
| 209 | P0894209 | POWER CORD 14G 3W 72" 6-20P | $15.00 | ||
| 210 | P0894210 | AC POWER ENTRY MODULE 15A 250V | $12.00 | ||
| 211 | P0894211 | TERMINAL BAR 6P M4.7 X 12 TM3 | $6.00 | ||
| 212 | P0894212 | FAN SXUQN DP200A JQH2123HSL | $12.00 | ||
| 213 | P0894213 | CONTACTOR LC1D18M7C | $93.00 | ||

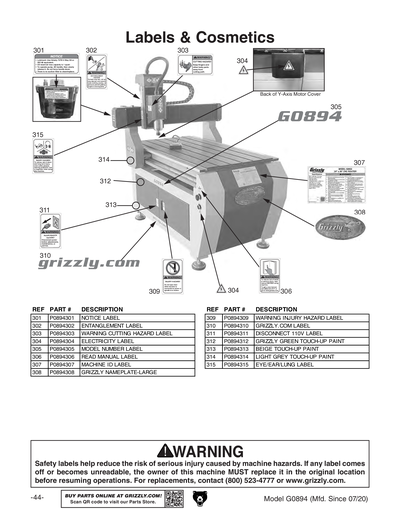

| 301 | P0894301 | NOTICE LABEL | $2.50 | ||
| 302 |
P0894302
Replaced By PLABEL-55A
|
ENTANGLEMENT HAZARD 1.5W X 2.5H
|
N/A | View Replacement | |
| 303 | P0894303 | WARNING CUTTING HAZARD LABEL | $2.50 | ||
| 304 |
P0894304
Replaced By PLABEL-14A
|
ELECTRICITY 0.7W X 0.6H
|
N/A | View Replacement | |
| 305 | P0894305 | MODEL NUMBER LABEL | $2.50 | ||
| 306 |
P0894306
Replaced By PLABEL-12C
|
READ MANUAL 1.5W X 2.5H
|
N/A | View Replacement | |
| 307 | P0894307 | MACHINE ID LABEL | $9.50 | ||
| 308 |
P0894308
Replaced By G8589
|
Name Plates - Large
|
N/A | View Replacement | |
| 309 | P0894309 | WARNING INJURY HAZARD LABEL | $2.50 | ||
| 310 | P0894310 | GRIZZLY.COM LABEL | $36.00 | ||
| 311 |
P0894311
Replaced By PLABEL-62A
|
DISCONNECT 110V 1.5W X 2.5H
|
N/A | View Replacement | |
| 312 |
P0894312
Replaced By PPAINT-1
|
N/S GRIZZLY GREEN G1023S
|
N/A | View Replacement | |
| 313 |
P0894313
Replaced By PPAINT-14
|
BEIGE REF G0555
|
N/A | View Replacement | |
| 314 |
P0894314
Replaced By PPAINT-10
|
LIGHT GREY REF G9733
|
N/A | View Replacement | |
| 315 |
P0894315
Replaced By PLABEL-90A
|
EYE/EAR/LUNG 1.5 X 2.5H
|
N/A | View Replacement | |
| MAN | P0894MAN | MANUAL G0894 MFD-05.19-12.19 V1.10.19 | $15.00 | ||
| MANV2 | P0894MANV2 | MANUAL G0894 MFD-01.20+ V2.03.20 | $15.00 | ||
| PART | P0894PART | MISC PART FOR G0894 | $0.00 |
