Parts for G0901 28" Portable Sawmill

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

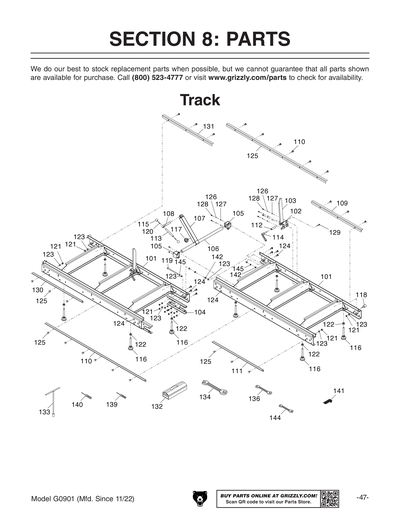

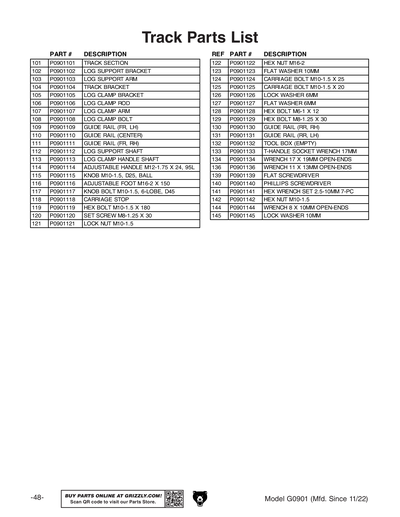

101
TRACK SECTION
102
LOG SUPPORT BRACKET
103
LOG SUPPORT ARM
104
TRACK BRACKET
105
LOG CLAMP BRACKET
106
LOG CLAMP ROD
107
LOG CLAMP ARM
108
LOG CLAMP BOLT
109
GUIDE RAIL
110
GUIDE RAIL (CENTER)
111
GUIDE RAIL
112
LOG SUPPORT SHAFT
113
LOG CLAMP HANDLE SHAFT
114
ADJUSTABLE HANDLE M12-1.75 X 24, 95L
115
KNOB M10-1.5, D25, BALL
116
ADJUSTABLE FOOT M16-2 X 150
117
KNOB BOLT M10-1.5, 6-LOBE, D45
118
CARRIAGE STOP
119
HEX BOLT M10-1.5 X 180
120
SET SCREW M8-1.25 X 30
Price
N/A
121
LOCK NUT M10-1.5
Price
N/A
122
Now: PN13M
HEX NUT M16-2
Price
N/A
123
Now: PW04M
FLAT WASHER 10MM
Price
N/A
124
CARRIAGE BOLT M10-1.5 X 25
Price
N/A
125
CARRIAGE BOLT M10-1.5 X 20
126
LOCK WASHER 6MM
Price
N/A
127
Now: PW03M
FLAT WASHER 6MM
Price
N/A
128
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
129
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
130
GUIDE RAIL
Price
N/A
131
GUIDE RAIL
Price
N/A
132
TOOL BOX (EMPTY)
133
T-HANDLE SOCKET WRENCH 17MM
134
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
135
WRENCH 14 X 17MM OPEN-ENDS
Price
N/A
136
WRENCH 11 X 13MM OPEN-ENDS
Price
N/A
137
WRENCH 10 X 12MM OPEN-ENDS
Price
N/A
138
WRENCH 8 X 9 OPEN ENDS
139
FLAT SCREWDRIVER
140
PHILLIPS SCREWDRIVER
141
HEX WRENCH SET 2.5-10MM 7-PC
142
Now: PN02M
HEX NUT M10-1.5
Price
N/A
144
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
145
LOCK WASHER 10MM
Price
N/A

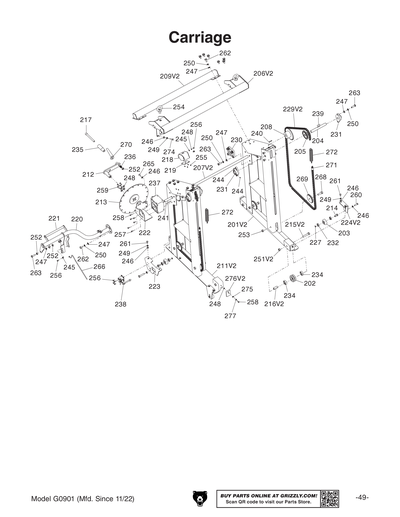

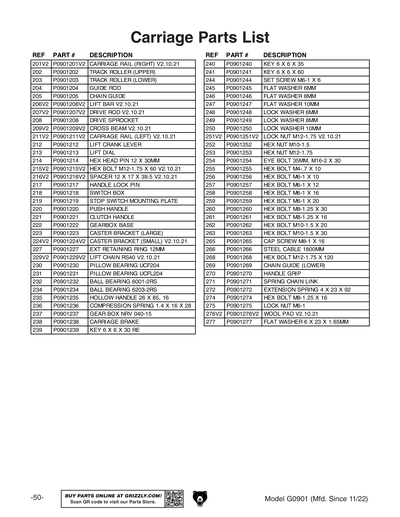

201
***SEE EXT DESC***
Item is no longer available
Price
N/A
201V2
CARRIAGE RAIL (RIGHT) V2.10.21
202
TRACK ROLLER (UPPER)
203
TRACK ROLLER (LOWER)
204
GUIDE ROD
205
CHAIN GUIDE
206
***SEE EXT DESC***
Item is no longer available
Price
N/A
206V2
LIFT BAR V2.10.21
207
***SEE EXT DESC***
Item is no longer available
Price
N/A
207V2
DRIVE ROD V2.10.21
208
DRIVE SPROCKET
209
CROSS BEAM V2.10.21
Price
N/A
209V2
CROSS BEAM V2.10.21
210
IDLER SPROCKET MOUNT
211
***SEE EXT DESC***
Item is no longer available
Price
N/A
211V2
CARRIAGE RAIL (LEFT) V2.10.21
212
LIFT CRANK LEVER
213
LIFT DIAL
214
HEX HEAD PIN 12 X 30MM
215
***SEE EXT DESC***
Item is no longer available
Price
N/A
215V2
Now: PB38M
HEX BOLT M12-1.75 X 60
Price
N/A
216
***SEE EXT DESC***
Item is no longer available
Price
N/A
216V2
SPACER 12 X 17 X 39.5 V2.10.21
217
HANDLE LOCK PIN
218
SWITCH BOX
219
STOP SWITCH MOUNTING PLATE
220
PUSH HANDLE
221
CLUTCH HANDLE
222
GEARBOX BASE
223
CASTER BRACKET (LARGE)
224
***SEE EXT DESC***
Item is no longer available
Price
N/A
224V2
CASTER BRACKET (SMALL) V2.10.21
225
IDLER SPROCKET ROD
226
IDLER SPROCKET
227
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
228
Now: PR29M
INT RETAINING RING 32MM
Price
N/A
229
***SEE EXT DESC***
Item is no longer available
Price
N/A
229V2
LIFT CHAIN RS40 V2.10.21
230
PILLOW BEARING UCF204
231
PILLOW BEARING UCFL204
232
BALL BEARING 6001-2RS
Price
N/A
233
BALL BEARING 6002-2RS
Price
N/A
234
BALL BEARING 6203-2RS
Price
N/A
235
HOLLOW HANDLE 26 X 85, 16
236
COMPRESSION SPRING 1.4 X 16 X 28
237
GEAR BOX NRV 040-15
238
CARRIAGE BRAKE
239
KEY 6 X 6 X 30 RE
240
Now: PK74M
KEY 6 X 6 X 35
Price
N/A
241
Now: PK76M
KEY 6 X 6 X 60
Price
N/A
242
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
243
Now: PR11M
EXT RETAINING RING 25MM
Price
N/A
244
SET SCREW M6-1 X 6
Price
N/A
245
Now: PW03M
FLAT WASHER 6MM
Price
N/A
246
Now: PW01M
FLAT WASHER 8MM
Price
N/A
247
Now: PW04M
FLAT WASHER 10MM
Price
N/A
248
LOCK WASHER 6MM
Price
N/A
249
LOCK WASHER 8MM
Price
N/A
250
LOCK WASHER 10MM
Price
N/A
251
LOCK NUT M16-2
Price
N/A
251V2
LOCK NUT M12-1.75
Price
N/A
252
Now: PN02M
HEX NUT M10-1.5
Price
N/A
253
Now: PN09M
HEX NUT M12-1.75
Price
N/A
254
EYE BOLT 35MM, M16-2 X 30
255
HEX BOLT M4-.7 X 10
256
Now: PB04M
HEX BOLT M6-1 X 10
Price
N/A
257
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
258
Now: PB83M
HEX BOLT M6-1 X 16
Price
N/A
259
Now: PB08M
HEX BOLT M6-1 X 20
Price
N/A
260
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
261
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
262
Now: PB74M
HEX BOLT M10-1.5 X 20
Price
N/A
263
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
264
Now: PB31M
HEX BOLT M10-1.5 X 40
Price
N/A
265
CAP SCREW M8-1 X 16
266
STEEL CABLE 1800MM
268
HEX BOLT M12-1.75 X 120
Price
N/A
269
CHAIN GUIDE (LOWER)
270
HANDLE GRIP
271
SPRING CHAIN LINK
272
EXTENSION SPRING 4 X 23 X 92
274
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
275
LOCK NUT M6-1
Price
N/A
276
WOOL PAD V1
276V2
WOOL PAD V2.10.21
277
FLAT WASHER 6 X 23 X 1.65MM

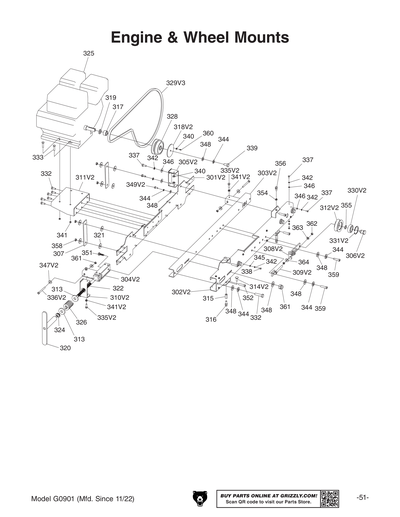

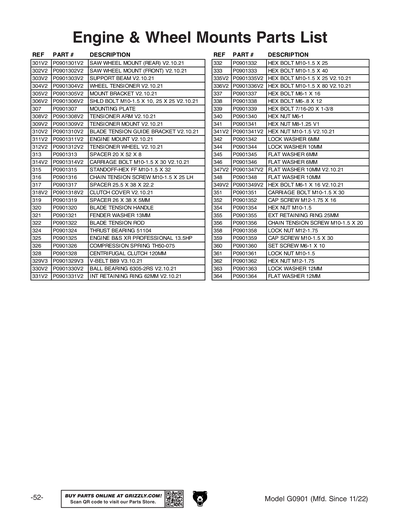

301
***SEE EXT DESC***
Item is no longer available
Price
N/A
301V2
SAWWHEL MONT/SUPORT BEAM (REAR) V2.10.21
302
***SEE EXT DESC***
Item is no longer available
Price
N/A
302V2
SAW WHEEL MOUNT (FRONT) V2.10.21
303
***SEE EXT DESC***
Item is no longer available
Price
N/A
303V2
SAWWHEL MONT/SUPORT BEAM (REAR) V2.10.21
Price
N/A
304
***SEE EXT DESC***
Item is no longer available
Price
N/A
304V2
WHEEL TENSIONER V2.10.21
305
***SEE EXT DESC***
Item is no longer available
Price
N/A
305V2
MOUNT BRACKET V2.10.21
306
***SEE EXT DESC***
Item is no longer available
Price
N/A
306V2
SHLD BOLT M10-1.5 X 10, 25 X 25 V2.10.21
307
MOUNTING PLATE
308
***SEE EXT DESC***
Item is no longer available
Price
N/A
308V2
TENSIONER ARM V2.10.21
309
***SEE EXT DESC***
Item is no longer available
Price
N/A
309V2
TENSIONER MOUNT V2.10.21
310
***SEE EXT DESC***
Item is no longer available
Price
N/A
310V2
BLADE TENSION GUIDE BRACKET V2.10.21
311
***SEE EXT DESC***
Item is no longer available
Price
N/A
311V2
ENGINE MOUNT V2.10.21
312
***SEE EXT DESC***
Item is no longer available
Price
N/A
312V2
TENSIONER WHEEL V2.10.21
313
SPACER 20 X 52 X 8
314
***SEE EXT DESC***
Item is no longer available
Price
N/A
314V2
CARRIAGE BOLT M10-1.5 X 30
Price
N/A
315
STANDOFF-HEX FF M10-1.5 X 32
316
CHAIN TENSION SCREW M10-1.5 X 25 LH
317
SPACER 25.5 X 38 X 22.2
318
***SEE EXT DESC***
Item is no longer available
Price
N/A
318V2
CLUTCH COVER V2.10.21
319
SPACER 26 X 38 X 5MM
320
BLADE TENSION HANDLE
321
FENDER WASHER 13MM
322
BLADE TENSION ROD
323
SPACER 19.5 X 38 X 30
324
THRUST BEARING 51104
Price
N/A
325
ENGINE B&S XR PROFESSIONAL 13.5HP
326
COMPRESSION SPRING TH50-075
327
ROD END CLEVIS
328
CENTRIFUGAL CLUTCH 120MM
329
BELT SPB-2300
329V3
V-BELT B89 V3.10.21
330
BALL BEARING 6302-2RS
Price
N/A
330V2
BALL BEARING 6305-2RS
Price
N/A
331
Now: PR24M
INT RETAINING RING 42MM
Price
N/A
331V2
Now: PR38M
INT RETAINING RING 62MM
Price
N/A
332
Now: PB32M
HEX BOLT M10-1.5 X 25
Price
N/A
333
Now: PB31M
HEX BOLT M10-1.5 X 40
Price
N/A
334
HEX BOLT M10-1.5 X 90
Price
N/A
335
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
335V2
Now: PB32M
HEX BOLT M10-1.5 X 25
Price
N/A
336
HEX BOLT M8-1.25 X 70
Price
N/A
336V2
Now: PB13M
HEX BOLT M10-1.5 X 80
Price
N/A
337
Now: PB83M
HEX BOLT M6-1 X 16
Price
N/A
338
HEX BOLT M6-.8 X 12
339
HEX BOLT 7/16-20 X 1-3/8
340
Now: PN01M
HEX NUT M6-1
Price
N/A
341
Now: PN03M
HEX NUT M8-1.25
Price
N/A
341V2
Now: PN02M
HEX NUT M10-1.5
Price
N/A
342
LOCK WASHER 6MM
Price
N/A
343
LOCK WASHER 8MM
Price
N/A
344
LOCK WASHER 10MM
Price
N/A
345
Now: PW03M
FLAT WASHER 6MM
Price
N/A
346
Now: PW03M
FLAT WASHER 6MM
Price
N/A
347
Now: PW01M
FLAT WASHER 8MM
Price
N/A
347V2
Now: PW04M
FLAT WASHER 10MM
Price
N/A
348
Now: PW04M
FLAT WASHER 10MM
Price
N/A
349
CARRIAGE BOLT M6-1 X 16
Price
N/A
349V2
Now: PB83M
HEX BOLT M6-1 X 16
Price
N/A
350
CARRIAGE BOLT M10-1.5 X 20
351
CARRIAGE BOLT M10-1.5 X 30
Price
N/A
352
CAP SCREW M12-1.75 X 16
353
SET SCREW M8-1.25 X 40
Price
N/A
354
Now: PN02M
HEX NUT M10-1.5
Price
N/A
355
Now: PR11M
EXT RETAINING RING 25MM
Price
N/A
356
CHAIN TENSION SCREW M10-1.5 X 20
358
LOCK NUT M12-1.75
Price
N/A
359
CAP SCREW M10-1.5 X 30
Price
N/A
360
SET SCREW M6-1 X 10
Price
N/A
361
LOCK NUT M10-1.5
Price
N/A
362
LOCK NUT M12-1.75
Price
N/A
363
LOCK WASHER 12MM
Price
N/A
364
Now: PW06M
FLAT WASHER 12MM
Price
N/A
401
***SEE EXT DESC***
Item is no longer available
Price
N/A

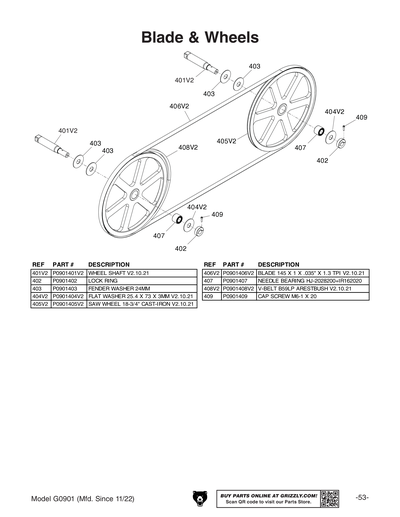

401V2
WHEEL SHAFT V2.10.21
402
LOCK RING
403
FENDER WASHER 24MM
404
FLAT WASHER 25.4 X 73 X 3MM V2.10.21
Price
N/A
404V2
FLAT WASHER 25.4 X 73 X 3MM V2.10.21
405
***SEE EXT DESC***
405V2
SAW WHEEL 18-3/4" CAST-IRON V2.10.21
406
SAW BLADE 144" X 1" X .035" X 1.3 TPI V1
406V2
145" x 1" x .035" 1.3 TPI Hook Sawmill Blade
Price
N/A
407
NEEDLE BEARING HJ-2028200+IR162020
408
V-BELT B58 V1
408V2
V-BELT B59LP ARESTBUSH V2.10.21
409
***USE PCAP02M***
410
***USE PR11M***

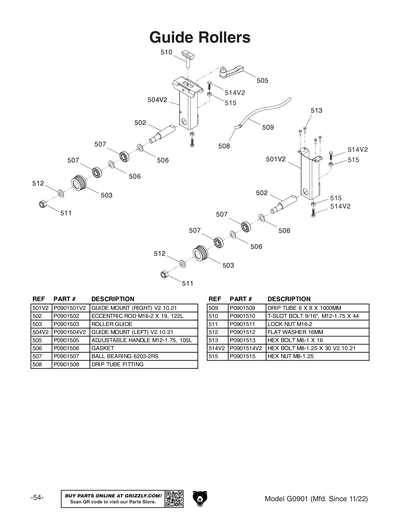

501
***SEE EXT DESC***
Item is no longer available
Price
N/A
501V2
GUIDE MOUNT (RIGHT) V2.10.21
502
ECCENTRIC ROD M16-2 X 19, 122L
503
ROLLER GUIDE
504
***SEE EXT DESC***
Item is no longer available
Price
N/A
504V2
GUIDE MOUNT (LEFT) V2.10.21
505
ADJUSTABLE HANDLE M12-1.75, 105L
506
GASKET
507
BALL BEARING 6203-2RS
Price
N/A
508
DRIP TUBE FITTING
509
DRIP TUBE 6 X 8 X 1000MM
510
T-SLOT BOLT 9/16", M12-1.75 X 44
511
LOCK NUT M16-2
Price
N/A
512
Now: PW08M
FLAT WASHER 16MM
Price
N/A
513
Now: PB83M
HEX BOLT M6-1 X 16
Price
N/A
514
Now: PB15M
HEX BOLT M8-1.25 X 40
Price
N/A
514V2
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
515
Now: PN03M
HEX NUT M8-1.25
Price
N/A

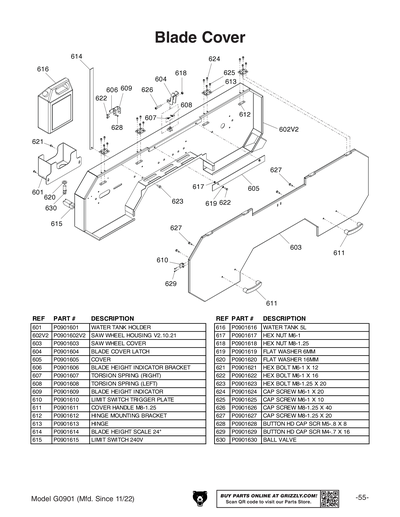

601
WATER TANK HOLDER
602
***SEE EXT DESC***
Item is no longer available
Price
N/A
602V2
SAW WHEEL HOUSING V2.10.21
603
SAW WHEEL COVER
604
BLADE COVER LATCH
605
COVER
606
BLADE HEIGHT INDICATOR BRACKET
607
TORSION SPRING (RIGHT)
608
TORSION SPRING (LEFT)
609
BLADE HEIGHT INDICATOR
610
LIMIT SWITCH TRIGGER PLATE
611
COVER HANDLE M8-1.25
612
HINGE MOUNTING BRACKET
613
HINGE
614
BLADE HEIGHT SCALE 24"
615
LIMIT SWITCH 240V
616
WATER TANK 5L
617
Now: PN01M
HEX NUT M6-1
Price
N/A
618
Now: PN03M
HEX NUT M8-1.25
Price
N/A
619
Now: PW03M
FLAT WASHER 6MM
Price
N/A
620
Now: PW08M
FLAT WASHER 16MM
Price
N/A
621
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
622
Now: PB83M
HEX BOLT M6-1 X 16
Price
N/A
623
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
624
CAP SCREW M6-1 X 20
Price
N/A
625
CAP SCREW M6-1 X 10
Price
N/A
626
CAP SCREW M8-1.25 X 40
Price
N/A
627
CAP SCREW M8-1.25 X 20
Price
N/A
628
BUTTON HD CAP SCR M5-.8 X 8
Price
N/A
629
BUTTON HD CAP SCR M4-.7 X 16
Price
N/A
630
BALL VALVE
701
OIL FILL HANGING TAG
702
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
703
ELECTRICITY 0.7W X 0.6H
Price
N/A
704
MODEL NUMBER LABEL
705
MACHINE ID LABEL V1
705V2
MACHINE ID LABEL V2.10.21
706
N/S GRIZZLY GREEN G1023S
Price
N/A
707
DONT OPEN 2W X 3.3H
Price
N/A
708
ENTANGLEMENT HAZARD 2W X 3.3H
Price
N/A
709
BANDSAW BLADE 2W X 3.3H V2.04.08
Price
N/A
710
Now: G8589
Nameplate - Large
Price
N/A
711
GRIZZLY.COM LABEL 15.25",BEIGE
Price
N/A
712
BEIGE REF G0555
Price
N/A
713
EYE/EAR/LUNG 2W X 3.3H
Price
N/A
714
DANGER LABEL
715
HANDWHEEL LABEL
MAN
MANUAL G0901 MFD-09.19-09.21 V1.12.19
MANV2
MANUAL G0901 MFD-10.21-10.22 V2.03.22
MANV3
MANUAL G0901 MFD-11.22+ V3.11.22
