Parts for G0920 22" Variable-Speed Open-Ended Drum Sander

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

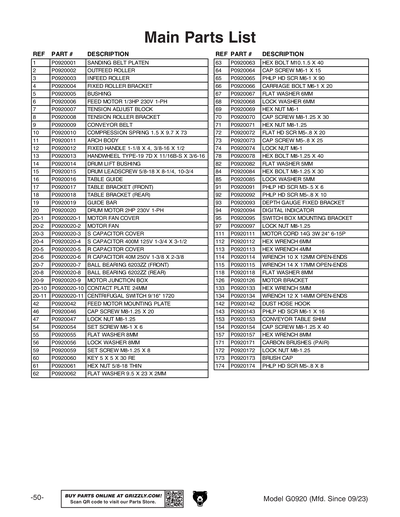

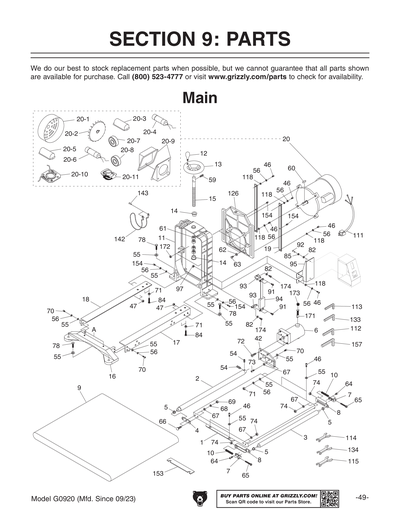

1
SANDING BELT PLATEN
2
OUTFEED ROLLER
3
INFEED ROLLER
4
FIXED ROLLER BRACKET
5
BUSHING
6
FEED MOTOR 1/3HP 230V 1-PH
7
TENSION ADJUST BLOCK
8
TENSION ROLLER BRACKET
9
CONVEYOR BELT
10
COMPRESSION SPRING 1.5 X 9.7 X 73
11
ARCH BODY
12
FIXED HANDLE 1-1/8 X 4, 3/8-16 X 1/2
13
HANDWHEEL TYPE-19 7D X 11/16B-S X 3/6-16
14
DRUM LIFT BUSHING
15
DRUM LEADSCREW 5/8-18 X 8-1/4, 10-3/4
16
TABLE GUIDE
17
TABLE BRACKET (FRONT)
18
TABLE BRACKET (REAR)
19
GUIDE BAR
20
DRUM MOTOR 2HP 230V 1-PH
20-1
MOTOR FAN COVER
20-10
CONTACT PLATE W/ CENTRIFUGAL SWITCH
20-11
CONTACT PLATE W/ CENTRIFUGAL SWITCH
Price
N/A
20-2
MOTOR FAN
20-3
S CAPACITOR COVER
20-4
S CAPACITOR 400M 125V 1-3/4 X 3-1/2
20-5
R CAPACITOR COVER
20-6
R CAPACITOR 40M 250V 1-3/8 X 2-3/8
Price
N/A
20-7
BALL BEARING 6203ZZ
Price
N/A
20-8
BALL BEARING 6202ZZ
Price
N/A
20-9
MOTOR JUNCTION BOX
42
FEED MOTOR MOUNTING PLATE
46
CAP SCREW M8-1.25 X 20
Price
N/A
47
LOCK NUT M8-1.25
Price
N/A
54
SET SCREW M6-1 X 6
Price
N/A
55
Now: PW01M
FLAT WASHER 8MM
Price
N/A
56
LOCK WASHER 8MM
Price
N/A
59
SET SCREW M8-1.25 X 8
Price
N/A
60
KEY 5 X 5 X 30 RE
61
Now: PN62M
HEX NUT 5/8-18 THIN
Price
N/A
62
Now: PW04M
FLAT WASHER 10MM
Price
N/A
63
Now: PB31M
HEX BOLT M10-1.5 X 40
Price
N/A
64
CAP SCREW M6-1 X 15
Price
N/A
65
PHLP HD SCR M6-1 X 90
Price
N/A
66
CARRIAGE BOLT M6-1 X 20
Price
N/A
67
Now: PW03M
FLAT WASHER 6MM
Price
N/A
68
LOCK WASHER 6MM
Price
N/A
69
Now: PN01M
HEX NUT M6-1
Price
N/A
70
CAP SCREW M8-1.25 X 30
Price
N/A
71
Now: PN03M
HEX NUT M8-1.25
Price
N/A
72
FLAT HD SCR M5-.8 X 20
Price
N/A
73
CAP SCREW M5-.8 X 25
Price
N/A
74
LOCK NUT M6-1
Price
N/A
78
Now: PB15M
HEX BOLT M8-1.25 X 40
Price
N/A
82
Now: PW02M
FLAT WASHER 5MM
Price
N/A
84
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
85
LOCK WASHER 5MM
Price
N/A
91
Now: PS12M
PHLP HD SCR M3-.5 X 6
Price
N/A
92
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
93
DEPTH GAUGE FIXED BRACKET
94
DIGITAL INDICATOR
95
SWITCH BOX MOUNTING BRACKET
97
LOCK NUT M8-1.25
Price
N/A
111
MOTOR CORD 14G 3W 24" 6-15P
112
HEX WRENCH 6MM
Price
N/A
113
HEX WRENCH 4MM
Price
N/A
114
WRENCH 10 X 12MM OPEN-ENDS
Price
N/A
115
WRENCH 14 X 17MM OPEN-ENDS
Price
N/A
118
Now: PW01M
FLAT WASHER 8MM
Price
N/A
126
MOTOR BRACKET
133
HEX WRENCH 5MM
Price
N/A
134
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
142
DUST HOSE HOOK
143
Now: PS11M
PHLP HD SCR M6-1 X 16
Price
N/A
153
CONVEYOR TABLE SHIM
154
CAP SCREW M8-1.25 X 40
Price
N/A
157
HEX WRENCH 8MM
Price
N/A
171
CARBON BRUSHES (PAIR)
172
LOCK NUT M8-1.25
Price
N/A
173
BRUSH CAP
174
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A

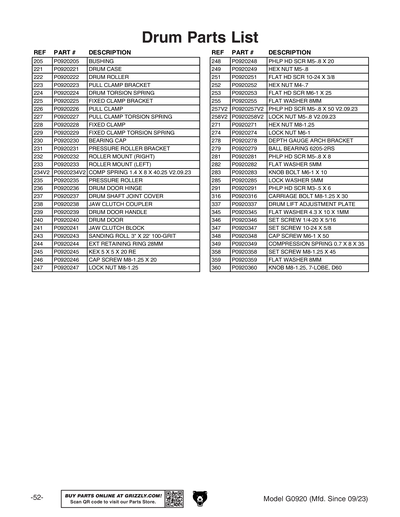

205
BUSHING
Price
N/A

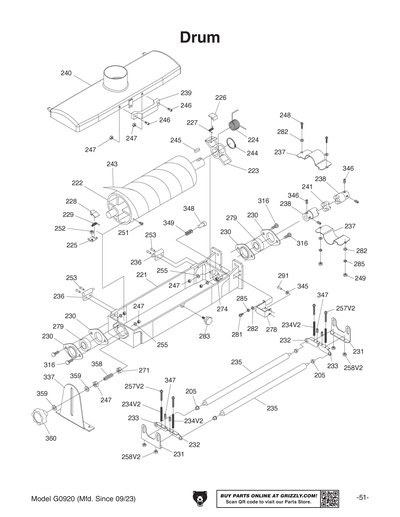

221
DRUM CASE
222
DRUM ROLLER ASSEMBLY
223
PULL CLAMP BRACKET
223A
PULL CLAMP ASSY
224
DRUM TORSION SPRING
225
FIXED CLAMP BRACKET
226
PULL CLAMP
227
PULL CLAMP TORSION SPRING
228
FIXED CLAMP
229
FIXED CLAMP TORSION SPRING
230
BEARING CAP
231
PRESSURE ROLLER BRACKET
232
ROLLER MOUNT (RIGHT)
233
ROLLER MOUNT (LEFT)
234
COMPRESSION SPRING 0.9 X 6.3 X 25 V1
234V2
COMPRESSION SPRING 1.4 X 8 X 40.25 V2.09
235
PRESSURE ROLLER
236
DRUM DOOR HINGE
237
DRUM SHAFT JOINT COVER
238
JAW CLUTCH COUPLER
239
DRUM DOOR HANDLE
240
DRUM DOOR
241
JAW CLUTCH BLOCK
243
3" x 22' A/O Sanding Roll 100 Grit
Price
N/A
244
***USE PR19M***
245
KEX 5 X 5 X 20 RE
246
CAP SCREW M8-1.25 X 20
Price
N/A
247
LOCK NUT M8-1.25
Price
N/A
248
Now: PS06M
PHLP HD SCR M5-.8 X 20
Price
N/A
249
Now: PN06M
HEX NUT M5-.8
Price
N/A
251
Now: PFH01
FLAT HD SCR 10-24 X 3/8
Price
N/A
252
Now: PN04M
HEX NUT M4-.7
Price
N/A
253
FLAT HD SCR M6-1 X 25
Price
N/A
255
Now: PW01M
FLAT WASHER 8MM
Price
N/A
257
Now: PS25M
PHLP HD SCR M4-.7 X 35
Price
N/A
257V2
PHLP HD SCR M5-.8 X 50
Price
N/A
258
LOCK NUT M4-.7
Price
N/A
258V2
LOCK NUT M5-.8
Price
N/A
267
Now: PW03M
FLAT WASHER 6MM
Price
N/A
268
LOCK WASHER 6MM
Price
N/A
271
Now: PN03M
HEX NUT M8-1.25
Price
N/A
274
LOCK NUT M6-1
Price
N/A
278
DEPTH GAUGE ARCH BRACKET
279
BALL BEARING 6205-2RS
Price
N/A
281
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
282
Now: PW02M
FLAT WASHER 5MM
Price
N/A
283
KNOB BOLT M6-1 X 10
285
LOCK WASHER 5MM
Price
N/A
291
Now: PS12M
PHLP HD SCR M3-.5 X 6
Price
N/A
316
CARRIAGE BOLT M8-1.25 X 30
Price
N/A
337
DRUM LIFT ADJUSTMENT PLATE
345
FLAT WASHER 4.3 X 10 X 1MM
346
Now: PSS04
SET SCREW 1/4-20 X 5/16
Price
N/A
347
Now: PSS31
SET SCREW 10-24 X 5/8
Price
N/A
348
CAP SCREW M6-1 X 50
349
COMPRESSION SPRING 0.7 X 8 X 35
358
SET SCREW M8-1.25 X 45
Price
N/A
359
Now: PW01M
FLAT WASHER 8MM
Price
N/A
360
KNOB M8-1.25, 7-LOBE, D60
450
Now: PN02
HEX NUT 5/16-18
Price
N/A
455
Now: PW01M
FLAT WASHER 8MM
Price
N/A
456
LOCK WASHER 8MM
Price
N/A
459
Now: PW07
FLAT WASHER 5/16
Price
N/A

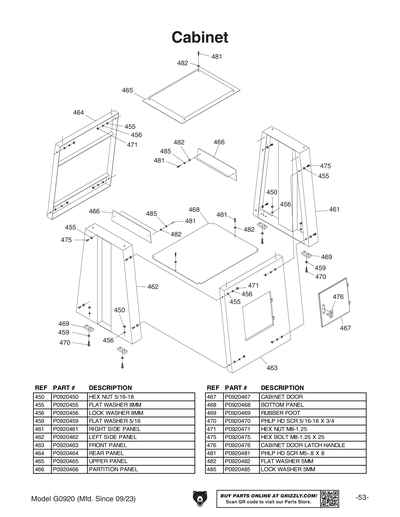

461
RIGHT SIDE PANEL
462
LEFT SIDE PANEL
463
FRONT PANEL
464
REAR PANEL
465
UPPER PANEL
466
PARTITION PANEL
467
CABINET DOOR
468
BOTTOM PANEL
469
RUBBER FOOT
470
Now: PS35
PHLP HD SCR 5/16-18 X 3/4
Price
N/A
471
Now: PN03M
HEX NUT M8-1.25
Price
N/A
475
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
476
CABINET DOOR LATCH HANDLE
481
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
482
Now: PW02M
FLAT WASHER 5MM
Price
N/A
485
LOCK WASHER 5MM
Price
N/A

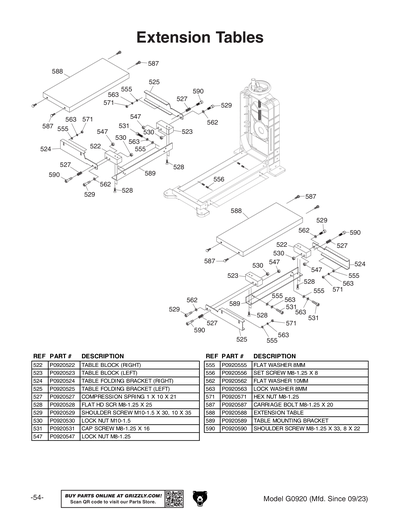

522
TABLE BLOCK (RIGHT)
523
TABLE BLOCK (LEFT)
524
TABLE FOLDING BRACKET (RIGHT)
525
TABLE FOLDING BRACKET (LEFT)
527
COMPRESSION SPRING 1 X 10 X 21
528
FLAT HD SCR M8-1.25 X 25
Price
N/A
529
SHOULDER SCREW M10-1.5 X 30, 10 X 35
530
LOCK NUT M10-1.5
Price
N/A
531
CAP SCREW M8-1.25 X 16
Price
N/A
547
LOCK NUT M8-1.25
Price
N/A
555
Now: PW01M
FLAT WASHER 8MM
Price
N/A
556
SET SCREW M8-1.25 X 8
Price
N/A
562
Now: PW04M
FLAT WASHER 10MM
Price
N/A
563
LOCK WASHER 8MM
Price
N/A
571
Now: PN03M
HEX NUT M8-1.25
Price
N/A
587
CARRIAGE BOLT M8-1.25 X 20
Price
N/A
588
EXTENSION TABLE
589
TABLE MOUNTING BRACKET
590
SHOULDER SCREW M8-1.25 X 33, 8 X 22

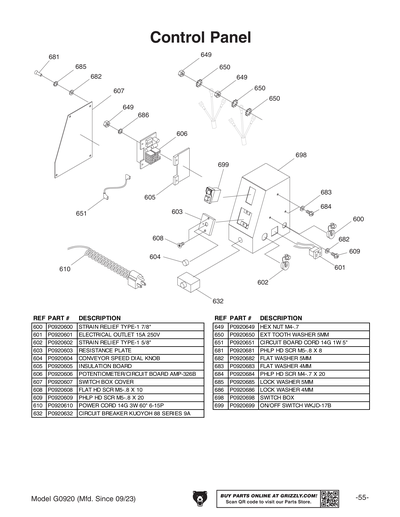

600
STRAIN RELIEF TYPE-1 7/8"
601
ELECTRICAL OUTLET 15A 250V
602
STRAIN RELIEF TYPE-1 5/8"
603
RESISTANCE PLATE
604
CONVEYOR SPEED DIAL KNOB
605
INSULATION BOARD
606
POTENTIOMETER/CIRCUIT BOARD AMP-326B
607
SWITCH BOX COVER
608
FLAT HD SCR M5-.8 X 10
Price
N/A
609
Now: PS06M
PHLP HD SCR M5-.8 X 20
Price
N/A
610
POWER CORD 14G 3W 60" 6-15P
632
CIRCUIT BREAKER KUOYOH 88 SERIES 9A
649
Now: PN04M
HEX NUT M4-.7
Price
N/A
650
EXT TOOTH WASHER 5MM
Price
N/A
651
CIRCUIT BOARD CORD 14G 1W 5"
681
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
682
Now: PW02M
FLAT WASHER 5MM
Price
N/A
683
Now: PW05M
FLAT WASHER 4MM
Price
N/A
684
Now: PS52M
PHLP HD SCR M4-.7 X 20
Price
N/A
685
LOCK WASHER 5MM
Price
N/A
686
LOCK WASHER 4MM
Price
N/A
698
SWITCH BOX
699
ON/OFF SWITCH WKJD-17B

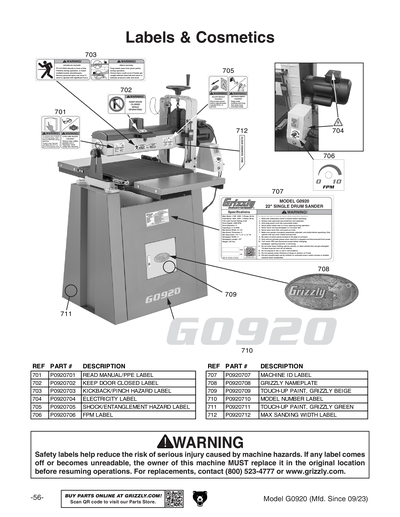

701
READ MANUAL/PPE LABEL
702
KEEP DOOR CLOSED LABEL
703
KICKBACK/PINCH HAZARD LABEL
704
ELECTRICITY 0.7W X 0.6H
Price
N/A
705
SHOCK/ENTANGLEMENT HAZARD LABEL
706
FPM LABEL
707
MACHINE ID LABEL
708
Now: G8588
Nameplate - Small
Price
N/A
709
LIGHT BEIGE REF G4003G
Price
N/A
710
MODEL NUMBER LABEL
711
N/S GRIZZLY GREEN G1023S
Price
N/A
712
MAX SANDING WIDTH LABEL
MAN
MANUAL G0920 MFD-09.23+ V1.10.25
