Parts for G0925 - 8" Benchtop Drill Press

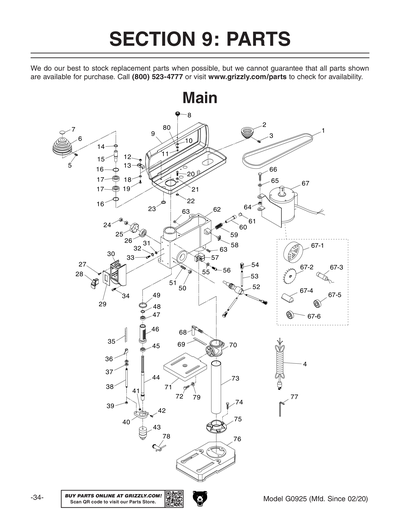

Part Diagram for G0925
Part Diagram for G0925
Part Diagram for G0925
Part Diagram for G0925
Part Diagram for G0925
Part Diagram for G0925

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

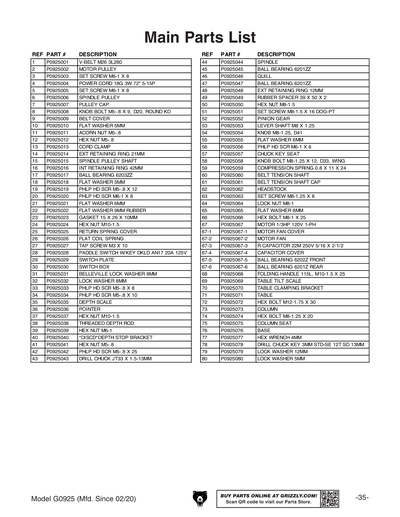

Ref #
Part #
Description
1
V-BELT M29 3L290
Price
N/A
2
MOTOR PULLEY
Price
$20.50
3
SET SCREW M6-1 X 8
Price
N/A
4
POWER CORD 18G 3W 72" 5-15P
Price
$5.75
5
SET SCREW M6-1 X 8
Price
N/A
6
SPINDLE PULLEY
Price
$19.10
7
PULLEY CAP
Price
$1.90
8
KNOB BOLT M5-.8 X 9, D20, ROUND KD
Price
$1.90
9
BELT COVER
Price
$22.35
10
FLAT WASHER 5MM
Price
N/A
11
ACORN NUT M5-.8
Price
N/A
12
HEX NUT M5-.8
Price
N/A
13
CORD CLAMP
Price
$2.60
14
EXT RETAINING RING 21MM
Price
N/A
15
SPINDLE PULLEY SHAFT
Price
$11.90
16
INT RETAINING RING 42MM
Price
N/A
17
BALL BEARING 6203ZZ
Price
N/A
18
FLAT WASHER 5MM
Price
N/A
19
PHLP HD SCR M5-.8 X 12
Price
N/A
20
PHLP HD SCR M6-1 X 8
Price
N/A
21
FLAT WASHER 6MM
Price
N/A
22
FLAT WASHER 9MM RUBBER
Price
$1.90
23
GASKET 15 X 26 X 10MM
Price
$1.90
24
HEX NUT M10-1.5
Price
N/A
25
FLAT COIL SPRING W/COVER
Price
N/A
26
FLAT COIL SPRING W/COVER
Price
$3.65
27
TAP SCREW M3 X 10
Price
N/A
28
PADDLE SWITCH W/KEY DKLD AN17 20A 125V
Price
$7.60
29
SWITCH PLATE
Price
$1.90
30
SWITCH BOX
Price
$2.25
31
BELLEVILLE LOCK WASHER 8MM
Price
$1.90
32
LOCK WASHER 8MM
Price
N/A
33
PHLP HD SCR M5-.8 X 8
Price
N/A
34
PHLP HD SCR M5-.8 X 10
Price
N/A
35
DEPTH SCALE
Price
$1.90
36
POINTER
Price
$1.90
37
HEX NUT M10-1.5
Price
N/A
38
THREADED DEPTH ROD
Price
$1.90
39
HEX NUT M6-1
Price
N/A
40
*DISCD*DEPTH STOP BRACKET
Item is no longer available
Price
N/A
41
HEX NUT M5-.8
Price
N/A
42
PHLP HD SCR M5-.8 X 25
Price
N/A
43
DRILL CHUCK JT33 X 1.5-13MM
Price
$14.75
44
SPINDLE
Price
$10.85
45
BALL BEARING 6201ZZ
Price
N/A
46
QUILL
Price
$12.95
47
BALL BEARING 6201ZZ
Price
N/A
48
EXT RETAINING RING 12MM
Price
N/A
49
SPACER 39 X 50 X 2 (RUBBER)
Price
$1.90
50
HEX NUT M8-1.5
Price
$1.90
51
SET SCREW M8-1.5 X 16 DOG-PT
Price
$1.90
52
PINION GEAR
Price
$9.75
53
LEVER SHAFT M8 X 1.25
Price
$2.60
54
KNOB M8-1.25, D41
Price
$1.90
55
FLAT WASHER 6MM
Price
N/A
56
PHLP HD SCR M6-1 X 6
Price
N/A
57
CHUCK KEY SEAT
Price
$1.90
58
KNOB BOLT M8-1.25 X 12, D33, WING
Price
$1.90
59
COMPRESSION SPRING 0.8 X 11 X 24
Price
$1.90
60
BELT TENSION SHAFT
Price
$1.90
61
BELT TENSION SHAFT CAP
Price
$1.90
62
HEADSTOCK
Price
$33.85
63
SET SCREW M8-1.25 X 8
Price
N/A
64
LOCK NUT M8-1
Price
$1.90
65
FLAT WASHER 8MM
Price
N/A
66
HEX BOLT M8-1 X 25
Price
$1.90
67
MOTOR 1/3HP 120V 1-PH
Price
$91.35
67-1
MOTOR FAN COVER
Price
$5.10
67-2
MOTOR FAN
Price
$1.90
67-3
R CAPACITOR 22M 250V 5/16 X 2-1/2
Price
$8.35
67-4
CAPACITOR COVER
Price
$1.90
67-5
BALL BEARING 6202Z
Price
N/A
67-6
BALL BEARING 6201Z
Price
N/A
68
FOLDING HANDLE 115L, M10-1.5 X 25
Price
$2.95
69
TABLE TILT SCALE
Price
$1.90
70
TABLE CLAMPING BRACKET
Price
$9.75
71
TABLE
Price
$34.50
72
HEX BOLT M12-1.75 X 30
Price
N/A
73
COLUMN
Price
$11.20
74
HEX BOLT M8-1.25 X 20
Price
N/A
75
COLUMN SEAT
Price
$4.00
76
BASE
Price
$51.75
77
HEX WRENCH 4MM
Price
N/A
78
DRILL CHUCK KEY 3MM STD-SE 12T SD 13MM
Price
$1.90
79
LOCK WASHER 12MM
Price
N/A
80
LOCK WASHER 5MM
Price
N/A
81
CHUCK GUARD ASSEMBLY
Price
$7.60
81-1
CHUCK GUARD SEAT
Price
$1.90
81-10
UPPER GUARD
Price
$1.90
81-11
WING NUT M5-.8
Price
N/A
81-12
HEX BOLT M5-.8 X 10
Price
N/A
81-13
PHLP HD SCR M3-.5 X 10
Price
N/A
81-14
HEX NUT M3-.5
Price
N/A
81-2
LOWER GUARD
Price
$1.90
81-3
TAP SCREW M3.5 X 5
Price
$1.90
81-4
PHLP HD SCR M4-.7 X 30
Price
N/A
81-5
HEX NUT M4-.7
Price
N/A
81-6
LOCK NUT M4-.7
Price
N/A
81-7
PHLP HD SCR M4-.7 X 20
Price
N/A
81-8
EXTENSION SPRING 1 X 6 X 20
Price
$1.90
81-9
HINGE BRACKET
Price
$1.90
101

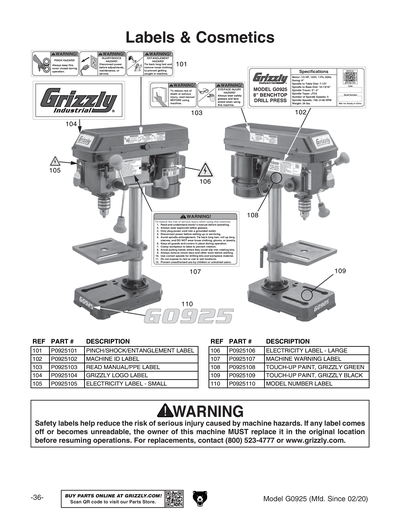

PINCH/SHOCK/ENTANGLEMENT LABEL
Price
$1.00
102
MACHINE ID LABEL
Price
$16.40
103
READ MANUAL/PPE LABEL
Price
$1.00
104
GRIZZLY LOGO LABEL
Price
$1.25
105
ELECTRICITY 0.5W X 0.4H
Price
N/A
106
ELECTRICITY 0.7W X 0.6H
Price
N/A
107
MACHINE WARNING LABEL
Price
$1.00
108
N/S GRIZZLY GREEN G1023S
Price
N/A
109
GLOSSY BLACK
Price
N/A
110
MODEL NUMBER LABEL
Price
$1.49
MAN
MANUAL G0925 MFD-02.20+ V1.02.20
Price
$18.00
