Parts for G0935 - 7" x 29" 1-1/2 HP Mill/Drill w/ Power Head Elevation & DRO

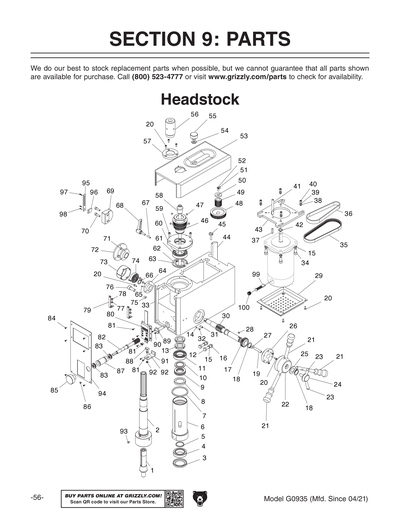

Part Diagram for G0935
Part Diagram for G0935
Part Diagram for G0935
Part Diagram for G0935
Part Diagram for G0935
Part Diagram for G0935
Part Diagram for G0935
Part Diagram for G0935
Part Diagram for G0935
Part Diagram for G0935
Part Diagram for G0935
Part Diagram for G0935
Part Diagram for G0935
Part Diagram for G0935
Part Diagram for G0935
Part Diagram for G0935
Part Diagram for G0935
Part Diagram for G0935

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

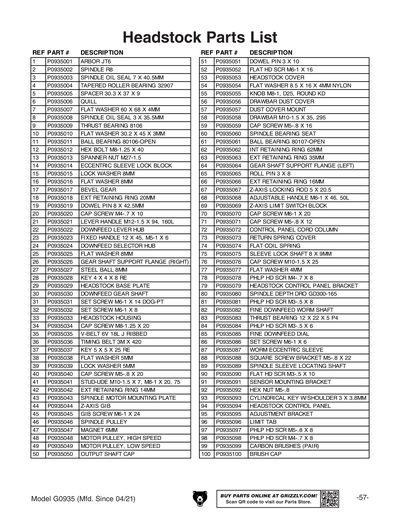

Ref #
Part #
Description
1
ARBOR JT6
Price
$18.40
2
SPINDLE R8
Price
$153.85
3
SPINDLE OIL SEAL 7 X 40.5MM
Price
$4.70
4
ANGULAR CONTACT BEARING 7007A
Price
$62.60
5
SPACER 30.3 X 37 X 9
Price
$2.20
6
QUILL
Price
$130.85
7
FLAT WASHER 60 X 68 X 4MM
Price
$14.75
8
SPINDLE OIL SEAL 3 X 35.5MM
Price
$3.65
9
THRUST BEARING 8106
Price
N/A
10
FLAT WASHER 30.2 X 45 X 3MM
Price
$2.60
11
BALL BEARING 80106-OPEN
Price
$19.10
12
HEX BOLT M8-1.25 X 40
Price
N/A
13
SPANNER NUT M27-1.5
Price
$3.65
14
ECCENTRIC SLEEVE LOCK BLOCK
Price
$1.90
15
LOCK WASHER 8MM
Price
N/A
16
FLAT WASHER 8MM
Price
N/A
17
BEVEL GEAR
Price
$12.65
18
EXT RETAINING RING 20MM
Price
N/A
19
DOWEL PIN 8 X 42.5MM
Price
$2.20
20
CAP SCREW M4-.7 X 10
Price
N/A
21
LEVER HANDLE M12-1.5 X 94, 160L
Price
$6.50
22
DOWNFEED LEVER HUB
Price
$23.75
23
FIXED HANDLE 12 X 45, M5-1 X 6
Price
$5.75
24
DOWNFEED SELECTOR HUB
Price
$7.95
25
FLAT WASHER 8MM
Price
N/A
26
GEAR SHAFT SUPPORT FLANGE (RIGHT)
Price
$10.45
27
STEEL BALL 8MM
Price
N/A
28
KEY 4 X 4 X 8 RE
Price
$1.90
29
HEADSTOCK BASE PLATE
Price
$8.35
30
DOWNFEED GEAR SHAFT
Price
$24.15
31
SET SCREW M6-1 X 14 DOG-PT
Price
$1.90
32
SET SCREW M6-1 X 8
Price
N/A
33
HEADSTOCK HOUSING
Price
$426.40
34
CAP SCREW M8-1.25 X 20
Price
N/A
35
V-BELT 6V 18L J RIBBED
Price
$12.65
36
TIMING BELT 3M X 420
Price
$9.40
37
KEY 5 X 5 X 25 RE
Price
$1.90
38
FLAT WASHER 5MM
Price
N/A
39
LOCK WASHER 5MM
Price
N/A
40
CAP SCREW M5-.8 X 20
Price
N/A
41
STUD-UDE M10-1.5 X 7, M8-1 X 20, 75
Price
$2.60
42
EXT RETAINING RING 14MM
Price
N/A
43
SPINDLE MOTOR MOUNTING PLATE
Price
$35.65
44
Z-AXIS GIB
Price
$15.50
45
GIB SCREW M6-1 X 24
Price
$2.60
46
SPINDLE PULLEY
Price
$70.15
47
MAGNET 6MM
Price
$14.85
48
MOTOR PULLEY, HIGH SPEED
Price
$27.35
49
MOTOR PULLEY, LOW SPEED
Price
$15.15
50
OUTPUT SHAFT CAP
Price
$1.90
51
DOWEL PIN 3 X 10
Price
$1.90
52
FLAT HD SCR M6-1 X 16
Price
N/A
53
HEADSTOCK COVER
Price
$55.00
54
FLAT WASHER 8.5 X 16 X 4MM NYLON
Price
$4.35
55
KNOB M8-1, D25, ROUND KD
Price
$4.00
56
DRAWBAR DUST COVER
Price
$9.40
57
DUST COVER MOUNT
Price
$7.95
58
DRAWBAR M10-1.5 X 35, 295
Price
$12.65
59
CAP SCREW M5-.8 X 16
Price
N/A
60
SPINDLE BEARING SEAT
Price
$20.15
61
BALL BEARING 80107-OPEN
Price
$18.70
62
INT RETAINING RING 62MM
Price
N/A
63
EXT RETAINING RING 35MM
Price
N/A
64
GEAR SHAFT SUPPORT FLANGE (LEFT)
Price
$19.10
65
ROLL PIN 3 X 8
Price
N/A
66
EXT RETAINING RING 16MM
Price
N/A
67
Z-AXIS LOCKING ROD 5 X 20.5
Price
$1.90
68
ADJUSTABLE HANDLE M6-1 X 46, 50L
Price
$6.90
69
Z-AXIS LIMIT SWITCH BLOCK
Price
$1.90
70
CAP SCREW M6-1 X 20
Price
N/A
71
CAP SCREW M5-.8 X 12
Price
N/A
72
CONTROL PANEL CORD COLUMN
Price
$2.20
73
RETURN SPRING COVER
Price
$9.40
74
FLAT COIL SPRING
Price
$14.40
75
SLEEVE LOCK SHAFT 8 X 9MM
Price
$2.20
76
CAP SCREW M10-1.5 X 25
Price
N/A
77
FLAT WASHER 4MM
Price
N/A
78
PHLP HD SCR M4-.7 X 8
Price
N/A
79
HEADSTOCK CONTROL PANEL BRACKET
Price
$3.65
80
SPINDLE DEPTH DRO GD300-165
Price
$85.60
81
PHLP HD SCR M3-.5 X 8
Price
N/A
82
FINE DOWNFEED WORM SHAFT
Price
$24.15
83
THRUST BEARING 12 X 22 X 5 P4
Price
$5.45
84
PHLP HD SCR M3-.5 X 6
Price
N/A
85
FINE DOWNFEED DIAL
Price
$15.15
86
SET SCREW M6-1 X 6
Price
N/A
87
WORM ECCENTRIC SLEEVE
Price
$18.40
88
SQUARE SCREW BRACKET M5-.8 X 22
Price
$3.25
89
SPINDLE SLEEVE LOCATING SHAFT
Price
$5.75
90
FLAT HD SCR M3-.5 X 10
Price
N/A
91
SENSOR MOUNTING BRACKET
Price
$11.90
92
HEX NUT M5-.8
Price
N/A
93
CYLINDRICAL KEY W/SHOULDER 3 X 3.8MM
Price
$1.90
94
HEADSTOCK CONTROL PANEL
Price
$11.50
95
ADJUSTMENT BRACKET
Price
$5.10
96
LIMIT TAB
Price
$2.20
97
PHLP HD SCR M5-.8 X 8
Price
N/A
98
PHLP HD SCR M4-.7 X 8
Price
N/A
99
CARBON BRUSHES (PAIR)
Price
$6.90
100
BRUSH CAP
Price
$1.90

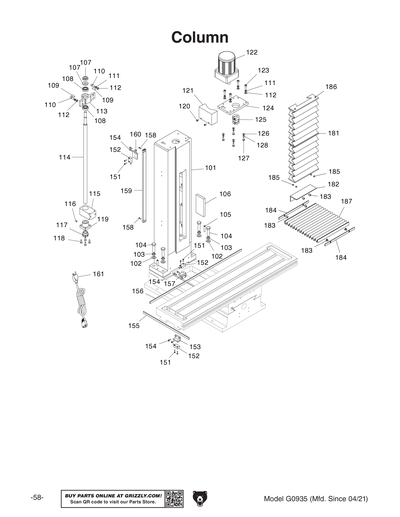

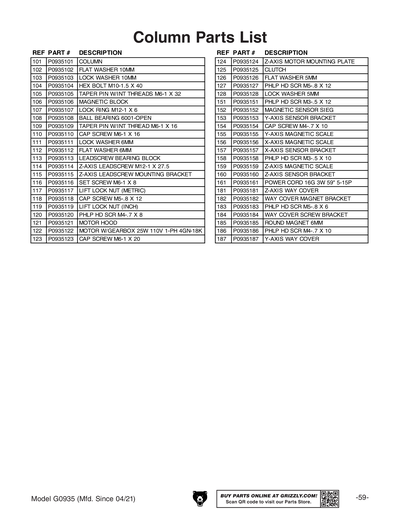

101
COLUMN
Price
$375.20
102
FLAT WASHER 10MM
Price
N/A
103
LOCK WASHER 10MM
Price
N/A
104
HEX BOLT M10-1.5 X 40
Price
N/A
105
TAPER PIN W/INT THREADS M6-1 X 32
Price
$1.90
106
MAGNETIC BLOCK
Price
$55.75
107
LOCK RING M12-1 X 6
Price
$1.90
108
BALL BEARING 6001-OPEN
Price
N/A
109
TAPER PIN W/INT THREAD M6-1 X 16
Price
$4.35
110
CAP SCREW M6-1 X 16
Price
N/A
111
LOCK WASHER 6MM
Price
N/A
112
FLAT WASHER 6MM
Price
N/A
113
LEADSCREW BEARING BLOCK
Price
$30.20
114
Z-AXIS LEADSCREW M12-1 X 27.5
Price
$18.40
115
Z-AXIS LEADSCREW MOUNTING BRACKET
Price
$28.10
116
SET SCREW M6-1 X 8
Price
N/A
117
LIFT LOCK NUT (METRIC)
Price
$26.65
118
CAP SCREW M5-.8 X 12
Price
N/A
119
LIFT LOCK NUT (INCH)
Price
$27.35
120
PHLP HD SCR M4-.7 X 8
Price
N/A
121
MOTOR HOOD
Price
$5.75
122
MOTOR W/GEARBOX 25W 110V 1-PH 4GN-18K
Price
$273.15
123
CAP SCREW M6-1 X 20
Price
N/A
124
Z-AXIS MOTOR MOUNTING PLATE
Price
$21.95
125
CLUTCH
Price
$20.50
126
FLAT WASHER 5MM
Price
N/A
127
PHLP HD SCR M5-.8 X 12
Price
N/A
128
LOCK WASHER 5MM
Price
N/A
151
PHLP HD SCR M3-.5 X 12
Price
N/A
152
MAGNETIC SENSOR SIEG
Price
$372.70
153
Y-AXIS SENSOR BRACKET
Price
$11.90
154
CAP SCREW M4-.7 X 10
Price
N/A
155
Y-AXIS MAGNETIC SCALE
Price
$26.25
156
X-AXIS MAGNETIC SCALE
Price
$13.35
157
X-AXIS SENSOR BRACKET
Price
$11.90
158
PHLP HD SCR M3-.5 X 10
Price
N/A
159
Z-AXIS MAGNETIC SCALE
Price
$24.45
160
Z-AXIS SENSOR BRACKET
Price
$16.60
161
POWER CORD 16G 3W 59" 5-15P
Price
$16.20
181
Z-AXIS WAY COVER
Price
$33.10
182
WAY COVER MAGNET BRACKET
Price
$2.90
183
PHLP HD SCR M5-.8 X 6
Price
N/A
184
WAY COVER SCREW BRACKET
Price
$1.90
185
ROUND MAGNET 6MM
Price
$1.90
186
PHLP HD SCR M4-.7 X 10
Price
N/A
187
Y-AXIS WAY COVER
Price
$16.35

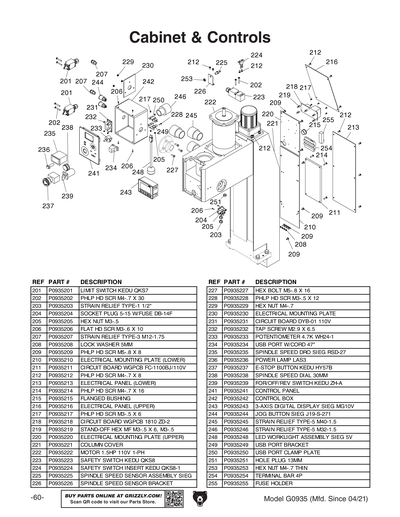

201
LIMIT SWITCH KEDU QKS7
Price
$10.45
202
PHLP HD SCR M4-.7 X 30
Price
N/A
203
STRAIN RELIEF TYPE-1 1/2"
Price
$1.90
204
SOCKET PLUG 5-15 W/FUSE DB-14F
Price
$5.10
205
HEX NUT M3-.5
Price
N/A
206
FLAT HD SCR M3-.6 X 10
Price
$1.90
207
STRAIN RELIEF TYPE-3 M12-1.75
Price
$1.90
208
LOCK WASHER 5MM
Price
N/A
209
PHLP HD SCR M5-.8 X 8
Price
N/A
210
ELECTRICAL MOUNTING PLATE (LOWER)
Price
$5.45
211
CIRCUIT BOARD WGPCB FC-1100BJ/110V
Price
$545.95
212
PHLP HD SCR M4-.7 X 8
Price
N/A
213
ELECTRICAL PANEL (LOWER)
Price
$6.90
214
PHLP HD SCR M4-.7 X 16
Price
N/A
215
FLANGED BUSHING
Price
$1.90
216
ELECTRICAL PANEL (UPPER)
Price
$8.65
217
PHLP HD SCR M3-.5 X 6
Price
N/A
218
CIRCUIT BOARD WGPCB 1810 ZD-2
Price
$37.40
219
STAND-OFF HEX MF M3-.5 X 6, M3-.5
Price
$1.90
220
ELECTRICAL MOUNTING PLATE (UPPER)
Price
$6.90
221
COLUMN COVER
Price
$85.60
222
MOTOR 1.5HP 110V 1-PH
Price
$483.40
223
SAFETY SWITCH KEDU QKS8
Price
$13.35
224
SAFETY SWITCH INSERT KEDU QKS8-1
Price
$2.20
225
SPINDLE SPEED SENSOR ASSEMBLY SIEG
Price
$21.25
226
SPINDLE SPEED SENSOR BRACKET
Price
$2.20
227
HEX BOLT M5-.8 X 16
Price
N/A
228
PHLP HD SCR M3-.5 X 12
Price
N/A
229
HEX NUT M4-.7
Price
N/A
230
ELECTRICAL MOUNTING PLATE
Price
$2.90
231
CIRCUIT BOARD DYB-01 110V
Price
$8.35
232
TAP SCREW M2.9 X 6.5
Price
$1.90
233
POTENTIOMETER 4.7K WH24-1
Price
$9.40
234
USB PORT W/CORD 47"
Price
$6.90
235
SPINDLE SPEED DRO SIEG RSD-27
Price
$76.95
236
POWER LAMP LAS3
Price
$4.00
237
E-STOP BUTTON KEDU HY57B
Price
$15.85
238
SPINDLE SPEED DIAL 30MM
Price
$4.00
239
FOR/OFF/REV SWITCH KEDU ZH-A
Price
$15.85
241
CONTROL PANEL
Price
$6.15
242
CONTROL BOX
Price
$15.15
243
3-AXIS DIGITAL DISPLAY SIEG MG10V
Price
$518.65
244
JOG BUTTON SIEG J19-S-271
Price
$19.45
245
STRAIN RELIEF TYPE-5 M40-1.5
Price
$4.35
246
STRAIN RELIEF TYPE-5 M32-1.5
Price
$2.60
248
LED WORKLIGHT ASSEMBLY SIEG 5V
Price
$16.60
249
USB PORT BRACKET
Price
$2.20
250
USB PORT CLAMP PLATE
Price
$1.90
251
HOLE PLUG 13MM
Price
$1.90
253
HEX NUT M4-.7 THIN
Price
$1.90
254
TERMINAL BAR 4P
Price
$7.60
255
FUSE HOLDER
Price
$1.90

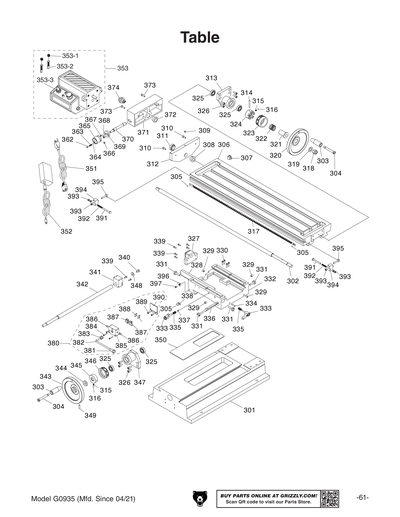

301
TABLE BASE
Price
$372.70
302
X-AXIS LEADSCREW M4-1 X 30
Price
$1.90
303
HOLLOW HANDLE 20 X 60, 8.5
Price
$11.90
304
SHOULDER SCREW M8-1 X 9.5, 13 X 5
Price
$1.90
305
RIVET 2 X 4MM NAMEPLATE
Price
$1.90
306
TABLE
Price
$449.25
307
DRAIN PLUG M16-1.5 X 6
Price
$1.90
308
LEADSCREW SLEEVE
Price
$8.65
309
BALL OILER 6MM PRESS-IN
Price
$1.90
310
CAP SCREW M5-.8 X 12
Price
N/A
311
TABLE BRACKET PLUG
Price
$1.90
312
TABLE BRACKET
Price
$33.10
313
BEARING SEAT
Price
$30.20
314

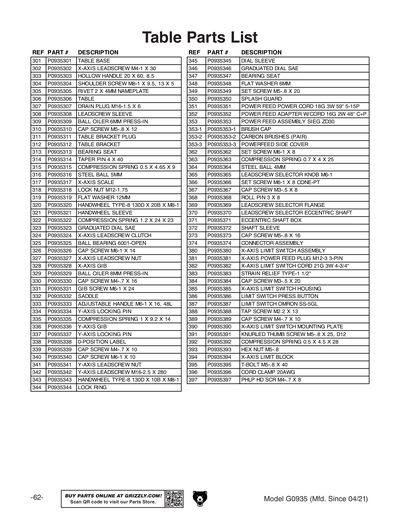

TAPER PIN 4 X 40
Price
$1.90
315
COMPRESSION SPRING 0.5 X 4.65 X 9
Price
$1.90
316
STEEL BALL 5MM
Price
N/A
317
X-AXIS SCALE
Price
$8.35
318
LOCK NUT M12-1.75
Price
N/A
319
FLAT WASHER 12MM
Price
N/A
320
HANDWHEEL TYPE-8 130D X 20B X M8-1
Price
$84.50
321
HANDWHEEL SLEEVE
Price
$5.10
322
COMPRESSION SPRING 1.2 X 24 X 23
Price
$1.90
323
GRADUATED DIAL SAE
Price
$13.35
324
X-AXIS LEADSCREW CLUTCH
Price
$27.35
325
BALL BEARING 6001-OPEN
Price
N/A
326
CAP SCREW M6-1 X 14
Price
N/A
327
X-AXIS LEADSCREW NUT
Price
$39.20
328
X-AXIS GIB
Price
$17.65
329
BALL OILER 8MM PRESS-IN
Price
N/A
330
CAP SCREW M4-.7 X 16
Price
N/A
331
GIB SCREW M6-1 X 24
Price
$2.90
332
SADDLE
Price
$162.15
333
ADJUSTABLE HANDLE M6-1 X 16, 48L
Price
$5.45
334
Y-AXIS LOCKING PIN
Price
$1.90
335
COMPRESSION SPRING 1 X 9.2 X 14
Price
$1.90
336
Y-AXIS GIB
Price
$17.25
337
Y-AXIS LOCKING PIN
Price
$1.90
338
0-POSITION LABEL
Price
$1.25
339
CAP SCREW M4-.7 X 10
Price
N/A
340
CAP SCREW M6-1 X 10
Price
N/A
341
Y-AXIS LEADSCREW NUT
Price
$31.35
342
Y-AXIS LEADSCREW M16-2.5 X 280
Price
$11.20
343
HANDWHEEL TYPE-8 130D X 10B X M8-1
Price
$84.50
344
LOCK RING
Price
$4.70
345
DIAL SLEEVE
Price
$10.45
346
GRADUATED DIAL SAE
Price
$10.45
347
BEARING SEAT
Price
$5.75
348
FLAT WASHER 6MM
Price
N/A
349
SET SCREW M5-.8 X 20
Price
N/A
350
SPLASH GUARD
Price
$5.10
351
POWER FEED POWER CORD 18G 3W 59" 5-15P
Price
$12.65
352
POWER FEED ADAPTER W/CORD 16G 2W 48" C+P
Price
$61.50
353
POWER FEED ASSEMBLY SIEG ZD30
Price
$425.50
353-1
BRUSH CAP
Price
$1.90
353-2
CARBON BRUSHES (PAIR)
Price
$5.75
353-3
POWERFEED SIDE COVER
Price
$2.25
362
SET SCREW M6-1 X 8
Price
N/A
363
COMPRESSION SPRING 0.7 X 4 X 25
Price
$1.90
364
STEEL BALL 4MM
Price
N/A
365
LEADSCREW SELECTOR KNOB M6-1
Price
$11.20
366
SET SCREW M6-1 X 8 CONE-PT
Price
N/A
367
CAP SCREW M3-.5 X 8
Price
N/A
368
ROLL PIN 3 X 8
Price
N/A
369
LEADSCREW SELECTOR FLANGE
Price
$5.10
370
LEADSCREW SELECTOR ECCENTRIC SHAFT
Price
$11.20
371
ECCENTRIC SHAFT BOX
Price
$54.65
372
SHAFT SLEEVE
Price
$13.70
373
CAP SCREW M5-.8 X 16
Price
N/A
374
CONNECTOR ASSEMBLY
Price
$16.20
380
X-AXIS LIMIT SWITCH ASSEMBLY
Price
$11.20
381
X-AXIS POWER FEED PLUG M12-3 3-PIN
Price
$4.05
382
X-AXIS LIMIT SWITCH CORD 21G 3W 4-3/4"
Price
$1.49
383
STRAIN RELIEF TYPE-1 1/2"
Price
$1.49
384
CAP SCREW M4-.7 X 35
Price
N/A
385
X-AXIS LIMIT SWITCH HOUSING
Price
$1.75
386
LIMIT SWITCH PRESS BUTTON
Price
$1.49
387
LIMIT SWITCH OMRON SS-5GL
Price
$3.45
388
TAP SCREW M2.2 X 13
Price
$1.49
389
CAP SCREW M4-.7 X 10
Price
N/A
390
X-AXIS LIMIT SWITCH MOUNTING PLATE
Price
$2.60
391
KNURLED THUMB SCREW M5-.8 X 25, D12
Price
$2.60
392
COMPRESSION SPRING 0.5 X 4.5 X 28
Price
$1.90
393
HEX NUT M5-.8
Price
N/A
394
X-AXIS LIMIT BLOCK
Price
$4.35
395
T-BOLT M5-.8 X 40
Price
$2.60
396
CORD CLAMP 20AWG
Price
$1.90
397
PHLP HD SCR M4-.7 X 8
Price
N/A

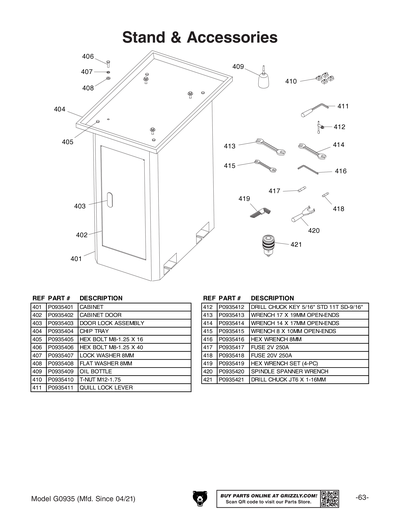

402
CABINET DOOR
Price
$20.50
403
DOOR LOCK ASSEMBLY
Price
$10.45
404
CHIP TRAY
Price
$66.65
405
HEX BOLT M8-1.25 X 16
Price
N/A
406
HEX BOLT M8-1.25 X 40
Price
N/A
407
LOCK WASHER 8MM
Price
N/A
408
FLAT WASHER 8MM
Price
N/A
409
OIL BOTTLE
Price
$1.49
410
T-NUT M12-1.75
Price
$2.90
411
QUILL LOCK LEVER
Price
$5.75
412
DRILL CHUCK KEY 5/16" STD 11T SD-9/16"
Price
$6.90
413
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
414
WRENCH 14 X 17MM OPEN-ENDS
Price
N/A
415
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
416
HEX WRENCH 8MM
Price
N/A
417
FUSE 2V 250A
Price
$1.90
418
FUSE 20V 250A
Price
$1.90
419
HEX WRENCH SET (4-PC)
Price
$6.90
420
SPINDLE SPANNER WRENCH
Price
$15.15
421
DRILL CHUCK JT6 X 1-16MM
Price
$21.95

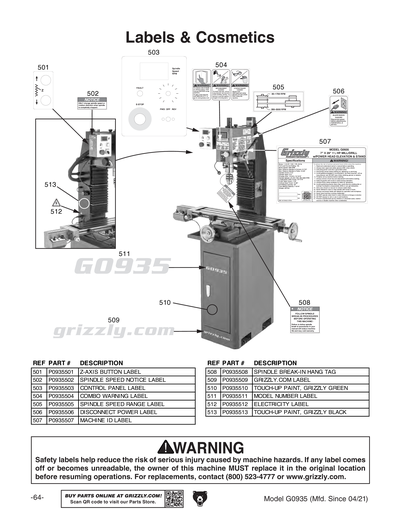

501
Z-AXIS BUTTON LABEL
Price
$1.90
502
SPINDLE SPEED NOTICE LABEL
Price
$1.25
503
CONTROL PANEL LABEL
Price
$11.90
504
COMBO WARNING LABEL
Price
$1.25
505
SPINDLE SPEED RANGE LABEL
Price
$1.25
506
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
507
MACHINE ID LABEL
Price
$1.60
508
SPINDLE BREAK-IN HANG TAG
Price
$1.90
509
GRIZZLY.COM LABEL 9.5",BEIGE
Price
N/A
510
N/S GRIZZLY GREEN G1023S
Price
N/A
511
MODEL NUMBER LABEL
Price
$9.10
512
ELECTRICITY 0.7W X 0.6H
Price
N/A
513
GLOSSY BLACK
Price
N/A
MAN
MANUAL G0935 MFD-04.21+ V1.09.21
Price
$5.25
