Parts for G0936 20" Vertical Oscillating Belt Sander

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

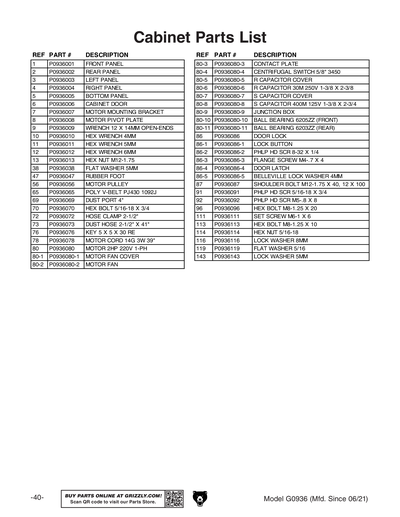

1
FRONT PANEL
2
REAR PANEL
3
LEFT PANEL
4
RIGHT PANEL
5
BOTTOM PANEL
6
CABINET DOOR
7
MOTOR MOUNTING BRACKET
8
MOTOR PIVOT PLATE
9
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
10
HEX WRENCH 4MM
Price
N/A
11
HEX WRENCH 5MM
Price
N/A
12
HEX WRENCH 6MM
Price
N/A
13
Now: PN24M
HEX NUT M12-1.25
Price
N/A
38
Now: PW02M
FLAT WASHER 5MM
Price
N/A
47
RUBBER FOOT
56
MOTOR PULLEY
65
POLY V-BELT PJ430 1092J
69
DUST PORT 4"
70
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
72
HOSE CLAMP 2-1/2"
73
DUST HOSE 2-1/2" X 41"
76
KEY 5 X 5 X 30 RE
78
MOTOR CORD 14G 3W 39"
80
MOTOR 2HP 220V 1-PH
80-1
MOTOR 2HP 220V 1-PH
Price
N/A
80-10
BALL BEARING 6205ZZ
Price
N/A
80-11
BALL BEARING 6203ZZ
Price
N/A
80-2
MOTOR 2HP 220V 1-PH
Price
N/A
80-3
MOTOR 2HP 220V 1-PH
Price
N/A
80-4
MOTOR 2HP 220V 1-PH
Price
N/A
80-5
MOTOR 2HP 220V 1-PH
Price
N/A
80-6
R CAPACITOR 30M 250V 1-3/8 X 2-3/8
Price
N/A
80-7
MOTOR 2HP 220V 1-PH
Price
N/A
80-8
MOTOR 2HP 220V 1-PH
Price
N/A
80-9
MOTOR 2HP 220V 1-PH
Price
N/A
86
DOOR LOCK ASSEMBLY
86-1
DOOR LOCK ASSEMBLY
Price
N/A
86-2
Now: PS23
PHLP HD SCR 8-32 X 1/4
Price
N/A
86-3
DOOR LOCK ASSEMBLY
Price
N/A
86-4
DOOR LOCK ASSEMBLY
Price
N/A
86-5
DOOR LOCK ASSEMBLY
Price
N/A
87
SHOULDER BOLT M12-1.75 X 40, 12 X 100
91
Now: PS35
PHLP HD SCR 5/16-18 X 3/4
Price
N/A
92
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
96
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
111
SET SCREW M6-1 X 6
Price
N/A
113
Now: PB17M
HEX BOLT M8-1.25 X 10
Price
N/A
114
Now: PN02
HEX NUT 5/16-18
Price
N/A
116
LOCK WASHER 8MM
Price
N/A
119
Now: PW07
FLAT WASHER 5/16
Price
N/A
143
LOCK WASHER 5MM
Price
N/A
209

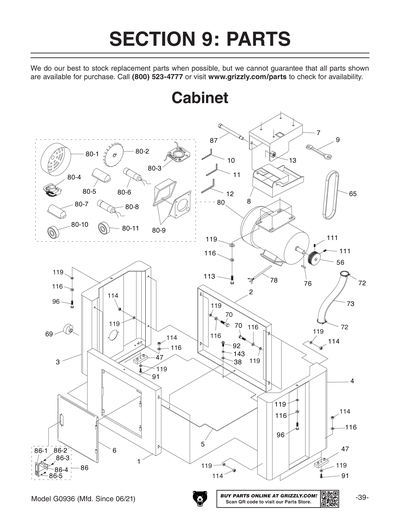

CABINET
210
TRUNNION MOUNT
211
TILT STOP BLOCK
212
SIDE COVER (LEFT)
213
BACK COVER
214
PULLEY COVER
215
SCALE COVER
216
SCALE TENSION BRACKET
217
LOWER ROLLER FRAME
218
TENSION ADJUSTMENT BLOCK
219
ROLLER BRACKET SEAT
220
SPACER LOCK BLOCK
221
PLATEN
222

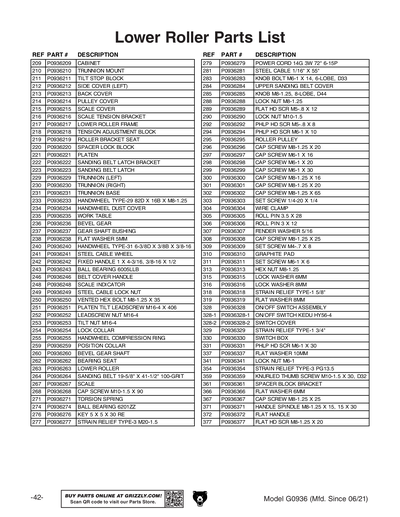

SANDING BELT LATCH BRACKET
223
SANDING BELT LATCH
229
TRUNNION (LEFT)
230
TRUNNION (RIGHT)
231

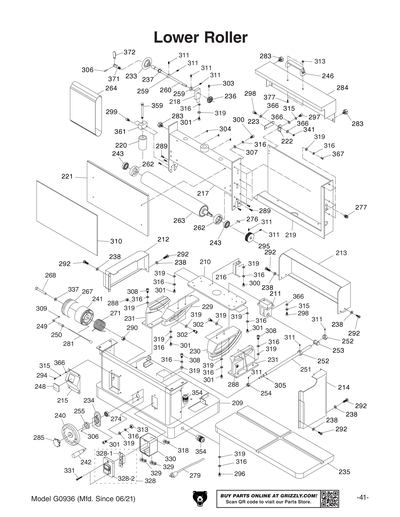

TRUNNION BASE
233
HANDWHEEL TYPE-29 82D X 16B X M8-1.25
234
HANDWHEEL DUST COVER
235
WORK TABLE
236
BEVEL GEAR
237
GEAR SHAFT BUSHING
238
Now: PW02M
FLAT WASHER 5MM
Price
N/A
240
HANDWHEEL TYPE-31 6-3/8D X 3/8B X 3/8-16
241
STEEL CABLE WHEEL
242
FIXED HANDLE 1 X 4-3/16, 3/8-16 X 1/2
243
BALL BEARING 6005LLB
246
BELT COVER HANDLE
248
SCALE INDICATOR
249
STEEL CABLE LOCK NUT
250
VENTED HEX BOLT M8-1.25 X 35
251
PLATEN TILT LEADSCREW M16-4 X 406
252
LEADSCREW NUT M16-4
253
TILT NUT M16-4
254
LOCK COLLAR
255
HANDWHEEL COMPRESSION RING
259
POSITION COLLAR
260
BEVEL GEAR SHAFT
262
BEARING SEAT
263
LOWER ROLLER
264
19-5/8" x 41-1/2" A/O Sanding Belt, 100 Grit
Price
N/A
267
SCALE
268
CAP SCREW M10-1.5 X 90
Price
N/A
271
TORSION SPRING
274
BALL BEARING 6201ZZ
Price
N/A
276
KEY 5 X 5 X 30 RE
Price
N/A
277
STRAIN RELIEF TYPE-3 M20-1.5
279
POWER CORD 14G 3W 72" 6-15P
281
STEEL CABLE 1/16" X 55"
283
KNOB BOLT M6-1 X 14, 6-LOBE, D33
284
UPPER SANDING BELT COVER
285
KNOB M8-1.25, 8-LOBE, D44
288
LOCK NUT M8-1.25
Price
N/A
289
FLAT HD SCR M5-.8 X 12
Price
N/A
290
LOCK NUT M10-1.5
Price
N/A
292
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
294
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
295
ROLLER PULLEY
296
CAP SCREW M8-1.25 X 20
Price
N/A
297
CAP SCREW M6-1 X 16
Price
N/A
298
CAP SCREW M6-1 X 20
Price
N/A
299
CAP SCREW M6-1 X 30
Price
N/A
300
CAP SCREW M8-1.25 X 16
Price
N/A
301
CAP SCREW M8-1.25 X 20
Price
N/A
302
CAP SCREW M8-1.25 X 65
Price
N/A
303
Now: PSS11
SET SCREW 1/4-20 X 1/4
Price
N/A
304
WIRE CLAMP
305
ROLL PIN 3.5 X 28
306
ROLL PIN 3 X 12
Price
N/A
307
Now: PWF01
FENDER WASHER 5/16
Price
N/A
308
CAP SCREW M8-1.25 X 25
Price
N/A
309
SET SCREW M4-.7 X 8
Price
N/A
310
GRAPHITE PAD
311
SET SCREW M6-1 X 6
Price
N/A
313
Now: PN03M
HEX NUT M8-1.25
Price
N/A
315
LOCK WASHER 6MM
Price
N/A
316
LOCK WASHER 8MM
Price
N/A
318
STRAIN RELIEF TYPE-1 5/8"
319
Now: PW01M
FLAT WASHER 8MM
Price
N/A
328
ON/OFF SWITCH ASSEMBLY
328-1
ON/OFF SWITCH ASSEMBLY
Price
N/A
328-2
ON/OFF SWITCH ASSEMBLY
Price
N/A
329
STRAIN RELIEF TYPE-1 3/4"
330
SWITCH BOX
331
Now: PS62M
PHLP HD SCR M6-1 X 30
Price
N/A
337
Now: PW04M
FLAT WASHER 10MM
Price
N/A
341
LOCK NUT M6-1
Price
N/A
354
STRAIN RELIEF TYPE-3 PG13.5
359
KNURLED THUMB SCREW M10-1.5 X 30, D32
361
SPACER BLOCK BRACKET
366
Now: PW03M
FLAT WASHER 6MM
Price
N/A
367
CAP SCREW M8-1.25 X 25
Price
N/A
371
HANDLE SPINDLE M8-1.25 X 15, 15 X 30
372
FLAT HANDLE
377
FLAT HD SCR M8-1.25 X 20
Price
N/A

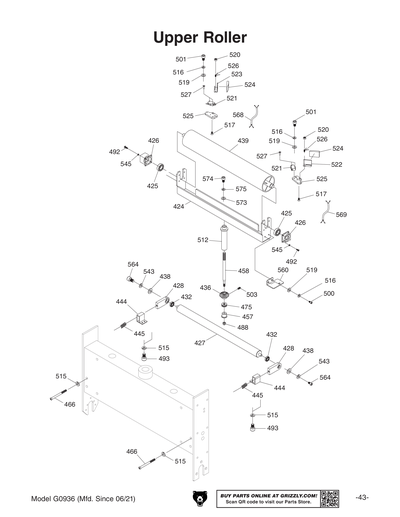

424
UPPER ROLLER FRAME
425
Now: G3850
Bearing - 35mm x 17mm
Price
N/A
426
BEARING COVER
427
TENSION ROLLER
428
TENSION ROLLER MOUNT
432
BALL BEARING 6800ZZ
Price
N/A
436
BEVEL GEAR
Price
N/A
438
Now: PW02M
FLAT WASHER 5MM
Price
N/A
439
UPPER ROLLER
444
SPRING BLOCK
445
COMPRESSION SPRING 1.5 X 11 X 34
457
WORM SHAFT BUSHING (LOWER)
458
WORM SHAFT
466
PHLP HD SCR 1/4-20 X 1-3/4
475
THRUST BEARING 51100
Price
N/A
488
LOCK NUT M8-1.25
Price
N/A
492
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
493
CAP SCREW M6-1 X 16
Price
N/A
500
CAP SCREW M8-1.25 X 16
Price
N/A
501
CAP SCREW M8-1.25 X 20
Price
N/A
503
Now: PSS11
SET SCREW 1/4-20 X 1/4
Price
N/A
512
WORM SHAFT BUSHING (UPPER)
515
LOCK WASHER 6MM
Price
N/A
516
LOCK WASHER 8MM
Price
N/A
517
FLAT HD SCR M3-.5 X 20
519
Now: PW01M
FLAT WASHER 8MM
Price
N/A
520
LOCK NUT M3-.5
Price
N/A
521

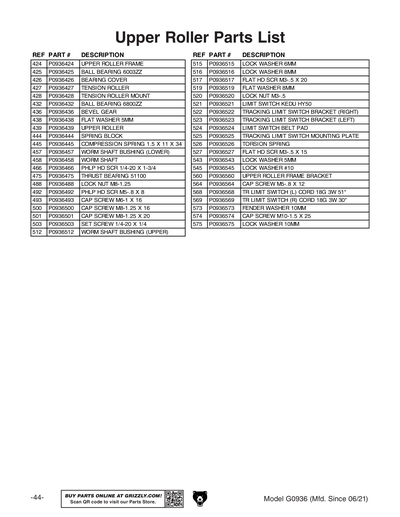

LIMIT SWITCH KEDU HY50
522
TRACKING LIMIT SWITCH BRACKET (RIGHT)
523
TRACKING LIMIT SWITCH BRACKET (LEFT)
524
LIMIT SWITCH BELT PAD
525
TRACKING LIMIT SWITCH MOUNTING PLATE
526
TORSION SPRING
527
FLAT HD SCR M3-.5 X 15
543
LOCK WASHER 5MM
Price
N/A
545
LOCK WASHER 6MM
Price
N/A
560
UPPER ROLLER FRAME BRACKET
564
CAP SCREW M5-.8 X 12
Price
N/A
568
TR LIMIT SWITCH (L) CORD 18G 3W 51"
569
TR LIMIT SWITCH (R) CORD 18G 3W 30"
573
FENDER WASHER 10MM
Price
N/A
574
CAP SCREW M10-1.5 X 25
Price
N/A
575
LOCK WASHER 10MM
Price
N/A
632
BALL BEARING 6800ZZ
Price
N/A
638
Now: PW02M
FLAT WASHER 5MM
Price
N/A
677
STRAIN RELIEF LT PG11
Price
N/A
682
Now: PW04M
FLAT WASHER 10MM
Price
N/A
692
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
700
CAP SCREW M8-1.25 X 16
Price
N/A
713
Now: PN03M
HEX NUT M8-1.25
Price
N/A
716
LOCK WASHER 8MM
Price
N/A
719
Now: PW01M
FLAT WASHER 8MM
Price
N/A
732
Now: PN06M
HEX NUT M5-.8
Price

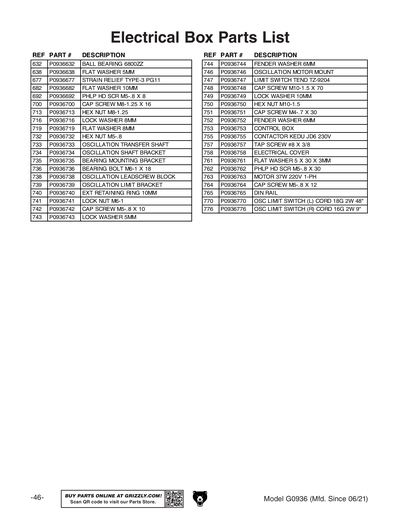

N/A
733
OSCILLATION TRANSFER SHAFT
734
OSCILLATION SHAFT BRACKET
735
BEARING MOUNTING BRACKET
736
BEARING BOLT M6-1 X 18
738
OSCILLATION LEADSCREW BLOCK
739
OSCILLATION LIMIT BRACKET
740
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
741
LOCK NUT M6-1
Price
N/A
742
CAP SCREW M5-.8 X 10
Price
N/A
743
LOCK WASHER 5MM
Price
N/A
744
FENDER WASHER 6MM
Price
N/A
746
OSCILLATION MOTOR MOUNT
747
LIMIT SWITCH TEND TZ-9204
748
CAP SCREW M10-1.5 X 70
Price
N/A
749
LOCK WASHER 10MM
Price
N/A
750
Now: PN02M
HEX NUT M10-1.5
Price
N/A
751
CAP SCREW M4-.7 X 30
Price
N/A
752
FENDER WASHER 6MM
Price
N/A
753

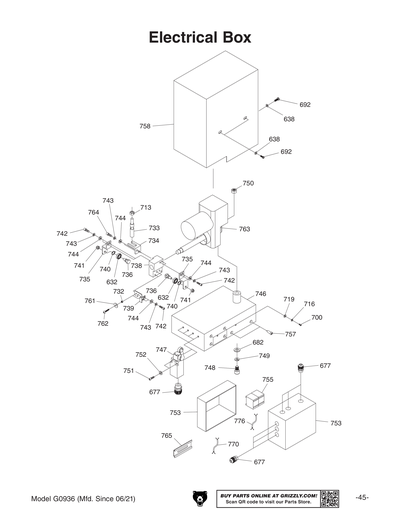

CONTROL BOX
755
CONTACTOR KEDU JD6 230V
757
TAP SCREW #8 X 3/8
Price
N/A
758
ELECTRICAL COVER
761
FLAT WASHER 5 X 30 X 3MM
762
Now: PS60M
PHLP HD SCR M5-.8 X 30
Price
N/A
763
MOTOR 37W 220V 1-PH
764
CAP SCREW M5-.8 X 12
Price
N/A
765
DIN RAIL
770
OSC LIMIT SWITCH (L) CORD 18G 2W 48"
776
OSC LIMIT SWITCH (R) CORD 16G 2W 9"
801
*DISCD*FLANGE COVER
Price
N/A
802

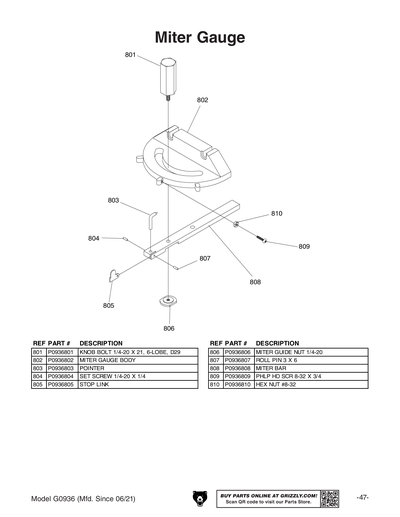

MITER GAUGE ASSEMBLY
803
MITER GAUGE ASSEMBLY
Price
N/A
804
Now: PSS11
SET SCREW 1/4-20 X 1/4
Price
N/A
805
MITER GAUGE ASSEMBLY
Price
N/A
806
MITER GAUGE ASSEMBLY
Price
N/A
807
ROLL PIN 3 X 6
Price
N/A
808
MITER GAUGE ASSEMBLY
Price
N/A
809
Now: PS21
PHLP HD SCR 8-32 X 3/4
Price
N/A
810
Now: PN14
HEX NUT 8-32
Price
N/A

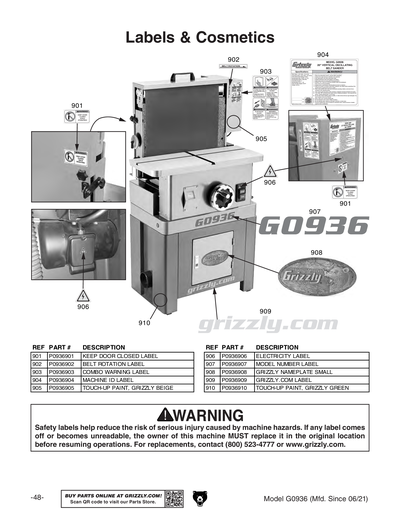

901
KEEP DOOR CLOSED LABEL
902
BELT ROTATION LABEL
903
COMBO WARNING LABEL
904
MACHINE ID LABEL
905
LIGHT BEIGE REF G4003G
Price
N/A
906
ELECTRICITY 0.7W X 0.6H
Price
N/A
907
MODEL NUMBER LABEL
908
Now: G8588
Nameplate - Small
Price
N/A
909
GRIZZLY.COM LABEL 15.25",BEIGE
Price
N/A
910
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL G0936 MFD-06.21+ V1.11.21
