Parts for G0939 - 13" 2 HP Benchtop Planer

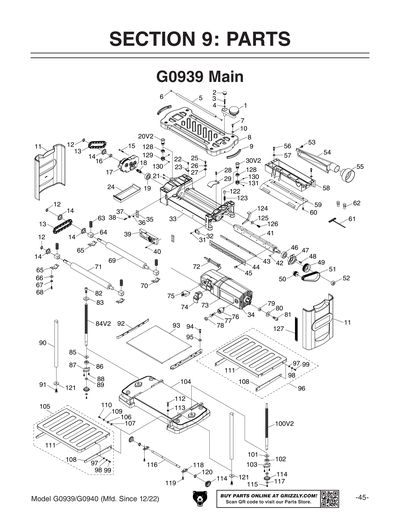

Part Diagram for G0939
Part Diagram for G0939
Part Diagram for G0939
Part Diagram for G0939
Part Diagram for G0939
Part Diagram for G0939
Part Diagram for G0939
Part Diagram for G0939
Part Diagram for G0939
Part Diagram for G0939
Part Diagram for G0939
Part Diagram for G0939
Part Diagram for G0939
Part Diagram for G0939

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

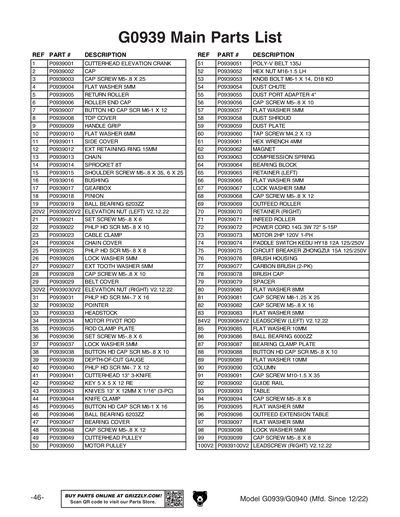

Ref #
Part #
Description
1
CUTTERHEAD ELEVATION CRANK
Price
$14.75
2
CAP
Price
$1.90
3
CAP SCREW M5-.8 X 25
Price
N/A
4
FLAT WASHER 5MM
Price
N/A
5
RETURN ROLLER
Price
$12.95
6
ROLLER END CAP
Price
$7.20
7
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
8
TOP COVER
Price
$58.25
9
HANDLE GRIP
Price
$8.65
10
FLAT WASHER 6MM
Price
N/A
11
SIDE COVER
Price
$25.90
12
EXT RETAINING RING 15MM
Price
N/A
13
CHAIN
Price
$13.70
14
SPROCKET 8T
Price
$8.95
15
SHOULDER SCREW M5-.8 X 35, 6 X 25
Price
$1.90
16
BUSHING
Price
$6.50
17
GEARBOX
Price
$75.85
18
PINION
Price
$21.60
19
BALL BEARING 6203ZZ
Price
N/A
20
ELEVATION NUT (LEFT) V1
Price
$7.95
20V2
ELEVATION NUT (LEFT) V2.12.22
Price
$8.10
21
SET SCREW M5-.8 X 6
Price
N/A
22
PHLP HD SCR M5-.8 X 10
Price
N/A
23
CABLE CLAMP
Price
$1.90
24
CHAIN COVER
Price
$4.70
25
PHLP HD SCR M5-.8 X 8
Price
N/A
26
LOCK WASHER 5MM
Price
N/A
27
EXT TOOTH WASHER 5MM
Price
N/A
28
CAP SCREW M5-.8 X 10
Price
N/A
29
BELT COVER
Price
$5.75
30
ELEVATION NUT (RIGHT) V1
Price
$7.95
30V2
ELEVATION NUT (RIGHT) V2.12.22
Price
$8.10
31
PHLP HD SCR M4-.7 X 16
Price
N/A
32
POINTER
Price
$4.50
33
HEADSTOCK
Price
$97.75
33V2
HEADSTOCK V2.03.25
Price
$80.60
34
MOTOR PIVOT ROD
Price
$14.10
35
ROD CLAMP PLATE
Price
$5.75
36
SET SCREW M5-.8 X 6
Price
N/A
37
LOCK WASHER 5MM
Price
N/A
38
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
39
DEPTH-OF-CUT GAUGE
Price
$12.25
40
PHLP HD SCR M4-.7 X 12
Price
N/A
41
CUTTERHEAD 13" 3-KNIFE
Price
$70.75
42
KEY 5 X 5 X 12
Price
N/A
43
13" x 1/2" x 1/16" Planer Knives for G0939, Set of 3
Price
N/A
44
KNIFE CLAMP
Price
$20.10
45
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
46
BALL BEARING 6203ZZ
Price
N/A
47
BEARING COVER
Price
$15.85
48
CAP SCREW M5-.8 X 12
Price
N/A
49
CUTTERHEAD PULLEY
Price
$27.35
50
MOTOR PULLEY
Price
$15.85
51
POLY-V BELT 135J
Price
$15.65
52
HEX NUT M16-1.5 LH
Price
$5.75
53
KNOB BOLT M6-1 X 14, D18 KD
Price
$22.75
54
DUST CHUTE
Price
$15.65
55
DUST PORT ADAPTER 4"
Price
$11.20
56
CAP SCREW M5-.8 X 10
Price
N/A
57
FLAT WASHER 5MM
Price
N/A
58
DUST SHROUD
Price
$22.35
59
DUST PLATE
Price
$18.00
60
TAP SCREW M4.2 X 13
Price
$1.90
61
HEX WRENCH 4MM
Price
N/A
62
MAGNET
Price
$2.90
63
COMPRESSION SPRING
Price
$5.75
64
BEARING BLOCK
Price
$4.70
65
RETAINER (LEFT)
Price
$2.20
66
FLAT WASHER 5MM
Price
N/A
67
LOCK WASHER 5MM
Price
N/A
68
CAP SCREW M5-.8 X 12
Price
N/A
69
OUTFEED ROLLER
Price
$53.50
70
RETAINER (RIGHT)
Price
$2.20
71
INFEED ROLLER
Price
$53.50
72
POWER CORD 14G 3W 72" 5-15P
Price
$35.95
73
MOTOR 2HP 120V 1-PH
Price
$218.40
74
Safety Paddle Switch
Price
N/A
75
CIRCUIT BREAKER ZHONGZUI 15A 125/250V
Price
$17.25
76
BRUSH HOUSING W/CAP
Price
$19.85
77
CARBON BRUSH (2-PK)
Price
$17.65
78
BRUSH HOUSING W/CAP
Price
N/A
79
SPACER
Price
$6.50
80
FLAT WASHER 8MM
Price
N/A
81
CAP SCREW M8-1.25 X 25
Price
N/A
82
CAP SCREW M5-.8 X 16
Price
N/A
83
FLAT WASHER 5MM
Price
N/A
84
LEADSCREW (LEFT) V1
Price
$19.10
84V2
LEADSCREW (LEFT) V2.12.22
Price
$19.65
85
FLAT WASHER 10MM
Price
N/A
86
BALL BEARING 6000ZZ
Price
N/A
87
BEARING CLAMP PLATE
Price
$7.95
88
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
89
FLAT WASHER 10MM
Price
N/A
90
COLUMN
Price
$25.20
91
CAP SCREW M10-1.5 X 35
Price
N/A
92
GUIDE RAIL
Price
$7.95
93
TABLE
Price
$28.75
94
CAP SCREW M5-.8 X 8
Price
N/A
95
FLAT WASHER 5MM
Price
N/A
96
OUTFEED EXTENSION TABLE
Price
$39.95
97
FLAT WASHER 5MM
Price
N/A
98
LOCK WASHER 5MM
Price
N/A
99
CAP SCREW M5-.8 X 8
Price
N/A
100
LEADSCREW (RIGHT) V1
Price
$20.10
100V2
LEADSCREW (RIGHT) V2.12.22
Price
$20.10
101
FLAT WASHER 10MM
Price
N/A
102
BALL BEARING 6000ZZ
Price
N/A
103
BEARING CLAMP PLATE
Price
N/A
104
BASE
Price
$142.35
105
INFEED EXTENSION TABLE
Price
$40.25
106
BUSHING
Price
$6.50
107
LOCK WASHER 4MM
Price
N/A
108
TABLE SUPPORT ARM
Price
$8.65
109
LOCK WASHER 6MM
Price
N/A
110
CAP SCREW M6-1 X 20
Price
N/A
111
EXTENSION TABLE
Price
$27.35
112
HEX BOLT M6-1 X 20
Price
N/A
113
HEX NUT M6-1
Price
N/A
114
PINION GEAR
Price
$5.85
115
CAP SCREW M5-.8 X 12
Price
N/A
116
SHAFT
Price
$16.20
117
FLAT WASHER 5MM
Price
N/A
118
SUPPORT CLAMP
Price
$7.20
119
CAP SCREW M5-.8 X 12
Price
N/A
120
EXT RETAINING RING 10MM
Price
N/A
121
FLAT WASHER 10MM
Price
N/A
122
PUSH ROD
Price
$6.50
123
COMPRESSION SPRING
Price
$1.90
124
CUTTERHEAD LOCK LATCH
Price
$11.50
125
SPACER
Price
$7.95
126
CAP SCREW M5-.8 X 12
Price
N/A
127
CUTTERHEAD ELEVATION SCALE
Price
$4.50
128
HEX NUT M20-1.5
Price
N/A
129
COLLAR NUT W/SET SCREWS (LEFT)
Price
$11.20
130
SET SCREW M5-.8 X 6
Price
N/A
131
COLLAR NUT W/SET SCREWS (RIGHT)
Price
$11.20
132
SUPPORT BRACKET, REAR LEFT/RIGHT
Price
$12.50
133
SUPPORT BRACKET, FRONT LEFT
Price
$9.30
134
SUPPORT BRACKET, LOCK HANDLE
Price
$8.20
135
SUPPORT BRACKET, FRONT RIGHT
Price
$11.10
136
CAP SCREW M5-.8 X 12
Price
N/A
137
DRIVE ROD
Price
$11.10
138
CONNECTING BLOCK
Price
$3.25
139
IDLER RATCHET
Price
$3.60
140
LOCKING PLATE
Price
$3.60
141
FRICTION CLAMP
Price
$2.90
142
CONNECTING ROD
Price
$2.90
143
HEX NUT M10-1.5
Price
N/A
144
SHOULDER SCREW M5-.8 X 8, 6 X 4
Price
$1.49
145
FLAT HD SCR M4-.7 X 10
Price
N/A
146
HANDLE CONNECTING LEVER
Price
$2.90
147
HEADED PIN 6 X 22
Price
$2.90
148
LOCK HANDLE
Price
$2.50
149
DRIVING RATCHET
Price
$7.50
150
HEADED PIN 6 X 35
Price
$2.90
151
PUSH-ON EXT RETAINING RING 6MM
Price
$1.49
152
FLAT WASHER 5MM
Price
N/A
153
LOCK WASHER 5MM
Price
N/A

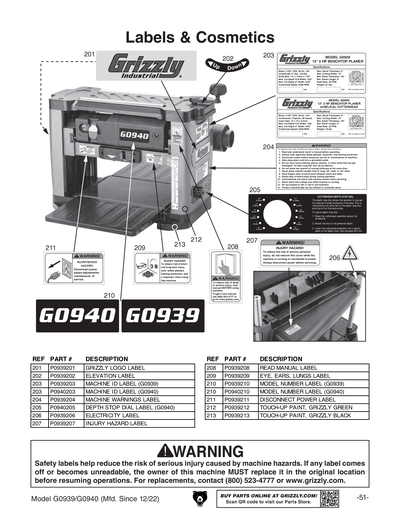

201
GRIZZLY LOGO LABEL
Price
$6.70
202
ELEVATION LABEL
Price
$3.75
203
MACHINE ID LABEL
Price
$16.40
204
MACHINE WARNINGS LABEL
Price
$4.10
206
ELECTRICITY 0.7W X 0.6H
Price
N/A
207
INJURY HAZARD LABEL
Price
$3.45
208
READ MANUAL 1.5W X 2.5H
Price
N/A
209
EYE/EAR/LUNG 2.8W X 1.5H
Price
N/A
210
MODEL NUMBER LABEL
Price
$3.75
211
DISCONNECT 110V 2.8W X 1.5H
Price
N/A
212
N/S GRIZZLY GREEN G1023S
Price
N/A
213
GLOSSY BLACK
Price
N/A
MAN
MANUAL G0939/40 MFD-12.20-11.22 V1.08.21
Price
$22.65
MANV2
MANUAL G0939/G0940 MFD-12.22-02.25 V2.12
Price
$22.65
MANV3
MANUAL G0939/G0940 MFD-03.25+ V3.03.25
Price
$22.65
