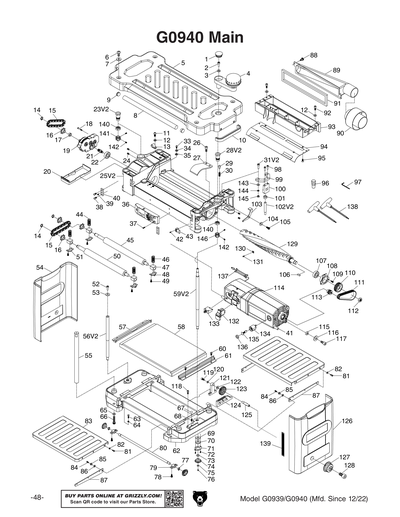

Parts for G0940 13" 2 HP Benchtop Planer w/ Helical Cutterhead

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

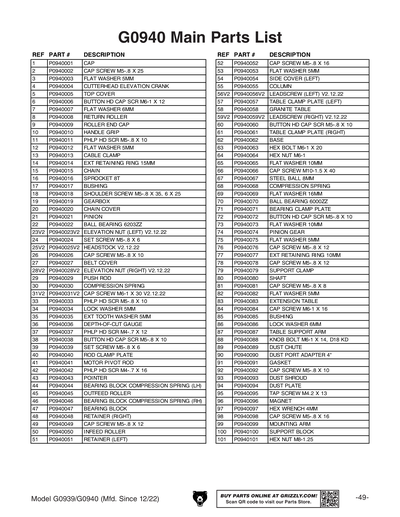

1
CAP
Price
N/A
2
CAP SCREW M5-.8 X 25
Price
N/A
3
Now: PW02M
FLAT WASHER 5MM
Price
N/A
4
CUTTERHEAD ELEVATION CRANK
Price
N/A
5
TOP COVER
6
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
7
Now: PW03M
FLAT WASHER 6MM
Price
N/A
8
RETURN ROLLER
Price
N/A
9
ROLLER END CAP
Price
N/A
10
HANDLE GRIP
11
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
12
Now: PW02M
FLAT WASHER 5MM
Price
N/A
13
CABLE CLAMP
Price
N/A
14
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
15
CHAIN
Price
N/A
16
SPROCKET 8T
Price
N/A
17
BUSHING
Price
N/A
18
SHOULDER SCREW M5-.8 X 35, 6 X 25
Price
N/A
19
GEARBOX
Price
N/A
20
CHAIN COVER
20-1
SUPPORT BUTTON
21
PINION
Price
N/A
22
BALL BEARING 6203ZZ
Price
N/A
23
ELEVATION NUT (LEFT) V1
Price
N/A
23V2
ELEVATION NUT (LEFT) V2.12.22
Price
N/A
24
SET SCREW M5-.8 X 6
Price
N/A
25
HEADSTOCK V1
25V2
HEADSTOCK V2.12.22
25V3
HEADSTOCK V3.03.25
25V4
HEADSTOCK V3.10.25
Price
N/A
26
CAP SCREW M5-.8 X 10
Price
N/A
27
BELT COVER
Price
N/A
28
ELEVATION NUT (RIGHT) V1
Price
N/A
28V2
ELEVATION NUT (RIGHT) V2.12.22
Price
N/A
29
PUSH ROD
Price
N/A
30
COMPRESSION SPRING
Price
N/A
31
CAP SCREW M6-1 X 16
Price
N/A
31V2
CAP SCREW M6-1 X 30
Price
N/A
32
ELEVATION NUT (LOWER RIGHT)
33
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
34
LOCK WASHER 5MM
Price
N/A
35
EXT TOOTH WASHER 5MM
Price
N/A
36
DEPTH-OF-CUT GAUGE
Price
N/A
37
Now: PS02M
PHLP HD SCR M4-.7 X 12
Price
N/A
38
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
39
SET SCREW M5-.8 X 6
Price
N/A
40
ROD CLAMP PLATE
Price
N/A
41
MOTOR PIVOT ROD
Price
N/A
42
Now: PS56M
PHLP HD SCR M4-.7 X 16
Price
N/A
43
POINTER
Price
N/A
44
BEARING BLOCK COMPRESSION SPRING (LH)
45
OUTFEED ROLLER
Price
N/A
46
BEARING BLOCK COMPRESSION SPRING (RH)
47
BEARING BLOCK
Price
N/A
48
RETAINER (RIGHT)
Price
N/A
49
CAP SCREW M5-.8 X 12
Price
N/A
50
INFEED ROLLER
Price
N/A
51
RETAINER (LEFT)
Price
N/A
52
CAP SCREW M5-.8 X 16
Price
N/A
53
Now: PW02M
FLAT WASHER 5MM
Price
N/A
54
SIDE COVER (LEFT)
55
COLUMN
Price
N/A
56
LEADSCREW (LEFT) V1
Price
N/A
56V2
LEADSCREW (LEFT) V2.12.22
Price
N/A
57
TABLE CLAMP PLATE (LEFT)
58
GRANITE TABLE
59
LEADSCREW (RIGHT) V1
Price
N/A
59V2
LEADSCREW (RIGHT) V2.12.22
Price
N/A
60
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
61
TABLE CLAMP PLATE (RIGHT)
62
BASE
63
Now: PB08M
HEX BOLT M6-1 X 20
Price
N/A
64
Now: PN01M
HEX NUT M6-1
Price
N/A
65
Now: PW04M
FLAT WASHER 10MM
Price
N/A
66
CAP SCREW M10-1.5 X 40
Price
N/A
67
STEEL BALL 8MM
Price
N/A
68
COMPRESSION SPRING
69
Now: PW08M
FLAT WASHER 16MM
Price
N/A
70
BALL BEARING 6000ZZ
Price
N/A
71
BEARING CLAMP PLATE
72
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
73
Now: PW04M
FLAT WASHER 10MM
Price
N/A
74
PINION GEAR
Price
N/A
75
Now: PW02M
FLAT WASHER 5MM
Price
N/A
76
CAP SCREW M5-.8 X 12
Price
N/A
77
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
78
CAP SCREW M5-.8 X 12
Price
N/A
79
SUPPORT CLAMP
Price
N/A
80
SHAFT
Price
N/A
81
CAP SCREW M5-.8 X 8
Price
N/A
82
Now: PW02M
FLAT WASHER 5MM
Price
N/A
83
EXTENSION TABLE
84
CAP SCREW M6-1 X 16
Price
N/A
85
BUSHING
Price
N/A
86
LOCK WASHER 6MM
Price
N/A
87
TABLE SUPPORT ARM
88
KNOB BOLT M6-1 X 14, D18 KD
Price
N/A
89
DUST CHUTE
Price
N/A
90
DUST PORT ADAPTER 4"
Price
N/A
91
GASKET
92
CAP SCREW M5-.8 X 10
Price
N/A
93
DUST SHROUD
Price
N/A
94
DUST PLATE
Price
N/A
95
TAP SCREW M4.2 X 13
Price
N/A
96
MAGNET
Price
N/A
97
HEX WRENCH 4MM
Price
N/A
98
CAP SCREW M5-.8 X 16
Price
N/A
99
MOUNTING ARM
100
SUPPORT BLOCK
101
Now: PN03M
HEX NUT M8-1.25
Price
N/A

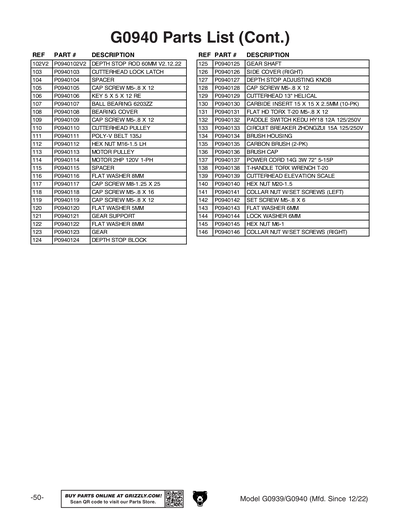

102
DEPTH STOP ROD 80MM V1
102V2
DEPTH STOP ROD 60MM V2.12.22
103
CUTTERHEAD LOCK LATCH
Price
N/A
104
SPACER
Price
N/A
105
CAP SCREW M5-.8 X 12
Price
N/A
106
Now: PK10M
KEY 5 X 5 X 12
Price
N/A
107
BALL BEARING 6203ZZ
Price
N/A
108
BEARING COVER
Price
N/A
109
CAP SCREW M5-.8 X 12
Price
N/A
110
CUTTERHEAD PULLEY
111
POLY-V BELT 135J
Price
N/A
112
HEX NUT M16-1.5 LH
Price
N/A
113
MOTOR PULLEY
Price
N/A
114
MOTOR 2HP 120V 1-PH
Price
N/A
115
SPACER
Price
N/A
116
Now: PW01M
FLAT WASHER 8MM
Price
N/A
117
CAP SCREW M8-1.25 X 25
Price
N/A
118
CAP SCREW M5-.8 X 16
Price
N/A
119
CAP SCREW M5-.8 X 12
Price
N/A
120
Now: PW02M
FLAT WASHER 5MM
Price
N/A
121
GEAR SUPPORT
122
Now: PW01M
FLAT WASHER 8MM
Price
N/A
123
GEAR
124
DEPTH STOP BLOCK
125
GEAR SHAFT
126
SIDE COVER (RIGHT)
127
DEPTH STOP ADJUSTING KNOB
128
CAP SCREW M5-.8 X 12
Price
N/A
129
CUTTERHEAD 13" HELICAL
130
Now: H9893
Indexable Carbide Insert - 15 x 15 x 2.5mm, 10-Pk.
Price
N/A
131
FLAT HD TORX T-20 M5-.8 X 12
132
Now: G8988
Safety Paddle Switch
Price
N/A
133
CIRCUIT BREAKER ZHONGZUI 15A 125/250V
Price
N/A
134
BRUSH HOUSING W/CAP
Price
N/A
135
CARBON BRUSH (2-PK)
Price
N/A
137
POWER CORD 14G 3W 72" 5-15P
Price
N/A
138
T-HANDLE TORX WRENCH T-20
140
Now: PN17M
HEX NUT M20-1.5
Price
N/A
141
COLLAR NUT W/SET SCREWS (LEFT)
Price
N/A
142
SET SCREW M5-.8 X 6
Price
N/A
143
Now: PW03M
FLAT WASHER 6MM
Price
N/A
144
LOCK WASHER 6MM
Price
N/A
145
Now: PN01M
HEX NUT M6-1
Price
N/A
146
COLLAR NUT W/SET SCREWS (RIGHT)
Price
N/A
162V2
***USE P0939147V2***
169
***USE PLN02M***

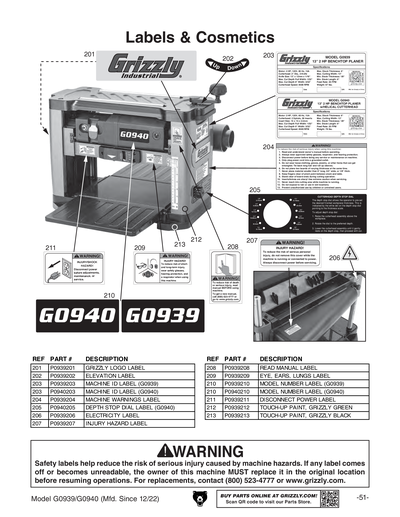

201
GRIZZLY LOGO LABEL
Price
N/A
202
ELEVATION LABEL
Price
N/A
203
MACHINE ID LABEL
204
MACHINE WARNINGS LABEL
Price
N/A
205
DEPTH STOP DIAL LABEL
206
ELECTRICITY 0.7W X 0.6H
Price
N/A
207
INJURY HAZARD LABEL
Price
N/A
208
READ MANUAL 1.5W X 2.5H
Price
N/A
209
EYE/EAR/LUNG 2.8W X 1.5H
Price
N/A
210
MODEL NUMBER LABEL
211
DISCONNECT 110V 2.8W X 1.5H
Price
N/A
212
N/S GRIZZLY GREEN G1023S
Price
N/A
213
GLOSSY BLACK
Price
N/A
MAN
MANUAL G0939/40 MFD-12.20-11.22 V1.08.21
Price
N/A
MANV2
MANUAL G0939/G0940 MFD-12.22-02.25 V2.12
Price
N/A
MANV4
***USE P0939MANV4***
