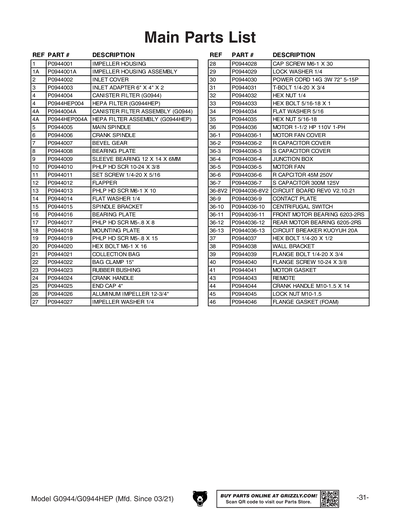

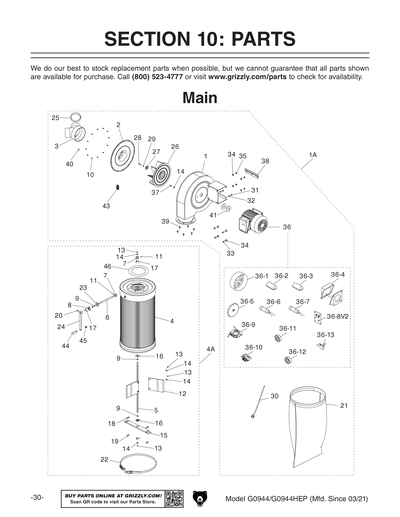

Parts for G0944 1-1/2 HP Wall-Mount Dust Collector with Canister Filter

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
IMPELLER HOUSING
1A
IMPELLER HOUSING ASSEMBLY
2
INLET COVER
3
INLET ADAPTER 6" X 4" X 2
4
1 Micron Canister Filter for G0944 Dust Collector
Price
N/A
4A
CANISTER FILTER ASSEMBLY
4AV2
CANISTER FILTER ASSEMBLY V2.05.24
4V2
CANISTER FILTER V2.05.24
5
MAIN SPINDLE
5V2
MAIN SPINDLE V2.05.24
6
CRANK SPINDLE
7
BEVEL GEAR
8
BEARING PLATE
8V2
MOUNTING PLATE V2.05.24
9
SLEEVE BEARING 12 X 14 X 6MM
10
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
11
Now: PSS04
SET SCREW 1/4-20 X 5/16
Price
N/A
12
FLAPPER
13
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
14
Now: PW06
FLAT WASHER 1/4
Price
N/A
15
PADDLE SPINDLE BRACKET
Price
N/A
16
BEARING PLATE
17
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
18
MOUNTING PLATE
19
Now: PS20M
PHLP HD SCR M5-.8 X 15
Price
N/A
20
Now: PB83M
HEX BOLT M6-1 X 16
Price
N/A
21
Dust Collection Bag for G0583Z, G0785 and G0944 Series
Price
N/A
22
BAG CLAMP 15"
Price
N/A
23
RUBBER BUSHING
24
CRANK HANDLE
25
END CAP 4"
26
ALUMINUM IMPELLER 12-3/4"
27
IMPELLER WASHER 1/4
28
CAP SCREW M6-1 X 30
Price
N/A
29
Now: PLW02
LOCK WASHER 1/4
Price
N/A
30
POWER CORD 14G 3W 72" 5-15P
31
T-BOLT 1/4-20 X 3/4
32
HEX NUT 1/4
33
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
34
Now: PW07
FLAT WASHER 5/16
Price
N/A
35
Now: PN02
HEX NUT 5/16-18
Price
N/A
36
MOTOR 1-1/2 HP 110V 1-PH
36-1
MOTOR FAN COVER
36-10
CENTRIFUGAL SWITCH
36-11
FRONT MOTOR BEARING 6203-2RS
36-12
REAR MOTOR BEARING 6205-2RS
36-13
CIRCUIT BREAKER ZING ZE-700-15 15A
36-2
R CAPACITOR COVER
36-3
S CAPACITOR COVER
36-4
JUNCTION BOX
36-5
MOTOR FAN
36-6
R CAPCITOR 45M 250V
36-7
S CAPACITOR 300M 125V
36-8
CIRCUIT BOARD REVO V2.10.21
Price
N/A
36-8V2
CIRCUIT BOARD REVO V2.10.21
36-9
CONTACT PLATE
37
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
38
WALL BRACKET
39
Now: PFB15
FLANGE BOLT 1/4-20 X 3/4
Price
N/A
40
Now: PFS03
FLANGE SCREW 10-24 X 3/8
Price
N/A
41
MOTOR GASKET
43
REMOTE
44
CRANK HANDLE M10-1.5 X 14
45
LOCK NUT M10-1.5
Price
N/A
46
FLANGE GASKET (FOAM)
48
CRANKSHAFT BRACKET
101

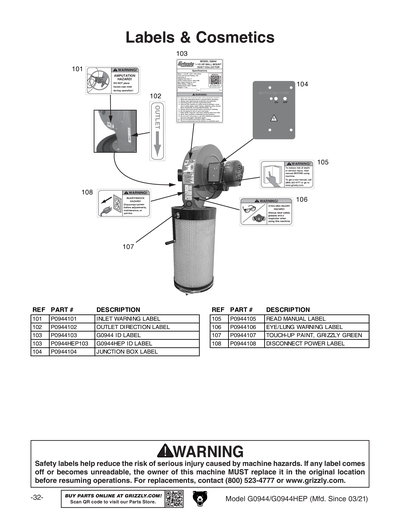

HANDS/DUST COLLECTOR OUTLET 2.8W X 1.5H
Price
N/A
102
OUTLET DIRECTION LABEL
103
G0944 ID LABEL
104
JUNCTION BOX LABEL
105
READ MANUAL 2.8W X 1.5H
Price
N/A
106
GLASSES/RESPIRATOR 2.8W X 1.5H
Price
N/A
107
N/S GRIZZLY GREEN G1023S
Price
N/A
108
DISCONNECT 110V 2.8W X 1.5H
Price
N/A
MAN
MANUAL G0944 G0944HEP MFD-01.21+ V1.07.2
