Parts for G0944HEP - 1-1/2 HP Wall Mount Dust Collector with HEPA Filter

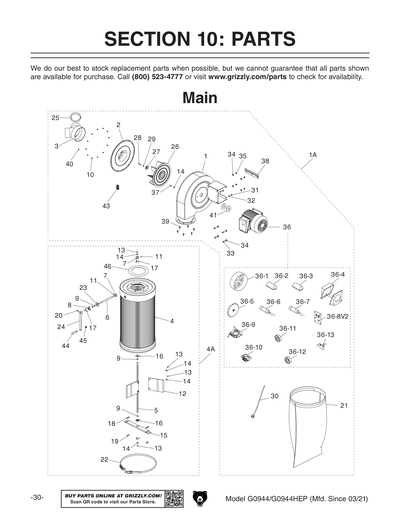

Part Diagram for G0944HEP
Part Diagram for G0944HEP
Part Diagram for G0944HEP
Part Diagram for G0944HEP
Part Diagram for G0944HEP
Part Diagram for G0944HEP

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

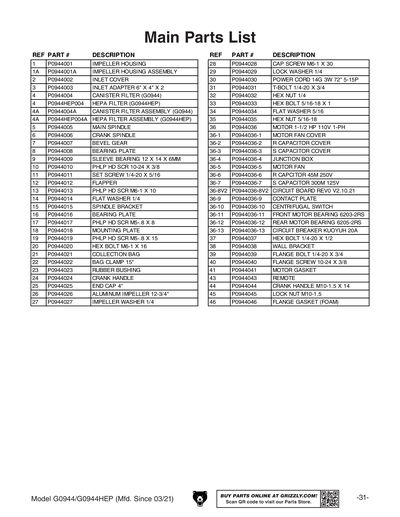

Ref #
Part #
Description
1
IMPELLER HOUSING
Price
N/A
1A
IMPELLER HOUSING ASSEMBLY
Price
N/A
2
INLET COVER
Price
N/A
3
INLET ADAPTER 6" X 4" X 2
Price
N/A
4
0.3 Micron Canister Filter for G0944HEP Dust Collector
Price
N/A
4A
Price
$536.15
4AV2
HEPA FILTER ASSEMBLY V2.05.24
Price
$578.35
4V2
Price
$509.65
5
MAIN SPINDLE
Price
N/A
5V2
MAIN SPINDLE V2.05.24
Price
N/A
6
CRANK SPINDLE
Price
N/A
7
BEVEL GEAR
Price
N/A
8
BEARING PLATE
Price
N/A
8V2
MOUNTING PLATE V2.05.24
Price
N/A
9
SLEEVE BEARING 12 X 14 X 6MM
Price
N/A
10
PHLP HD SCR 10-24 X 3/8
Price
N/A
11
SET SCREW 1/4-20 X 5/16
Price
N/A
12
FLAPPER
Price
N/A
13
PHLP HD SCR M6-1 X 10
Price
N/A
14
FLAT WASHER 1/4
Price
N/A
15
PADDLE SPINDLE BRACKET
Price
N/A
16
BEARING PLATE
Price
N/A
17
PHLP HD SCR M5-.8 X 8
Price
N/A
18
MOUNTING PLATE
Price
N/A
19
PHLP HD SCR M5-.8 X 15
Price
N/A
20
HEX BOLT M6-1 X 16
Price
N/A
21
Dust Collection Bag for G0583Z, G0785 and G0944 Series
Price
N/A
22
***USE P0860051***
Price
N/A
23
RUBBER BUSHING
Price
N/A
24
CRANK HANDLE
Price
N/A
25
END CAP 4"
Price
N/A
26
ALUMINUM IMPELLER 12-3/4"
Price
N/A
27
IMPELLER WASHER 1/4
Price
N/A
28
CAP SCREW M6-1 X 30
Price
N/A
29
LOCK WASHER 1/4
Price
N/A
30
POWER CORD 14G 3W 72" 5-15P
Price
N/A
31
T-BOLT 1/4-20 X 3/4
Price
N/A
32
HEX NUT 1/4
Price
N/A
33
HEX BOLT 5/16-18 X 1
Price
N/A
34
FLAT WASHER 5/16
Price
N/A
35
HEX NUT 5/16-18
Price
N/A
36
MOTOR 1-1/2 HP 110V 1-PH
Price
N/A
36-1
MOTOR FAN COVER
Price
N/A
36-10
CENTRIFUGAL SWITCH
Price
N/A
36-11
FRONT MOTOR BEARING 6203-2RS
Price
N/A
36-12
REAR MOTOR BEARING 6205-2RS
Price
N/A
36-13
CIRCUIT BREAKER ZING ZE-700-15 15A
Price
N/A
36-2
R CAPACITOR COVER
Price
N/A
36-3
S CAPACITOR COVER
Price
N/A
36-4
JUNCTION BOX
Price
N/A
36-5
MOTOR FAN
Price
N/A
36-6
R CAPCITOR 45M 250V
Price
N/A
36-7
S CAPACITOR 300M 125V
Price
N/A
36-8
CIRCUIT BOARD REVO V2.10.21
Price
N/A
36-9
CONTACT PLATE
Price
N/A
37
HEX BOLT 1/4-20 X 1/2
Price
N/A
38
WALL BRACKET
Price
N/A
39
FLANGE BOLT 1/4-20 X 3/4
Price
N/A
40
FLANGE SCREW 10-24 X 3/8
Price
N/A
41
MOTOR GASKET
Price
N/A
42
REMOTE
Price
N/A
44
CRANK HANDLE M10-1.5 X 14
Price
N/A
45
LOCK NUT M10-1.5
Price
N/A
47
LOCK NUT M5-.8
Price
N/A
48
CRANKSHAFT BRACKET
Price
N/A
49
PHLP HD SCR M5-.8 X 10
Price
N/A
50
HEX BOLT 1/4-20 X 1-1/2
Price
N/A
51
LOCK NUT 1/4-20
Price
N/A

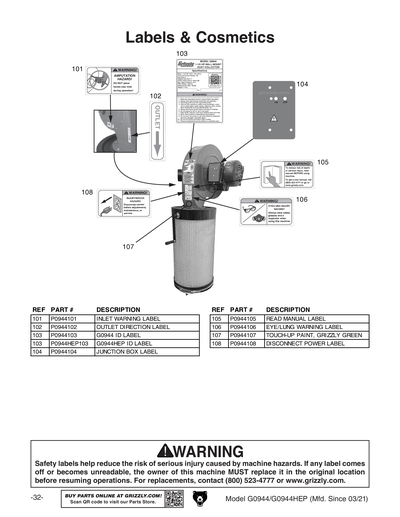

102
OUTLET DIRECTION LABEL
Price
N/A
103
Price
$16.40
104
JUNCTION BOX LABEL
Price
N/A
105
READ MANUAL 2.8W X 1.5H
Price
N/A
106
GLASSES/RESPIRATOR 2.8W X 1.5H
Price
N/A
107
DISCONNECT 110V 2.8W X 1.5H
Price
N/A
MAN
MANUAL G0944 G0944HEP MFD-01.21+ V1.07.2
Price
N/A
