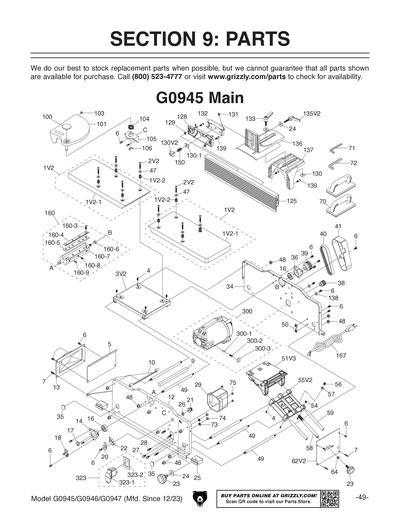

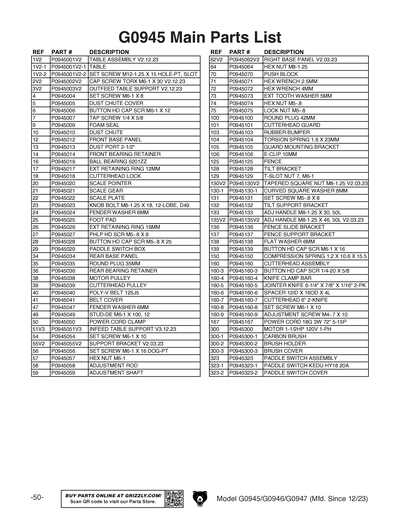

Parts for G0945 6" Benchtop Jointer

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
TABLE V1
1V2
TABLE ASSEMBLY
Price
N/A
1V2-1
TABLE
Price
N/A
1V2-2
SET SCREW M12-1.25 X 15 HOLE-PT, SLOT
Price
N/A
2
CAP SCREW M8-1.25 X 30
Price
N/A
2V2
CAP SCREW TORX M6-1 X 30
Price
N/A
3
OUTFEED TABLE SUPPORT V1
3V2
OUTFEED TABLE SUPPORT
Price
N/A
4
SET SCREW M6-1 X 8
Price
N/A
5
DUST CHUTE COVER
6
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
7
TAP SCREW 1/4 X 5/8
9
FOAM SEAL
10
DUST CHUTE
12
FRONT BASE PANEL
13
DUST PORT 2-1/2"
14
FRONT BEARING RETAINER W/BEARING
16
BALL BEARING 6201ZZ
Price
N/A
17
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
18
CUTTERHEAD LOCK
20
SCALE POINTER
21
SCALE GEAR
22
SCALE PLATE
23
KNOB BOLT M8-1.25 X 18, 12-LOBE, D49
24
FENDER WASHER 8MM
Price
N/A
25
FOOT PAD
26
Now: PR06M
EXT RETAINING RING 16MM
Price
N/A
27
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
28
BUTTON HD CAP SCR M5-.8 X 25
Price
N/A
29
PADDLE SWITCH BOX
34
REAR BASE PANEL
35
ROUND PLUG 35MM
36
REAR BEARING RETAINER W/BEARING
38
MOTOR PULLEY
39
CUTTERHEAD PULLEY
40
POLY-V BELT 125J5
41
BELT COVER
47
FENDER WASHER 6MM
Price
N/A
48
FLANGE NUT M6-1
Price
N/A
49
STUD-DE M6-1 X 100, 12
50
POWER CORD CLAMP
51
INFEED TABLE SUPPORT V1
51V2
INFEED TABLE SUPPORT V2.03.23
51V3
***USE P0945051V2***
Price
N/A
54
SET SCREW M6-1 X 10
Price
N/A
55
SUPPORT BRACKET V1
55V2
SUPPORT BRACKET V2.03.23
56
SET SCREW M6-1 X 16 DOG-PT
Price
N/A
57
Now: PN01M
HEX NUT M6-1
Price
N/A
58
ADJUSTMENT ROD
59
ADJUSTMENT SHAFT
62
RIGHT BASE PANEL V1
62V2
RIGHT BASE PANEL V2.03.23
64
Now: PN03M
HEX NUT M8-1.25
Price
N/A
70
PUSH BLOCK
71
HEX WRENCH 2.5MM
Price
N/A
72
HEX WRENCH 4MM
Price
N/A
73
EXT TOOTH WASHER 5MM
Price
N/A
74
Now: PN06M
HEX NUT M5-.8
Price
N/A
75
LOCK NUT M5-.8
Price
N/A
100
ROUND PLUG 42MM
101
CUTTERHEAD GUARD
101S
CUTTERHEAD GUARD ASSY.
103
RUBBER BUMPER
104
TORSION SPRING 1.6 X 23MM
105
GUARD MOUNTING BRACKET
106
E-CLIP 10MM
Price
N/A
125
FENCE
128
TILT BRACKET
129
T-SLOT NUT 7, M6-1
130
SQUARE NUT M8-1.25
130-1
CURVED SQUARE WASHER 8MM
130V2
TAPERED SQUARE NUT M8-1.25 V2.03.23
131
SET SCREW M5-.8 X 8
Price
N/A
132
TILT SUPPORT BRACKET
133
ADJ HANDLE M8-1.25 X 30, 50L
135
ADJ HANDLE M8-1.25 X 40, 50L V1
135V2
ADJ HANDLE M8-1.25 X 46, 50L V2.03.23
136
FENCE SLIDE BRACKET
137
FENCE SUPPORT BRACKET
138
Now: PW03M
FLAT WASHER 6MM
Price
N/A
139
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
150
COMPRESSION SPRING 1.2 X 10.6 X 15.5
160
CUTTERHEAD ASSEMBLY
160-3
BUTTON HD CAP SCR 1/4-20 X 5/8
Price
N/A
160-4
KNIFE CLAMP BAR (2PC SET)
160-5
6-1/4" x 7/8" x 1/16" Jointer Knives for G0945, Set of 2
Price
N/A
160-6
SPACER 12ID X 16OD X 4L
160-7
CUTTERHEAD 6" 2-KNIFE
160-8
SET SCREW M6-1 X 10
Price
N/A
160-9
ADJUSTMENT SCREW M4-.7 X 10
167
POWER CORD 18G 3W 72" 5-15P
300
MOTOR 1-1/2HP 120V 1-PH
300-1
CARBON BRUSH
300-2
BRUSH HOLDER
300-3
BRUSH COVER
323-1
Now: G8988
Safety Paddle Switch
Price
N/A
323-2
PADDLE SWITCH COVER
400

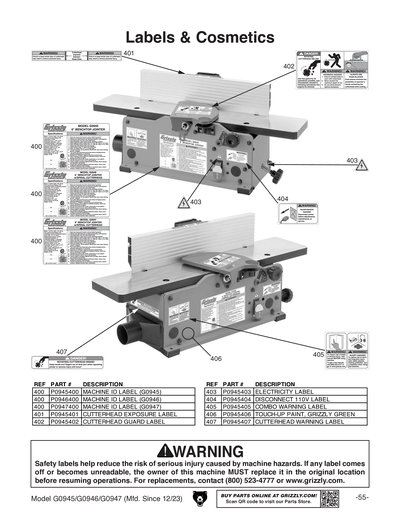

MACHINE ID LABEL
401
CUTTERHEAD EXPOSURE LABEL
402
CUTTERHEAD GUARD LABEL
403
ELECTRICITY 1.4W X 1.2H
Price
N/A
404
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
405
COMBO WARNING LABEL
406
N/S GRIZZLY GREEN G1023S
Price
N/A
407
CUTTERHEAD WARNING LABEL
MAN
MANUAL G0945-47 MFD-05.21-02.23 V1.07.21
MANV2
MANUAL G0945-47 MFD-03.23-11.23 V2.03.23
MANV3
MANUAL G0945-47 MFD-12.23+ V3.11.23
