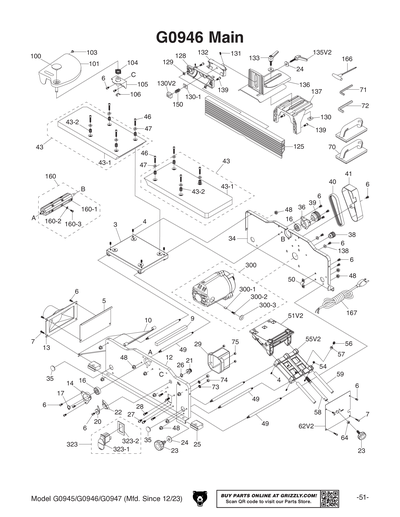

Parts for G0946 6" Benchtop Jointer with Spiral-Type Cutterhead

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

3
OUTFEED TABLE SUPPORT V1
Price
N/A
4
SET SCREW M6-1 X 8
Price
N/A
5
***USE P0945005***
6
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
7
***USE P0945007***
9
FOAM SEAL
Price
N/A
10
DUST CHUTE
Price
N/A
12
***USE P0945012***
13
DUST PORT 2-1/2"
Price
N/A
14
***USE P0945014***
16
BALL BEARING 6201ZZ
Price
N/A
17
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
20
SCALE POINTER
Price
N/A
21
***USE P0945021***
22
***USE P0945022***
23
***USE P0945023***
24
FENDER WASHER 8MM
Price
N/A
25
FOOT PAD
Price
N/A
26
Now: PR06M
EXT RETAINING RING 16MM
Price
N/A
27
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
28
BUTTON HD CAP SCR M5-.8 X 25
Price
N/A
29
***USE P0945029***
34
REAR BASE PANEL
Price
N/A
35
ROUND PLUG 35MM
Price
N/A
36
***USE P0945036***
38
MOTOR PULLEY
Price
N/A
39
CUTTERHEAD PULLEY
Price
N/A
40
***USE P0945040***
41
BELT COVER
Price
N/A
43
TABLE ASSEMBLY
43-1
TABLE
43-2
SET SCREW M12-1.25 X 15 HOLE-PT, SLOT
46
CAP SCREW TORX M6-1 X 30
47
FENDER WASHER 6MM
Price
N/A
48
FLANGE NUT M6-1
Price
N/A
49
STUD-DE M6-1 X 100, 12
Price
N/A
50
***USE P0945050***
51
INFEED TABLE SUPPORT V1
Price
N/A
51V2
INFEED TABLE SUPPORT V2.03.23
Price
N/A
54
SET SCREW M6-1 X 10
Price
N/A
55
***USE P0945055***
55V2
SUPPORT BRACKET V2.03.23
Price
N/A
56
SET SCREW M6-1 X 16 DOG-PT
Price
N/A
57
Now: PN01M
HEX NUT M6-1
Price
N/A
58
ADJUSTMENT ROD
Price
N/A
59
ADJUSTMENT SHAFT
Price
N/A
62
***USE P0945062***
62V2
RIGHT BASE PANEL V2.03.23
Price
N/A
64
Now: PN03M
HEX NUT M8-1.25
Price
N/A
70
PUSH BLOCK
Price
N/A
71
HEX WRENCH 2.5MM
Price
N/A
72
HEX WRENCH 4MM
Price
N/A
73
EXT TOOTH WASHER 5MM
Price
N/A
74
Now: PN06M
HEX NUT M5-.8
Price
N/A
75
LOCK NUT M5-.8
Price
N/A
100
ROUND PLUG 42MM
Price
N/A
101
CUTTERHEAD GUARD
Price
N/A
103
***USE P0945103***
104
TORSION SPRING 1.6 X 23MM
Price
N/A
105
GUARD MOUNTING BRACKET
Price
N/A
106
E-CLIP 10MM
Price
N/A
125
***USE P0945125***
128
TILT BRACKET
Price
N/A
129
T-SLOT NUT 7, M6-1
Price
N/A
130
SQUARE NUT M8-1.25
Price
N/A
130-1
CURVED SQUARE WASHER 8MM
Price
N/A
130V2
TAPERED SQUARE NUT M8-1.25 V2.03.23
Price
N/A
131
SET SCREW M5-.8 X 8
Price
N/A
132
***USE P0945132***
133
***USE P0945133***
135
ADJ HANDLE M8-1.25 X 40, 50L V1
Price
N/A
135V2
ADJ HANDLE M8-1.25 X 46, 50L V2.03.23
Price
N/A
136
***USE P0945136***
137
FENCE SUPPORT BRACKET
Price
N/A
138
Now: PW03M
FLAT WASHER 6MM
Price
N/A
139
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
150
COMPRESSION SPRING 1.2 X 10.6 X 15.5
Price
N/A
160
CUTTERHEAD ASSEMBLY
160-1
SPIRAL CUTTERHEAD 6"
160-2
Now: D4933
Replacement Carbide Insert - 14 x 14 x 2mm, 10 Pk.
Price
N/A
160-3
FLAT HD TORX T25 M5-.8 X 16
166
T-HANDLE TORX DRIVER T-25
Price
N/A
167
***USE P0945167***
300
MOTOR 1-1/2HP 120V 1-PH
Price
N/A
300-1
CARBON BRUSH
Price
N/A
300-2
BRUSH HOLDER
Price
N/A
300-3
BRUSH COVER
Price
N/A
323
***SEE EXT. DESCRIPTION***
Price
N/A
323-1
***USE G8988***
Price
N/A
323-2
PADDLE SWITCH COVER
Price
N/A
323-3
PADDLE SWITCH KEY
Price
N/A
400
MACHINE ID LABEL
401
***USE P0945401***
402
CUTTERHEAD GUARD LABEL
Price
N/A
403
ELECTRICITY 1.4W X 1.2H
Price
N/A
404
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
405
***USE P0945405***
406
N/S GRIZZLY GREEN G1023S
Price
N/A
407
CUTTERHEAD WARNING LABEL
Price
N/A
MAN
MANUAL G0945-47 MFD-05.21-02.23 V1.07.21
Price
N/A
MANV2
MANUAL G0945-47 MFD-03.23-11.23 V2.03.23
Price
N/A
