Parts for G0947 8" Benchtop Jointer with Spiral-Type Cutterhead

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

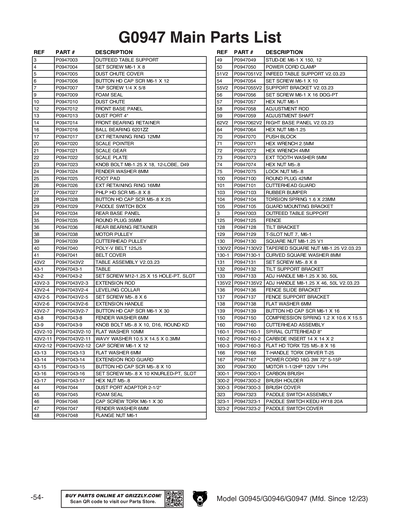

3
***USE P0945003***
4
SET SCREW M6-1 X 8
Price
N/A
5
DUST CHUTE COVER
6
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
7
TAP SCREW 1/4 X 5/8
Price
N/A
9
***USE P0945009***
10
DUST CHUTE
12
FRONT BASE PANEL
Price
N/A
13
DUST PORT 4"
14
***USE P0945014***
16
BALL BEARING 6201ZZ
Price
N/A
17
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
20
SCALE POINTER
Price
N/A
21
SCALE GEAR
Price
N/A
22
SCALE PLATE
Price
N/A
23
KNOB BOLT M8-1.25 X 18, 12-LOBE, D49
Price
N/A
24
FENDER WASHER 8MM
Price
N/A
25
FOOT PAD
Price
N/A
26
Now: PR06M
EXT RETAINING RING 16MM
Price
N/A
27
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
28
BUTTON HD CAP SCR M5-.8 X 25
Price
N/A
29
***USE P0945029***
34
REAR BASE PANEL
35
ROUND PLUG 35MM
Price
N/A
36
REAR BEARING RETAINER W/BEARING
Price
N/A
38
MOTOR PULLEY
Price
N/A
39
***USE P0945039***
40
POLY-V BELT 125J5
Price
N/A
41
BELT COVER
Price
N/A
43
TABLE ASSEMBLY V1
43-1
TABLE
43-10
FLAT WASHER 13.5 X 20 X 1.5MM
43-11
WAVY WASHER 13.2 X 18 X 0.3MM
43-12
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
43-13
Now: PW03M
FLAT WASHER 6MM
Price
N/A
43-14
EXTENSION ROD GUARD
43-15
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
43-16
SET SCREW M5-.8 X 10 KNURLED-PT, SLOT
43-17
Now: PN06M
HEX NUT M5-.8
Price
N/A
43-18
EXTENSION SPACER
43-19
EXTENSION BUMPER
43-2
SET SCREW M12-1.25 X 15 HOLE-PT, SLOT
Price
N/A
43-3
EXTENSION ROD
43-4
LEVELING COLLAR
43-5
SET SCREW M8-1.25 X 6
Price
N/A
43-6
EXTENSION HANDLE
43-7
BUTTON HD CAP SCR M6-1 X 50
Price
N/A
43-8
FENDER WASHER 6MM
Price
N/A
43-9
KNOB BOLT M5-.8 X 10, D16, ROUND KD
43V2
TABLE ASSEMBLY V2.03.23
43V2-10
Now: PW04M
FLAT WASHER 10MM
Price
N/A
43V2-11
WAVY WASHER 10.5 X 14.5 X 0.3MM
43V2-12
CAP SCREW M6-1 X 12
Price
N/A
43V2-3
EXTENSION ROD
43V2-4
LEVELING COLLAR
43V2-5
SET SCREW M5-.8 X 6
Price
N/A
43V2-6
EXTENSION HANDLE
43V2-7
BUTTON HD CAP SCR M6-1 X 30
Price
N/A
44
DUST PORT ADAPTOR 2-1/2"
45
FOAM SEAL
46
CAP SCREW TORX M6-1 X 30
Price
N/A
47
FENDER WASHER 6MM
Price
N/A
48
FLANGE NUT M6-1
Price
N/A
49
STUD-DE M6-1 X 150, 12
50
POWER CORD CLAMP
Price
N/A
51
INFEED TABLE SUPPORT ASSY V1
51V2
INFEED TABLE SUPPORT V2.03.23
54
SET SCREW M6-1 X 10
Price
N/A
55
INFEED TABLE SUPPORT ASSY V1
Price
N/A
55V2
SUPPORT BRACKET V2.03.23
56
SET SCREW M6-1 X 16 DOG-PT
Price
N/A
57
Now: PN01M
HEX NUT M6-1
Price
N/A
58
ADJUSTMENT ROD
59
ADJUSTMENT SHAFT
62
RIGHT BASE PANEL V1
62V2
RIGHT BASE PANEL V2.03.23
64
Now: PN03M
HEX NUT M8-1.25
Price
N/A
70
PUSH BLOCK
Price
N/A
71
HEX WRENCH 2.5MM
Price
N/A
72
HEX WRENCH 4MM
Price
N/A
73
EXT TOOTH WASHER 5MM
Price
N/A
74
Now: PN06M
HEX NUT M5-.8
Price
N/A
75
LOCK NUT M5-.8
Price
N/A
100
ROUND PLUG 42MM
Price
N/A
101
CUTTERHEAD GUARD ASSEMBLY
103
***USE P0945103***
104
TORSION SPRING 1.6 X 23MM
Price
N/A
105
GUARD MOUNTING BRACKET
Price
N/A
106
E-CLIP 10MM
Price
N/A
125
***USE P0945125***
128
TILT BRACKET
Price
N/A
129
***USE P0945129***
130
SQUARE NUT M8-1.25
Price
N/A
130-1
CURVED SQUARE WASHER 8MM
Price
N/A
130V2
TAPERED SQUARE NUT M8-1.25 V2.03.23
Price
N/A
131
SET SCREW M5-.8 X 8
Price
N/A
132
TILT SUPPORT BRACKET
Price
N/A
133
ADJ HANDLE M8-1.25 X 30, 50L
Price
N/A
135
***USE P0945135***
135V2
ADJ HANDLE M8-1.25 X 46, 50L V2.03.23
Price
N/A
136
***USE P0945136***
137
FENCE SUPPORT BRACKET
Price
N/A
138
Now: PW03M
FLAT WASHER 6MM
Price
N/A
139
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
150
COMPRESSION SPRING 1.2 X 10.6 X 15.5
Price
N/A
160
CUTTERHEAD ASSEMBLY
160-1
SPIRAL CUTTERHEAD 8"
160-2
Indexable Carbide Inserts - 14.25 x 14.25 x 2mm, 10-Pk.
Price
N/A
160-3
FLAT HD TORX T25 M5-.8 X 16
Price
N/A
166
T-HANDLE TORX DRIVER T-25
Price
N/A
167
POWER CORD 18G 3W 72" 5-15P
Price
N/A
300
MOTOR 1-1/2HP 120V 1-PH
Price
N/A
300-1
CARBON BRUSH
Price
N/A
300-2
BRUSH HOLDER
Price
N/A
300-3
BRUSH COVER
Price
N/A
323
***USE P0945323***
323-1
***USE P0945323-1***
323-2
PADDLE SWITCH COVER
Price
N/A
400

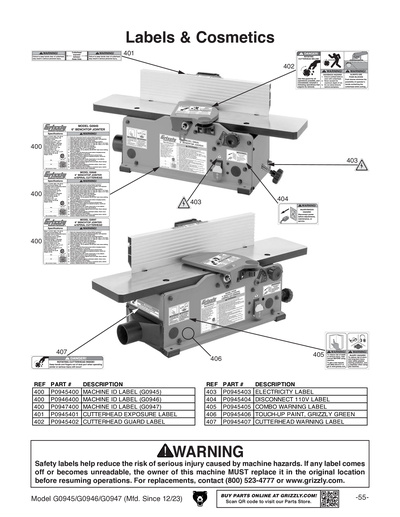

MACHINE ID LABEL
401
***USE P0945401***
402
CUTTERHEAD GUARD LABEL
Price
N/A
403
ELECTRICITY 1.4W X 1.2H
Price
N/A
404
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
405
***USE P0945405***
406
N/S GRIZZLY GREEN G1023S
Price
N/A
407
CUTTERHEAD WARNING LABEL
Price
N/A
MAN
MANUAL G0945-47 MFD-05.21-02.23 V1.07.21
Price
N/A
MANV2
MANUAL G0945-47 MFD-03.23-11.23 V2.03.23
