Parts for G0949G - 12" x 35" Variable-Speed Gunsmith Metal Lathe

Part Diagram for G0949G
Part Diagram for G0949G
Part Diagram for G0949G
Part Diagram for G0949G
Part Diagram for G0949G
Part Diagram for G0949G
Part Diagram for G0949G
Part Diagram for G0949G
Part Diagram for G0949G
Part Diagram for G0949G
Part Diagram for G0949G
Part Diagram for G0949G
Part Diagram for G0949G
Part Diagram for G0949G
Part Diagram for G0949G
Part Diagram for G0949G
Part Diagram for G0949G
Part Diagram for G0949G
Part Diagram for G0949G
Part Diagram for G0949G
Part Diagram for G0949G
Part Diagram for G0949G
Part Diagram for G0949G
Part Diagram for G0949G
Part Diagram for G0949G
Part Diagram for G0949G
Part Diagram for G0949G
Part Diagram for G0949G
Part Diagram for G0949G
Part Diagram for G0949G
Part Diagram for G0949G
Part Diagram for G0949G
Part Diagram for G0949G
Part Diagram for G0949G
Part Diagram for G0949G
Part Diagram for G0949G
Part Diagram for G0949G
Part Diagram for G0949G
Part Diagram for G0949G
Part Diagram for G0949G

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

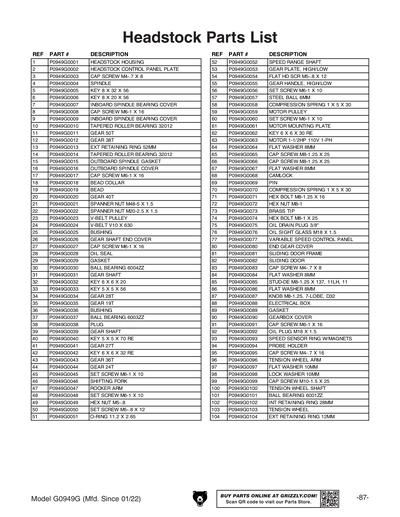

Ref #
Part #
Description

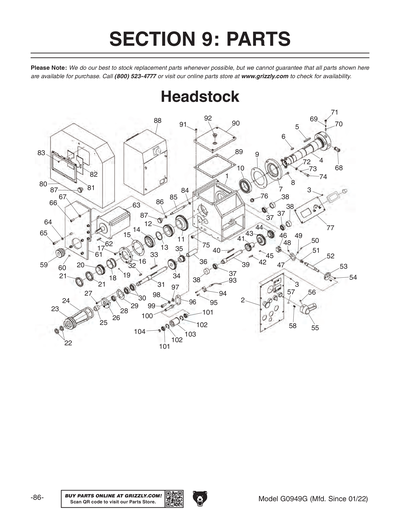

1
HEADSTOCK HOUSING
Price
$579.35
2
HEADSTOCK CONTROL PANEL PLATE
Price
$58.25
3
CAP SCREW M4-.7 X 8
Price
N/A
4
SPINDLE
Price
$534.75
5
KEY 8 X 32 X 56
Price
$2.60
6
KEY 8 X 20 X 56
Price
$2.60
7
INBOARD SPINDLE BEARING COVER
Price
$44.60
8
CAP SCREW M6-1 X 16
Price
N/A
9
INBOARD SPINDLE BEARING COVER
Price
$13.70
10
TAPER ROLLER BEARING 32012
Price
N/A
11
GEAR 50T
Price
$236.50
12
GEAR 38T
Price
$171.85
13
EXT RETAINING RING 52MM
Price
N/A
14
TAPER ROLLER BEARING 32012
Price
N/A
15
OUTBOARD SPINDLE GASKET
Price
$11.20
16
OUTBOARD SPINDLE COVER
Price
$31.35
17
CAP SCREW M6-1 X 16
Price
N/A
18
BEAD COLLAR
Price
$31.35
19
BEAD
Price
$4.70
20
GEAR 40T
Price
$173.95
21
SPANNER NUT M48-5 X 1.5
Price
$31.35
22
SPANNER NUT M20-2.5 X 1.5
Price
$9.00
23
V-BELT PULLEY
Price
$44.60
24
V-BELT V10 X 630
Price
$40.25
25
BUSHING
Price
$9.00
26
GEAR SHAFT END COVER
Price
$22.35
27
CAP SCREW M6-1 X 16
Price
N/A
28
OIL SEAL
Price
$9.00
29
GASKET
Price
$6.90
30
BALL BEARING 6004ZZ
Price
N/A
31
GEAR SHAFT
Price
$44.60
32
KEY 6 X 6 X 20
Price
N/A
33
KEY 5 X 5 X 56
Price
N/A
34
GEAR 28T
Price
$167.15
35
GEAR 19T
Price
$100.35
36
BUSHING
Price
$13.70
37
Bearing - 35mm x 17mm
Price
N/A
38
PLUG
Price
$11.20
39
GEAR SHAFT
Price
$35.95
40
KEY 5 X 5 X 70 RE
Price
$4.70
41
GEAR 27T
Price
$160.70
42
KEY 6 X 6 X 32 RE
Price
$3.65
43
GEAR 36T
Price
$120.45
44
GEAR 24T
Price
$111.45
45
SET SCREW M6-1 X 10
Price
N/A
46
SHIFTING FORK
Price
$22.35
47
ROCKER ARM
Price
$13.70
48
SET SCREW M6-1 X 10
Price
N/A
49
HEX NUT M5-.8
Price
N/A
50
SET SCREW M5-.8 X 12
Price
N/A
51
O-RING 11.2 X 2.65
Price
$2.60
52
SPEED RANGE SHAFT
Price
$22.35
53
GEAR PLATE, HIGH/LOW
Price
$15.85
54
FLAT HD SCR M5-.8 X 12
Price
N/A
55
GEAR HANDLE, HIGH/LOW
Price
$44.60
56
SET SCREW M6-1 X 10
Price
N/A
57
FLAT HD SCR M5-.8 X 12
Price
N/A
58
COMPRESSION SPRING 1 X 5 X 30
Price
N/A
59
MOTOR PULLEY
Price
$40.25
60
SET SCREW M6-1 X 10
Price
N/A
61
MOTOR MOUNTING PLATE
Price
$89.15
62
KEY 6 X 6 X 30 RE
Price
$3.65
63
MOTOR 1-1/2HP 110V 1-PH
Price
$869.00
64
FLAT WASHER 8MM
Price
N/A
65
CAP SCREW M8-1.25 X 25
Price
N/A
66
CAP SCREW M8-1.25 X 25
Price
N/A
67
FLAT WASHER 8MM
Price
N/A
68
CAMLOCK
Price
$13.70
69
PIN
Price
$2.60
70
COMPRESSION SPRING 1 X 5 X 30
Price
$2.60
71
HEX BOLT M8-1.25 X 16
Price
N/A
72
HEX NUT M8-1
Price
N/A
73
HEX BOLT M8-1 X 25 W/BRASS TIP
Price
N/A
74
HEX BOLT M8-1 X 25 W/BRASS TIP
Price
$2.90
75
OIL DRAIN PLUG 3/8"
Price
N/A
76
OIL SIGHT GLASS M18-1.5
Price
N/A
77
VARIABLE SPEED CONTROL PANEL
Price
$15.85
80
END GEAR COVER
Price
$200.60
81
SLIDING DOOR FRAME
Price
$22.35
82
SLIDING DOOR
Price
$22.35
83
CAP SCREW M4-.7 X 8
Price
N/A
84
FLAT WASHER 8MM
Price
N/A
85
STUD-DE M8-1.25 X 137, 11LH, 11
Price
$8.95
86
FLAT WASHER 8MM
Price
N/A
87
KNOB M8-1.25, 7-LOBE, D32
Price
$5.45

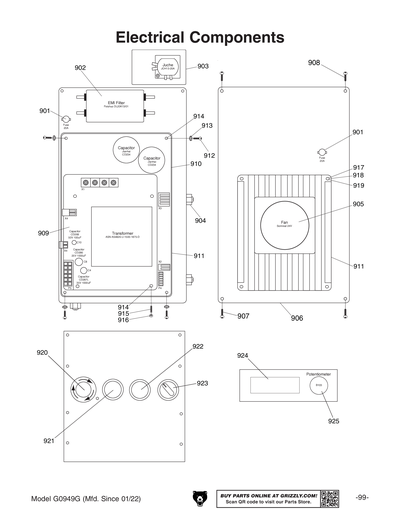

88
ELECTRICAL BOX
Price
$209.60
89
GASKET
Price
$11.20
90
GEARBOX COVER
Price
$53.60
91
CAP SCREW M6-1 X 16
Price
N/A
92
OIL PLUG M18 X 1.5
Price
$4.70
93
SPEED SENSOR RING W/MAGNETS
Price
$15.85
94
PROBE HOLDER
Price
$9.00
95
CAP SCREW M4-.7 X 16
Price
N/A
96
TENSION WHEEL ARM
Price
$20.15
97
FLAT WASHER 10MM
Price
N/A
98
LOCK WASHER 10MM
Price
N/A
99
CAP SCREW M10-1.5 X 25
Price
N/A
100
TENSION WHEEL SHAFT
Price
$20.15
101
BALL BEARING 6001ZZ
Price
N/A
102
INT RETAINING RING 28MM
Price
N/A
103
TENSION WHEEL
Price
$35.95
104
EXT RETAINING RING 12MM
Price
N/A

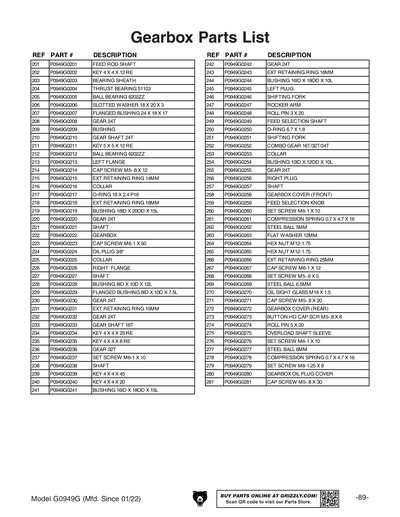

201
FEED ROD SHAFT
Price
$49.25
202
KEY 4 X 4 X 12 RE
Price
$2.60
203
BEARING SHEATH
Price
$13.70
204
THRUST BEARING 51103
Price
N/A
205
BALL BEARING 6202ZZ
Price
N/A
206
SLOTTED WASHER 18 X 20 X 3
Price
$2.90
207
FLANGED BUSHING 24 X 18 X 17
Price
$9.00
208
GEAR 24T
Price
$27.00
209
BUSHING
Price
$38.15
210
GEAR SHAFT 24T
Price
$40.25
211
KEY 5 X 5 X 12 RE
Price
$2.60
212
BALL BEARING 6202ZZ
Price
N/A
213
LEFT FLANGE
Price
$27.00
214
CAP SCREW M5-.8 X 12
Price
N/A
215
EXT RETAINING RING 14MM
Price
N/A
216
COLLAR
Price
$9.00
217
O-RING 18 X 2.4 P18
Price
$2.90
218
EXT RETAINING RING 18MM
Price
N/A
219
BUSHING 18ID X 20OD X 15L
Price
$9.00
220
GEAR 24T
Price
$27.00
221
SHAFT
Price
$22.35

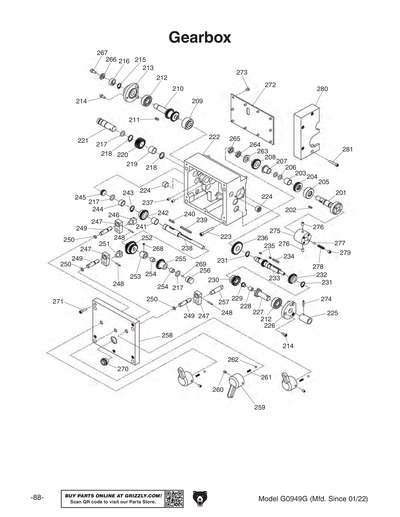

222
GEARBOX
Price
$476.95
223
CAP SCREW M6-1 X 50
Price
N/A
224
OIL DRAIN PLUG 3/8"
Price
N/A
225
COLLAR
Price
$9.00
226
RIGHT FLANGE
Price
$20.15
227
SHAFT
Price
$20.15
228
BUSHING 8ID X 10D X 12L
Price
$9.00
229
FLANGED BUSHING 8ID X 10D X 7.5L
Price
$9.00
230
GEAR 24T
Price
$44.60
231
EXT RETAINING RING 15MM
Price
N/A
232
GEAR 24T
Price
$27.00
233
GEAR SHAFT 16T
Price
$58.25
234
KEY 4 X 4 X 25 RE
Price
$2.60
235
KEY 4 X 4 X 8 RE
Price
$2.60
236
GEAR 32T
Price
$31.35
237
SET SCREW M6-1 X 10
Price
N/A
238
SHAFT
Price
$40.25
239
KEY 4 X 4 X 45
Price
N/A
240
KEY 4 X 4 X 20
Price
N/A
241
BUSHING 16ID X 18OD X 15L
Price
$9.00
242
GEAR 24T
Price
$27.00
243
EXT RETAINING RING 16MM
Price
N/A
244
BUSHING 16ID X 18OD X 10L
Price
$9.00
245
LEFT PLUG
Price
$4.70
246
SHIFTING FORK
Price
$20.15
247
ROCKER ARM
Price
$22.35
248
ROLL PIN 3 X 20
Price
N/A
249
FEED SELECTION SHAFT
Price
$8.95
250
O-RING 6.7 X 1.8
Price
$2.90
251
SHIFTING FORK
Price
$20.15
252
COMBO GEAR 16T/32T/24T
Price
$71.60
253
COLLAR
Price
$9.00
254
BUSHING 10ID X 12OD X 10L
Price
$9.00
255
GEAR 24T
Price
$27.00
256
RIGHT PLUG
Price
$9.00
257
SHAFT
Price
$22.35
258
GEARBOX COVER (FRONT)
Price
$156.00
259
FEED SELECTION KNOB
Price
$27.00
260
SET SCREW M6-1 X 10
Price
N/A
261
COMPRESSION SPRING 0.7 X 4.7 X 16
Price
$2.60
262
STEEL BALL 5MM
Price
N/A
263
FLAT WASHER 12MM
Price
N/A
264
HEX NUT M12-1.75
Price
N/A
265
HEX NUT M12-1.75
Price
N/A
266
EXT RETAINING RING 25MM
Price
N/A
267
CAP SCREW M6-1 X 12
Price
N/A
268
SET SCREW M5-.8 X 5
Price
N/A
269
STEEL BALL 6.5MM
Price
N/A
270
OIL SIGHT GLASS M18-1.5
Price
N/A
271
CAP SCREW M5-.8 X 20
Price
N/A
272
GEARBOX COVER (REAR)
Price
$42.45
273
BUTTON HD CAP SCR M5-.8 X 8
Price
N/A
274
ROLL PIN 5 X 20
Price
$2.60
275
OVERLOAD SHAFT SLEEVE
Price
$22.35
276
SET SCREW M6-1 X 10
Price
N/A
277
STEEL BALL 6MM
Price
N/A
278
COMPRESSION SPRING 0.7 X 4.7 X 16
Price
N/A
279
SET SCREW M8-1.25 X 8
Price
N/A
280
GEARBOX OIL PLUG COVER
Price
$89.15
281
CAP SCREW M5-.8 X 30
Price
N/A

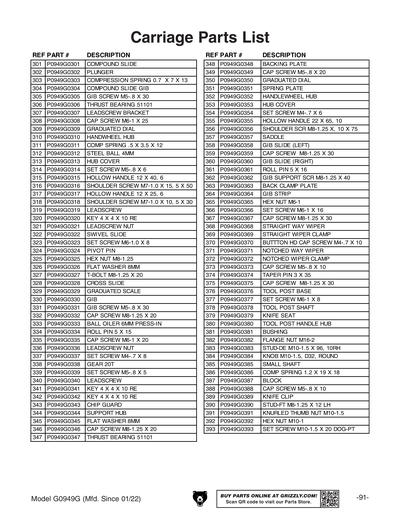

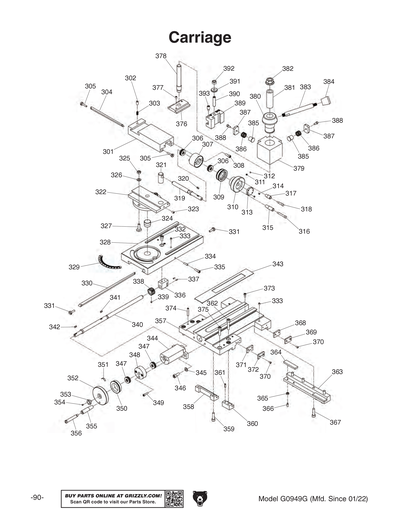

301
COMPOUND SLIDE
Price
$84.85
302
PLUNGER
Price
$4.70
303
COMPRESSION SPRING 0.7 X 7 X 13
Price
$2.60
304
COMPOUND SLIDE GIB
Price
$22.35
305
GIB SCREW M5-.8 X 30
Price
$4.70
306
THRUST BEARING 51101
Price
N/A
307
LEADSCREW BRACKET
Price
$27.00
308
CAP SCREW M6-1 X 25
Price
N/A
309
GRADUATED DIAL
Price
$27.00
310
HANDWHEEL HUB
Price
$35.95
311
COMP SPRING .5 X 3.5 X 12
Price
$2.60
312
STEEL BALL 5MM
Price
N/A
313
HUB COVER
Price
$9.00
314
SET SCREW M5-.8 X 6
Price
N/A
315
HOLLOW HANDLE 12 X 40, 6
Price
$9.00
316
SHOULDER SCREW M7-1.0 X 15, 5 X 50
Price
$9.00
317
HOLLOW HANDLE 12 X 25, 6
Price
$9.00
318
SHOULDER SCREW M7-1.0 X 10, 5 X 30
Price
$9.00
319
LEADSCREW
Price
$40.25
320
KEY 4 X 4 X 10 RE
Price
$2.60
321
LEADSCREW NUT
Price
$22.35
322
SWIVEL SLIDE
Price
$93.85
323
SET SCREW M6-1 X 8
Price
N/A
324
PIVOT PIN
Price
$11.20
325
HEX NUT M8-1.25
Price
N/A
326
FLAT WASHER 8MM
Price
N/A
327
T-BOLT M8-1.25 X 20
Price
$9.00
328
CROSS SLIDE
Price
$191.95
329
GRADUATED SCALE
Price
$9.00
330
GIB
Price
$58.25
331
GIB SCREW M5-.8 X 30
Price
N/A
332
CAP SCREW M8-1.25 X 20
Price
N/A
333
BALL OILER 6MM PRESS-IN
Price
N/A
334
ROLL PIN 5 X 15
Price
$2.60
335
CAP SCREW M6-1 X 20
Price
N/A
336
LEADSCREW NUT
Price
$44.60
337
SET SCREW M4-.7 X 8
Price
N/A
338
GEAR 20T
Price
$44.60
339
SET SCREW M6-1 X 8
Price
N/A
340
LEADSCREW
Price
$75.90
341
KEY 4 X 4 X 10 RE
Price
N/A
342
KEY 4 X 4 X 10 RE
Price
N/A
343
CHIP GUARD
Price
$9.00
344
SUPPORT HUB
Price
$40.25
345
FLAT WASHER 8MM
Price
N/A
346
CAP SCREW M8-1.25 X 20
Price
N/A
347
THRUST BEARING 51101
Price
N/A
348
BACKING PLATE
Price
$31.35
349
CAP SCREW M5-.8 X 20
Price
N/A
350
GRADUATED DIAL
Price
$31.35
351
SPRING PLATE
Price
$3.65
352
HANDLEWHEEL HUB
Price
$44.60
353
HUB COVER
Price
$6.90
354
SET SCREW M4-.7 X 6
Price
N/A
355
HOLLOW HANDLE 18 X 63, 6
Price
$11.20
356
SHOULDER SCR M10-1.50 X 18, 8 X 76
Price
$11.20
357
SADDLE
Price
$334.25
358
GIB SLIDE (LEFT)
Price
$40.25
359
CAP SCREW M8-1.25 X 30
Price
N/A
360
GIB SLIDE (RIGHT)
Price
$35.95
361
ROLL PIN 5 X 16
Price
N/A
362
GIB SUPPORT SCR M8-1.25 X 40
Price
$3.65
363
BACK CLAMP PLATE
Price
$53.60
364
GIB STRIP
Price
$13.70
365
HEX NUT M8-1.25
Price
N/A
366
SET SCREW M6-1 X 16
Price
N/A
367
CAP SCREW M8-1.25 X 30
Price
N/A
368
STRAIGHT WAY WIPER
Price
$5.45
369
STRAIGHT WIPER CLAMP
Price
$5.45
370
BUTTON HD CAP SCR M4-.7 X 10
Price
N/A
371
NOTCHED WAY WIPER
Price
$5.45
372
NOTCHED WIPER CLAMP
Price
$5.45
373
CAP SCREW M5-.8 X 10
Price
N/A
374
TAPER PIN 3 X 35
Price
$2.60
375
CAP SCREW M8-1.25 X 30
Price
N/A
376
TOOL POST BASE
Price
$31.35
377
SET SCREW M6-1 X 8
Price
N/A
378
TOOL POST SHAFT
Price
$22.35
379
KNIFE SEAT
Price
$338.95
380
TOOL POST HANDLE HUB
Price
$31.35
381
BUSHING
Price
$13.70
382
FLANGE NUT M16-2
Price
$9.00
383
STUD-DE M10-1.5 X 96, 10RH
Price
$9.00
384
KNOB M10-1.5, D32, ROUND
Price
$4.70
385
SMALL SHAFT
Price
$6.90
386
COMP SPRING 1.2 X 19 X 18
Price
$3.65
387
BLOCK
Price
$9.00
388
CAP SCREW M5-.8 X 10
Price
N/A
389
KNIFE CLIP
Price
$49.25
390
STUD-FT M8-1.25 X 12 LH
Price
$4.70
391
KNURLED THUMB NUT M10-1.5
Price
$4.70
392
HEX NUT M10-1
Price
N/A
393
SET SCREW M10-1.5 X 20 DOG-PT
Price
N/A

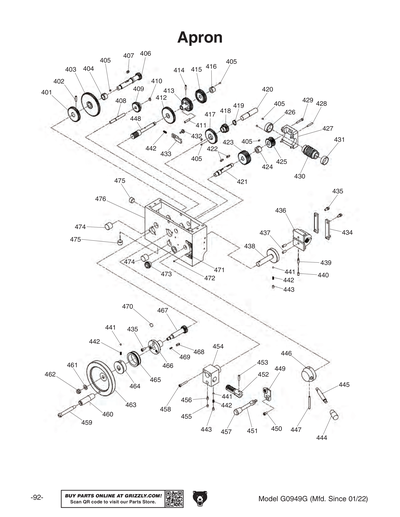

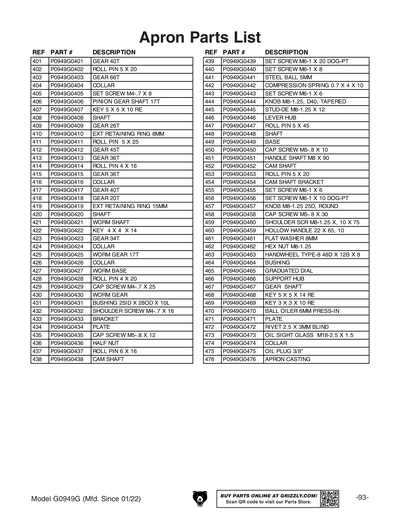

401
GEAR 40T
Price
$35.95
402
ROLL PIN 5 X 20
Price
N/A
403
GEAR 66T
Price
$44.60
404
COLLAR
Price
$13.70
405
SET SCREW M4-.7 X 8
Price
N/A
406
PINION GEAR SHAFT 17T
Price
$44.60
407
KEY 5 X 5 X 10 RE
Price
$2.60
408
SHAFT
Price
$13.70
409
GEAR 26T
Price
$27.00
410
EXT RETAINING RING 8MM
Price
N/A
411
ROLL PIN 5 X 25
Price
N/A
412
GEAR 45T
Price
$53.60
413
GEAR 36T
Price
$49.25
414
ROLL PIN 4 X 16
Price
N/A
415
GEAR 36T
Price
$49.25
416
COLLAR
Price
$15.85
417
GEAR 40T
Price
$31.35
418
GEAR 20T
Price
$27.00
419
EXT RETAINING RING 15MM
Price
N/A
420
SHAFT
Price
$15.85
421
WORM SHAFT
Price
$31.35
422
KEY 4 X 4 X 14
Price
N/A
423
GEAR 34T
Price
$44.60
424
COLLAR
Price
$15.85
425
WORM GEAR 17T
Price
$58.25
426
COLLAR
Price
$22.35
427
WORM BASE
Price
$62.60
428
ROLL PIN 4 X 20
Price
N/A
429
CAP SCREW M4-.7 X 25
Price
N/A
430
WORM GEAR
Price
$58.25
431
BUSHING 25ID X 28OD X 10L
Price
$13.70
432
SHOULDER SCREW M4-.7 X 16
Price
$4.70
433
BRACKET
Price
$20.15
434
PLATE
Price
$15.85
435
CAP SCREW M5-.8 X 12
Price
N/A
436
HALF NUT
Price
$44.60
437
ROLL PIN 6 X 16
Price
N/A
438
CAM SHAFT
Price
$44.60
439
SET SCREW M6-1 X 20
Price
N/A
440
SET SCREW M6-1 X 8
Price
N/A
441
STEEL BALL 5MM
Price
N/A
442
COMPRESSION SPRING 0.7 X 4 X 10
Price
$2.60
443
SET SCREW M6-1 X 6
Price
N/A
444
KNOB M8-1.25, D40, TAPERED
Price
$9.00
445
STUD-DE M8-1.25 X 12
Price
$18.00
446
LEVER HUB
Price
$29.15
447
ROLL PIN 5 X 45
Price
N/A
448
SHAFT
Price
$40.25
449
BASE
Price
$44.60
450
CAP SCREW M5-.8 X 10
Price
N/A
451
HANDLE SHAFT M8 X 90
Price
$27.00
452
CAM SHAFT
Price
$53.60
453
ROLL PIN 5 X 20
Price
N/A
454
CAM SHAFT BRACKET
Price
$62.60
455
SET SCREW M6-1 X 6
Price
N/A
456
SET SCREW M6-1 X 10
Price
N/A
457
KNOB M8-1.25 25D, ROUND
Price
$9.00
458
CAP SCREW M5-.8 X 30
Price
N/A
459
SHOULDER SCR M8-1.25 X 8, 6 X 63
Price
$13.70
460
HOLLOW HANDLE 18 X 76, 6
Price
$13.70
461
FLAT WASHER 8MM
Price
N/A
462
HEX NUT M8-1.25
Price
N/A
463
HANDWHEEL TYPE-8 48D X 12B X 8
Price
$44.60
464
BUSHING
Price
$27.00
465
GRADUATED DIAL
Price
$27.00
466
SUPPORT HUB
Price
$31.35
467
GEAR SHAFT
Price
$31.35
468
KEY 5 X 5 X 14 RE
Price
$2.60
469
KEY 3 X 3 X 10 RE
Price
$2.60
470
BALL OILER 6MM PRESS-IN
Price
N/A
471
PLATE
Price
$8.35
472
RIVET 2.5 X 3MM BLIND
Price
$2.60
473
OIL SIGHT GLASS M18-2.5 X 1.5
Price
$6.90
474
COLLAR
Price
$11.20
475
OIL DRAIN PLUG 3/8"
Price
N/A
476
APRON CASTING
Price
$245.15

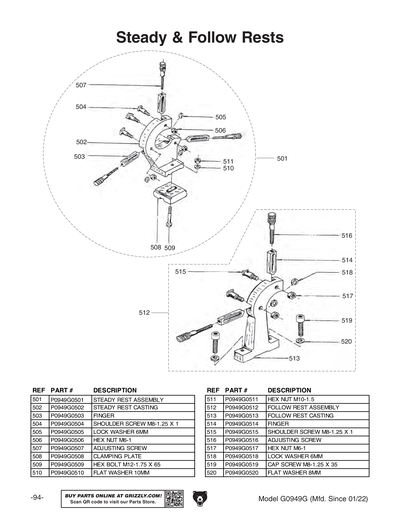

501
STEADY REST ASSEMBLY
Price
$209.60
502
STEADY REST CASTING
Price
$133.70
503
FINGER
Price
$13.70
504
SHOULDER SCREW M8-1.25 X 1
Price
$4.70
505
LOCK WASHER 6MM
Price
N/A
506
HEX NUT M6-1
Price
N/A
507
ADJUSTING SCREW
Price
$4.70
508
CLAMPING PLATE
Price
$27.00
509
HEX BOLT M12-1.75 X 65
Price
N/A
510
FLAT WASHER 10MM
Price
N/A
511
HEX NUT M10-1.5
Price
N/A
512
FOLLOW REST ASSEMBLY
Price
$102.85
513
FOLLOW REST CASTING
Price
$44.60
514
FINGER
Price
$13.70
515
SHOULDER SCREW M8-1.25 X 1
Price
N/A
516
ADJUSTING SCREW
Price
$9.00
517
HEX NUT M6-1
Price
N/A
518
LOCK WASHER 6MM
Price
N/A
519
CAP SCREW M8-1.25 X 35
Price
N/A
520
FLAT WASHER 8MM
Price
N/A

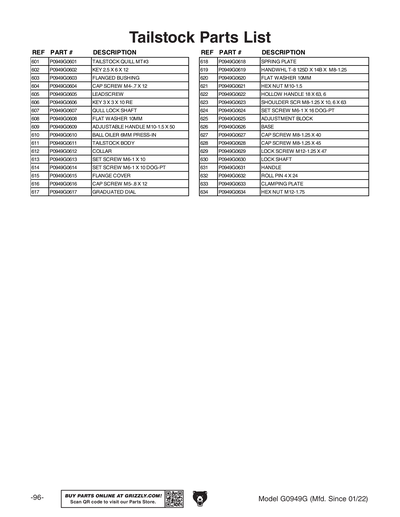

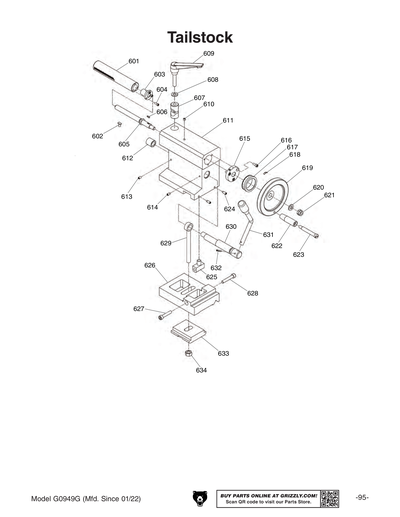

601
TAILSTOCK QUILL MT#3
Price
$87.00
602
KEY 2.5 X 6 X 12
Price
$2.60
603
FLANGED BUSHING
Price
$31.35
604
CAP SCREW M4-.7 X 12
Price
N/A
605
LEADSCREW
Price
$44.60
606
KEY 3 X 3 X 10 RE
Price
N/A
607
QULL LOCK SHAFT
Price
$22.35
608
FLAT WASHER 10MM
Price
N/A
609
ADJUSTABLE HANDLE M10-1.5 X 50
Price
$13.70
610
BALL OILER 6MM PRESS-IN
Price
N/A
611
TAILSTOCK BODY
Price
$267.40
612
COLLAR
Price
$13.70
613
SET SCREW M6-1 X 10
Price
N/A
614
SET SCREW M6-1 X 10 DOG-PT
Price
N/A
615
FLANGE COVER
Price
$22.35
616
CAP SCREW M5-.8 X 12
Price
N/A
617
GRADUATED DIAL
Price
$31.35
618
SPRING PLATE
Price
$3.65
619
HANDWHL T-8 125D X 14B X M8-1.25
Price
$55.75
620
FLAT WASHER 10MM
Price
N/A
621
HEX NUT M10-1.5
Price
N/A
622
HOLLOW HANDLE 18 X 63, 6
Price
$11.20
623
SHOULDER SCR M8-1.25 X 10, 6 X 63
Price
$11.20
624
SET SCREW M6-1 X 16
Price
N/A
625
ADJUSTMENT BLOCK
Price
$18.00
626
BASE
Price
$53.60
627
CAP SCREW M8-1.25 X 40
Price
N/A
628
CAP SCREW M8-1.25 X 45
Price
N/A
629
LOCK SCREW M12-1.25 X 47
Price
$13.70
630
LOCK SHAFT
Price
$31.35
631
HANDLE
Price
$31.35
632
ROLL PIN 4 X 24
Price
N/A
633
CLAMPING PLATE
Price
$31.35
634
HEX NUT M12-1.75
Price
N/A

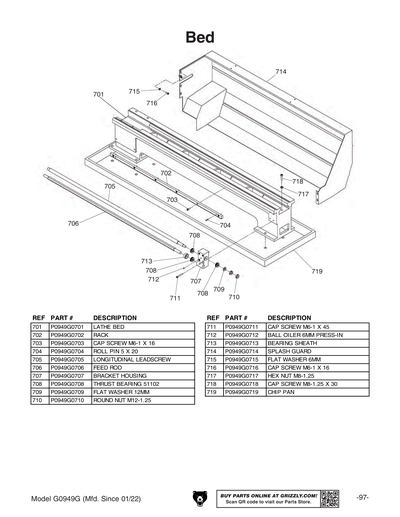

701
LATHE BED
Price
$1,336.90
702
RACK
Price
$156.00
703
CAP SCREW M6-1 X 16
Price
N/A
704
ROLL PIN 5 X 20
Price
N/A
705
LONGITUDINAL LEADSCREW
Price
$245.15
706
FEED ROD
Price
$147.40
707
BRACKET HOUSING
Price
$71.60
708
THRUST BEARING 51102
Price
N/A
709
FLAT WASHER 12MM
Price
N/A
710
ROUND NUT M12-1.25
Price
$9.00
711
CAP SCREW M6-1 X 45
Price
N/A
712
BALL OILER 6MM PRESS-IN
Price
N/A
713
BEARING SHEATH
Price
$9.00
714
SPLASH GUARD
Price
$307.65
715
FLAT WASHER 6MM
Price
N/A
716
CAP SCREW M6-1 X 16
Price
N/A
717
HEX NUT M8-1.25
Price
N/A
718
CAP SCREW M8-1.25 X 30
Price
N/A
719
CHIP PAN
Price
$249.85

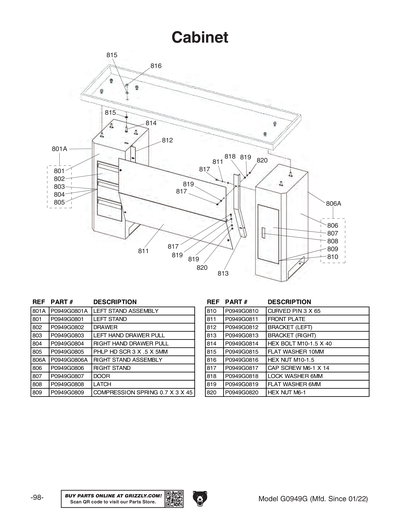

801
LEFT STAND
Price
$534.75
801A
LEFT STAND ASSEMBLY
Price
$623.90
802
DRAWER
Price
$53.60
803
LEFT HAND DRAWER PULL
Price
$13.40
804
RIGHT HAND DRAWER PULL
Price
$13.40
805
PHLP HD SCR 3 X .5 X 5MM
Price
$2.60
806
RIGHT STAND
Price
$490.20
806A
RIGHT STAND ASSEMBLY
Price
$579.35
807
DOOR
Price
$71.60
808
LATCH
Price
$24.85
809
COMPRESSION SPRING 0.7 X 3 X 45
Price
$4.70
810
CURVED PIN 3 X 65
Price
$4.70
811
FRONT PLATE
Price
$116.15
812
BRACKET (LEFT)
Price
$62.60
813
BRACKET (RIGHT)
Price
$62.60
814
HEX BOLT M10-1.5 X 40
Price
N/A
815
FLAT WASHER 10MM
Price
N/A
816
HEX NUT M10-1.5
Price
N/A
817
CAP SCREW M6-1 X 14
Price
N/A
818
LOCK WASHER 6MM
Price
N/A
819
FLAT WASHER 6MM
Price
N/A
820
HEX NUT M6-1
Price
N/A

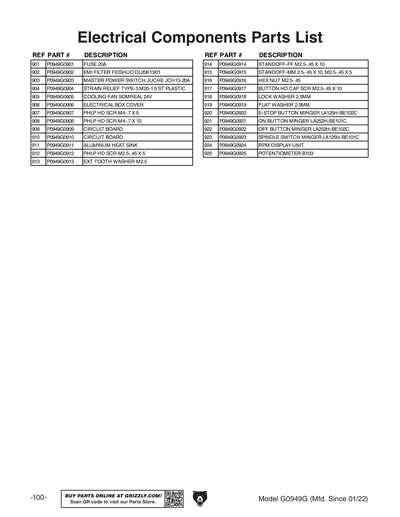

901
FUSE 20A
Price
$2.60
902
EMI FILTER FEISHUO DL20K13/01
Price
$102.85
903
MASTER POWER SWITCH JUCHE JCH13-20A
Price
$58.25
904
STRAIN RELIEF TYPE-3 M20-1.5 ST PLASTIC
Price
N/A
905
COOLING FAN SOMREAL 24V
Price
$66.90
906
ELECTRICAL BOX COVER
Price
$27.00
907
PHLP HD SCR M4-.8 X 5
Price
$2.60
908
PHLP HD SCR M4-.7 X 10
Price
N/A
909
CIRCUIT BOARD (2PC)
Price
$1,069.50
910
CIRCUIT BOARD (2PC)
Price
N/A
911
ALUMINUM HEAT SINK
Price
$58.25
912
PHLP HD SCR M2.5-.45 X 5
Price
$2.60
913
EXT TOOTH WASHER M2.5
Price
$2.60
914
STANDOFF-FF M2.5-.45 X 10
Price
$2.60
915
STANDOFF-MM 2.5-.45 X 10, M2.5-.45 X 5
Price
$2.60
916
HEX NUT M2.5-.45
Price
$2.60
917
BUTTON HD CAP SCR M2.5-.45 X 10
Price
$2.60
918
LOCK WASHER 2.5MM
Price
$2.60
919
FLAT WASHER 2.5MM
Price
$2.60
920
E-STOP BUTTON MINGER LA125H-BE102C
Price
N/A
921
ON BUTTON MINGER LA125H-BE101C
Price
N/A
922
OFF BUTTON MINGER LA125H-BE102C
Price
N/A
923
SPINDLE SWITCH MINGER LA125H-BE101C
Price
$44.60
924
RPM DISPLAY UNIT
Price
N/A
925
POTENTIOMETER B103
Price
$27.70

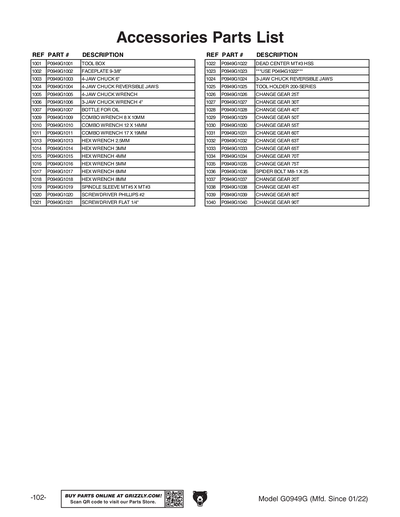

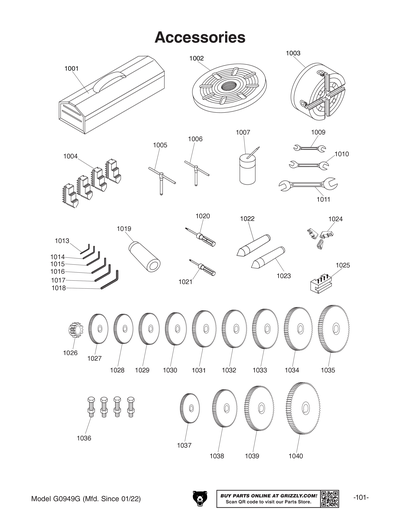

1001
TOOL BOX
Price
$57.95
1002
FACEPLATE 9-3/8"
Price
$173.95
1003
4-JAW CHUCK 6"
Price
$601.65
1004
4-JAW CHUCK REVERSIBLE JAWS
Price
$191.95
1005
4-JAW CHUCK WRENCH
Price
$23.75
1006
3-JAW CHUCK WRENCH 4"
Price
$23.75
1007
BOTTLE FOR OIL
Price
$7.20
1008
SPINDLE WRENCH 4"
Price
$23.75
1009
WRENCH 10 X 12MM OPEN-ENDS
Price
N/A
1010
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
1011
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
1012
HEX WRENCH 2.5MM
Price
N/A
1013
HEX WRENCH 2.5MM
Price
N/A
1014
HEX WRENCH 3MM
Price
N/A
1015
HEX WRENCH 4MM
Price
N/A
1016
HEX WRENCH 5MM
Price
N/A
1017
HEX WRENCH 6MM
Price
N/A
1018
HEX WRENCH 8MM
Price
N/A
1019
SPINDLE SLEEVE MT#5 X MT#3
Price
$55.75
1020
SCREWDRIVER PHILLIPS #2
Price
N/A
1021
SCREWDRIVER FLAT 1/4"
Price
$14.75
1022
DEAD CENTER MT#3 HSS
Price
$27.00
1023
DEAD CENTER MT#3 HSS
Price
N/A
1024
3-JAW CHUCK REVERSIBLE JAWS
Price
$191.95
1025
TOOL HOLDER 200-SERIES
Price
N/A
1026
CHANGE GEAR 25T
Price
$27.00
1027
CHANGE GEAR 30T
Price
$27.00
1028
CHANGE GEAR 40T
Price
$35.95
1029
CHANGE GEAR 50T
Price
$40.25
1030
CHANGE GEAR 55T
Price
$40.25
1031
CHANGE GEAR 60T
Price
$44.60
1032
CHANGE GEAR 63T
Price
$44.60
1033
CHANGE GEAR 65T
Price
$49.25
1034
CHANGE GEAR 70T
Price
$53.60
1035
CHANGE GEAR 75T
Price
$58.25
1036
SPIDER BOLT M8-1 X 25
Price
$5.45
1037
CHANGE GEAR 20T
Price
$27.00
1038
CHANGE GEAR 45T
Price
$38.15
1039
CHANGE GEAR 80T
Price
$66.90
1040
CHANGE GEAR 90T
Price
$71.60

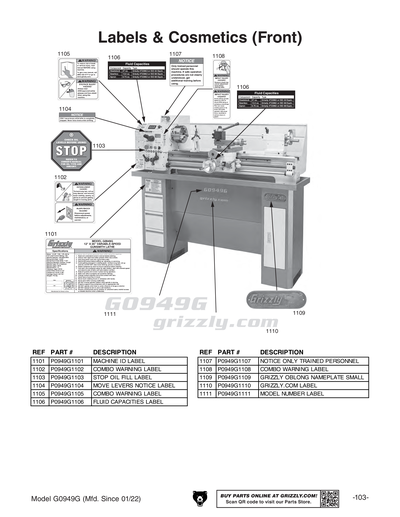

1101
MACHINE ID LABEL
Price
$11.90
1102
COMBO WARNING LABEL
Price
$15.65
1103
STOP OIL FILL LABEL
Price
$7.20
1104
MOVE LEVERS NOTICE LABEL
Price
$7.85
1105
COMBO WARNING LABEL
Price
$15.65
1106
FLUID CAPACITIES LABEL
Price
$7.20
1107
NOTICE ONLY TRAINED PERSONNEL
Price
$9.00
1108
COMBO WARNING LABEL
Price
$15.65
1109
Oblong Nameplate-Small
Price
N/A
1110
GRIZZLY.COM LABEL 13.25",GRAY
Price
N/A
1111
MODEL NUMBER LABEL
Price
$11.90

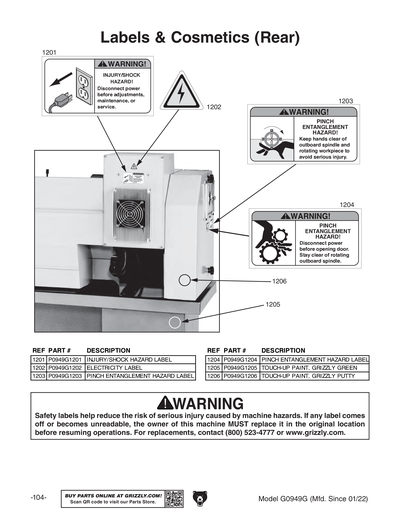

1201
INJURY/SHOCK HAZARD LABEL
Price
$7.85
1202
ELECTRICITY 0.7W X 0.6H
Price
N/A
1203
PINCH ENTANGLEMENT HAZARD LABEL
Price
$7.85
1204
PINCH ENTANGLEMENT HAZARD LABEL
Price
$7.85
1205
N/S GRIZZLY GREEN G1023S
Price
N/A
1206
GREY PUTTY REF G0504
Price
N/A

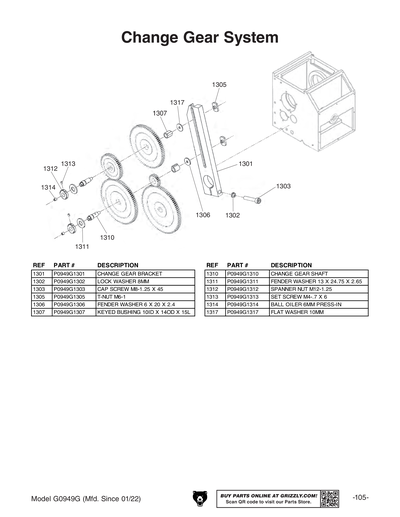

1301
CHANGE GEAR BRACKET
Price
$62.45
1302
LOCK WASHER 8MM
Price
N/A
1303
CAP SCREW M8-1.25 X 45
Price
N/A
1305
T-NUT M6-1
Price
$4.50
1306
FENDER WASHER 6 X 20 X 2.4
Price
$2.25
1307
KEYED BUSHING 10ID X 14OD X 15L
Price
$6.70
1310
CHANGE GEAR SHAFT
Price
$13.40
1311
FENDER WASHER 13 X 24.75 X 2.65
Price
$3.65
1312
SPANNER NUT M12-1.25
Price
$8.95
1313
SET SCREW M4-.7 X 6
Price
N/A
1314
BALL OILER 6MM PRESS-IN
Price
N/A
1317
FLAT WASHER 10MM
Price
N/A
MAN
MANUAL G0949G MFD-01.22+ V1.05.23
Price
$20.25
