Parts for G0950 - 48" 16-Gauge Pan and Box Brake

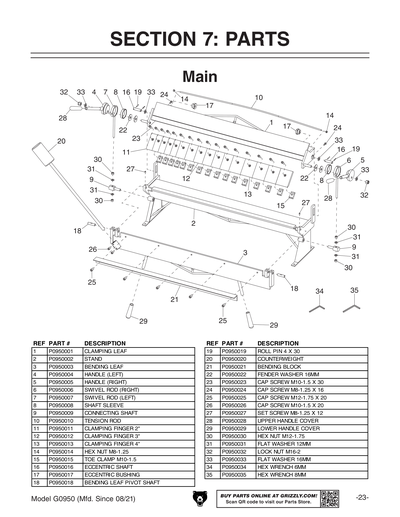

Part Diagram for G0950
Part Diagram for G0950
Part Diagram for G0950
Part Diagram for G0950

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
STAND W/CLAMPING AND BENDING LEAF
Price
N/A
2
STAND W/CLAMPING AND BENDING LEAF
Price
$1,125.00
3
STAND W/CLAMPING AND BENDING LEAF
Price
N/A
4
Price
$39.20
5
Price
$39.20
6
Price
$33.45
7
Price
$33.45
8
Price
$28.10
9
Price
$13.70
10
Price
$7.95
11
Price
$22.35
12
Price
$31.35
13
Price
$40.25
14
HEX NUT M8-1.25
Price
N/A
15
Price
$13.70
16
Price
$5.75
17
Price
$16.95
18
BENDING LEAF PIVOT SHAFT
Price
$5.75
19
ROLL PIN 4 X 30
Price
N/A
20
Price
$133.70
21
Price
$72.65
22
FENDER WASHER 16MM
Price
N/A
23
CAP SCREW M10-1.5 X 30
Price
N/A
24
CAP SCREW M8-1.25 X 16
Price
N/A
24V2
CAP SCREW M6-1 X 16
Price
N/A
25
CAP SCREW M12-1.75 X 20
Price
N/A
25V2
CAP SCREW M10-1.5 X 20
Price
N/A
26
CAP SCREW M10-1.5 X 20
Price
N/A
27
SET SCREW M4-.7 X 8
Price
N/A
28
Price
$3.65
29
Price
$4.70
30
HEX NUT M12-1.75
Price
N/A
31
FLAT WASHER 12MM
Price
N/A
32
LOCK NUT M16-2
Price
N/A
33
FLAT WASHER 16MM
Price
N/A
34
HEX WRENCH 6MM
Price
N/A
34V2
HEX WRENCH 5MM
Price
N/A
35
HEX WRENCH 8MM
Price
N/A

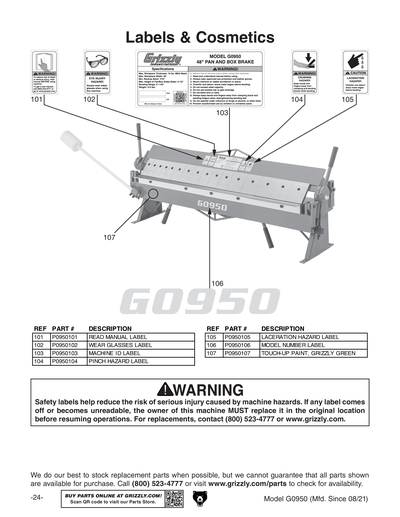

101
READ MANUAL 1.5W X 2.5H
Price
N/A
102
SAFETY GLASSES 1.5W X 2.5H
Price
N/A
103
Price
$1.00
104
Price
$1.25
105
LACERATION HAZARD LABEL
Price
$1.25
106
Price
$5.35
107
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL G0950 MFD-08.21+ V1.10.21
Price
$1.50
