Parts for G0953 - Portable HEPA Fume Extractor

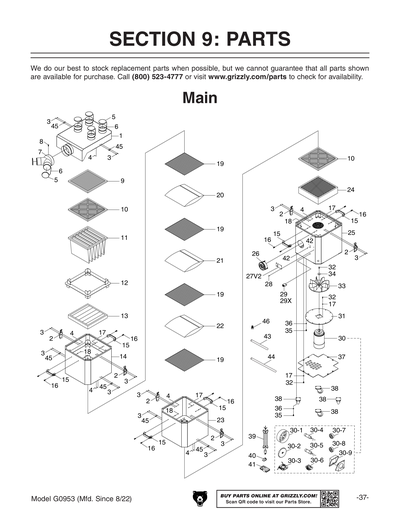

Part Diagram for G0953
Part Diagram for G0953
Part Diagram for G0953
Part Diagram for G0953
Part Diagram for G0953
Part Diagram for G0953

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

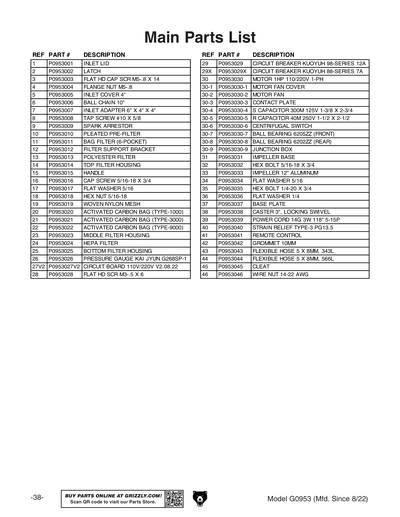

Ref #
Part #
Description
1
Price
$127.45
2
Price
$13.95
3
FLAT HD CAP SCR M5-.8 X 14
Price
$1.60
4
FLANGE NUT M5-.8
Price
N/A
5
Price
$4.60
6
Price
$16.95
7
INLET ADAPTER 6" X 4" X 4"
Price
$15.70
8
TAP SCREW #10 X 5/8
Price
N/A
9
Price
$79.95
10
2-10 Micron Pleated Pre-Filter For G0953
Price
N/A
11
Bag Filter For G0953
Price
N/A
12
Price
$133.15
13
1-Micron Pleated Polyester Filter For G0953
Price
N/A
14
Price
$228.25
15
Price
$3.40
16
CAP SCREW 5/16-18 X 3/4
Price
N/A
17
P0953017
Now: PW07
FLAT WASHER 5/16
Price
N/A
18
P0953018
Now: PN02
HEX NUT 5/16-18
Price
N/A
19
Woven Nylon Mesh for G0953
Price
N/A
20
Carbon Particle Bag, Type 1000 For G0953
Price
N/A
21
Carbon Particle Bag, Type 3000 For G0953
Price
N/A
22
Carbon Particle Bag, Type 9000 For G0953
Price
N/A
23
Price
$307.05
24
HEPA Filter For G0953
Price
N/A
25
Price
$550.40
26
PRESSURE GAUGE KAI JYUN G268SP-1
Price
$140.40
27V2
CIRCUIT BOARD 110V/220V V2.08.22
Price
$49.85
28
FLAT HD SCR M3-.5 X 6
Price
N/A
29
CIRCUIT BREAKER KUOYUH 98-SERIES 12A
Price
$9.10
29X
CIRCUIT BREAKER KUOYUH 88-SERIES 7A
Price
$9.10
30
MOTOR 1HP 110/220V 1-PH
Price
$450.15
30-1
Price
$11.85
30-2
Price
$5.15
30-3
Price
$11.85
30-4
S CAPACITOR 300M 125V 1-3/8 X 2-3/4
Price
$9.10
30-5
R CAPACITOR 40M 250V 1-1/2 X 2-1/2
Price
$16.35
30-6
Price
$11.85
30-7
BALL BEARING 6205ZZ
Price
N/A
30-8
BALL BEARING 6202ZZ
Price
N/A
30-9
Price
$8.50
31
Price
$49.55
32
P0953032
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
33
Price
$262.70
34
P0953034
Now: PW07
FLAT WASHER 5/16
Price
N/A
35
P0953035
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
36
P0953036
Now: PW06
FLAT WASHER 1/4
Price
N/A
37
Price
$50.75
38
CASTER 3", LOCKING SWIVEL
Price
$17.85
39
POWER CORD 14G 3W 118" 5-15P
Price
$26.35
40
STRAIN RELIEF TYPE-3 PG13.5
Price
$4.85
41
Price
$19.65
42
Price
$1.60
43
FLEXIBLE HOSE 5 X 8MM, 343L
Price
$1.60
44
FLEXIBLE HOSE 5 X 8MM, 566L
Price
$1.60
45
Price
$1.85
46
WIRE NUT 14-22 AWG
Price
N/A

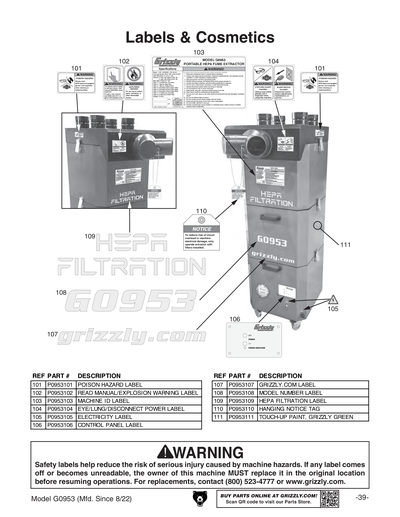

101
Price
$1.05
102
READ MANUAL/EXPLOSION WARNING LABEL
Price
$1.05
103
Price
$16.40
104
EYE/LUNG/DISCONNECT POWER LABEL
Price
$1.05
105
ELECTRICITY 0.7W X 0.6H
Price
N/A
106
Price
$6.85
107
GRIZZLY.COM LABEL 12",GRAY
Price
N/A
108
Price
$3.70
109
Price
$6.05
110
Price
$1.60
111
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL G0953 MFD-11.21-07.22 V1.07.22
Price
$21.95
MANV2
MANUAL G0953 MFD-08.22+ V2.08.22
Price
$14.65
