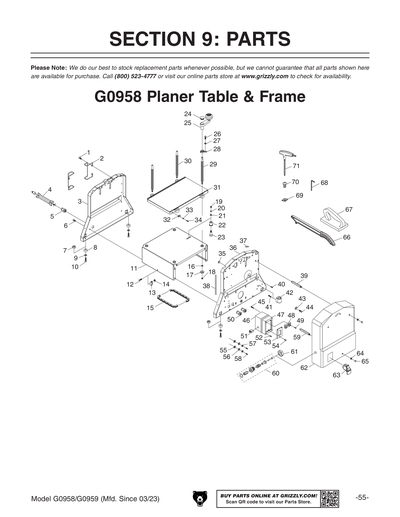

Parts for G0958 8" Combo Planer/Jointer with Helical Cutterhead

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

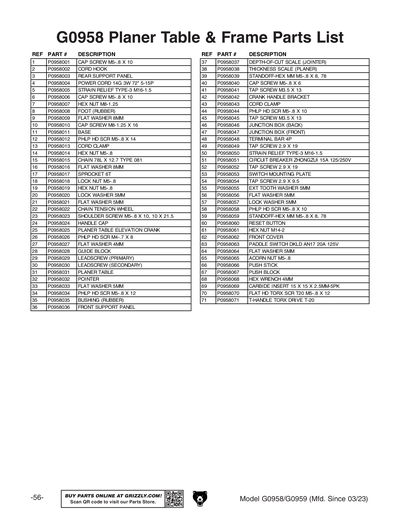

1
CAP SCREW M5-.8 X 10
Price
N/A
2
CORD HOOK
3
REAR SUPPORT PANEL
4
POWER CORD 14G 3W 72" 5-15P
5
STRAIN RELIEF TYPE-3 M16-1.5
6
CAP SCREW M5-.8 X 10
Price
N/A
7
Now: PN03M
HEX NUT M8-1.25
Price
N/A
8
FOOT (RUBBER)
9
Now: PW01M
FLAT WASHER 8MM
Price
N/A
10
CAP SCREW M8-1.25 X 16
Price
N/A
11
BASE
12
Now: PS57M
PHLP HD SCR M5-.8 X 14
Price
N/A
13
CORD CLAMP
14
Now: PN06M
HEX NUT M5-.8
Price
N/A
15
CHAIN 78L X 12.7 TYPE 081
16
Now: PW01M
FLAT WASHER 8MM
Price
N/A
17
SPROCKET 6T
18
LOCK NUT M5-.8
Price
N/A
19
Now: PN06M
HEX NUT M5-.8
Price
N/A
20
LOCK WASHER 5MM
Price
N/A
21
Now: PW02M
FLAT WASHER 5MM
Price
N/A
22
CHAIN TENSION WHEEL
23
SHOULDER SCREW M5-.8 X 10, 10 X 21.5
24
HANDLE CAP
25
PLANER TABLE ELEVATION CRANK
26
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
27
Now: PW05M
FLAT WASHER 4MM
Price
N/A
28
GUIDE BLOCK
29
LEADSCREW (PRIMARY)
30
LEADSCREW (SECONDARY)
31
PLANER TABLE
32
POINTER
33
Now: PW02M
FLAT WASHER 5MM
Price
N/A
34
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
35
BUSHING (RUBBER)
36
FRONT SUPPORT PANEL
37
DEPTH-OF-CUT SCALE (JOINTER)
38
THICKNESS SCALE (PLANER)
39
STANDOFF-HEX MM M5-.8 X 8, 78
40
CAP SCREW M5-.8 X 6
Price
N/A
41
TAP SCREW M3.5 X 13
Price
N/A
42
CRANK HANDLE BRACKET
43
CORD CLAMP
44
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
45
TAP SCREW M3.5 X 13
Price
N/A
46
JUNCTION BOX (BACK)
47
JUNCTION BOX (FRONT)
48
TERMINAL BAR 4P
49
TAP SCREW 2.9 X 19
50
STRAIN RELIEF TYPE-3 M16-1.5
51
CIRCUIT BREAKER ZHONGZUI 15A 125/250V
52
TAP SCREW 2.9 X 19
53
SWITCH MOUNTING PLATE
54
TAP SCREW 2.9 X 9.5
55
EXT TOOTH WASHER 5MM
Price
N/A
56
Now: PW02M
FLAT WASHER 5MM
Price
N/A
57
LOCK WASHER 5MM
Price
N/A
58
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
59
STANDOFF-HEX MM M5-.8 X 8, 78
60
RESET BUTTON
61
Now: PN32M
HEX NUT M14-2
Price
N/A
62
FRONT COVER
63
PADDLE SWITCH DKLD AN17 20A 125V
64
Now: PW02M
FLAT WASHER 5MM
Price
N/A
65
Now: PN54M
ACORN NUT M5-.8
Price
N/A
66
PUSH STICK
67
PUSH BLOCK
68
HEX WRENCH 4MM
Price
N/A
69
Now: H9893
Indexable Carbide Insert - 15 x 15 x 2.5mm, 10-Pk.
Price
N/A
70
FLAT HD TORX SCR T20 M5-.8 X 12
71
T-HANDLE TORX DRIVE T-20
Price
N/A
72

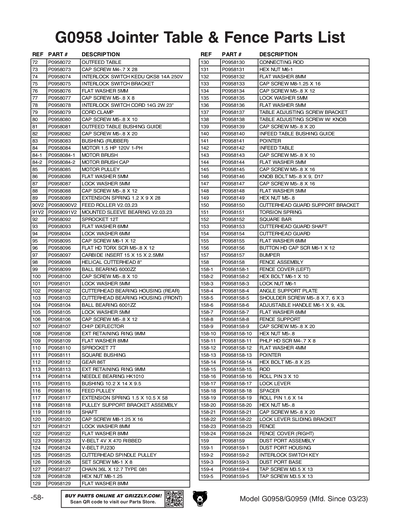

OUTFEED TABLE
73
CAP SCREW M4-.7 X 27
74
INTERLOCK SWITCH KEDU QKS8 14A 250V
75
INTERLOCK SWITCH BRACKET
76
Now: PW02M
FLAT WASHER 5MM
Price
N/A
77
CAP SCREW M5-.8 X 8
Price
N/A
78
INTERLOCK SWITCH CORD 14G 2W 23"
79
CORD CLAMP
80
CAP SCREW M5-.8 X 10
Price
N/A
81
OUTFEED TABLE BUSHING GUIDE
82
CAP SCREW M5-.8 X 20
Price
N/A
83
BUSHING (RUBBER)
84
MOTOR 1.5 HP 120V 1-PH
84-1
MOTOR BRUSH
84-2
MOTOR BRUSH CAP
85
MOTOR PULLEY
86
Now: PW02M
FLAT WASHER 5MM
Price
N/A
87
LOCK WASHER 5MM
Price
N/A
88
CAP SCREW M5-.8 X 12
Price
N/A
89
EXTENSION SPRING 1.2 X 9 X 28
90
***SEE EXT DESC***
90V2
FEED ROLLER V2.03.23
91
MOUNTED SLEEVE BEARING
91V2
MOUNTED SLEEVE BEARING V2.03.23
92
SPROCKET 12T
93
Now: PW03M
FLAT WASHER 6MM
Price
N/A
94
LOCK WASHER 6MM
Price
N/A
95
CAP SCREW M6-1 X 12
Price
N/A
96
FLAT HD TORX SCR M5-.8 X 12
97
CARBIDE INSERT 15 X 15 X 2.5MM
98
HELICAL CUTTERHEAD 8"
99
BALL BEARING 6000ZZ
Price
N/A
100
CAP SCREW M5-.8 X 10
Price
N/A
101
LOCK WASHER 5MM
Price
N/A
102
CUTTERHEAD BEARING HOUSING (REAR)
103
CUTTERHEAD BEARING HOUSING (FRONT)
104
BALL BEARING 6001ZZ
Price
N/A
105
LOCK WASHER 5MM
Price
N/A
106
CAP SCREW M5-.8 X 12
Price
N/A
107
CHIP DEFLECTOR
108
Now: PR16M
EXT RETAINING RING 9MM
Price
N/A
109
Now: PW01M
FLAT WASHER 8MM
Price
N/A
110
SPROCKET 7T
111
SQUARE BUSHING
112
GEAR 86T
113
Now: PR16M
EXT RETAINING RING 9MM
Price
N/A
114
NEEDLE BEARING HK1010
115
BUSHING 10.2 x 14 x 9.5
116
FEED PULLEY
117
EXTENSION SPRING 1.5 X 10.5 X 58
118
PULLEY SUPPORT BRACKET ASSEMBLY
119
SHAFT
120
CAP SCREW M8-1.25 X 16
Price
N/A
121
LOCK WASHER 8MM
Price
N/A
122
Now: PW01M
FLAT WASHER 8MM
Price
N/A
123
V-BELT 4V X 470 RIBBED
124
V-BELT PJ230
125
CUTTERHEAD SPINDLE PULLEY
126
SET SCREW M6-1 X 8
Price
N/A
127
CHAIN 36L X 12.7 TYPE 081
128
Now: PN03M
HEX NUT M8-1.25
Price
N/A
129
Now: PW01M
FLAT WASHER 8MM
Price
N/A
130
CONNECTING ROD
131
Now: PN01M
HEX NUT M6-1
Price
N/A
132
Now: PW01M
FLAT WASHER 8MM
Price
N/A
133
CAP SCREW M8-1.25 X 16
Price
N/A
134
CAP SCREW M5-.8 X 12
Price
N/A
135
LOCK WASHER 5MM
Price
N/A
136
Now: PW02M
FLAT WASHER 5MM
Price
N/A
137
TABLE ADJUSTING SCREW BRACKET
138
TABLE ADJUSTING SCREW W/ KNOB
139
CAP SCREW M5-.8 X 20
Price
N/A
140
INFEED TABLE BUSHING GUIDE
141
POINTER
142
INFEED TABLE
143
CAP SCREW M5-.8 X 10
Price
N/A
144
Now: PW02M
FLAT WASHER 5MM
Price
N/A
145
CAP SCREW M5-.8 X 16
Price
N/A
146
KNOB BOLT M5-.8 X 9, D17
147
CAP SCREW M5-.8 X 16
Price
N/A
148
Now: PW02M
FLAT WASHER 5MM
Price
N/A
149
Now: PN06M
HEX NUT M5-.8
Price
N/A
150
CUTTERHEAD GUARD SUPPORT BRACKET
151
TORSION SPRING
152
SQUARE BAR
153
CUTTERHEAD GUARD SHAFT
154
CUTTERHEAD GUARD
155
Now: PW03M
FLAT WASHER 6MM
Price
N/A
156
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
157
BUMPER
158

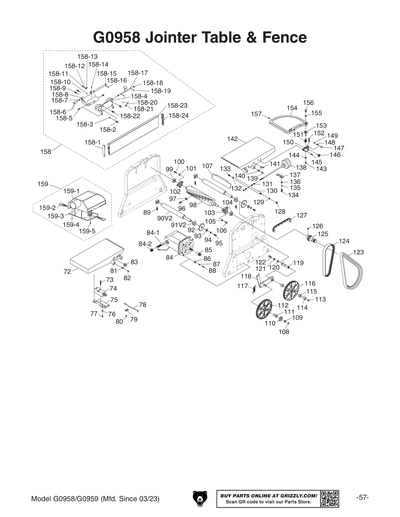

FENCE ASSEMBLY
158-1
FENCE COVER (LEFT)
158-10
Now: PN06M
HEX NUT M5-.8
Price
N/A
158-11
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
158-12
Now: PW05M
FLAT WASHER 4MM
Price
N/A
158-13
POINTER
158-14
Now: PB94M
HEX BOLT M5-.8 X 25
Price
N/A
158-15
ROD
158-16
ROLL PIN 3 X 10
Price
N/A
158-17
LOCK LEVER
158-18
SPACER
158-19
ROLL PIN 1.6 X 14
158-2
Now: PB04M
HEX BOLT M6-1 X 10
Price
N/A
158-20
Now: PN06M
HEX NUT M5-.8
Price
N/A
158-21
CAP SCREW M5-.8 X 20
Price
N/A
158-22
LOCK LEVER SLIDING BRACKET
158-23
FENCE
158-24
FENCE COVER (RIGHT)
158-3
LOCK NUT M6-1
Price
N/A
158-4
ANGLE SUPPORT PLATE
158-5
SHOULDER SCREW M5-.8 X 7, 6 X 3
158-6
ADJUSTABLE HANDLE M6-1 X 9, 43L
158-7
Now: PW03M
FLAT WASHER 6MM
Price
N/A
158-8
FENCE SUPPORT
158-9
CAP SCREW M5-.8 X 20
Price
N/A
159
DUST PORT ASSEMBLY
159-1
DUST PORT ASSEMBLY
Price
N/A
159-2
DUST PORT ASSEMBLY
Price
N/A
159-3
DUST PORT ASSEMBLY
Price
N/A
159-4
TAP SCREW M3.5 X 13
Price
N/A
159-5
TAP SCREW M3.5 X 13
Price
N/A

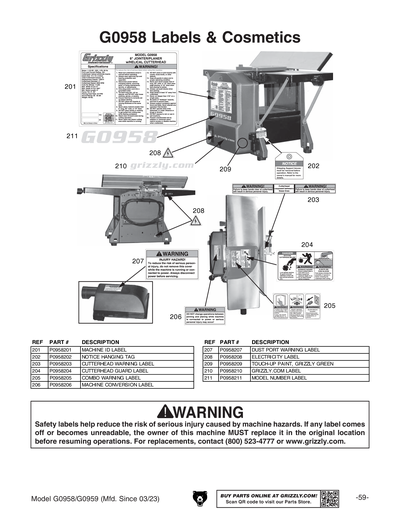

201
MACHINE ID LABEL
202
NOTICE HANGING TAG
203
CUTTERHEAD WARNING LABEL
204
CUTTERHEAD GUARD LABEL
205
COMBO WARNING LABEL
206
MACHINE CONVERSION LABEL
207
DUST PORT WARNING LABEL
208
ELECTRICITY 0.7W X 0.6H
Price
N/A
209
N/S GRIZZLY GREEN G1023S
Price
N/A
210
GRIZZLY.COM LABEL 5",BEIGE
Price
N/A
211
MODEL NUMBER LABEL
MAN
MANUAL G0958/59 MFD-05.22-02.23 V1.05.22
MANV2
MANUAL G0958/59 MFD-03.23+ V2.03.23
