Parts for G0960 Electric Sawmill

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

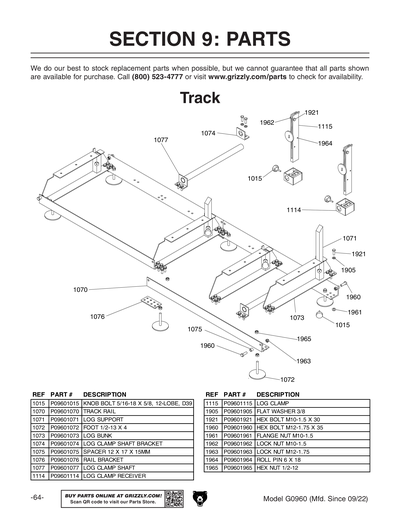

1015
KNOB BOLT 5/16-18 X 5/8, 12-LOBE, D39
1070
TRACK RAIL
1071
LOG SUPPORT
1072
FOOT
1073
LOG BUNK
1074
LOG CLAMP SHAFT BRACKET
1075
SPACER 12 X 17 X 15MM
1076
RAIL BRACKET
1077
LOG CLAMP SHAFT
1114
LOG CLAMP RECEIVER
1115
LOG CLAMP
1905
Now: PW02
FLAT WASHER 3/8
Price
N/A
1921
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
1960
Now: PB75M
HEX BOLT M12-1.75 X 35
Price
N/A
1961
FLANGE NUT M10-1.5
Price
N/A
1962
LOCK NUT M10-1.5
Price
N/A
1963
LOCK NUT M12-1.75
Price
N/A
1964
*DISCD*ROLL PIN 6 X 18
Price
N/A
1965
Now: PN06
HEX NUT 1/2-12
Price
N/A

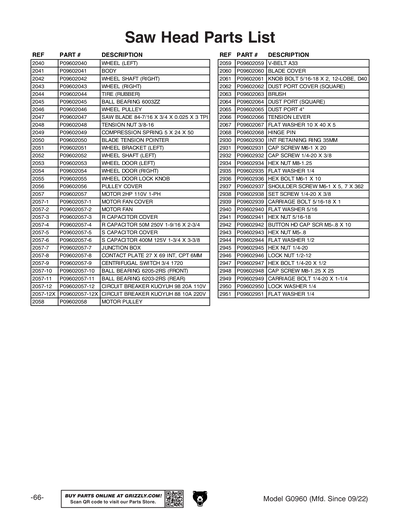

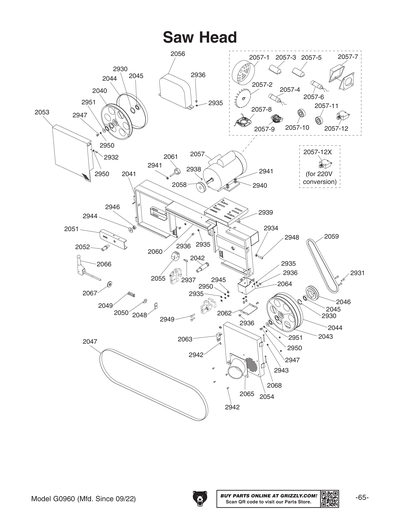

2040
WHEEL (LEFT)
2041
BODY
2042
WHEEL SHAFT (RIGHT)
2043
WHEEL (RIGHT)
2044
TIRE (RUBBER)
2045
Now: G3850
Bearing - 35mm x 17mm
Price
N/A
2046
WHEEL PULLEY
2047
84 7/16" x 3/4" x .025" 3 TPI Bandsaw Blade
Price
N/A
2048
TENSION NUT
Price
N/A
2049
COMPRESSION SPRING 5 X 24 X 50
2050
BLADE TENSION POINTER
Price
N/A
2051
WHEEL BRACKET (LEFT)
2052
WHEEL SHAFT (LEFT)
2053
WHEEL DOOR (LEFT)
2054
WHEEL DOOR (RIGHT)
2055
KNOB
Price
N/A
2056
PULLEY COVER
2057
MOTOR 2HP 110V 1-PH
2057-1
MOTOR FAN COVER
2057-10
BALL BEARING 6205-2RS
Price
N/A
2057-11
BALL BEARING 6203-2RS
Price
N/A
2057-12
CIRCUIT BREAKER KUOYUH 98 20A 110V
2057-12X
CIRCUIT BREAKER KUOYUH 88 10A 220V
2057-2
MOTOR FAN
2057-3
R CAPACITOR COVER
2057-4
R CAPACITOR 50M 250V 1-9/16 X 2-3/4
2057-5
S CAPACITOR COVER
2057-6
S CAPACITOR 400M 125V 1-3/4 X 3-3/8
Price
N/A
2057-7
JUNCTION BOX
2057-8
CONTACT PLATE 27 X69, CPT 6MM
2057-9
CENTRIFUGAL SWITCH 3/4 1720
2058
MOTOR PULLEY
2059
Now: PVA33
V-BELT A33
Price
N/A
2060
BLADE COVER
2061
LOCK SCREW 5/16-18 X 2
Price
N/A
2062
DUST PORT COVER (SQUARE)
2063
BRUSH
2064
DUST PORT (SQUARE)
2065
DUST PORT 4"
2066
BLADE TENSION HANDLE
Price
N/A
2067
FLAT WASHER 10 X 40 X 5
2068
HINGE PIN
2930
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
2931
CAP SCREW M6-1 X 20
Price
N/A
2932
CAP SCREW 1/4-20 X 3/8
Price
N/A
2934
Now: PN03M
HEX NUT M8-1.25
Price
N/A
2935
Now: PW06
FLAT WASHER 1/4
Price
N/A
2936
Now: PB04M
HEX BOLT M6-1 X 10
Price
N/A
2937
SHOULDER SCREW M6-1 X5, 7 X 362
2938
Now: PSS03
SET SCREW 1/4-20 X 3/8
Price
N/A
2939
Now: PCB11
CARRIAGE BOLT 5/16-18 X 1
Price
N/A
2940
Now: PW07
FLAT WASHER 5/16
Price
N/A
2941
Now: PN02
HEX NUT 5/16-18
Price
N/A
2942
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
2943
Now: PN06M
HEX NUT M5-.8
Price
N/A
2944
Now: PW01
FLAT WASHER 1/2
Price
N/A
2945
Now: PN05
HEX NUT 1/4-20
Price
N/A
2946
Now: PN13
HEX NUT 1/2-13
Price
N/A
2947
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
2948
CAP SCREW M8-1.25 X 25
Price
N/A
2949
Now: PCB07
CARRIAGE BOLT 1/4-20 X 1-1/4
Price
N/A
2950
Now: PLW02
LOCK WASHER 1/4
Price
N/A
2951
Now: PW06
FLAT WASHER 1/4
Price
N/A

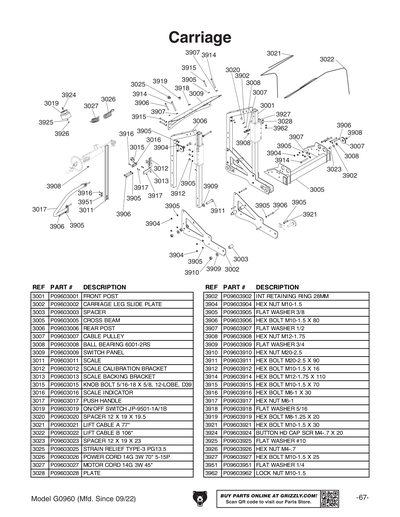

3001
FRONT POST
3002
CARRIAGE LEG SLIDE PLATE
3003
SPACER
3005
CROSS BEAM
3006
REAR POST
3007
CABLE PULLEY
3008
BALL BEARING 6001-2RS
Price
N/A
3009
SWITCH PANEL
3011
SCALE
3012
SCALE CALIBRATION BRACKET
3013
SCALE BACKING BRACKET
3015
KNOB BOLT 5/16-18 X 5/8, 12-LOBE, D39
Price
N/A
3016
SCALE INDICATOR
3017
PUSH HANDLE
3019
ON/OFF SWITCH JP-9501-1A/1B
3020
SPACER 12 X 19 X 19.5
3021
LIFT CABLE A 77"
3022
LIFT CABLE B 106"
3023
SPACER 12 X 19 X 23
3025
STRAIN RELIEF TYPE-3 PG13.5
3026
POWER CORD 14G 3W 70" 5-15P
3027
MOTOR CORD 14G 3W 45"
3028
PLATE
3902
Now: PR20M
INT RETAINING RING 28MM
Price
N/A
3904
Now: PN02M
HEX NUT M10-1.5
Price
N/A
3905
Now: PW02
FLAT WASHER 3/8
Price
N/A
3906
Now: PB13M
HEX BOLT M10-1.5 X 80
Price
N/A
3907
Now: PW01
FLAT WASHER 1/2
Price
N/A
3908
Now: PN09M
HEX NUT M12-1.75
Price
N/A
3909
Now: PW13
FLAT WASHER 3/4
Price
N/A
3910
Now: PN28M
HEX NUT M20-2.5
Price
N/A
3911
HEX BOLT M20-2.5 X 90
3912
Now: PB70M
HEX BOLT M10-1.5 X 16
Price
N/A
3914
Now: PB76M
HEX BOLT M12-1.75 X 110
Price
N/A
3915
HEX BOLT M10-1.5 X 70
Price
N/A
3916
Now: PB29M
HEX BOLT M6-1 X 30
Price
N/A
3917
Now: PN01M
HEX NUT M6-1
Price
N/A
3918
Now: PW07
FLAT WASHER 5/16
Price
N/A
3919
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
3921
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
3924
Now: PS52M
PHLP HD SCR M4-.7 X 20
Price
N/A
3925
Now: PW03
FLAT WASHER #10
Price
N/A
3926
Now: PN04M
HEX NUT M4-.7
Price
N/A
3927
Now: PB32M
HEX BOLT M10-1.5 X 25
Price
N/A
3951
Now: PW06
FLAT WASHER 1/4
Price
N/A
3962
LOCK NUT M10-1.5
Price
N/A

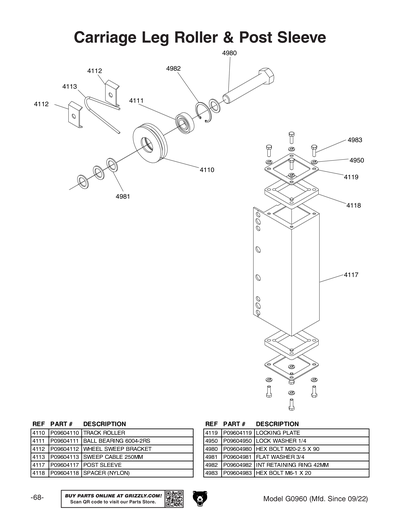

4110
TRACK ROLLER
4111
BALL BEARING 6004-2RS
Price
N/A
4112
WHEEL SWEEP BRACKET
4113
SWEEP CABLE 250MM
4117
POST SLEEVE
4118
BUSHING (NYLON)
4119
LOCKING PLATE
4950
Now: PLW02
LOCK WASHER 1/4
Price
N/A
4980
HEX BOLT M20-2.5 X 90
Price
N/A
4981
Now: PW13
FLAT WASHER 3/4
Price
N/A
4982
Now: PR24M
INT RETAINING RING 42MM
Price
N/A
4983
Now: PB08M
HEX BOLT M6-1 X 20
Price
N/A

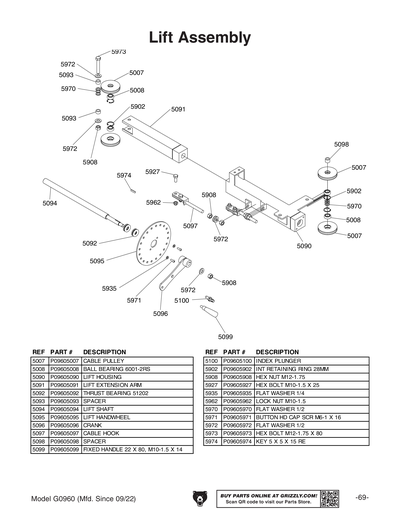

5007
CABLE PULLEY
Price
N/A
5008
BALL BEARING 6001-2RS
Price
N/A
5090
LIFT HOUSING
5091
LIFT EXTENSION ARM
5092
THRUST BEARING 51202
Price
N/A
5093
SPACER
5094
LIFT SHAFT
5095
LIFT HANDWHEEL
5096
CRANK
5097
CABLE HOOK
5098
SPACER
5099
FIXED HANDLE 22 X 80, M10-1.5 X 14
5100
INDEX PLUNGER
5902
Now: PR20M
INT RETAINING RING 28MM
Price
N/A
5908
Now: PN09M
HEX NUT M12-1.75
Price
N/A
5927
Now: PB32M
HEX BOLT M10-1.5 X 25
Price
N/A
5935
Now: PW06
FLAT WASHER 1/4
Price
N/A
5962
LOCK NUT M10-1.5
Price
N/A
5970
Now: PW01
FLAT WASHER 1/2
Price
N/A
5971
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
5972
Now: PW01
FLAT WASHER 1/2
Price
N/A
5973
HEX BOLT M12-1.75 X 80
Price
N/A
5974
KEY 5 X 5 X 15 RE

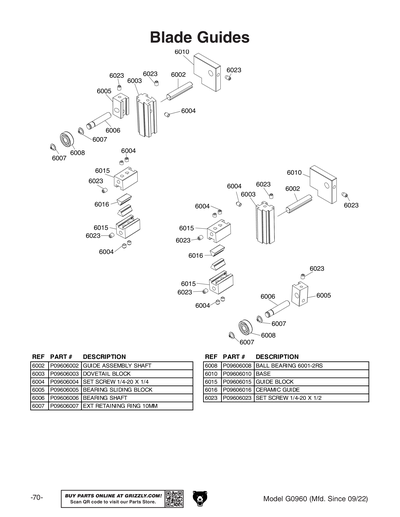

6002
GUIDE ASSEMBLY SHAFT
6003
DOVETAIL BLOCK
6004
Now: PSS11
SET SCREW 1/4-20 X 1/4
Price
N/A
6005
BEARING SLIDING BLOCK
6006
SUPPORT BEARING SHAFT
Price
N/A
6007
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
6008
BALL BEARING 6000ZZ
Price
N/A
6010
BASE
6015
GUIDE BLOCK
6016
CERAMIC GUIDE
Price
N/A
6023
Now: PSS07
SET SCREW 1/4-20 X 1/2
Price
N/A

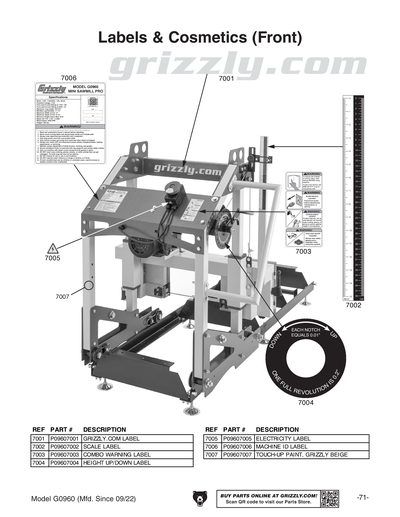

7001
GRIZZLY.COM LABEL 19.25",BEIGE
Price
N/A
7002
SCALE LABEL
7003
COMBO WARNING LABEL
7004
HEIGHT UP/DOWN LABEL
7005
ELECTRICITY 0.7W X 0.6H
Price
N/A
7006
MACHINE ID LABEL
7007
BEIGE REF G0555
Price
N/A

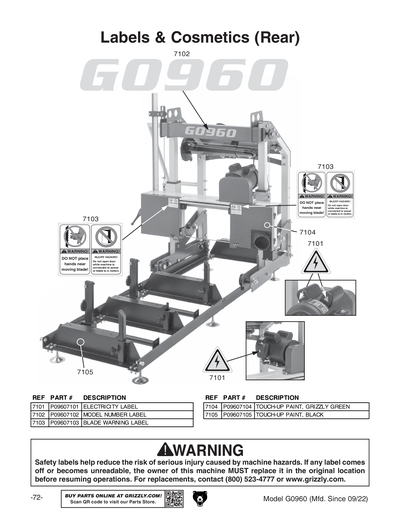

7101
ELECTRICITY 0.7W X 0.6H
Price
N/A
7102
MODEL NUMBER LABEL
7103
BLADE WARNING LABEL
7104
N/S GRIZZLY GREEN G1023S
Price
N/A
7105
GLOSSY BLACK
Price
N/A
MAN
MANUAL G0960 MFD-09.22+ V1.10.22
