Parts for G0962A40 - 10" 2 HP Open-Stand Hybrid Table Saw - 40th Anniversary Edition

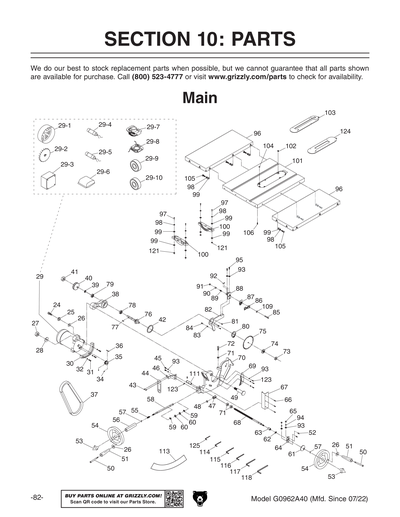

Part Diagram for G0962A40
Part Diagram for G0962A40
Part Diagram for G0962A40
Part Diagram for G0962A40
Part Diagram for G0962A40
Part Diagram for G0962A40
Part Diagram for G0962A40
Part Diagram for G0962A40
Part Diagram for G0962A40
Part Diagram for G0962A40
Part Diagram for G0962A40
Part Diagram for G0962A40
Part Diagram for G0962A40
Part Diagram for G0962A40
Part Diagram for G0962A40
Part Diagram for G0962A40
Part Diagram for G0962A40
Part Diagram for G0962A40

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

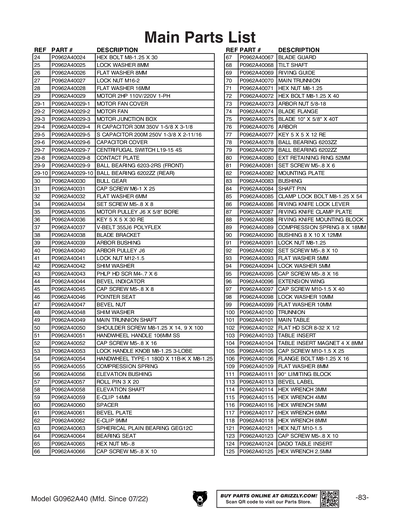

Ref #
Part #
Description
24
HEX BOLT M8-1.25 X 30
Price
N/A
25
LOCK WASHER 8MM
Price
N/A
26
FLAT WASHER 8MM
Price
N/A
27
LOCK NUT M16-2
Price
N/A
28
FLAT WASHER 16MM
Price
N/A
29
MOTOR 2HP 110V/220V 1-PH
Price
$221.85
29-1
MOTOR FAN COVER
Price
$6.20
29-10
BALL BEARING 6202ZZ
Price
N/A
29-2
MOTOR FAN
Price
N/A
29-3
MOTOR JUNCTION BOX
Price
N/A
29-4
R CAPACITOR 30M 350V 1-5/8 X 3-1/8
Price
N/A
29-5
S CAPACITOR 200M 250V 1-3/8 X 2-11/16
Price
N/A
29-6
CAPACITOR COVER
Price
N/A
29-7
CENTRIFUGAL SWITCH W/ CONTACT PLATE
Price
N/A
29-8
CENTRIFUGAL SWITCH W/ CONTACT PLATE
Price
N/A
29-9
BALL BEARING 6203-2RS
Price
N/A
30
BULL GEAR
Price
N/A
31
CAP SCREW M6-1 X 25
Price
N/A
32
FLAT WASHER 6MM
Price
N/A
34
SET SCREW M5-.8 X 8
Price
N/A
35
MOTOR PULLEY J6 X 5/8" BORE V2.06.15
Price
N/A
36
KEY 5 X 5 X 30
Price
N/A
37
POLY-V BELT 355J6
Price
N/A
38
BLADE BRACKET
Price
N/A
39
ARBOR BUSHING
Price
N/A
40
ARBOR PULLEY
Price
N/A
41
LOCK NUT M12-1.5
Price
N/A
42
THRUST WASHER 52MM BLACK
Price
N/A
43
PHLP HD SCR M4-.7 X 6
Price
N/A
44
BEVEL INDICATOR
Price
N/A
45
CAP SCREW M5-.8 X 8
Price
N/A
46
POINTER SEAT
Price
N/A
47
BEVEL NUT
Price
N/A
48
SHIM WASHER
Price
N/A
49
MAIN TRUNNION SHAFT
Price
N/A
50
HANDLE BOLT
Price
N/A
51
HANDWHEEL HANDLE 106MM SS
Price
N/A
52
CAP SCREW M5-.8 X 16
Price
N/A
53
LOCK HANDLE
Price
N/A
54
HANDWHEEL TYPE 1 180D X 11B-K X M8-1.25
Price
N/A
55
COMPRESSION SPRING
Price
N/A
56
ELEVATION BUSHING
Price
N/A
57
ROLL PIN 3 X 20
Price
N/A
58
ELEVATION SHAFT
Price
N/A
59
E-CLIP 14MM
Price
N/A
60
SPACER
Price
N/A
61
BEVEL PLATE
Price
N/A
62
E-CLIP 9MM
Price
N/A
63
SPHERICAL PLAIN BEARING GEG12C
Price
$7.90
64
BEARING SEAT
Price
N/A
65
HEX NUT M5-.8
Price
N/A
66
CAP SCREW M5-.8 X 10
Price
N/A
67
BLADE GUARD
Price
N/A
68
TILT SHAFT
Price
N/A
69
RIVING GUIDE
Price
N/A
70
MAIN TRUNNION
Price
N/A
71
HEX NUT M8-1.25
Price
N/A
72
HEX BOLT M8-1.25 X 40
Price
N/A
73
HEX NUT 5/8-18
Price
N/A
74
BLADE FLANGE
Price
N/A
75
BLADE 10" X 5/8" X 40T
Price
N/A
76
ARBOR
Price
N/A
77
KEY 5 X 5 X 12
Price
N/A
78
BALL BEARING 6203ZZ
Price
N/A
79
BALL BEARING 6202ZZ
Price
N/A
80
EXT RETAINING RING 52MM
Price
N/A
81
SET SCREW M5-.8 X 6
Price
N/A
82
MOUNTING PLATE
Price
N/A
83
BUSHING
Price
N/A
84
SHAFT PIN
Price
N/A
85
RIVING CLAMP LOCK BOLT M8-1.25 X 53
Price
N/A
86
RIVING LOCK LEVER
Price
N/A
87
RIVING CLAMP
Price
N/A
88
RIVING DECK
Price
N/A
89
COMPRESSION SPRING
Price
N/A
90
RIVING SEAT
Price
N/A
91
LOCK NUT M8-1.25
Price
N/A
92
SET SCREW M5-.8 X 10
Price
N/A
93
FLAT WASHER 5MM
Price
N/A
94
LOCK WASHER 5MM
Price
N/A
95
CAP SCREW M5-.8 X 16
Price
N/A
96
EXTENSION WING
Price
N/A
97
CAP SCREW M10-1.5 X 40
Price
N/A
98
LOCK WASHER 10MM
Price
N/A
99
FLAT WASHER 10MM
Price
N/A
100
TRUNNION
Price
N/A
101
MAIN TABLE
Price
N/A
102
FLAT HD SCR 8-32 X 1/2
Price
N/A
103
TABLE INSERT
Price
N/A
104
TABLE INSERT MAGNET
Price
N/A
105
CAP SCREW M10-1.5 X 25
Price
N/A
106
FLANGE BOLT M8-1.25 X 16
Price
N/A
109
FLAT WASHER 8MM
Price
N/A
111
90 DEG LIMITING BLOCK
Price
N/A
113
BEVEL LABEL
Price
N/A
114
HEX WRENCH 3MM
Price
N/A
115
HEX WRENCH 4MM
Price
N/A
116
HEX WRENCH 5MM
Price
N/A
117
HEX WRENCH 6MM
Price
N/A
118
HEX WRENCH 8MM
Price
N/A
121
HEX NUT M10-1.5
Price
N/A
123
CAP SCREW M5-.8 X 10
Price
N/A
124
DADO TABLE INSERT
Price
N/A
125
HEX WRENCH 2.5MM
Price
N/A

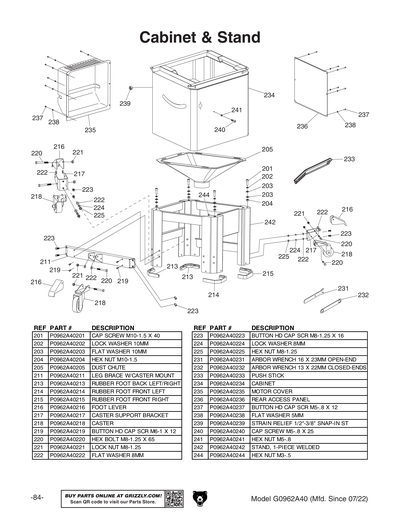

201
CAP SCREW M10-1.5 X 40
Price
N/A
202
LOCK WASHER 10MM
Price
N/A
203
FLAT WASHER 10MM
Price
N/A
204
HEX NUT M10-1.5
Price
N/A
205
DUST CHUTE
Price
N/A
211
LEG BRACE W/CASTER MOUNT
Price
N/A
213
RUBBER FOOT BACK LEFT/RIGHT
Price
N/A
214
RUBBER FOOT FRONT LEFT
Price
N/A
215
RUBBER FOOT FRONT RIGHT
Price
N/A
216
FOOT LEVER
Price
N/A
217
CASTER SUPPORT BRACKET
Price
N/A
218
CASTER
Price
N/A
219
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
220
HEX BOLT M8-1.25 X 65
Price
N/A
221
LOCK NUT M8-1.25
Price
N/A
222
FLAT WASHER 8MM
Price
N/A
223
BUTTON HD CAP SCR M8-1.25 X 16
Price
N/A
224
LOCK WASHER 8MM
Price
N/A
225
HEX NUT M8-1.25
Price
N/A
231
ARBOR WRENCH 16 X 23MM OPEN-END
Price
N/A
232
ARBOR WRENCH 13 X 22MM CLOSED-ENDS
Price
N/A
233
PUSH STICK
Price
N/A
234
CABINET V1
Price
$413.00

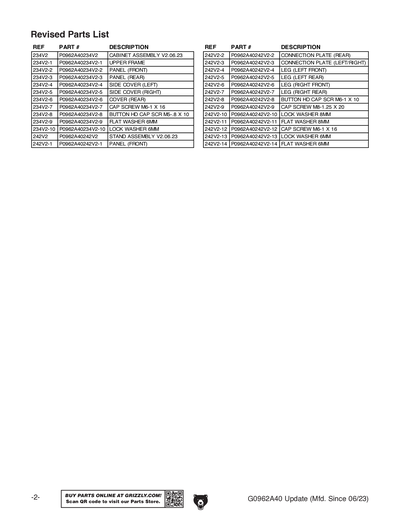

234A
CABINET ASSEMBLY V2.06.23
Price
$261.25
234A-1
UPPER FRAME
Price
$125.75
234A-10
LOCK WASHER 6MM
Price
N/A
234A-2
PANEL FRONT
Price
$98.45
234A-3
PANEL REAR
Price
$89.25
234A-4
SIDE COVER (LEFT)
Price
$22.65
234A-5
SIDE COVER (RIGHT)
Price
$55.30
234A-6
COVER (REAR)
Price
$38.60
234A-7
CAP SCREW M6-1 X 16
Price
N/A
234A-8
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
234A-9
FLAT WASHER 6MM
Price
N/A
235
MOTOR COVER
Price
$56.20
236
REAR ACCESS PANEL
Price
$36.00
237
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
238
FLAT WASHER 5MM
Price
N/A
239
STRAIN RELIEF 1/2"-3/8" SNAP-IN ST
Price
N/A
240
CAP SCREW M5-.8 X 25
Price
N/A
241
HEX NUT M5-.8
Price
N/A
242
STAND, 1-PIECE WELDED V1
Price
$89.45
242A
STAND ASSEMBLY V2.06.23
Price
$108.50
242A-1
PANEL (FRONT)
Price
$20.15
242A-10
LOCK WASHER 8MM
Price
N/A
242A-11
FLAT WASHER 8MM
Price
N/A
242A-12
CAP SCREW M6-1 X 16
Price
N/A
242A-13
LOCK WASHER 6MM
Price
N/A
242A-14
FLAT WASHER 6MM
Price
N/A
242A-2
CONNECTION PLATE (REAR)
Price
$10.90
242A-3
CONNECTION PLATE (LEFT/RIGHT)
Price
$12.00
242A-4
LEG (LEFT FRONT)
Price
$35.35
242A-5
LEG (LEFT REAR)
Price
$26.25
242A-6
LEG (RIGHT FRONT)
Price
$35.35
242A-7
LEG (RIGHT REAR)
Price
$26.25
242A-8
BUTTON HD CAP SCR M6-1 X 10
Price
N/A
242A-9
CAP SCREW M8-1.25 X 20
Price
N/A
244
HEX NUT M3-.5
Price
N/A

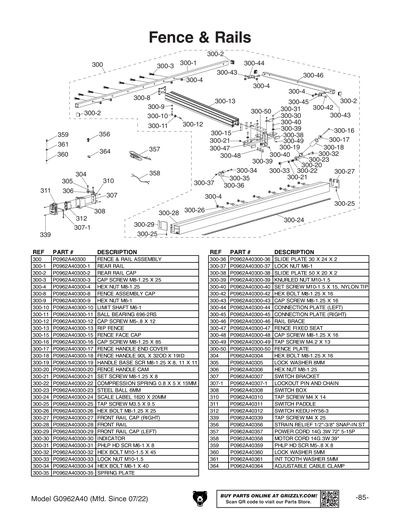

300
FENCE & RAIL ASSEMBLY
Price
$181.40
300-1
REAR RAIL
Price
$318.10
300-10
LIMIT SHAFT M6-1
Price
N/A
300-11
BALL BEARING 696-2RS
Price
N/A
300-12
CAP SCREW M5-.8 X 12
Price
N/A
300-13
RIP FENCE
Price
$111.80
300-15
FENCE FACE CAP V1
Price
N/A
300-16
CAP SCREW M8-1.25 X 85
Price
N/A
300-17
FENCE HANDLE END COVER
Price
N/A
300-18
FENCE HANDLE 19ID X 32OD X 90L
Price
N/A
300-19
HANDLE BASE SCR M8-1.25 X 8, 11 X 11
Price
N/A
300-2
REAR RAIL CAP
Price
N/A
300-20
FENCE HANDLE CAM
Price
N/A
300-21
SET SCREW M8-1.25 X 8
Price
N/A
300-22
COMPRESSION SPRING .8 X 5 X 15
Price
N/A
300-23
STEEL BALL 6MM
Price
N/A
300-24
SCALE LABEL V2.03.18
Price
N/A
300-25
TAP SCREW M3.5 X 8
Price
N/A
300-26
HEX BOLT M8-1.25 X 25
Price
N/A
300-27
FRONT RAIL CAP RIGHT
Price
N/A
300-28
FRONT RAIL
Price
$252.90
300-29
FRONT RAIL CAP LEFT
Price
N/A
300-3
CAP SCREW M8-1.25 X 25
Price
N/A
300-30
INDICATOR
Price
N/A
300-31
PHLP HD SCR M6-1 X 8
Price
N/A
300-32
HEX BOLT M10-1.5 X 45
Price
N/A
300-33
LOCK NUT M10-1.5
Price
N/A
300-34
HEX BOLT M6-1 X 40
Price
N/A
300-35
SPRING PLATE
Price
N/A
300-36
SLIDE PLATE 30 X 24 X 2
Price
N/A
300-37
LOCK NUT M6-1
Price
N/A
300-38
SLIDE PLATE 50 X 20 X 2
Price
N/A
300-39
KNURLED NUT M10-1.5
Price
N/A
300-4
HEX NUT M8-1.25
Price
N/A
300-40
SET SCREW M10-1.5 X 15, PLASTIC TIP
Price
N/A
300-42
HEX BOLT M8-1.25 X 16
Price
N/A
300-43
CAP SCREW M8-1.25 X 16
Price
N/A
300-44
CONNECTION PLATE (L)
Price
N/A
300-45
CONNECTION PLATE (R)
Price
N/A
300-46
RAIL BRACE
Price
$73.90
300-47
FENCE FIXED SEAT
Price
N/A
300-48
CAP SCREW M8-1.25 X 16
Price
N/A
300-49
TAP SCREW M4.2 X 13
Price
N/A
300-50
FENCE PLATE
Price
N/A
300-8
FENCE ASSEMBLY CAP
Price
N/A
300-9
HEX NUT M6-1
Price
N/A
304
HEX BOLT M8-1.25 X 16
Price
N/A
305
LOCK WASHER 8MM
Price
N/A
306
HEX NUT M8-1.25
Price
N/A
307
SWITCH BRACKET
Price
N/A
307-1
LOCKOUT PIN AND CHAIN
Price
N/A
308
SWITCH BOX V2.08.17
Price
N/A
310
TAP SCREW M4 X 14
Price
N/A
311
SWITCH PADDLE V2.09.17
Price
N/A
312
SWITCH KEDU HY56-3 V2.09.17
Price
N/A
339
TAP SCREW M4 X 25
Price
N/A
356
STRAIN RELIEF 1/2"-3/8" SNAP-IN ST
Price
N/A
357
POWER CORD 14G 3W 72" 5-15P
Price
N/A
358
MOTOR CORD 14G 3W 39"
Price
N/A
359
PHLP HD SCR M5-.8 X 8
Price
N/A
360
LOCK WASHER 5MM
Price
N/A
361
INT TOOTH WASHER 5MM
Price
N/A
364
ADJUSTABLE CABLE CLAMP
Price
N/A

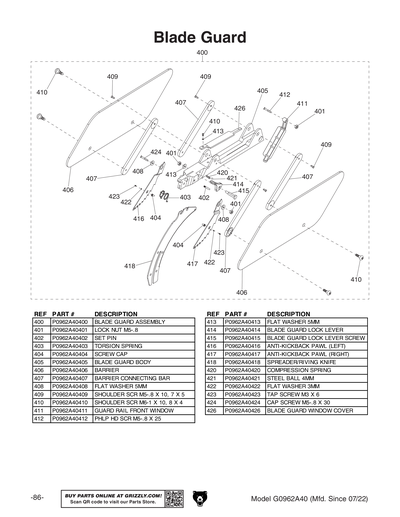

400
BLADE GUARD ASSEMBLY
Price
$106.10
401
LOCK NUT M5-.8
Price
N/A
402
SET PIN
Price
N/A
403
TORSION SPRING
Price
N/A
404
SCREW CAP
Price
N/A
405
BLADE GUARD BODY V2.01.21
Price
N/A
406
BARRIER
Price
N/A
407
BARRIER CONNECTING BAR V2.01.21
Price
N/A
408
FLAT WASHER 5MM
Price
N/A
409
SHOULDER SCR M5-.8 X 10, 7 X 5 V2.01.21
Price
N/A
410
SHOULDER SCREW M6-1 X 10, 8 X 4 V2.01.21
Price
N/A
411
GUARD RAIL
Price
N/A
412
PHLP HD SCR M5-.8 X 25
Price
N/A
413
FLAT WASHER 5MM
Price
N/A
414
BLADE GUARD LOCK LEVER
Price
N/A
415
BLADE GUARD LOCK LEVER SCREW
Price
N/A
416
ANTI-KICKBACK PAWL (L)
Price
N/A
417
ANTI-KICKBACK PAWL (R)
Price
N/A
418
SPREADER/RIVING KNIFE
Price
N/A
420
COMPRESSION SPRING
Price
N/A
421
STEEL BALL 4MM
Price
N/A
422
FLAT WASHER 3MM
Price
N/A
423
TAP SCREW M3 X 6
Price
N/A
424
CAP SCREW M5-.8 X 30
Price
N/A
426
BLADE GUARD WINDOW COVER
Price
N/A

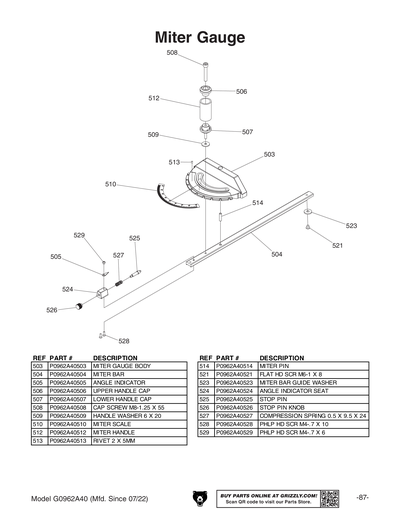

503
MITER GAUGE BODY V2.04.22
Price
N/A
504
MITER BAR V2.04.22
Price
N/A
505
ANGLE INDICATOR V2.04.22
Price
N/A
506
UPPER HANDLE CAP V2.04.22
Price
N/A
507
LOWER HANDLE CAP V2.04.22
Price
N/A
508
CAP SCREW M8-1.25 X 55
Price
N/A
509
FENDER WASHER 6MM
Price
N/A
510
MITER SCALE
Price
N/A
512
MITER HANDLE
Price
N/A
513
RIVET
Price
N/A
514
MITER PIN
Price
N/A
521
FLAT HD SCR M6-1 X 8
Price
N/A
523
FENDER WASHER 6MM
Price
N/A
524
ANGLE INDICATOR SEAT
Price
N/A
525
STOP PIN
Price
N/A
526
STOP PIN KNOB
Price
N/A
527
COMPRESSION SPRING 0.5 X 9.5 X 24
Price
N/A
528
PHLP HD SCR M4-.7 X 10
Price
N/A
529
PHLP HD SCR M4-.7 X 6
Price
N/A

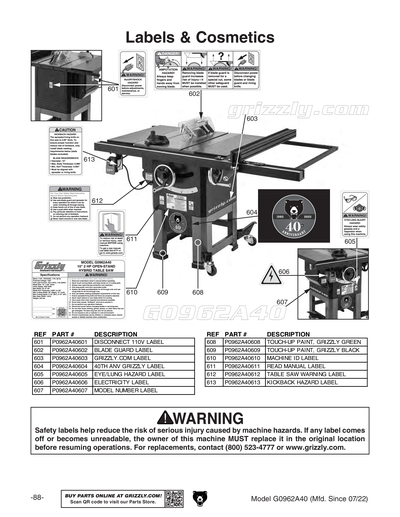

601
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
602
BLADE GUARD LABEL
Price
N/A
603
GRIZZLY.COM LABEL 15",GOLD
Price
N/A
604
40TH ANV GRIZZLY LABEL
Price
$5.25
605
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
606
ELECTRICITY 1.4W X 1.2H
Price
N/A
607
MODEL NUMBER LABEL
Price
$16.40
608
N/S GRIZZLY GREEN G1023S
Price
N/A
609
GLOSSY BLACK
Price
N/A
610
MACHINE ID LABEL
Price
$15.00
611
READ MANUAL 1.5W X 2.5H
Price
N/A
612
TABLE SAW WARNING LABEL
Price
N/A
613
KICKBACK HAZARD LABEL
Price
N/A
MAN
MANUAL G0962A40 MFD-07.22+ V1.08.22
Price
$14.65
