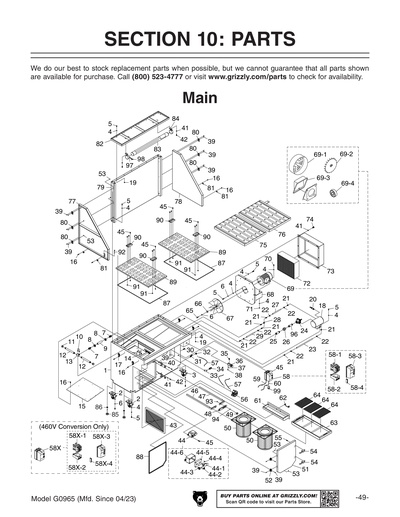

Parts for G0965 2 HP Metalworking Downdraft Table

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

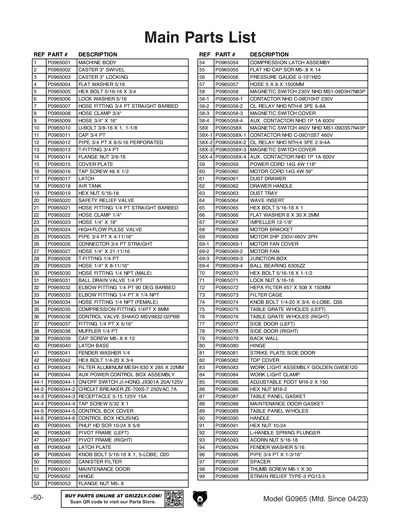

1
MACHINE BODY
2
CASTER 3" SWIVEL
3
CASTER 3" LOCKING
4
Now: PW07
FLAT WASHER 5/16
Price
N/A
5
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
6
Now: PLW01
LOCK WASHER 5/16
Price
N/A
7
HOSE FITTING 3/4 PT STRAIGHT BARBED
8
HOSE CLAMP 3/4"
9
HOSE 3/4" X 16"
10
U-BOLT 3/8-16 X 1, 1-1/8
11
CAP 3/4 PT
12
PIPE 3/4 PT X 8-5/16 PERFORATED
13
T-FITTING 3/4 PT
14
FLANGE NUT 3/8-16
15
COVER PLATE
16
TAP SCREW #8 X 1/2
Price
N/A
17
LATCH
18
AIR TANK
19
Now: PN02
HEX NUT 5/16-18
Price
N/A
20
SAFETY RELIEF VALVE
21
HOSE FITTING 1/4 PT STRAIGHT BARBED
22
HOSE CLAMP 1/4"
23
HOSE 1/4" X 18"
24
HIGH-FLOW PULSE VALVE
25
HOSE 3/4" X 8"
27
HOSE 1/4" X 21-11/16
28
T-FITTING 1/4 PT
29
HOSE 1/4" X 8-11/16"
30
HOSE FITTING 1/4 NPT (MALE)
31
BALL DRAIN VALVE 1/4 PT
32
ELBOW FITTING 1/4 PT 90 DEG BARBED
33
ELBOW FITTING 1/4 PT X 1/4 NPT
34
HOSE FITTING 1/4 NPT (FEMALE)
35
FITTING 1/4 PT X 5/16"
36
CONTROL VALVE SHAKO MSV9832-02PBB
37
COMPRESSION FITTING 1/4 PT X 8MM
38
MUFFLER 1/4 PT
39
CAP SCREW M5-.8 X 12
Price
N/A
40
LATCH BASE
41
Now: PWF05
FENDER WASHER 1/4
Price
N/A
42
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
43
Aluminum Mesh Filter for G0965
Price
N/A
44
AUX POWER CONTROL BOX ASSEMBLY
44-1
ON/OFF SWITCH JI-HONG J9301A 20A/125V
44-2
CIRCUIT BREAKER ZE-700S-7 250VAC 7A
44-3
RECEPTACLE 5-15 125V 15A
44-4
TAP SCREW 5/32 X 1
44-5
CONTROL BOX COVER
44-6
CONTROL BOX HOUSING
45
PHLP HD SCR 10-24 X 1/2
46
PIVOT FRAME (LEFT)
47
PIVOT FRAME (RIGHT)
48
LATCH PLATE
49
KNOB BOLT 5/16-18 X 1, 5-LOBE, D20
50
Canister Filter for G0965
Price
N/A
51
MAINTENANCE DOOR
52
HINGE
53
FLANGE NUT M5-.8
Price
N/A
54
COMPRESSION LATCH ASSEMBY
55
FLAT HD CAP SCR M5-.8 X 14
56
PRESSURE GAUGE 0-10"/H20
57
HOSE 5 X 8 X 1500MM
58
MAGNETIC SWITCH 230V NHD MS1-09D3H7N83P
58-1
CONTACTOR NHD C-09D10H7 230V
58-2
OL RELAY NHD NTH-8 3PE 6-8A
58-3
MAGNETIC SWITCH COVER
58-4
AUX. CONTACTOR NHD 1P 1A 600V
58-5
MAGNETIC SWITCH BASE
58X
MAGNETIC SWITCH 460V NHD MS1-09D3S7N43P
58X-1
CONTACTOR NHD C-09D10S7 460V
58X-2
OL RELAY NHD NTH-4 3PE 2.9-4A
58X-3
MAGNETIC SWITCH COVER
58X-5
MAGNETIC SWITCH BASE
59
POWER CORD 14G 4W 118"
60
MOTOR CORD 14G 4W 59"
61
DUST DRAWER
62
DRAWER HANDLE
63
DUST TRAY
64
WAVE INSERT
65
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
66
FLAT WASHER 3/8 X 1-3/4 X 1/8
67
IMPELLER 12-1/8"
68
MOTOR BRACKET
69
MOTOR 2HP 230V/460V 3PH
69-1
MOTOR FAN COVER
69-2
MOTOR FAN
69-3
JUNCTION BOX
69-4
BALL BEARING 6305ZZ
Price
N/A
70
Now: PB11
HEX BOLT 5/16-18 X 1-1/2
Price
N/A
71
Now: PLN03
LOCK NUT 5/16-18
Price
N/A
72
HEPA Filter for G0965 / G0966
Price
N/A
73
FILTER CAGE
74
KNOB BOLT 1/4-20 X 3/4, 6-LOBE, D35
75
TABLE GRATE W/HOLES (LEFT)
76
TABLE GRATE W/HOLES (RIGHT)
77
SIDE DOOR (LEFT)
78
SIDE DOOR (RIGHT)
79
BACK WALL
80
HINGE
81
STRIKE PLATE SIDE DOOR
82
TOP COVER
83
WORK LIGHT ASSEMBLY GOLDEN GWDE120
84
WORK LIGHT CLAMP ASSY
85
ADJUSTABLE FOOT M16-2 X 150
86
Now: PN13M
HEX NUT M16-2
Price
N/A
87
TABLE PANEL GASKET
88
MAINTENANCE DOOR GASKET
89
TABLE PANEL W/HOLES
90
HANDLE
91
Now: PN07
HEX NUT 10-24
Price
N/A
92
L-HANDLE SPRING PLUNGER
93
Now: PN40
ACORN NUT 5/16-18
Price
N/A
94
Now: PWF01
FENDER WASHER 5/16
Price
N/A
99
STRAIN RELIEF TYPE-3 PG13.5
Price
N/A
100
PIPE FITTING 1/4 PT
101

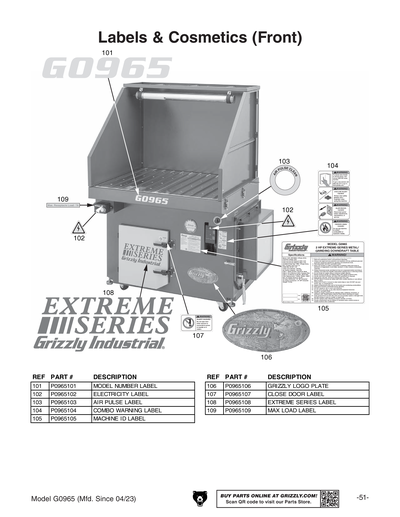

MODEL NUMBER LABEL
102
ELECTRICITY 0.7W X 0.6H
Price
N/A
103
AIR PULSE LABEL
104
COMBO WARNING LABEL
105
MACHINE ID LABEL
106
Now: G8589
Nameplate - Large
Price
N/A
107
CLOSE DOOR LABEL
108
EXTREME SERIES LABEL
Price
N/A
109
MAX LOAD LABEL
114
ELBOW FITTING 1/8 PT 90 DEG PUSH-IN
115
PIPE 3/4 PT X 2-3/8"

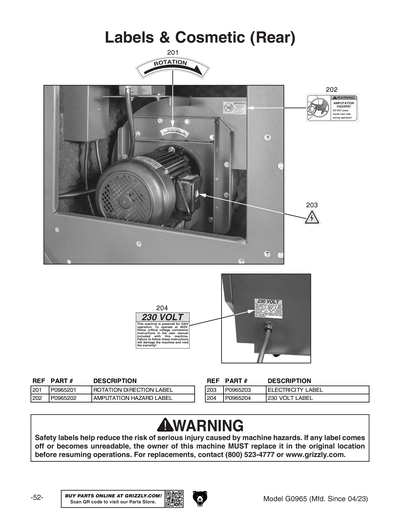

201
ROTATION LABEL
Price
N/A
202
HANDS/DUST COLLECTOR OUTLET 2.8W X 1.5H
Price
N/A
203
ELECTRICITY 0.7W X 0.6H
Price
N/A
204
230 VOLT LABEL
MAN
MANUAL G0965 MFD 03.23+ V1.12.24
