Parts for G0966 1-1/2 HP Metal Dust Collector with Spark Deflector

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

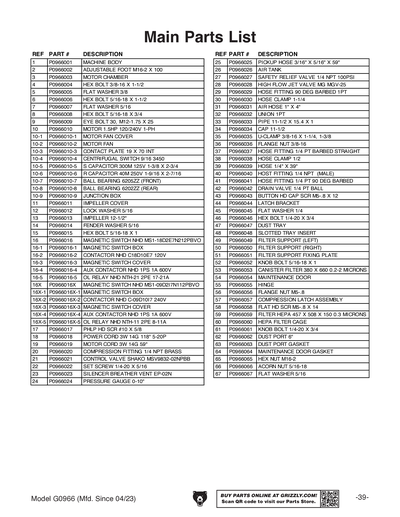

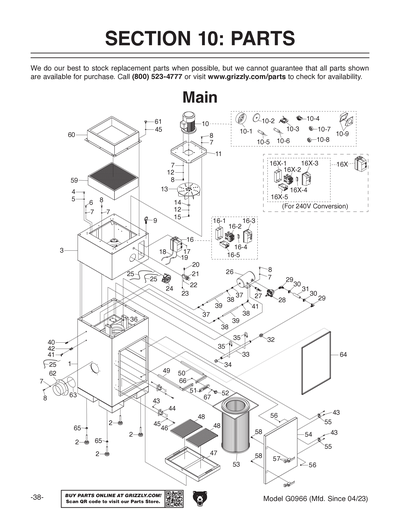

1
MACHINE BODY
2
ADJUSTABLE FOOT M16-2 X 100
3
MOTOR CHAMBER
4
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
5
Now: PW02
FLAT WASHER 3/8
Price
N/A
6
Now: PB11
HEX BOLT 5/16-18 X 1-1/2
Price
N/A
7
Now: PW07
FLAT WASHER 5/16
Price
N/A
8
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
9
EYE BOLT 30, M12-1.75 X 25
10
MOTOR 1.5HP 120/240V 1-PH
10-1
MOTOR FAN COVER
10-2
MOTOR FAN
10-3
CONTACT PLATE 19 X 70 INT
10-4
CENTRIFUGAL SWITCH 9/16 3450
10-5
S CAPACITOR 300M 125V 1-3/8 X 2-3/4
Price
N/A
10-6
R CAPACITOR 40M 250V 1-9/16 X 2-7/16
10-7
BALL BEARING 6205ZZ
Price
N/A
10-8
BALL BEARING 6202ZZ
Price
N/A
10-9
JUNCTION BOX
11
IMPELLER COVER
12
Now: PLW01
LOCK WASHER 5/16
Price
N/A
13
IMPELLER 12-1/2"
14
Now: PWF01
FENDER WASHER 5/16
Price
N/A
15
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
16
MAGNETIC SWITCH NHD MS1-18D2E7N212PBVO
16-1
MAGNETIC SWITCH BOX
16-2
CONTACTOR NHD C18D10E7 120V
16-3
MAGNETIC SWITCH COVER
16-4
AUX CONTACTOR NHD 1PS 1A 600V
16-5
OL RELAY NHD NTH-21 2PE 17-21A
16X
MAGNETIC SWITCH NHD MS1-09D2I7N112PBVO
16X-1
MAGNETIC SWITCH BOX
16X-2
CONTACTOR NHD C-09D10I7 240V
16X-3
MAGNETIC SWITCH COVER
16X-4
AUX CONTACTOR NHD 1PS 1A 600V
16X-5
OL RELAY NHD NTH-11 2PE 8-11A
17
PHLP HD SCR #10 X 5/8
18
POWER CORD 3W 14G 118" 5-20P
19
MOTOR CORD 3W 14G 59"
20
COMPRESSION FITTING 1/4 NPT BRASS
21
CONTROL VALVE SHAKO MSV9832-02NPBB
22
Now: PSS04
SET SCREW 1/4-20 X 5/16
Price
N/A
23
SILENCER BREATHER VENT EP-02N
24
PRESSURE GAUGE 0-10"
25
PICKUP HOSE 3/16" X 5/16" X 59"
26
AIR TANK
27
SAFETY RELIEF VALVE 1/4 NPT 100PSI
28
HIGH FLOW JET VALVE MG MGV-25
29
HOSE FITTING 90 DEG BARBED 1PT
30
HOSE CLAMP 1-1/4
31
AIR HOSE 1" X 4"
32
UNION 1PT
33
PIPE 11-1/2 X 15.4 X 1
34
CAP 11-1/2
35
U-CLAMP 3/8-16 X 1-1/4, 1-3/8
36
FLANGE NUT 3/8-16
37
HOSE FITTING 1/4 PT BARBED STRAIGHT
38
HOSE CLAMP 1/2
39
HOSE 1/4" X 39"
40
HOST FITTING 1/4 NPT (MALE)
41
HOSE FITTING 1/4 PT 90 DEG BARBED
42
DRAIN VALVE 1/4 PT BALL
43
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
44
LATCH BRACKET
45
Now: PW06
FLAT WASHER 1/4
Price
N/A
46
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
47
DUST TRAY
48
SLOTTED TRAY INSERT
49
FILTER SUPPORT (LEFT)
50
FILTER SUPPORT (RIGHT)
51
FILTER SUPPORT FIXING PLATE
52
KNOB BOLT 5/16-18 X 1
53
Canister Filter for G0966
Price
N/A
54
MAINTENANCE DOOR
55
HINGE
56
FLANGE NUT M5-.8
Price
N/A
57
COMPRESSION LATCH ASSEMBLY
58
FLAT HD SCR M5-.8 X 14
Price
N/A
59
HEPA Filter for G0965 / G0966
Price
N/A
60
HEPA FILTER CAGE
61
KNOB BOLT 1/4-20 X 3/4
62
DUST PORT 6"
63
DUST PORT GASKET
64
MAINTENANCE DOOR GASKET
65
Now: PN13M
HEX NUT M16-2
Price
N/A
66
Now: PN40
ACORN NUT 5/16-18
Price
N/A
67
Now: PW07
FLAT WASHER 5/16
Price
N/A

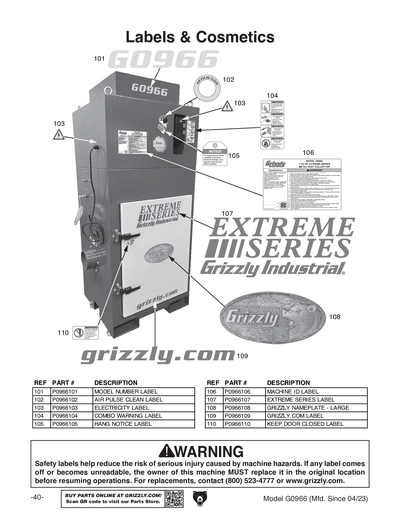

101
MODEL NUMBER LABEL
102
ELECTRICITY 0.7W X 0.6H
Price
N/A
103
ELECTRICITY 0.7W X 0.6H
Price
N/A
105
HANG NOTICE LABEL
106
MACHINE ID LABEL
107
EXTREME SERIES LABEL
108
Now: G8589
Nameplate - Large
Price
N/A
109
GRIZZLY.COM LABEL
110
KEEP DOOR CLOSED LABEL
201
HANDS/DUST COLLECTOR OUTLET 2.8W X 1.5H
Price
N/A
202
ROTATION LABEL
203
ELECTRICITY 0.7W X 0.6H
Price
N/A
204
COMBO WARNING LABEL
MAN
MANUAL FOR G0966 MFD-04.23+ V1.05.23
