Parts for G0969 21" Variable-Speed Scroll Saw with Foot Pedal

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

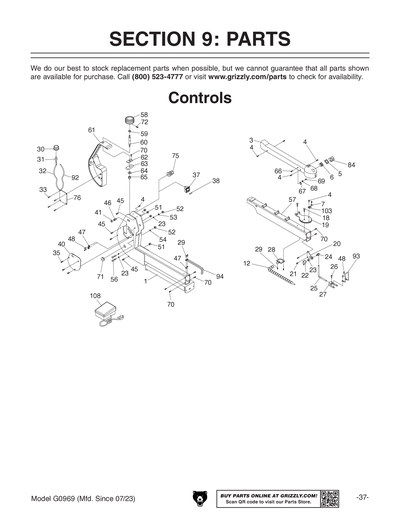

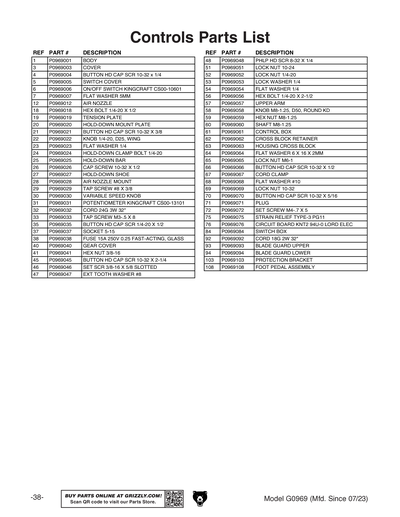

1
BODY
3
COVER
4
BUTTON HD CAP SCR 10-32 x 1/4
5
SWITCH COVER
6
ON/OFF SWITCH KINGCRAFT CS00-10601
7
Now: PW02
FLAT WASHER 3/8
Price
N/A
12
AIR NOZZLE
18
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
19
TENSION PLATE
20
HOLD DOWN MOUNT PLATE
21
BUTTON HD CAP SCR 10-32 X 3/8
22
KNOB 1/4-20, D25, WING
23
Now: PW06
FLAT WASHER 1/4
Price
N/A
24
HOLD DOWN CLAMP BOLT 1/4-20 X 3/8
25
HOLD DOWN BAR
26
CAP SCREW 10-32 X 1/2
Price
N/A
27
HOLD-DOWN SHOE
28
AIR NOZZLE MOUNT
29
TAP SCREW M3.5 X 8
Price
N/A
30
VARIABLE SPEED KNOB
31
POTENTIOMETER W/CORD 24G 3W 32"
32
POTENTIOMETER W/CORD 24G 3W 32"
Price
N/A
33
TAP SCREW M3.5 X 8
Price
N/A
35
BUTTON HD CAP SCR 1/4-20 X 1/2
Price
N/A
37
SOCKET 5-15
38
FUSE 15A 250V 0.25 FAST-ACTING, GLASS
40
GEAR COVER
41
Now: PN08
HEX NUT 3/8-16
Price
N/A
45
BUTTON HD CAP SCR 10-32 X 2-1/4
46
SET SCR 3/8-16 X 5/8 SLOTTED
47
EXT TOOTH WASHER #8
48
Now: PS23
PHLP HD SCR 8-32 X 1/4
Price
N/A
51
Now: PLN04
LOCK NUT 10-24
Price
N/A
52
Now: PLN02
LOCK NUT 1/4-20
Price
N/A
53
Now: PLW02
LOCK WASHER 1/4
Price
N/A
54
Now: PW06
FLAT WASHER 1/4
Price
N/A
56
Now: PB98
HEX BOLT 1/4-20 X 2-1/2
Price
N/A
57
UPPER ARM
58
KNOB M8-1.25, D50, ROUND KD
59
Now: PN03M
HEX NUT M8-1.25
Price
N/A
60
STUD M8-1.25 X 70
61
CONTROL BOX
62
CROSS BLOCK RETAINER
63
HOUSING CROSS BLOCK
64
FLAT WASHER 6 X 16 X 2MM
65
LOCK NUT M6-1
Price
N/A
66
BUTTON HD CAP SCR 10-32 X 1/2
67
CORD CLAMP
68
Now: PW03
FLAT WASHER #10
Price
N/A
69
Now: PLN04
LOCK NUT 10-24
Price
N/A
70
BUTTON HD CAP SCR 10-32 X 5/16
71
PLUG
72
SET SCREW M4-.7 X 5
Price
N/A
75
STRAIN RELIEF TYPE-3 PG11
76
CIRCUIT BOARD KNT2 94U-0 LORD ELEC
84
SWITCH BOX
92
CORD 18G 2W 32"
93
BLADE GUARD UPPER
94
BLADE GUARD LOWER
103
PROTECTION BRACKET
108
FOOT PEDAL ASSEMBLY

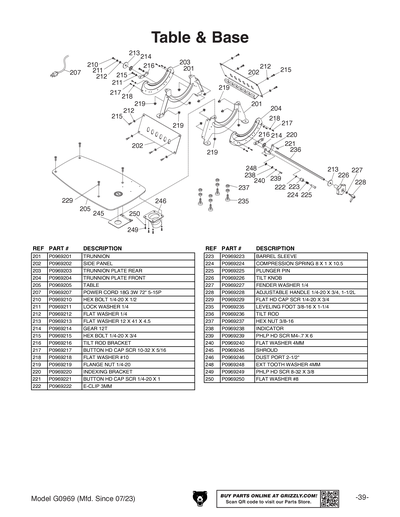

201
TRUNNION
202
SIDE PANEL
203
TRUNNION PLATE REAR
204
TRUNNION PLATE FRONT
205
TABLE
207
POWER CORD 18G 3W 72" 5-15P
210
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
211
Now: PLW02
LOCK WASHER 1/4
Price
N/A
212
Now: PW06
FLAT WASHER 1/4
Price
N/A
213
FLAT WASHER 12 X 41 X 4.5
214
GEAR 12T
215
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
216
TILT ROD BRACKET
218
Now: PW03
FLAT WASHER #10
Price
N/A
219
Now: PFN01
FLANGE NUT 1/4-20
Price
N/A
220
INDEXING BRACKET
221
BUTTON HD CAP SCR 1/4-20 X 1
222
E-CLIP 3MM
Price
N/A
223
BARREL SLEEVE
224
COMPRESSION SPRING 8 X 1 X 10.5
225
PLUNGER PIN
226
TILT KNOB
227
Now: PLW02
LOCK WASHER 1/4
Price
N/A
228
ADJUSTABLE HANDLE 1/4-20 X 3/4, 1-1/2L
229
Now: PFH24
FLAT HD CAP SCR 1/4-20 X 3/4
Price
N/A
235
LEVELING FOOT 3/8-16 X 1-1/4
236
TILT ROD
237
Now: PN08
HEX NUT 3/8-16
Price
N/A
238
INDICATOR
239
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
240
Now: PW05M
FLAT WASHER 4MM
Price
N/A
245
SHROUD
246
DUST PORT 2-1/2"
248
EXT TOOTH WASHER 4MM
Price
N/A
249
Now: PS24
PHLP HD SCR 8-32 X 3/8
Price
N/A
250
Now: PW08
FLAT WASHER #8
Price
N/A

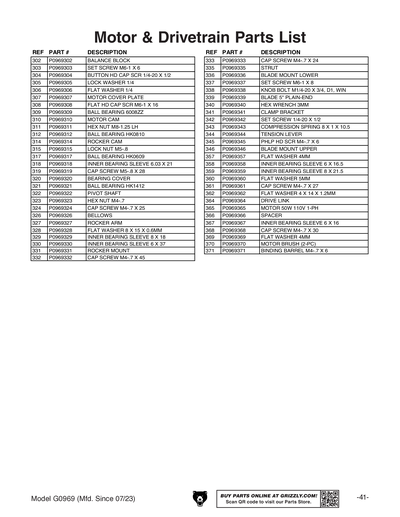

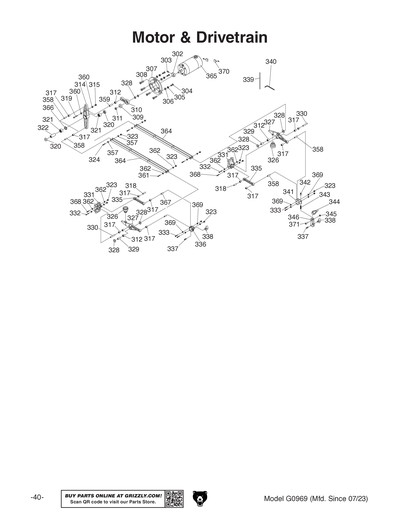

302
BALANCE BLOCK
303
SET SCREW M6-1 X 6
Price
N/A
304
BUTTON HD CAP SCR 1/4-20 X 1/2
Price
N/A
305
Now: PLW02
LOCK WASHER 1/4
Price
N/A
306
Now: PW06
FLAT WASHER 1/4
Price
N/A
307
MOTOR COVER PLATE
308
FLAT HD CAP SCR M6-1 X 16
Price
N/A
309
BALL BEARING 6008ZZ
Price
N/A
310
MOTOR CAM
311
Now: PN53M
HEX NUT M8-1.25 LH
Price
N/A
312
BALL BEARING HK0810
314
ROCKER CAM
315
LOCK NUT M5-.8
Price
N/A
317
BALL BEARING HK0609
318
INNER BEARING SLEEVE 6.03 X 21
319
CAP SCREW M5-.8 X 28
320
BEARING COVER
321
BALL BEARING HK1412
322
PIVOT SHAFT
323
Now: PN04M
HEX NUT M4-.7
Price
N/A
324
CAP SCREW M4-.7 X 25
Price
N/A
326
BELLOWS
327
ROCKER ARM
328
FLAT WASHER 8 X 15 X 0.6MM
329
INNER BEARING SLEEVE 8 X 18
330
INNER BEARING SLEEVE 6 X 37
331
ROCKER MOUNT
332
CAP SCREW M4-.7 X 45
333
CAP SCREW M4-.7 X 24
335
STRUT
336
BLADE MOUNT LOWER
337
SET SCREW M6-1 X 8
Price
N/A
338
KNOB BOLT M1/4-20 X 3/4, D1, WING
340
HEX WRENCH 3MM
Price
N/A
341
CLAMP BRACKET
342
Now: PSS07
SET SCREW 1/4-20 X 1/2
Price
N/A
343
COMPRESSION SPRING 8 X 1 X 10.5
344
TENSION LEVER
345
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
346
BLADE MOUNT UPPER
357
Now: PW05M
FLAT WASHER 4MM
Price
N/A
358
INNER BEARING SLEEVE 6 X 16.5
359
INNER BEARING SLEEVE 8 X 21.5
360
Now: PW02M
FLAT WASHER 5MM
Price
N/A
361
CAP SCREW M4-.7 X 25
Price
N/A
362
FLAT WASHER 4 X 14 X 1.2MM
364
DRIVE LINK
365
MOTOR 50W 60V 1-PH DC
366
SPACER
367
INNER BEARING SLEEVE 6 X 16
368
CAP SCREW M4-.7 X 30
Price
N/A
369
Now: PW05M
FLAT WASHER 4MM
Price
N/A
370
MOTOR BRUSH (2-PC)
371
BINDING BARREL M4-.7 X 6

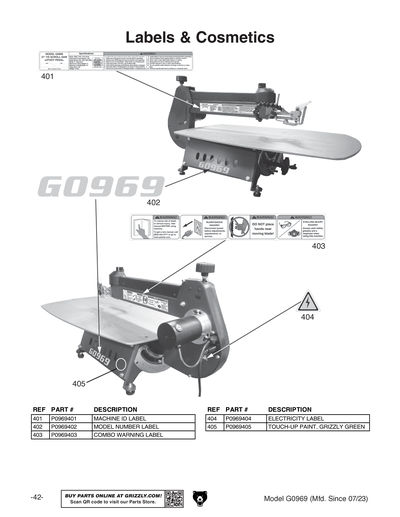

401
MACHINE ID LABEL
402
MODEL NUMBER LABEL
403
COMBO WARNING LABEL
404
ELECTRICITY 0.5W X 0.4H
Price
N/A
405
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL G0969 MFD-07.23+ V1.09.23
