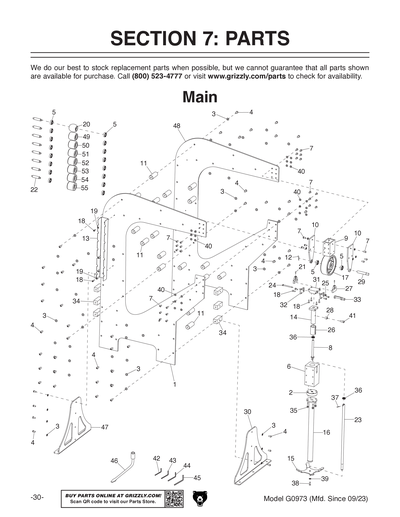

Parts for G0973 40" Heavy-Duty Industrial English Wheel

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

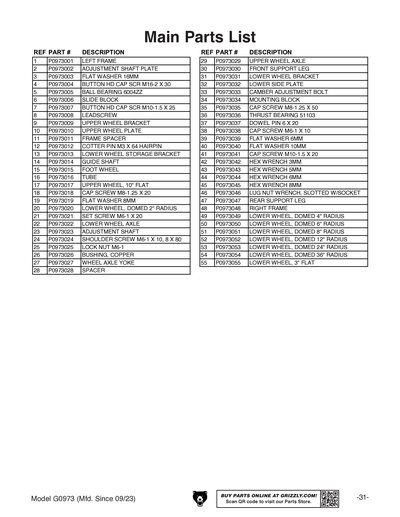

1
LEFT FRAME
2
ADJUSTMENT SHAFT PLATE
3
Now: PW08M
FLAT WASHER 16MM
Price
N/A
4
BUTTON HD CAP SCR M16-2 X 30
5
BALL BEARING 6004ZZ
Price
N/A
6
SLIDE BLOCK
7
BUTTON HD CAP SCR M10-1.5 X 25
Price
N/A
8
LEADSCREW
9
UPPER WHEEL BRACKET
10
UPPER WHEEL PLATE
11
FRAME SPACER
12
COTTER PIN M3 X 64 HAIRPIN
13
LOWER WHEEL STORAGE BRACKET
14
GUIDE SHAFT
15
FOOT WHEEL
16
TUBE
17
UPPER WHEEL, 10" FLAT
18
CAP SCREW M8-1.25 X 20
Price
N/A
19
Now: PW01M
FLAT WASHER 8MM
Price
N/A
20
LOWER WHEEL, DOMED 2" RADIUS
21
SET SCREW M6-1 X 20
Price
N/A
22
LOWER WHEEL AXLE
23
ADJUSTMENT SHAFT
24
SHOULDER SCREW M6-1 X 10, 8 X 80
25
LOCK NUT M6-1
Price
N/A
26
BUSHING, COPPER
27
WHEEL AXLE YOKE
28
SPACER
29
UPPER WHEEL AXLE
30
FRONT SUPPORT LEG
31
LOWER WHEEL BRACKET
32
LOWER SIDE PLATE
33
CAMBER ADJUSTMENT BOLT
34
MOUNTING BLOCK
35
CAP SCREW M8-1.25 X 50
Price
N/A
36
THRUST BEARING 51103
Price
N/A
37
DOWEL PIN 6 X 20
38
CAP SCREW M6-1 X 10
Price
N/A
39
Now: PW03M
FLAT WASHER 6MM
Price
N/A
40
Now: PW04M
FLAT WASHER 10MM
Price
N/A
41
CAP SCREW M10-1.5 X 20
Price
N/A
42
HEX WRENCH 3MM
Price
N/A
43
HEX WRENCH 5MM
Price
N/A
44
HEX WRENCH 6MM
Price
N/A
45
HEX WRENCH 8MM
Price
N/A
46
COMBO TOOL
47
REAR SUPPORT LEG
48
RIGHT FRAME
49
LOWER WHEEL, DOMED 4" RADIUS
50
LOWER WHEEL, DOMED 6" RADIUS
51
LOWER WHEEL, DOMED 8" RADIUS
52
LOWER WHEEL, DOMED 12" RADIUS
53
LOWER WHEEL, DOMED 24" RADIUS
54
LOWER WHEEL, DOMED 36" RADIUS
55
LOWER WHEEL, 3" FLAT
101
Now: G8589
Nameplate - Large
Price
N/A

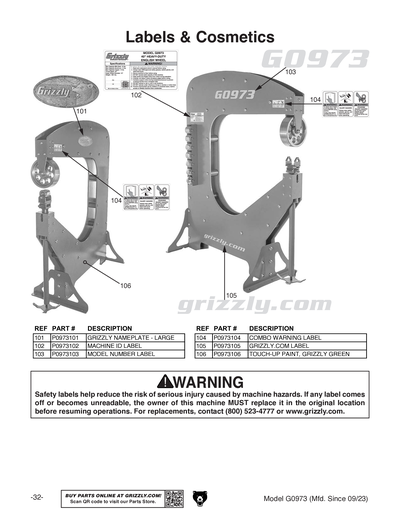

102
MACHINE ID LABEL
103
MODEL NUMBER LABEL
104
COMBO WARNING LABEL
105
GRIZZLY.COM LABEL
106
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL G0973 MFD-09.23+ V1.02.24
