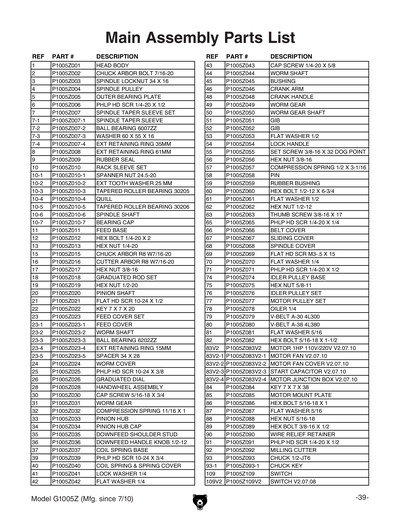

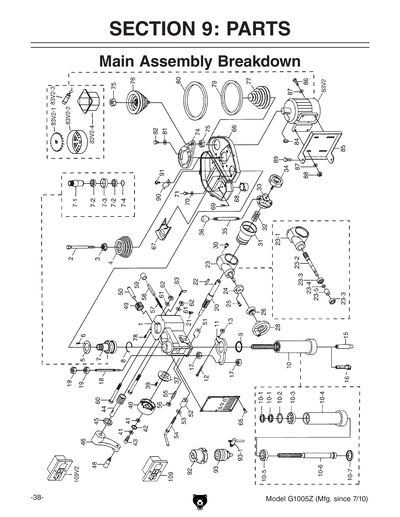

Parts for G1005Z Mill/Drill Milling Machine #25

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
HEAD BODY
Price
N/A
2
CHUCK ARBOR BOLT 7/16-20
Price
N/A
3
SPINDLE LOCKNUT 34 X 16
Price
N/A
4
SPINDLE PULLEY
Price
N/A
5
OUTER BEARING PLATE
Price
N/A
6
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
7
SPINDLE TAPER SLEEVE SET
Price
N/A
7-1
SPINDLE TAPER SLEEVE
Price
N/A
7-2
BALL BEARING 6007ZZ
Price
N/A
7-3
WASHER 60 X 55 X 16
Price
N/A
7-4
RETAINER RING
Price
N/A
8
C-RETAINER RING 3 X 61
Price
N/A
9
RUBBER FLANGE
Price
N/A
10
RACK SLEEVE SET
Price
N/A
10-1
LOCKNUT 24.5-20
Price
N/A
10-2
WASHER 25.4
Price
N/A
10-3
TAPERED ROLLER BEARING 30205
Price
N/A
10-4
RACK SLEEVE R8
Price
N/A
10-5
TAPERED ROLLER BEARING 30206
Price
N/A
10-6
SPINDLE SHAFT
Price
N/A
10-7
BEARING CAP
Price
N/A
11
FEED BASE
Price
N/A
12
Now: PB10
HEX BOLT 1/4-20 X 2
Price
N/A
13
Now: PN05
HEX NUT 1/4-20
Price
N/A
15
DRILL CHUCK ARBOR R8, 16MM, 130MM L
Price
N/A
16
CUTTER ARBOR R8, 20MM, 130MM L
Price
N/A
17
Now: PN08
HEX NUT 3/8-16
Price
N/A
18
GRADUATED ROD SET
Price
N/A
19
Now: PN01
HEX NUT 1/2-20
Price
N/A
20
PINION SHAFT
Price
N/A
21
Now: PFH08
FLAT HD SCR 10-24 X 1/2
Price
N/A
22
Now: PK25M
KEY 7 X 7 X 20
Price
N/A
23
FEED COVER SET
Price
N/A
23-1
FEED COVER
Price
N/A
23-2
WORM SHAFT
Price
N/A
23-3
BALL BEARING 6202ZZ
Price
N/A
23-4
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
23-5
WASHER 34 X 28
Price
N/A
24
WORM COVER
Price
N/A
25
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
26
MICRO ADJUSTING INDICATOR SET
Price
N/A
28
HANDWHEEL ASSY V2.12.05
30
CAP SCREW 5/16-18 X 3/4
Price
N/A
31
WORM GEAR
Price
N/A
32
SPRING 17.5 X 25
Price
N/A
33
UP-DOWN HANDLE V2.04.06
Price
N/A
34
BLADE ADJUSTABLE KNOB
Price
N/A
35
SHAFT
Price
N/A
36
ROUND KNOB PLASTIC
Price
N/A
37
SPRING BASE SET
Price
N/A
39
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
40
SPRING & SPRING COVER V2.03.04
Price
N/A
41
Now: PLW02
LOCK WASHER 1/4
Price
N/A
42
Now: PW06
FLAT WASHER 1/4
Price
N/A
43
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
44
WORM SHAFT
Price
N/A
45
BUSHING
Price
N/A
46
HEAD HANDLE SET
Price
N/A
48
KNOB
Price
N/A
49
WORM GEAR
Price
N/A
50
WORM SHAFT
Price
N/A
51
FIXED TIGHT COLLAR
Price
N/A
52
FIXED TIGHT COLLAR
Price
N/A
53
Now: PW01
FLAT WASHER 1/2
Price
N/A
54
HANDLE ROD
Price
N/A
55
SCREW KEY 3/8-16 X 32
Price
N/A
56
Now: PN08
HEX NUT 3/8-16
Price
N/A
57
SPRING 13 X 78
Price
N/A
58
PIN
Price
N/A
59
RUBBER COLLAR
Price
N/A
60
HEAD BODY FIX BOLT 1/2-12 X 172
Price
N/A
61
Now: PW01
FLAT WASHER 1/2
Price
N/A
62
Now: PN06
HEX NUT 1/2-12
Price
N/A
63
THUMB SCREW 3/8-16 X 17
Price
N/A
64
NAME PLATE
Price
N/A
65
Now: PS09
PHLP HD SCR 1/4-20 X 1/4
Price
N/A
66
BELT COVER
Price
N/A
67
SHELF
Price
N/A
68
SPINDLE COVER
Price
N/A
69
SCREW M3-0.5 X 15
Price
N/A
70
Now: PW06
FLAT WASHER 1/4
Price
N/A
71
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
73
PULLEY SPEED CHART
Price
N/A
74
SPEED CHANGE INTER PULLEY BASE
Price
N/A
75
Now: PN04
HEX NUT 5/8-11
Price
N/A
76
INTER PULLEY SET
Price
N/A
77
MOTOR PULLEY
Price
N/A
78
OIL BALL 1/4 IN
Price
N/A
79
Now: PVA30
V-BELT A30
Price
N/A
80
Now: PVA38
V-BELT A38
Price
N/A
81
WASHER 5/16
Price
N/A
82
Now: PB11
HEX BOLT 5/16-18 X 1-1/2
Price
N/A
83
MOTOR 1HP 115V/230V 1-PH
83-1
MOTOR FAN COVER V1
83-2
MOTOR FAN V1
83-3
S CAPACITOR 150M 250V 1-1/2 X 3-1/4
83-4
MOTOR JUNCTION BOX V1
83V2
MOTOR 1HP 110V/220V V2.07.10
83V2-1
MOTOR FAN V2.07.10
Item is no longer available
Price
N/A
83V2-2
MOTOR FAN COVER V2.07.10
Item is no longer available
Price
N/A
83V2-3
S CAPACITOR 300M 125V 1-5/16 X 2-3/4 V2.
Item is no longer available
Price
N/A
83V2-4
MOTOR JUNCTION BOX V2.07.10
Item is no longer available
Price
N/A
84
Now: PK11M
KEY 6 X 6 X 40
Price
N/A
85
MOTOR MOUNT PLATE
Price
N/A
86
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
87
Now: PW07
FLAT WASHER 5/16
Price
N/A
88
Now: PN02
HEX NUT 5/16-18
Price
N/A
89
Now: PB34
HEX BOLT 3/8-16 X 1/2
Price
N/A
90
WIRE RELIEF RETAINER
Price
N/A
91
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
92
MILLING CUTTER
Price
N/A
93
CHUCK 1/2IN JT6
Price
N/A
109
PUSH BUTTON SWITCH 110/440V 2.2KW
Price
N/A
109V2
ON/OFF SWITCH TWCHT DA7 V3.12.13
Price
N/A
109V3
ON/OFF SWITCH TWCHT DA7 V3.12.13

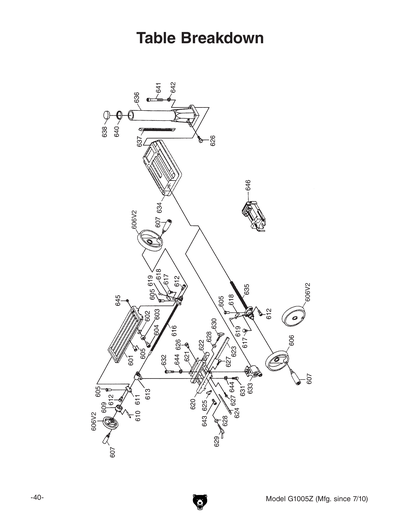

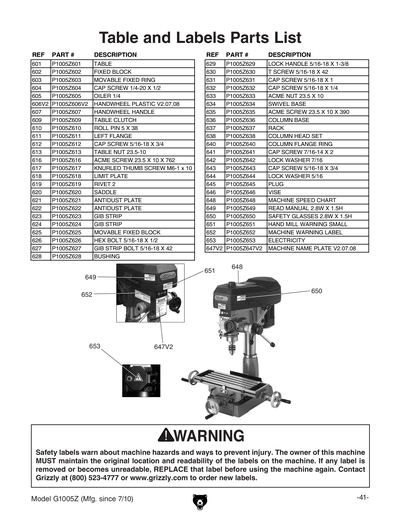

601
TABLE 7.5 X 23"
602
FIXED BLOCK
Price
N/A
603
MOVABLE FIXED RING
Price
N/A
604
CAP SCREW 1/4-20 X 1/2
Price
N/A
605
OIL BALL 1/4 IN
Price
N/A
606
TABLE HANDWHEEL W/HANDLE
Price
N/A
607
CLAMP HANDLE SET
Price
N/A
609
TABLE CLUTCH
Price
N/A
610
ROLL PIN 5 X 38
Price
N/A
611
FLANGE LEFT
Price
N/A
612
CAP SCREW 5/16-18 X 3/4
Price
N/A
613
TABLE NUT 23.5-10
Price
N/A
616
TABLE SCREW 23.5-10
Price
N/A
617
KNURLED THUMB SCREW M6-1 X 10
Item is no longer available
Price
N/A
618
LIMIT PLATE
Price
N/A
619
RIVET 2
Price
N/A
620
CENTER BASE
Price
N/A
621
ANTIDUST PLATE
Price
N/A
622
ANTIDUST PLATE
Price
N/A
623
GIB STRIP
Price
N/A
624
GIB STRIP
Price
N/A
625
MOVABLE FIXED BLOCK
Price
N/A
626
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
627
GIB STRIP BOLT 5/16-18 X 42
Price
N/A
628
BUSHING
Price
N/A
629
GRIP
Price
N/A
630
T SCREW 5/16-18 X 42
Price
N/A
631
CAP SCREW 5/16-18 X 1
Price
N/A
632
HEX SOC HD CAP SCR 5/16-2 X 1/4
Price
N/A
633
ACME NUT SET 23.5 X 10
Price
N/A
634
SWIVEL BASE
Price
N/A
635
ACME SCREW SET 23.5 X 10 X 390
Price
N/A
636
COLUMN BASE
Price
N/A
637
RACK
Price
N/A
638
COLUMN HEAD SET
Price
N/A
640
COLUMN FLANGE RING
Price
N/A
641
CAP SCREW 7/16-14 X 2
Price
N/A
642
Now: PLW05
LOCK WASHER 7/16
Price
N/A
643
CAP SCREW 5/16-18 X 3/4
Price
N/A
644
Now: PLW01
LOCK WASHER 5/16
Price
N/A
645
PLUG
Price
N/A
646
VISE
Price
N/A
647
MACHINE NAME PLATE
648
MACHINE SPEED CHART LABEL
Item is no longer available
Price
N/A
649
READ MANUAL HORIZ SMALL LABEL
Item is no longer available
Price
N/A
650
SAFETY GLASSES HORIZ SMALL LABEL
Item is no longer available
Price
N/A
651
HAND MILL WARNING SMALL LABEL
Item is no longer available
Price
N/A
652
MACHINE WARNING LABEL
Item is no longer available
Price
N/A
653
ELECTRICITY 0.5W X 0.4H
Price
N/A
MANUAL
MANUAL FOR G1005 FACTORY
Price
N/A
