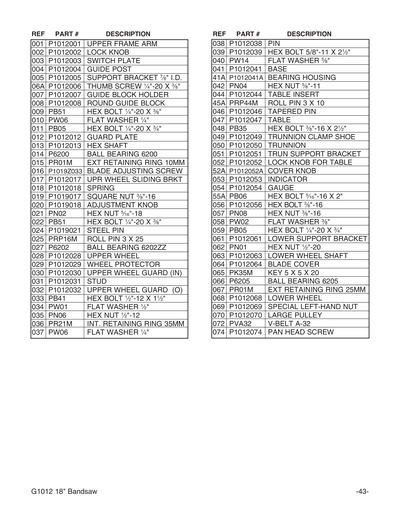

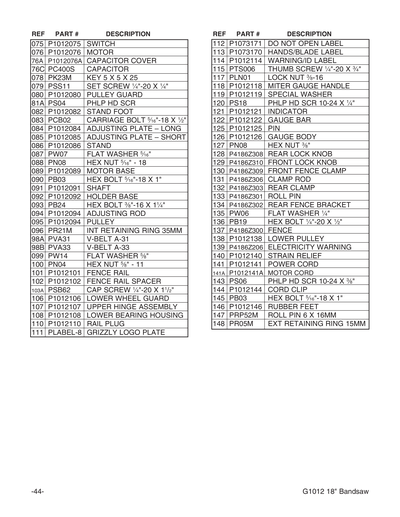

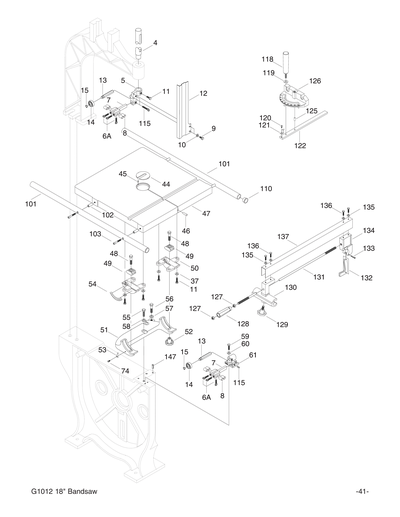

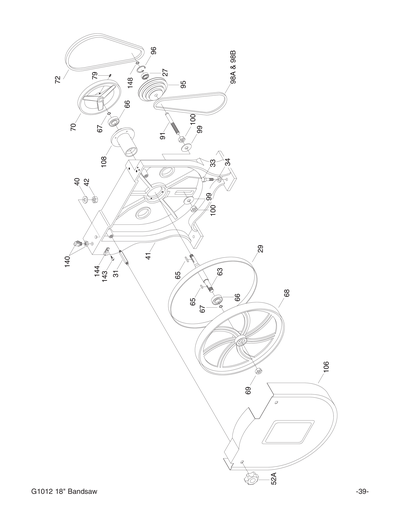

Parts for G1012 18" Woodcutting Bandsaw

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
UPPER FRAME ARM
2
LOCK KNOB
3
SWITCH PLATE
4
*DISCD*GUIDE POST
Item is no longer available
Price
N/A
5
SUPPORT BRACKET CAST IRON 7/8"ID V2.12.1
Price
N/A
5A
*DISCD*SUPPORT BRACKET 1" I.D.
Item is no longer available
Price
N/A
5V2
SUPPORT BRACKET CAST IRON 7/8"ID V2.12.1
6A
THUMBSCREW 1/4-20 X 3/8
Price
N/A
7
GUIDE BLOCK HOLDER CAST IRON V2.04.00
Price
N/A
7A
GUIDE BLOCK HOLDER CAST IRON V2.04.00
8
BLADE GUIDE BLOCK ROUND
9
Now: PB51
HEX BOLT 1/4-20 X 3/8
Price
N/A
10
Now: PW06
FLAT WASHER 1/4
Price
N/A
11
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
12
*DISCD*BLADE GUARD
Price
N/A
13
*DISCD*HEX SHAFT V1.12.95
Item is no longer available
Price
N/A
13V2
HEX SHAFT V2.10.09
14
BALL BEARING 6200-OPEN
Price
N/A
15
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
16
*DISCD*BLADE ADJUSTING SCREW 5/8-18 X 2
Price
N/A
17
*DISCD*UPER WHEL SLDING BRACKET V1.12.95
Item is no longer available
Price
N/A
17A
UPPER WHEEL SLIDING BRACKET V2.07.07
Price
N/A
18
SPRING 4.2 X 76
19
Now: PSN01
SQUARE NUT 3/8-16
Price
N/A
20
*DISCD*ADJUSTMENT KNOB
Price
N/A
21
Now: PN02
HEX NUT 5/16-18
Price
N/A
22
Now: PB51
HEX BOLT 1/4-20 X 3/8
Price
N/A
23
*DISCD*UPPER HINGE ASSY
Item is no longer available
Price
N/A
24
*DISCD*STEEL PIN
Price
N/A
25
ROLL PIN 3 X 25
Price
N/A
26
UPPER HINGE ASSY
Price
N/A
26A
UPPER HINGE ASSY
Price
N/A
27
BALL BEARING 6202ZZ
Price
N/A
28
*DISCD*UPPER WHEEL
Item is no longer available
Price
N/A
29
WHEEL PROTECTOR
30
UPPER WHEEL GUARD INNER
31
*DISCD*STANDOFF-HEX DE
Item is no longer available
Price
N/A
32
UPPER WHEEL GUARD OUTER
33
Now: PB41
HEX BOLT 1/2-12 X 1-1/2
Price
N/A
34
Now: PW01
FLAT WASHER 1/2
Price
N/A
35
Now: PN06
HEX NUT 1/2-12
Price
N/A
36
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
37
Now: PW06
FLAT WASHER 1/4
Price
N/A
38
PIN
39
Now: PB64
HEX BOLT 5/8-11 X 2-1/2
Price
N/A
40
Now: PW14
FLAT WASHER 5/8
Price
N/A
41
BASE
41A
BEARING HOUSING
42
Now: PN04
HEX NUT 5/8-11
Price
N/A
44
***USE P1019Z077***
Price
N/A
44A
TABLE INSERT ALUMINUM
Price
N/A
45
*DISCD*ROLL PIN 3 X 8
Item is no longer available
Price
N/A
45A
ROLL PIN 3 X 10
Price
N/A
46
TAPERED PIN
47
TABLE
48
Now: PB35
HEX BOLT 3/8-16 X 2-1/2
Price
N/A
49
TRUNNION CLAMPSHOE
50
TRUNNION
51
TRUNNION SUPPORT BRACKET
52
LOCK KNOB FOR TABLE
52A
LOCK KNOB FOR TABLE
Price
N/A
53
POINTER
Price
N/A
54
GAUGE
55
Now: PB58
HEX BOLT 3/8-16 X 2
Price
N/A
56
Now: PB60
HEX BOLT 3/8-16 X 3
Price
N/A
57
Now: PN08
HEX NUT 3/8-16
Price
N/A
58
Now: PW02
FLAT WASHER 3/8
Price
N/A
59
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
61
SUPPORT BRACKET LOWER
62
Now: PN01
HEX NUT 1/2-20
Price
N/A
63
LOWER WHEEL SHAFT
64
*DISCD*BLADE COVER
Item is no longer available
Price
N/A
65
Now: PK12M
KEY 5 X 5 X 30
Price
N/A
66
BALL BEARING 6205-OPEN
Price
N/A
67
Now: PR11M
EXT RETAINING RING 25MM
Price
N/A
68
LOWER WHEEL
69
LOWER WHEEL LH NUT 3/4-10
70
*DISCD*PULLEY LARGE
Item is no longer available
Price
N/A
72
Now: PVA32
V-BELT A32
Price
N/A
74
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
75
MAG SWITCH 2HP 220V 1PH
Item is no longer available
Price
N/A
76
*DISCD*MOTOR 2HP 110V/220V 1-PH
76A
CAPACITOR COVER
76B
MOTOR FAN
76C
S CAPACITOR 400M 125V 1-3/4 X 3-3/8
Price
N/A
77
*DISCD*MOTOR PULLEY- V1 2" DIAMETER
77A
*DISCD*MOTOR PULLEY- V2 3" DIAMETER
78
Now: PK23M
KEY 5 X 5 X 25
Price
N/A
79
Now: PSS11
SET SCREW 1/4-20 X 1/4
Price
N/A
80
PULLEY GUARD
81A
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
82
STAND FOOT
83
Now: PCB02
CARRIAGE BOLT 5/16-18 X 1/2
Price
N/A
84
ADJUSTING PLATE LONG V2.11.97
84A
ADJUSTING PLATE, LONG V1.12.95
Item is no longer available
Price
N/A
85
ADJUSTING PLATE SHORT V2.11.97
85A
ADJUSTING PLATE, SHORT V1.12.95
Item is no longer available
Price
N/A
86
STAND
87
Now: PW07
FLAT WASHER 5/16
Price
N/A
88
Now: PN02
HEX NUT 5/16-18
Price
N/A
89
*DISCD*MOTOR BASE
Item is no longer available
Price
N/A
90
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
91
*DISCD*SHAFT
Item is no longer available
Price
N/A
92
ROLLER BASE
Item is no longer available
Price
N/A
93
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
94
ADJ ROD
95
PULLEY
96
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
97
*DISCD*MOTOR PULLEY GUARD V1
Item is no longer available
Price
N/A
98A
Now: PVA31
V-BELT A31
Price
N/A
98B
Now: PVA33
V-BELT A33
Price
N/A
99
Now: PW14
FLAT WASHER 5/8
Price
N/A
100
Now: PN04
HEX NUT 5/8-11
Price
N/A
101
FENCE RAIL REAR
Price
N/A
101A
FENCE RAIL REAR
102
FENCE RAIL SPACER
103
CAP SCREW 1/4-20 X 1-3/4
Price
N/A
103A
CAP SCREW 1/4-20 X 1-1/2
Price
N/A
104
COMPLETE FENCE ASSY
Price
N/A
104A
*DISCD*FENCE CLAMP FRONT
Price
N/A
105
*DISCD*COMPLETE MITER GAUGE
Item is no longer available
Price
N/A
106
LOWER WHEEL GUARD
107
UPPER HINGE ASSY
107A
UPPER HINGE ASSY
Price
N/A
108
BEARING HOUSING LOWER
109
COMPLETE FENCE ASSY
Price
N/A
110
RAIL PLUG
111
GRIZZLY LOGO 8.3W X 4.3H
Price
N/A
112
DO NOT OPEN LABEL
Price
N/A
113
BANDSAW BLADE 2W X 3.3H V2.04.08
Price
N/A
114
WARNING ID LABEL
115
THUMBSCREW 1/4-20 X 3/4
Price
N/A
117
Now: PLN01
LOCK NUT 3/8-16
Price
N/A
118
*DISCD*MITER GAUGE HANDLE
Item is no longer available
Price
N/A
119
*DISCD*FIBER WASHER 1/4
120
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
121
INDICATOR
122
*DISCD*GAUGE BAR ALUM V1.03.02
Item is no longer available
Price
N/A
122V2
GAUGE BAR IRON V2.03.09
125
*DISCD*GAUGE BODY W/PIN
Price
N/A
126
*DISCD*GAUGE BODY W/PIN
Item is no longer available
Price
N/A
127
Now: PN08
HEX NUT 3/8-16
Price
N/A
128
*DISCD*REAR LOCKING KNOB
Price
N/A
129
*DISCD*LOCKING KNOB FRONT
Price
N/A
130
*DISCD*FENCE CLAMP FRONT
Price
N/A
131
*DISCD*CLAMP ROD
Price
N/A
132
*DISCD*REAR CLAMP
Price
N/A
133
ROLL PIN 5 X 30
Price
N/A
134
*DISCD*REAR FENCE BRACKET
Price
N/A
135
Now: PW06
FLAT WASHER 1/4
Price
N/A
136
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
137
COMPLETE FENCE ASSY
Price
N/A
137-1
COMPLETE FENCE ASSY
138
MOTOR PULLEY
139
ELECTRICITY 1.4W X 1.2H
Price
N/A
140
STRAIN RELIEF M13 TYPE-6 ST
Price
N/A
141
POWER CORD 12G X 3W 86"L
Price
N/A
141A
POWER CORD 12G X 3W 36"L
Price
N/A
143
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
144
CORD CLIP
145
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
146
RUBBER FEET
147
ROLL PIN 6 X 16
Price
N/A
148
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
COIL
*DISCD*MAGNETIC COIL 220V
MANUAL
MANUAL FOR G1012 02/02
PART
MISC PART FOR G1012
ZPART
MISC PART FOR G1021Z
Item is no longer available
Price
N/A
