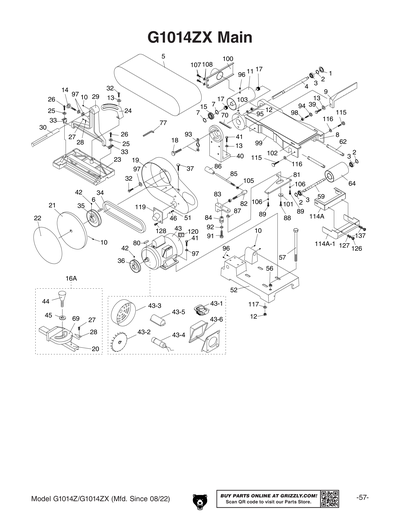

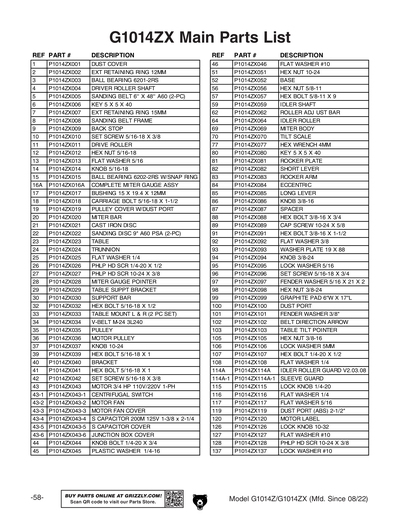

Parts for G1014ZX 6" x 48" Belt/9" Disc Combo Sander with Cabinet Stand

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
DUST COVER
Price
N/A
2
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
3
BALL BEARING 6201-2RS
Price
N/A
4
DRIVER ROLLER SHAFT
Price
N/A
5
Now: D1258
6" x 48" A/O Sanding Belt 100 Grit, 2 Pk.
Price
N/A
6
Now: PK02M
KEY 5 X 5 X 40
Price
N/A
7
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
8
SANDING BELT FRAME
Price
N/A
9
BACK STOP
Price
N/A
10
Now: PSS02
SET SCREW 5/16-18 X 3/8
Price
N/A
11
*DISCD*DRIVE ROLLER
Price
N/A
12
Now: PN02
HEX NUT 5/16-18
Price
N/A
13
Now: PW07
FLAT WASHER 5/16
Price
N/A
14
KNOB 5/16-18
Price
N/A
15
BALL BEARING 6202-2RS W/SNAP RING
Price
N/A
16A
COMPLETE MITER GAUGE ASSY
Price
N/A
17
*DISCD*BUSHING 15 X 19.4 X 12MM
Price
N/A
18
Now: PCB08
CARRIAGE BOLT 5/16-18 X 1-1/2
Price
N/A
19
PULLEY COVER W/DUST PORT V2.07.00
Price
N/A
20
MITER BAR
Price
N/A
21
CAST IRON DISC V2.02.97
Price
N/A
22
Now: D1323
9" A/O Sanding Disc, 100 Grit PSA, 2 Pk.
Price
N/A
23
TABLE
Price
N/A
24
TRUNNION
Price
N/A
25
Now: PW06
FLAT WASHER 1/4
Price
N/A
26
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
27
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
28
MITER GAUGE POINTER
Price
N/A
29
TABLE SUPPORT BRACKET V2.01.98
Price
N/A
30
SUPPORT BAR
Price
N/A
31
TABLE MOUNT L & R (2 PC SET)
Price
N/A
32
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
33
TABLE MOUNT L & R (2 PC SET)
Price
N/A
34
Now: PVM24
V-BELT M24 3L240
Price
N/A
35
PULLEY
Price
N/A
36
MOTOR PULLEY
Price
N/A
37
KNOB 10-24
Price
N/A
39
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
40
BRACKET
Price
N/A
41
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
42
Now: PSS02
SET SCREW 5/16-18 X 3/8
Price
N/A
43
MOTOR 3/4HP 110V/220V 1-PH
Price
N/A
43-1
CENTRIFUGAL SWITCH
Price
N/A
43-2
MOTOR FAN
Price
N/A
43-3
MOTOR FAN COVER
Price
N/A
43-4
S CAPACITOR 200M 125V 1-3/8 X 2-1/4
Price
N/A
43-5
S CAPACITOR COVER
Price
N/A
43-6
JUNCTION BOX COVER
Price
N/A
44
KNOB BOLT 1/4-20 X 3/4
Price
N/A
45
PLASTIC WASHER 1/4-16
Price
N/A
46
Now: PW03
FLAT WASHER #10
Price
N/A
47
Now: PFS03
FLANGE SCREW 10-24 X 3/8
Price
N/A
48
EXT TOOTH WASHER #10
Price
N/A
49
STRAIN RELIEF M14 TYPE-1 SNAP-IN
Price
N/A
50
SWITCH PLATE
Price
N/A
51
Now: PN07
HEX NUT 10-24
Price
N/A
52
BASE
Price
N/A
53
Now: G8988
Safety Paddle Switch
Price
N/A
55
PADDLE SWITCH KEY
Price
N/A
56
Now: PN04
HEX NUT 5/8-11
Price
N/A
57
HEX BOLT 5/8-11 X 9
Price
N/A
58
RUBBER FOOT
Price
N/A
59
IDLER SHAFT V3.08.97
Price
N/A
60
MACHINE ID LABEL V2.08.22
Price
N/A
60V2
MACHINE ID LABEL V2.08.22
60V3
MACHINE ID LABEL V3.04.24
61
MODEL NUMBER LABEL
62
ROLLER ADJUST BAR
Price
N/A
63
Z SERIES 11.6W X 2.8H
Price
N/A
64
IDLER ROLLER V3.08.97
Price
N/A
65
Now: PCB05
CARRIAGE BOLT 5/16-18 X 3/4
Price
N/A
66
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
67
READ MANUAL 1.5W X 2.5H
Price
N/A
67V2
COMBO WARNING LABEL V2.08.22
Price
N/A
68
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
69
MITER BODY
Price
N/A
70
TILT SCALE
Price
N/A
71
POWER CORD 16G X 3W 73"L
Price
N/A
72
MOTOR CORD 1 FEMALE
72-1
MOTOR CORD 2 MALE
73
CABINET
73A
COMPLETE STAND ASSY BOX 2
74
CABINET DOOR
74-1
HINGE PIN
Price
N/A
75
DOOR LATCH SYSTEM V1
75V2
DOOR LATCH SYSTEM V2.11.13
76
SHELF
77
HEX WRENCH 4MM
Price
N/A
78
SWITCH HOUSING
79
ELECTRICITY 0.7W X 0.6H
Price
N/A
79V2
ELECTRICITY 0.5W X 0.4H
Price
N/A
80
Now: PK02M
KEY 5 X 5 X 40
Price
N/A
81
ROCKER PLATE
Price
N/A
82
SHORT LEVER
Price
N/A
83
ROCKER ARM
Price
N/A
84
ECCENTRIC
Price
N/A
85
LONG LEVER
Price
N/A
86
KNOB 3/8-16
Price
N/A
87
SPACER
Price
N/A
88
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
89
CAP SCREW 10-24 X 5/8
Price
N/A
90
MOTOR CORD 16G 3W 12"
Price
N/A
91
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
92
Now: PW02
FLAT WASHER 3/8
Price
N/A
93
WASHER PLATE 19 X 88
Price
N/A
94
KNOB 3/8-24
Price
N/A
95
Now: PLW01
LOCK WASHER 5/16
Price
N/A
96
Now: PSS18
SET SCREW 5/16-18 X 3/4
Price
N/A
97
FENDER WASHER 5/16 X 21 X 2
Price
N/A
98
Now: PN11
HEX NUT 3/8-24
Price
N/A
99
GRAPHITE PAD 6"W X 17"L
Price
N/A
100
DUST PORT
Price
N/A
101
FENDER WASHER 3/8
Price
N/A
102
BELT DIRECTION ARROW
Price
N/A
103
TABLE TILT POINTER
Price
N/A
104
Now: G9987
Nameplate - Mini
Price
N/A
105
Now: PN08
HEX NUT 3/8-16
Price
N/A
106
LOCK WASHER 5MM
Price
N/A
107
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
108
Now: PW06
FLAT WASHER 1/4
Price
N/A
114
*DISCD*IDLER ROLLER GUARD V1.02.03
Price
N/A
114A
IDLER ROLLER GUARD V2.03.08
Price
N/A
114A-1
SLEEVE GUARD
Price
N/A
115
LOCK KNOB 1/4-20
Price
N/A
116
Now: PW06
FLAT WASHER 1/4
Price
N/A
117
Now: PW07
FLAT WASHER 5/16
Price
N/A
118
TAP SCREW #5 X 3/8
Price
N/A
119
Now: W1042
2-1/2" Universal Dust Port for Shop-Vac & Sears
Price
N/A
120
MOTOR LABEL
Price
N/A
121
ENTANGLEMENT HAZARD 1.5W X 2.5H
Price
N/A
126
LOCK KNOB 10-32
Price
N/A
127
Now: PW03
FLAT WASHER #10
Price
N/A
128
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
129
N/S GRIZZLY GREEN G1023S
Price
N/A
130
GREY PUTTY REF G0504
Price
N/A
131
GLOSSY BLACK
Price
N/A
133
ABRASION INJURY HAZARD
Price
N/A
134
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
137
Now: PLW03
LOCK WASHER #10
Price
N/A
MAN
MANUAL G1014Z/ZX MFD-11.07-7.22 V2.10.17
Price
N/A
MANV2
MANUAL G1014Z/ZX MFD-8.22-3.24 V3.08.22
Price
N/A
MANV3
MANUAL G1014Z/ZX MFD-8.22-3.24 V3.08.22
Price
N/A
