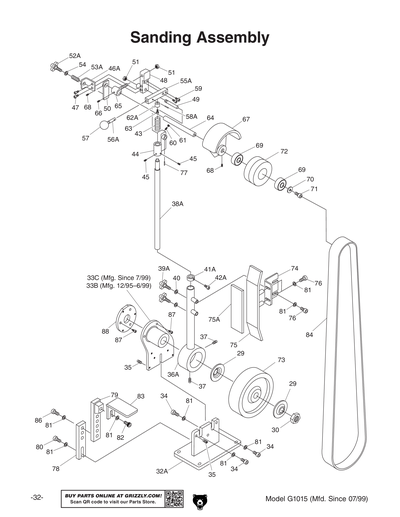

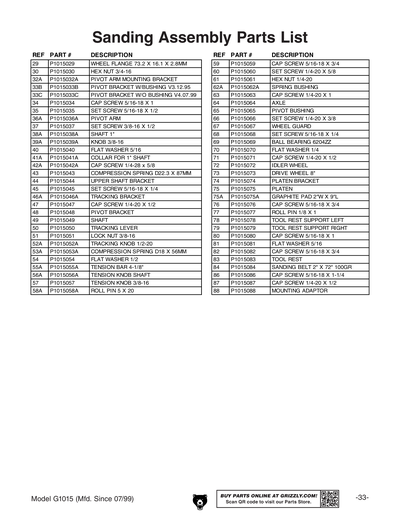

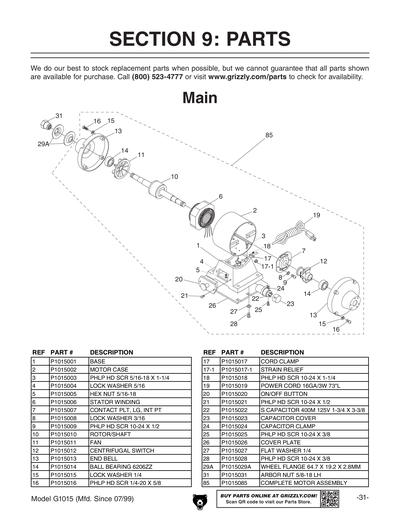

Parts for G1015 Knife Grinder, Sander, and Buffer

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
BASE
2
MOTOR CASE
2V2
MOTOR CASE W/ BASE GREEN V2.01.11
3
Now: PS11
PHLP HD SCR 5/16-18 X 1-1/4
Price
N/A
4
Now: PLW01
LOCK WASHER 5/16
Price
N/A
5
Now: PN02
HEX NUT 5/16-18
Price
N/A
6
STATOR WINDING
7
CONTACT PLT LG INT PT
Price
N/A
8
Now: PLW03
LOCK WASHER #10
Price
N/A
9
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
10
ROTOR/SHAFT
11
FAN
12
CENTRIFUGAL SWITCH
13
END BELL
14
BALL BEARING 6206ZZ
Price
N/A
15
Now: PLW02
LOCK WASHER 1/4
Price
N/A
16
Now: PS12
PHLP HD SCR 1/4-20 X 5/8
Price
N/A
17
CORD CLAMP
17-1
STRAIN PLATE
18
Now: PS13
PHLP HD SCR 10-24 X 1-1/4
Price
N/A
19
POWER CORD 16G X 3W 73"L
Price
N/A
20
ON/OFF SWITCH
Price
N/A
21
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
22
S CAPACITOR 400M 125V 1-3/4 X 3-3/8
Price
N/A
23
CAPACITOR COVER
24
CAPACITOR CLAMP
25
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
26
COVER PLATE
27
Now: PW06
FLAT WASHER 1/4
Price
N/A
28
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
29
WHEEL FLANGE 3/4" BORE
29A
WHEEL FLANGE 5/8" BORE
Price
N/A
30
Now: PN03
HEX NUT 3/4-16
Price
N/A
31
ARBOR NUT 5/8-18 LH
32
*DISCD*MOUNTING BRACKET
32A
PIVOT ARM MOUNTING BRACKET
33
*DISCD*PIVOT ARM BRACKET W/BUSHING V3.12
Price
N/A
33A
*DISCD*PIVOT ARM BRACKET W/BUSHING V3.12
Price
N/A
33B
*DISCD*PIVOT ARM BRACKET W/BUSHING V3.12
Item is no longer available
Price
N/A
33C
PIVOT ARM BRACKET V4.07.99
34
CAP SCREW 5/16-18 X 1
Price
N/A
35
Now: PSS08
SET SCREW 5/16-18 X 1/2
Price
N/A
36
*DISCD*PIVOT ARM
36A
PIVOT ARM
37
Now: PSS09
SET SCREW 3/8-16 X 1/2
Price
N/A
38
*DISCD*SHAFT 25MM
38A
SHAFT 1"
39
*DISCD*KNOB 5/16-18
Item is no longer available
Price
N/A
39A
KNOB 3/8-16
40
Now: PW07
FLAT WASHER 5/16
Price
N/A
41
*DISCD*COLLAR FOR 25MM SHAFT
41A
COLLAR FOR 1" SHAFT
42
Now: PSS03
SET SCREW 1/4-20 X 3/8
Price
N/A
42A
CAP SCREW 1/4-28 X 5/8
Price
N/A
43
COMPRESSION SPRING D22.3 X 87MM
43A
COMPRESSION SPRING D22.3 X 87MM
Price
N/A
44
UPPER SHAFT BRACKET
45
Now: PSS05
SET SCREW 5/16-18 X 1/4
Price
N/A
46
*DISCD*TRACKING BRACKET
Item is no longer available
Price
N/A
46A
TRACKING BRACKET
47
CAP SCREW 1/4-20 X 1/2
Price
N/A
48
PIVOT BRACKET
49
SHAFT
50
TRACKING LEVER
51
Now: PLN01
LOCK NUT 3/8-16
Price
N/A
52
*DISCD*TRACKING KNOB
52A
TRACKING KNOB 1/2-20
53
*DISCD*SPRING
53A
COMPRESSION SPRING D18 X 56MM
54
Now: PW01
FLAT WASHER 1/2
Price
N/A
55
*DISCD*TENSION BAR-5 7/8"
55A
TENSION BAR 4-1/8"
56
*DISCD*TENSION KNOB SHAFT
56A
TENSION KNOB SHAFT
57
TENSION KNOB 3/8-16
58
Now: PRP02
ROLL PIN 1/8 X 3/4
Price
N/A
58A
ROLL PIN 5 X 20
Price
N/A
59
CAP SCREW 5/16-18 X 3/4
Price
N/A
60
Now: PSS10
SET SCREW 1/4-20 X 5/8
Price
N/A
61
Now: PN05
HEX NUT 1/4-20
Price
N/A
62
*DISCD*SPRING BUSHING
Item is no longer available
Price
N/A
62A
SPRING BUSHING
63
CAP SCREW 1/4-20 X 1
Price
N/A
64
AXLE
65
PIVOT BUSHING
66
Now: PSS03
SET SCREW 1/4-20 X 3/8
Price
N/A
67
WHEEL GUARD
68
Now: PSS05
SET SCREW 5/16-18 X 1/4
Price
N/A
69
BALL BEARING 6204ZZ
Price
N/A
70
Now: PW06
FLAT WASHER 1/4
Price
N/A
71
CAP SCREW 1/4-20 X 1/2
Price
N/A
72
IDLER WHEEL
73
DRIVE WHEEL 8"
74
PLATEN BRACKET
75
PLATEN
75A
GRAPHITE PAD 2W X 9L IN
76
CAP SCREW 5/16-18 X 3/4
Price
N/A
77
Now: PRP05
ROLL PIN 1/8 X 1
Price
N/A
78
TOOL REST SUPPORT LEFT
79
TOOL REST SUPPORT RIGHT
80
CAP SCREW 5/16-18 X 1
Price
N/A
81
Now: PW07
FLAT WASHER 5/16
Price
N/A
81A
*DISCD*SPACER
Item is no longer available
Price
N/A
82
CAP SCREW 5/16-18 X 3/4
Price
N/A
83
TOOL REST
84
Now: D1223
2" x 72" A/O Sanding Belt 100 Grit, 2 Pk.
Price
N/A
85
MOTOR ASSY 1HP 110V 1-PH
86
CAP SCREW 5/16-18 X 1-1/4
Price
N/A
87
CAP SCREW 1/4-20 X 1/2
Price
N/A
88
MOUNTING ADAPTOR
89
*DISCD*WHEEL FLANGE D65 X d19.2 X 2.8mmT
Item is no longer available
Price
N/A
89A
COMPLETE SANDING ARM ASSY. BOX 2

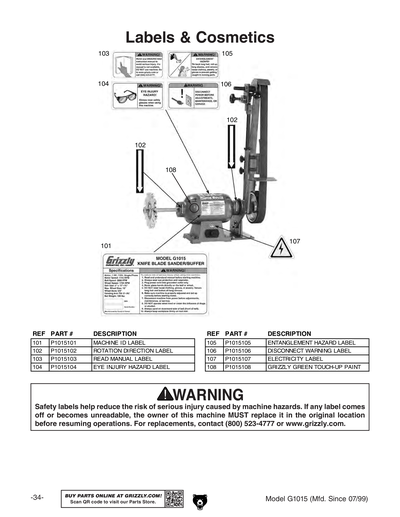

101
MACHINE ID LABEL
102
ROTATION DIRECTION LABEL
103
READ MANUAL 2.8W X 1.5H
Price
N/A
104
SAFETY GLASSES 2.8W X 1.5H
Price
N/A
105
ENTANGLEMENT HAZARD 2.8W X 1.5H
Price
N/A
106
DISCONNECT 110V 2.8W X 1.5H
Price
N/A
107
ELECTRICITY 0.5W X 0.4H
Price
N/A
108
N/S GRIZZLY GREEN G1023S
Price
N/A
109
CARTON FOR G1015
BOX1
MOTOR ASSY 1HP 110V 1-PH
Price
N/A
BOX2
COMPLETE SANDING ARM ASSY. BOX 2
Price
N/A
MANUAL
MANUAL FOR G1015 7/09
