Parts for G1018 - 8" x 65" Super Heavy-Duty Jointer

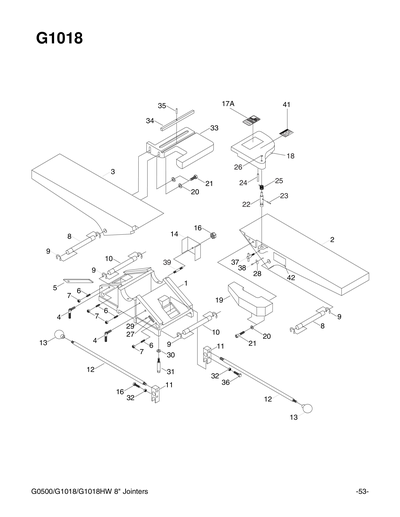

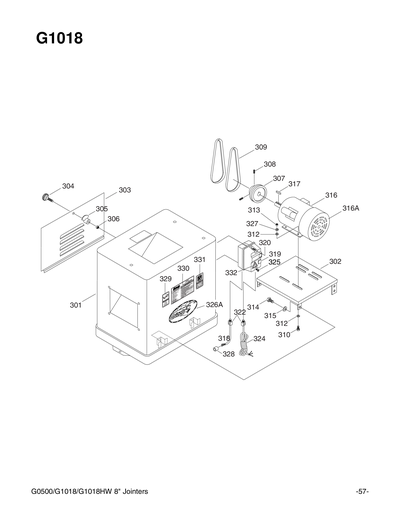

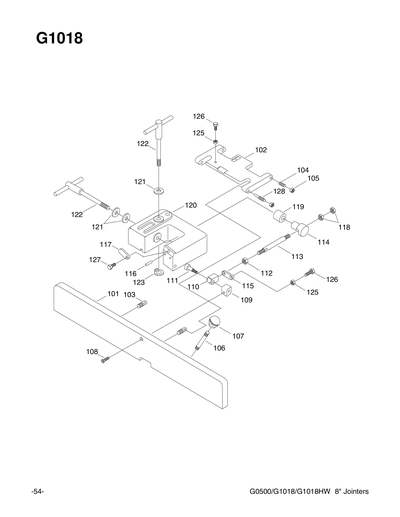

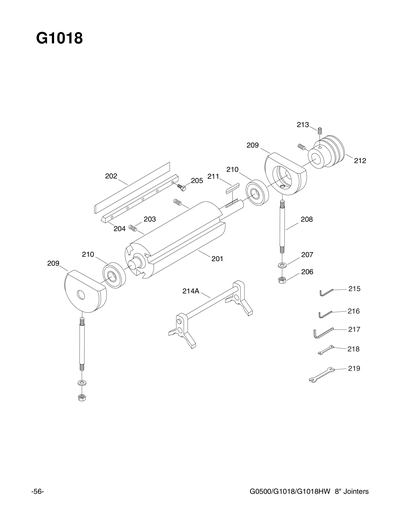

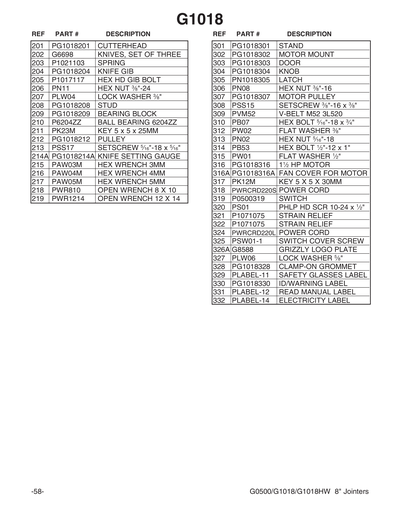

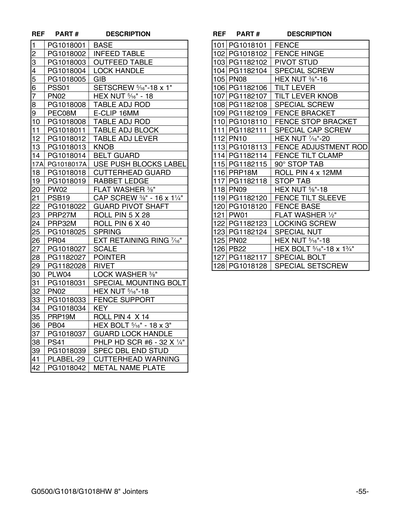

Part Diagram for G1018
Part Diagram for G1018
Part Diagram for G1018
Part Diagram for G1018
Part Diagram for G1018
Part Diagram for G1018
Part Diagram for G1018
Part Diagram for G1018
Part Diagram for G1018
Part Diagram for G1018
Part Diagram for G1018
Part Diagram for G1018

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
*DISCD*INFEED TABLE
Item is no longer available
Price
N/A
2
SET SCREW 5/16-18 X 1
Price
N/A
3
GIB
Price
N/A
4
*DISCD*KNOB
Price
N/A
5
*DISCD*TABLE ADJUST LEVER
Item is no longer available
Price
N/A
6
P1018006
Now: PB06
HEX BOLT 5/16-18 X 2
Price
N/A
7
LOCK NUT 5/16-18
Price
N/A
8
*DISCD*TABLE ADJ BLOCK
Price
$20.70
9
TABLE ADJ ROD
Price
N/A
10
EXT RETAINING RING 16MM
Price
N/A
11
*DISCD*TABLE ADJUST ROD
Price
$12.65
12
*DISCD*BASE
Price
$272.85
13
*DISCD*OUTFEED TABLE
Item is no longer available
Price
N/A
14
*DISCD*RABBET BRACKET
Price
$49.75
15
SET SCREW 1/4-20 X 1
Price
N/A
16
P1018016
Now: PN05
HEX NUT 1/4-20
Price
N/A
17
P1018017
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
18
LOCK WASHER 3/8
Price
N/A
20
LOCK HANDLE
Price
N/A
24
*DISCD*BEARING HOUSING
Price
$11.50
25
BALL BEARING 6203-2RS
Price
N/A
26
*DISCD*CUTTERHEAD
Item is no longer available
Price
N/A
27
P1018027
Now: PK04
KEY 3/16 X 3/16 X 1-3/4
Price
N/A
28
*DISCD*CUTTERHEAD PULLEY
Price
$16.40
29
*DISCD*SPRING 3/16" OD X 1" X .014"
Item is no longer available
Price
N/A
30
SET SCREW 1/4-20 X 3/4
Price
N/A
31
*DISCD*KNIFE GIB
Item is no longer available
Price
N/A
32
P1018032
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
33
8" x 1" x 1/8" HSS Jointer Knives, Set of 3
Price
N/A
34
*DISCD*GUARD PIVOT SHAFT
Price
$12.65
35
*DISCD*GUARD SPRING COLLAR
Item is no longer available
Price
N/A
36
*DISCD*COTTER PIN 1/8 X 1 1/4
Item is no longer available
Price
N/A
37
*DISCD*BUSHING
Price
$7.50
38
*DISCD*KNOB
Item is no longer available
Price
N/A
39
Magnetic Switch, Single-Phase, 220V Only, 2 HP
Price
N/A
40
*DISCD*GUARD
Item is no longer available
Price
N/A
41
*DISCD*FENCE BRACKET
Item is no longer available
Price
N/A
42
*DISCD*STOP TAB 90 DEG
Item is no longer available
Price
N/A
42A
*DISCD*OLD STYLE FENCE STOP
Price
$12.65
43
*DISCD*STOP PLATE 90 DEG
Item is no longer available
Price
N/A
44
*DISCD*STOP BLOCK 90 DEG
Item is no longer available
Price
N/A
45
*DISCD*FENCE ADJUST KNOB
Price
$20.70
46
P1018046
Now: PN10
HEX NUT 7/16-20
Price
N/A
48
*DISCD*SPECIAL WASHER
Item is no longer available
Price
N/A
49
FENCE SCREW
Price
N/A
51
*DISCD*KNOB
Item is no longer available
Price
N/A
52
*DISCD*FENCE TILT LEVER
Item is no longer available
Price
N/A
53
*DISCD*FENCE TILT CLAMP
Price
$12.65
55
P1018055
Now: PN09
HEX NUT 5/8-18
Price
N/A
56
*DISCD*BALL KNOB
Item is no longer available
Price
N/A
57
*DISCD*LOCKING SCREW
Item is no longer available
Price
N/A
58
*DISCD*HANDLE
Item is no longer available
Price
N/A
59
*DISCD*FENCE, BASE
Price
$90.85
60
*DISCD*FENCE
Item is no longer available
Price
N/A
61
*DISCD*FENCE HINGE
Price
$41.40
62
*DISCD*LOCKING SCREW
Item is no longer available
Price
N/A
63
P1018063
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
64
P1018064
Now: PN02
HEX NUT 5/16-18
Price
N/A
65
SET SCREW 3/8-16 X 1-1/2
Price
N/A
66
P1018066
Now: PN08
HEX NUT 3/8-16
Price
N/A
67
P1018067
Now: PS07
PHLP HD SCR 1/4-20 X 3/8
Price
N/A
68
P1018068
Now: PW06
FLAT WASHER 1/4
Price
N/A
69
*DISCD*FENCE LOCK BRACKET
Price
$12.65
70
P1018070
Now: PW01
FLAT WASHER 1/2
Price
N/A
71
*DISCD*KEY 3/8 X 3/8 X 8
Price
$4.60
72
*DISCD*ROLL PIN 1/8 X 7/8
Item is no longer available
Price
N/A
73
*DISCD*FENCE LOCK PLATE
Item is no longer available
Price
N/A
74
*DISCD*ROLL PIN 1/4 x 1/2
Item is no longer available
Price
N/A
75
*DISCD*BELT GUARD
Item is no longer available
Price
N/A
76
LOCK WASHER 5/16
Price
N/A
77
P1018077
Now: PB23
HEX BOLT 5/16-18 X 2-1/2
Price
N/A
78
P1018078
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
79
LOCK WASHER 3/8
Price
N/A
80
P1018080
Now: PW02
FLAT WASHER 3/8
Price
N/A
81
*DISCD*POINTER
Price
$1.49
82
P1018082
Now: PS16
PHLP HD SCR 6-32 X 1-1/4
Price
N/A
83
*DISCD*FENCE SUPPORT
Price
$107.55
84
*DISCD*CHAIN
Item is no longer available
Price
N/A
85
*DISCD*SPRING
Item is no longer available
Price
N/A
86
P1018086
Now: PB25
HEX BOLT 3/8-16 X 1-3/4
Price
N/A
87
V-BELT A52
Price
N/A
88
*DISCD*MOTOR PULLEY
Price
$16.40
89
*DISCD*STAND
Item is no longer available
Price
N/A
90
*DISCD*DOOR
Item is no longer available
Price
N/A
91
*DISCD*DOOR KNOB ASSEMBLY
Item is no longer available
Price
N/A
92
*DISCD*DEPTH-OF-CUT SCALE
Item is no longer available
Price
N/A
93
*DISCD*KNIFE SETTING GAUGE
Price
$8.35
94
*DISCD*MOTOR 1-1/2HP
Item is no longer available
Price
N/A
94A
*DISCD*MOTOR 1-1/2HP
Item is no longer available
Price
N/A
200
*DISCD*WARNING LABEL
Item is no longer available
Price
N/A
201
*DISCD*GRIZZLY NAMEPLATE 8W X 3.5H
Price
N/A
202
HARDWARE BAG
Price
$22.85
203
HARDWARE BAG 2
Item is no longer available
Price
N/A
HW010
*DISCD*FEED SCREW BRACKET
Price
N/A
HW011
CAP SCREW 3/8-16 X 1-1/4
Price
N/A
HW013
*DISCD*BRACKET
Price
N/A
HW016
*DISCD*HANDWHEEL SHAFT
Price
N/A
HW017
*DISCD*RING
Price
N/A
HW018
SET SCREW 1/4-20 X 3/8
Price
N/A
HW020
*DISCD*HANDLE
Price
N/A
HW023
KEY 5 X 5 X 23
Price
N/A
HW035
*DISCD*KNOB
Price
N/A
HW054
RABBET LEDGE
Price
N/A
HW055
*DISCD*HANDWHEEL ASSY
Price
N/A
HWMANUAL
MANUAL FOR G0500 05/03
Price
N/A
MANUAL
*DISCD*MANUAL FOR THE G1018 05/03
Item is no longer available
Price
N/A
P
BASE
Price
$180.25
P
INFEED TABLE
Price
$250.00
P
OUTFEED TABLE
Price
$228.60
P
LOCK HANDLE
Price
$1.85
P
GIB
Price
$3.05
PG1018006
SET SCREW 5/16-18 X 1
Price
N/A
PG1018007
HEX NUT 5/16-18
Price
N/A
P
TABLE ADJ ROD
Price
$3.40
PG1018009
E-CLIP 16MM
Price
N/A
PG1018010
TABLE ADJ ROD
Price
N/A
PG1018011
*DISCD*TABLE ADJ BLOCK
Item is no longer available
Price
N/A
PG1018012
*DISCD*TABLE ADJ LEVER
Item is no longer available
Price
N/A
PG1018013
*DISCD*KNOB
Item is no longer available
Price
N/A
P
BELT GUARD
Price
$7.60
PG1018015
FLAT WASHER 5/16
Price
N/A
PG1018016
HEX BOLT 5/16-18 X 3
Price
N/A
PG1018017
*DISCD*WARNING LABEL
Item is no longer available
Price
N/A
P
*DISCD*USE PUSH BLOCKS LABEL
Price
$16.40
P
CUTTERHEAD GUARD
Price
$30.20
P
RABBET LEDGE
Price
$30.20
PG1018020
FLAT WASHER 3/8
Price
N/A
PG1018021
CAP SCREW 3/8-16 X 1-1/4
Price
N/A
P
PIVOT SHAFT
Price
$4.60
PG1018023
ROLL PIN 5 X 28
Price
N/A
PG1018024
ROLL PIN 6 X 40
Price
N/A
P
SPRING HELICAL 1.8 X 18.7
Price
$1.85
PG1018026
EXT RETAINING RING 7/16
Price
N/A
P
SCALE
Price
$1.85
PG1018028
POINTER
Price
N/A
PG1018029
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
PG1018030
LOCK WASHER 3/8
Price
N/A
P
BASE MOUNTING BOLT
Price
$1.85
PG1018032
HEX NUT 5/16-18
Price
N/A
P
FENCE SUPPORT
Price
$60.40
P
KEY 9.5 X 9.5 X 268
Price
$6.40
PG1018035
ROLL PIN 4 X 14
Price
N/A
PG1018036
HEX BOLT 5/16-18 X 3
Price
N/A
P
GUARD LOCK HANDLE
Price
$40.20
PG1018038
PHLP HD SCR 6-32 X 1/4
Price
N/A
P
STUD M14-18 X 78 10
Price
$2.20
PG1018040
*DISCD*KNOB
Price
N/A
PG1018041
CUTTERHEAD GUARD LABEL 4.1W X 2.2H
Price
N/A
PG1018042
*DISCD*NAME PLATE METAL
Item is no longer available
Price
N/A
P
FENCE
Price
$199.90
P
FENCE HINGE
Price
$20.30
PG1018103
STANDOFF-HEX MF
Price
N/A
PG1018104
FENCE HINGE SCREW
Price
N/A
PG1018105
HEX NUT 3/8-16
Price
N/A
PG1018106
TILT LEVER
Price
N/A
PG1018107
KNOB
Price
N/A
PG1018108
FENCE SCREW
Price
N/A
PG1018109
FENCE BRACKET
Price
N/A
PG1018110
FENCE STOP BRACKET
Price
N/A
PG1018111
FENCE BRACKET HEX HD BOLT 5/16-18
Price
N/A
PG1018112
HEX NUT 7/16-20
Price
N/A
P
FENCE ADJ ROD
Price
$4.85
PG1018114
FENCE TILT CLAMP
Price
N/A
PG1018115
STOP TAB 90DEG
Price
N/A
PG1018116
ROLL PIN 4 X 12
Price
N/A
PG1018117
STOP TAB
Price
N/A
PG1018118
HEX NUT 5/8-18
Price
N/A
PG1018119
FENCE TILT SLEEVE
Price
N/A
P
FENCE BASE V2.03.03
Price
$38.65
PG1018120A
FENCE BASE V1.12.95
Item is no longer available
Price
N/A
PG1018121
FLAT WASHER 1/2
Price
N/A
PG1018122
*DISCD*LOCK SCREW 1/2-12
Price
N/A
PG1018123
FENCE BASE NUT 1/2-12
Price
N/A
PG1018124
HEX BOLT 5/16-18 X 1
Price
N/A
PG1018125
HEX NUT 5/16-18
Price
N/A
PG1018126
HEX BOLT 5/16-18 X 1-3/4
Price
N/A
PG1018127
FENCE BASE BOLT 5/16-18
Price
N/A
P
FENCE HINGE SET SCREW
Price
$1.75
PG1018201
*DISCD*CUTTERHEAD
Item is no longer available
Price
N/A
PG1018202
8" x 1" x 1/8" HSS Jointer Knives, Set of 3
Price
N/A
PG1018203
COMPRESSION SPRING 0.6 X 5.9 X 16
Price
N/A
PG1018203A
***USE P1018029***
Price
N/A
P
KNIFE GIB 8"
Price
$10.00
PG1018205
HEX HD GIB BOLT 1/4-28 X 7
Price
N/A
PG1018206
HEX NUT 3/8-24
Price
N/A
PG1018207
LOCK WASHER 3/8
Price
N/A
P
STUD-DE 3/8-24 X 4-3/4 1/2RH
Price
$1.85
P
BEARING BLOCK
Price
$10.00
PG1018210
BALL BEARING 6204ZZ
Price
N/A
PG1018211
KEY 5 X 5 X 25
Price
N/A
P
PULLEY 3/4ID
Price
$9.40
PG1018213
SET SCREW 5/16-18 X 5/16
Price
N/A
PG1018214
KNIFE GAUGE ASSY V2.01.03
Price
N/A
P
KNIFE GAUGE 1 OF 2
Price
$2.20
PG1018214-2
KNIFE GAUGE ROD
Item is no longer available
Price
N/A
P
KNIFE GAUGE ASSY V2.01.03
Price
$12.40
PG1018215
KNIFE GAUGE 1 OF 2
Price
N/A
PG1018216
HEX WRENCH 4MM
Price
N/A
PG1018217
HEX WRENCH 5MM
Price
N/A
PG1018218
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
PG1018219
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
P
CABINET
Price
$359.60
P
CABINET STAND ASSY W/MOTOR 1.5HP 220V 1-
Price
$463.20
P
MOTOR MOUNT
Price
$30.20
P
DOOR
Price
$30.20
P
KNOB
Price
$1.85
P
LATCH
Price
$2.20
PG1018306
HEX NUT 3/8-16
Price
N/A
P
MOTOR PULLEY
Price
$30.20
PG1018308
SET SCREW 3/8-16 X 3/8
Price
N/A
PG1018309
V-BELT M52 3L520
Price
N/A
PG1018309A
V-BELT M51 3L510
Price
N/A
PG1018309B
V-BELT M52 3L520
Price
N/A
PG1018310
HEX BOLT 5/16-18 X 3/4
Price
N/A
PG1018311
HEX NUT 10-24
Price
N/A
PG1018312
FLAT WASHER 3/8
Price
N/A
PG1018313
HEX NUT 5/16-18
Price
N/A
PG1018314
HEX BOLT 1/2-12 X 1
Price
N/A
PG1018315
FLAT WASHER 1/2
Price
N/A
PG1018316
*DISCD*MOTOR 1.5HP 220V 1-PH
Item is no longer available
Price
N/A
PG1018316A
FAN COVER FOR MOTOR
Item is no longer available
Price
N/A
PG1018317
KEY 5 X 5 X 30
Price
N/A
PG1018318
POWER CORD 12G X 3W 36"L
Price
N/A
PG1018319
Magnetic Switch, Single-Phase, 220V Only, 2 HP
Price
N/A
PG1018320
PHLP HD SCR 10-24 X 1/2
Price
N/A
PG1018321
STRAIN RELIEF M15 TYPE-2
Price
N/A
PG1018322
STRAIN RELIEF M15 TYPE-2
Price
N/A
PG1018323
STRAIN RELIEF M15 TYPE-2
Price
N/A
PG1018324
POWER CORD 12G X 3W 86"L
Price
N/A
PG1018325
WHITE SWITCH COVER SCREW V1.12.95
Price
N/A
P
*DISCD*NAME PLATE
Price
$8.35
PG1018326A
Nameplate - Small
Price
N/A
PG1018327
LOCK WASHER 5/8
Price
N/A
PG1018328
STRAIN RELIEF TYPE-3 M16
Price
N/A
PG1018329
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
P
ID/WARNING LABEL
Price
$16.40
PG1018331
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
PG1018332
ELECTRICITY 1.4W X 1.2H
Price
N/A
PG1018FENCE
*DISCD*COMPLETE FENCE ASSY
Item is no longer available
Price
N/A
P
MANUAL FOR G1018 01/03
Price
$14.65
