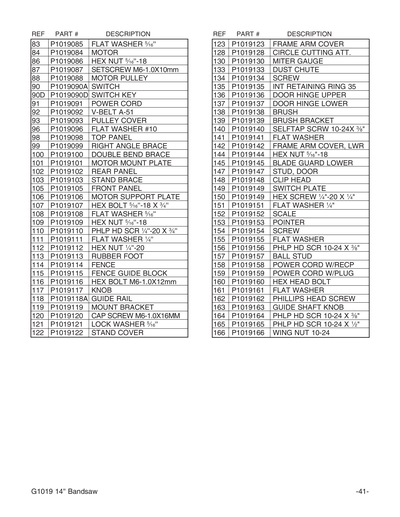

Parts for G1019 14" Bandsaw

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
*DISCD*UPPER FRAME ARM V1.10.95
Item is no longer available
Price
N/A
1A
*DISCD*UPPER FRAME ARM V2.08.99
Item is no longer available
Price
N/A
2
*DISCD*LOCK HANDLE V1.12.95
3
*DISCD*GUIDE POST BRACKET V1.12.95
4
*DISCD*GUIDE POST V1.12.95
4A
*DISCD*GUIDE POST V2.08.99
Item is no longer available
Price
N/A
5
*DISCD*GUIDE SUPPORT BRACKET
Item is no longer available
Price
N/A
5A
*DISCD*GUIDE BLOCK HOLDER SQUARE
Item is no longer available
Price
N/A
6
THUMB SCREW M6-1 X 16
Price
N/A
7
*DISCD*SPACING SLEEVE LOWER
Price
N/A
7A
***USE PR01M***
8
*DISCD*BLADE GUARD
Item is no longer available
Price
N/A
9
***use P6200-2rs***
10
SET SCREW M6-1 X 10
Price
N/A
11
GUIDE BLOCK 1/2" X 1/2" X 3/4"L
Price
N/A
12
*DISCD*BLADE ADJUSTING SCREW 5/8-18 X 2
Price
N/A
13
ROLL PIN 3 X 20
Price
N/A
14
*DISCD*BLADE ADJUSTING SCREW 5/8-18 X 2
Price
N/A
15
*DISCD*COMPRESSION SPRING 3.8 X 19.2 X74
Item is no longer available
Price
N/A
17
Now: PSN01
SQUARE NUT 3/8-16
Price
N/A
18
*DISCD*ADJUSTMENT KNOB
Item is no longer available
Price
N/A
19
*DISCD*UPPER WHEEL SHAFT HINGE
20
*DISCD*GUIDE POST COVER V1.12.95
21
*DISCD*STEEL PIN
Item is no longer available
Price
N/A
22
*DISCD*UPPER WHEEL SHAFT
Item is no longer available
Price
N/A
23
BALL BEARING 6202-2RS
Price
N/A
24
*DISCD*UPPER WHEEL
Item is no longer available
Price
N/A
25
Urethane Tire for 14" Bandsaws (Pair)
Price
N/A
26
Now: PN01
HEX NUT 1/2-20
Price
N/A
27
*DISCD*STUD V1.12.95
Item is no longer available
Price
N/A
27A
REAR GUARD STANDOFF-ROUND DE V2.12.00
28
*DISCD*UPPER GUARD - INNER V1.10.95
Item is no longer available
Price
N/A
28A
*DISCD*UPPER GUARD - INNER V2.08.99
29
*DISCD*UPPER GUARD - OUTER V1.10.95
Item is no longer available
Price
N/A
29A
*DISCD*UPPER GUARD - OUTER V2.08.99
30
*DISCD*KNOB V1.12.95
Item is no longer available
Price
N/A
30A
*DISCD*KNOB V2.08.99
Item is no longer available
Price
N/A
31
SET PIN
32
Now: PB01
HEX BOLT 3/4-10 X 2-1/2
Price
N/A
33
Now: PW13
FLAT WASHER 3/4
Price
N/A
34
*DISCD*BASE V1.10.95
34A
BASE V2.01.00
Item is no longer available
Price
N/A
35
Now: PN17
HEX NUT 3/4-10
Price
N/A
36
Now: G1169
EASY FEEDER-SINGLE PHASE
Price
N/A
37
***USE P1019Z077***
38
*DISCD*TABLE PIN
Item is no longer available
Price
N/A
39
*DISCD*TABLE
Item is no longer available
Price
N/A
40
Now: PB23M
HEX BOLT M10-1.5 X 100
Price
N/A
41
*DISCD*TRUNNION CLAMP SHOE
42
TRUNNION
Price
N/A
42A
SCALE
Price
N/A
43
Now: PW06
FLAT WASHER 1/4
Price
N/A
44
***USE PB02***
45
*DISCD*TRUNNION SUPPORT BRACKET
Item is no longer available
Price
N/A
46
*DISCD*STAR WHEEL KNOB
Item is no longer available
Price
N/A
47
***USE PB03***
48
Now: PW07
FLAT WASHER 5/16
Price
N/A
49
Now: PB04
HEX BOLT 5/16-18 X 3
Price
N/A
50
Now: PN02
HEX NUT 5/16-18
Price
N/A
51
***USE PW07***
52
***USE PN02***
53
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
54
Now: PW03
FLAT WASHER #10
Price
N/A
55
*DISCD*GUIDE SUPPORT LOWER
Item is no longer available
Price
N/A
56
SET SCREW M6-1 X 10
Price
N/A
57
*DISCD*SPACING SLEEVE LOWER
Item is no longer available
Price
N/A
58
BALL BEARING 6200-2RS
Price
N/A
60
SET SCREW M6-1 X 10
Price
N/A
61
***USE PK21M***
62
***USE PSS01M***
63
*DISCD*PULLEY
Item is no longer available
Price
N/A
64
Now: PR09M
EXT RETAINING RING 20MM
Price
N/A
65
*DISCD*SHAFT
Item is no longer available
Price
N/A
66
BALL BEARING 6204-2RS
Price
N/A
67
*DISCD*LOWER WHEEL
Item is no longer available
Price
N/A
68
Now: PN03
HEX NUT 3/4-16
Price
N/A
69
*DISCD*LOWER WHEEL GUARD V1.10.95
69A
*DISCD*LOWER WHEEL GUARD V2.08.99
70
*DISCD*GUARD
71
Now: PB06
HEX BOLT 5/16-18 X 2
Price
N/A
72
***USE PW07***
74
Now: PN02
HEX NUT 5/16-18
Price
N/A
75
Now: PCB02
CARRIAGE BOLT 5/16-18 X 1/2
Price
N/A
76
Now: PW07
FLAT WASHER 5/16
Price
N/A
77
Now: PN02
HEX NUT 5/16-18
Price
N/A
78
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
79
***USE PW07***
81
***USE PK21M***
82
***USE PB07***
83
Now: PW07
FLAT WASHER 5/16
Price
N/A
84
*DISCD*PHASE 1 3/4 HP 110V MOTOR
Item is no longer available
Price
N/A
84-1
FAN COVER
Item is no longer available
Price
N/A
85
Now: PW07
FLAT WASHER 5/16
Price
N/A
86
***USE PN02***
87
SET SCREW M6-1 X 10
Price
N/A
88
*DISCD*MOTOR PULLEY
89
***USE PS03***
90
***USE D4163***
90A
Now: G8988
Safety Paddle Switch
Price
N/A
90A-1
SWITCH COVER PLASTIC V1.11.98
90A-2
SWITCH HOUSING V3.02.03
90B
Now: G8988
Safety Paddle Switch
Price
N/A
90B-1
DUST COVER V1.11.98
90B-2
*DISCD*SWITCH DUST COVER V3.02.03
Item is no longer available
Price
N/A
90C
SWITCH HOUSING V3.02.03
Price
N/A
90D
*DISCD*SWITCH DUST COVER V3.02.03
Price
N/A
91
POWER CORD W/SHIELDED MALE REC
Price
N/A
92
***USE PVA51***
93
*DISCD*PULLEY COVER
Item is no longer available
Price
N/A
93A
***USE P1013015***
94
***USE PS01***
95
Now: PLW03
LOCK WASHER #10
Price
N/A
96
Now: PW03
FLAT WASHER #10
Price
N/A
97
Now: PWN01
WING NUT 10-24
Price
N/A
98
TOP PANEL
99
ANGLE BRACE RIGHT
Item is no longer available
Price
N/A
100
DOUBLE BEND BRACE
101
*DISCD*MOTOR MOUNT PLATE
Item is no longer available
Price
N/A
102
REAR PANEL
103
STAND BRACE
104
STAND BRACE
Price
N/A
105
FRONT PANEL
106
*DISCD*MOTOR SUPPORT PLATE
107
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
108
Now: PW07
FLAT WASHER 5/16
Price
N/A
109
Now: PN02
HEX NUT 5/16-18
Price
N/A
110
Now: PS02
PHLP HD SCR 1/4-20 X 3/4
Price
N/A
111
Now: PW06
FLAT WASHER 1/4
Price
N/A
112
Now: PN05
HEX NUT 1/4-20
Price
N/A
113
*DISCD*RUBBER FEET
Item is no longer available
Price
N/A
114
*DISCD*FENCE
Item is no longer available
Price
N/A
114-1
*DISCD*COMPLETE FENCE ASSEMBLY
Item is no longer available
Price
N/A
115
*DISCD*FENCE GUIDE BLOCK
Item is no longer available
Price
N/A
116
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
117
*DISCD*KNOB 6X19
Item is no longer available
Price
N/A
118
*DISCD*FENCE GUARD RAIL
118A
*DISCD*FENCE GUARD RAIL
Price
N/A
118B
*DISCD*COMPLETE RAIL ASSEMBLY
119
*DISCD*MOUNTING BRACKET
Item is no longer available
Price
N/A
120
***USE PCAP01M***
120-1
CAP SCREW 1/4-20 X 5/8
Price
N/A
120A
CAP SCREW 1/4-20 X 3/8
Price
N/A
121
Now: PLW01
LOCK WASHER 5/16
Price
N/A
122
*DISCD*STAND COVER
Item is no longer available
Price
N/A
123
*DISCD*FRAME ARM COVER
125
*DISCD*CLIP F/SIDE PANEL PLASTIC
Item is no longer available
Price
N/A
128
*DISCD*COMPLETE CIRCLE CUTTER
Item is no longer available
Price
N/A
129
*DISCD*COMPLETE FENCE ASSY
Item is no longer available
Price
N/A
130
*DISCD*COMPLETE MITER GAUGE
131
*DISCD*DUST CHUTE V2.01.01
Price
N/A
132
CATCH
Price
N/A
133
*DISCD*DUST CHUTE V2.01.01
133-1
Now: PB57
HEX BOLT 1/4-20 X 1/4
Price
N/A
133-2
Now: PLW02
LOCK WASHER 1/4
Price
N/A
133-3
*DISCD*NUT
Item is no longer available
Price
N/A
133A
Now: PB57
HEX BOLT 1/4-20 X 1/4
Price
N/A
133B
***USE PLW02***
133C
*DISCD*NUT
Price
N/A
134
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
135
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
136
*DISCD*DOOR HINGE UPPER V2.01.01
Item is no longer available
Price
N/A
137
*DISCD*DOOR HINGE LOWER V2.01.01
Item is no longer available
Price
N/A
138
*DISCD*BRUSH V2.01.01
Item is no longer available
Price
N/A
139
BRUSH BRACKET V2.01.01
140
SELF TAPPING SCREW 10-24 X 3/8 V2.01.01
141
Now: PW07M
FLAT WASHER 3MM
Price
N/A
142
*DISCD*FRAME ARM COVER, LWR V2.01.01
Item is no longer available
Price
N/A
144
***USE PN02***
145
*DISCD*LOWER BLADE GUIDE V2.01.01
Item is no longer available
Price
N/A
147
*DISCD*STUD, DOOR V2.01.01
148
CATCH
Price
N/A
149
*DISCD*SWITCH PLATE V2.01.01
Item is no longer available
Price
N/A
150
Now: PB57
HEX BOLT 1/4-20 X 1/4
Price
N/A
151
Now: PW06
FLAT WASHER 1/4
Price
N/A
152
SCALE
Price
N/A
153
POINTER V2.01.01
154
PHLP HD SCR 3/16-24 X 1/4 W/WASHER
155
***USE PW03***
156
***USE PS06***
157
LATCH STUD V2.01.01
158
***USE PWRCRDRECP***
159
POWER CORD 16G X 3W 73"L
Price
N/A
160
***USE PB05***
161
Now: PW03
FLAT WASHER #10
Price
N/A
162
Now: PS07
PHLP HD SCR 1/4-20 X 3/8
Price
N/A
163
KNOB BOLT 5/16-18 X 2
Price
N/A
164
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
165
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
166
Now: PWN01
WING NUT 10-24
Price
N/A
2078
***USE PRP44M***
500
CARTON FOR G1019
Item is no longer available
Price
N/A
501
STYROFOAM 2PC
Item is no longer available
Price
N/A
503
DONT OPEN 2W X 3.3H
Price
N/A
504
Now: G9987
Nameplate - Mini
Price
N/A
505
***USE PLABEL-19***
MANUAL
*DISCD*MANUAL FOR G1019 07/01
Item is no longer available
Price
N/A
PART
MISC PART FOR G1019
Item is no longer available
Price
N/A
